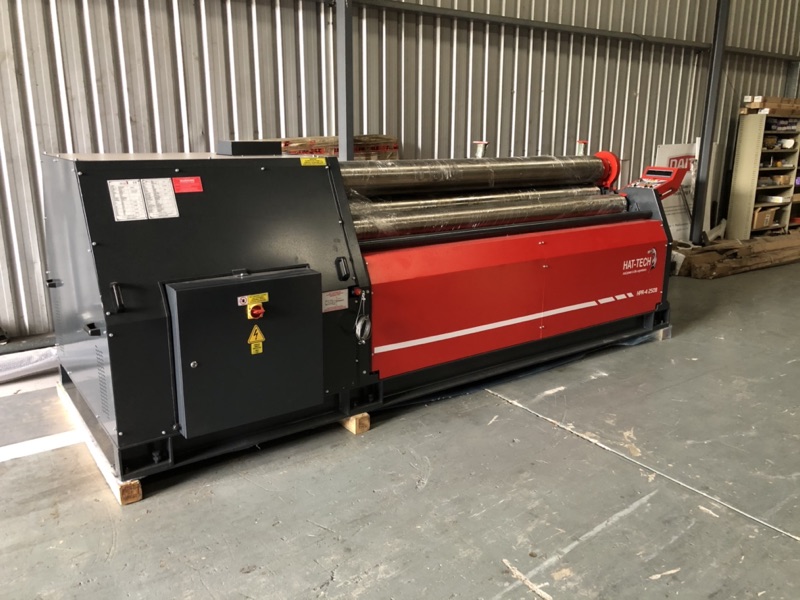

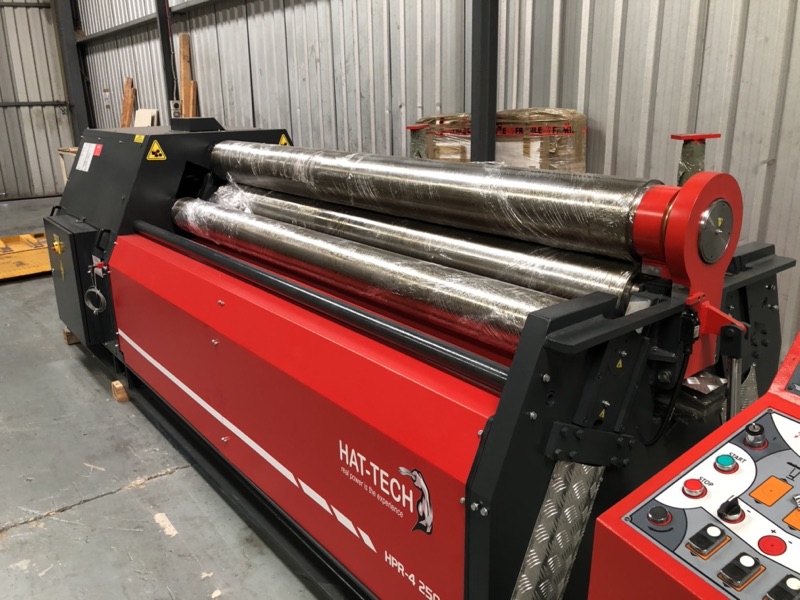

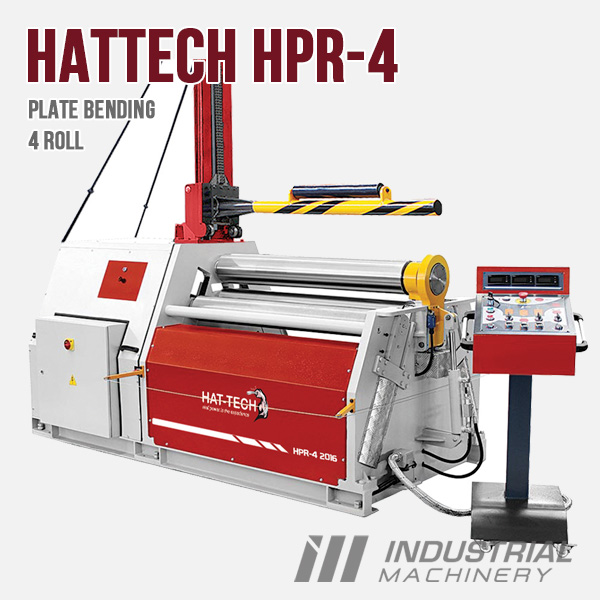

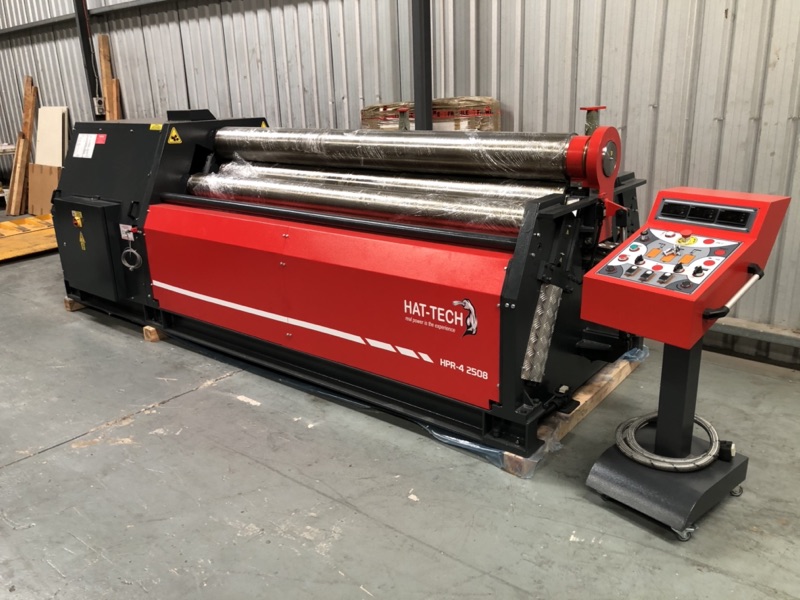

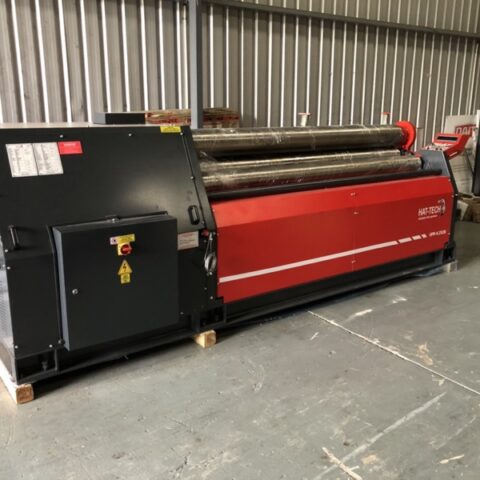

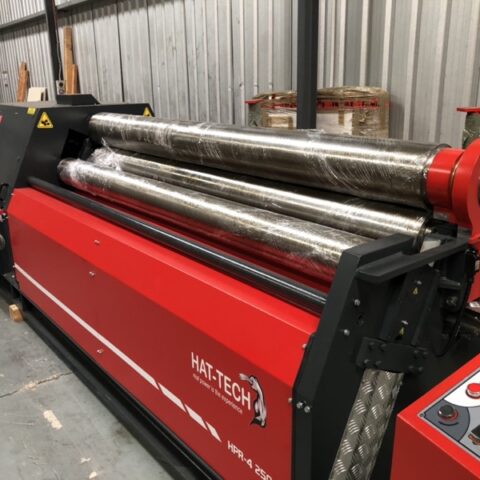

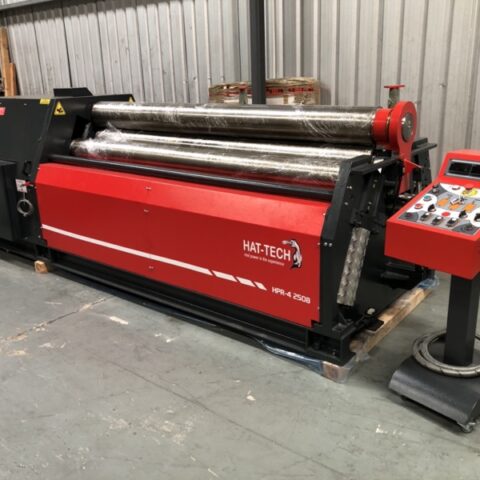

Hattech Plate Rolls HPR-4 Hydraulic 4 Rolls

Standard Features

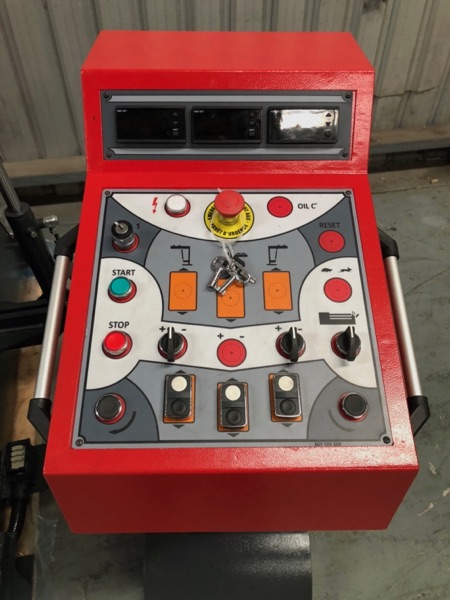

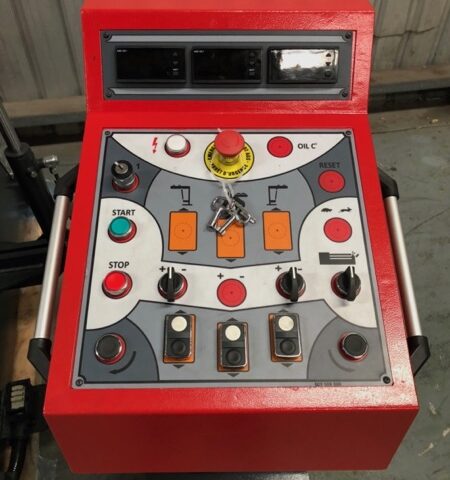

PLC control system
Conical bending
Induction hardened rolls
Stress relieved steel construction body
High tensile carbon steel rolls
Sealed spherical roller bearings
2 rolls drive system (Upper roll Ø 200 mm – Ø 430 mm)
4 rolls drive system (Upper roll <Ø 430 mm)
Fixed top roll (Upper roll Ø 200 mm – Ø 430 mm)
Hydraulic opening cover
Welding possibility on the machine
Electronic synchronized rolls
Mechanical synchronized bottom rolls
Adjustable pinching pressure
Overload protection
Safety wire around the machine and emergency stop button on control panel
Manual lubrication
User manual
CE

Options

NC Control Unit
CNC Control Unit
Polished rolls
Adjustable turning speed (NC, CNC Standard)
Vertical or horizontal working position
Hydraulic vertical support preparation (Full / Mechanical)
Hydraulic vertical support
Side support preparation (Full / Mechanical)
Hydraulic side supports
Hydraulic side supports with double joint
NC included side and vertical supports
Interchangeable top roll
Longer rolls for profile bending and special bending rolls
Oil cooling
Oil heating
Automatic centralized lubrication system
Hydraulic roll crowning system
Plate feeding platform with alignment unit
Special plate support systems
Loading, unloading systems
Seperate power cabinet
Special solutions for wind tower projects

	Usefull length	Prebending capacity	Bending capacity	Top and Bottom roll Ø	Lateral roll Ø	Min. bending Ø
	Usefull length	(x1.5 / x5)	(x1.5 / x5)	Top and Bottom roll Ø	Lateral roll Ø	(x1.5 / x5)
HPR-4 0603	650	2,5/3	3/3,5	80	80	120 / 400
HPR-4 1003	1050	2/3	3/4	100	90	150 / 500
HPR-4 1005	1050	4/5	5/6	130	130	195 / 650
HPR-4 1202	1270	1,5/2	2/3	100	90	150 / 450
HPR-4 1204	1270	3/4	4/5	130	130	195 / 650
HPR-4 1205	1270	4/5	5/7	150	130	225 / 750
HPR-4 1208	1270	5,5/8	8/10	180	150	270 / 900
HPR-4 1210	1270	8/10	10/12	200	180	300 / 1000
HPR-4 1504	1550	2,5/4	4/5	130	130	195 / 650
HPR-4 1505	1550	3,5/5	5/7	150	130	225 / 750
HPR-4 1507	1550	5/7	7/9	180	150	270 / 900
HPR-4 1509	1550	7/9	9/11	200	180	300 / 1000
HPR-4 1510	1550	8/10	10/12	220	180	330 / 1100
HPR-4 1512	1550	10/12	12/15	250	200	375 / 1250
HPR-4 2003	2050	2/3	3/4	130	130	195 / 650
HPR-4 2004	2050	3/4	4/6	150	130	225 / 750
HPR-4 2006	2050	4/6	6/8	180	150	270 / 900
HPR-4 2008	2050	6/8	8/10	200	180	300 / 1000
HPR-4 2009	2050	7/9	9/11	220	180	330 / 1100
HPR-4 2010	2050	8/10	10/12	250	200	375 / 1250
HPR-4 2015	2050	12/15	15/18	275	220	410 / 1375
HPR-4 2018	2050	25	30	350
HPR-4 2503	2550	2/3	3/4	150	130	225 / 750
HPR-4 2504	2550	3/4	4/6	180	150	270 / 900
HPR-4 2506	2550	4/6	6/8	200	180	300 / 1000
HPR-4 2507	2550	5/7	7/9	220	180	330 / 1100
HPR-4 2508	2550	6/8	8/10	250	200	375 / 1250
HPR-4 2512	2550	10/12	12/15	275	220	410 / 1375
HPR-4 2515	2550	12/15	15/18	310
HPR-4 3003	3050	2/3	3/4	180	150	270 / 900
HPR-4 3004	3050	3/4	4/6	200	180	300 / 1000
HPR-4 3006	3050	4/6	6/8	220	180	330 / 1100
HPR-4 3007	3050	5/7	7/9	250	200	375 / 1250
HPR-4 3010	3050	8/10	10/12	275	220	410 /1375
HPR-4 3012	3050	12/15	15/18	310
HPR-4 4004	4100	3/4	4/6	250
