Aore TS Series CNC Tube Laser

In stock

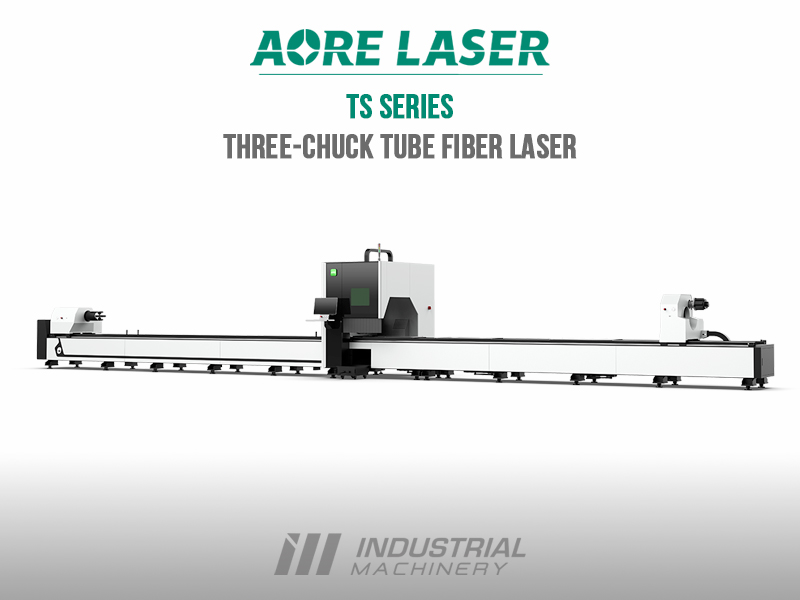

Three-Chuck CNC Tube Fibre Laser Cutting Machine

  • Innovative triple chuck design
  • Whole tube length tubing, Zero tailing
  • Multi-point follower support
  • Cut many types of profiles including: Round pipe, Square pipe, Rectangular pipe, Angle steel, Channel steel, I-beam, H-beam, Etc

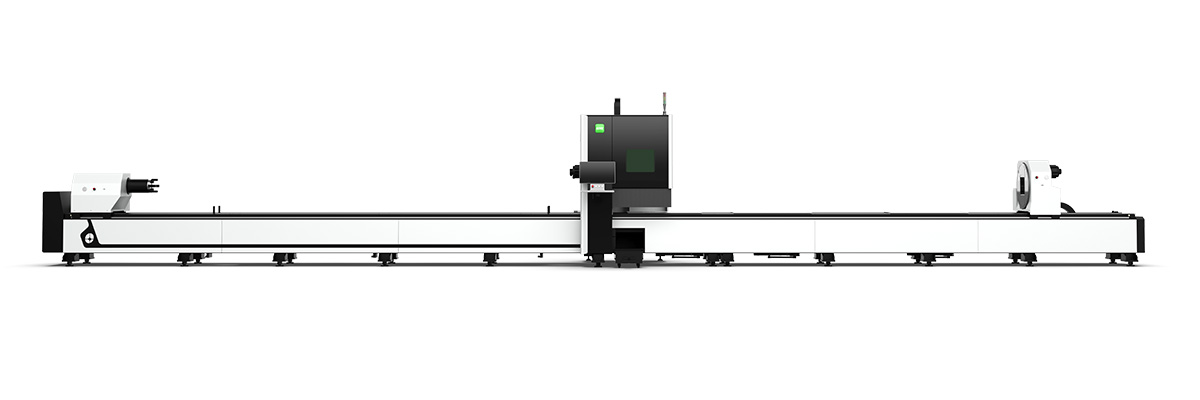

Three-chuck Tube Fiber Laser Cutting Machine

TS series is a cost-effective three-chuck laser pipe cutting machine, the equipment adopts horizontal bed design, with large bearing capacity, high cost performance and other characteristics, is widely used in high-speed guardrail, agricultural greenhouses and other industries.

Wide range of clamping and cutting

Support Angle steel, channel steel, H-shaped steel, shaped pipe and other pipe types, wide range of application

Whole tube cutting, 0 end material processing

Three chuck structure, chuck can be moved, long pipe, whole pipe cutting is not limited, can achieve 0 tail cutting

Full travel follow-up support

Adjust the lifting height in real time, prevent the pipe from swinging and sagging, and ensure the cutting accuracy

Sliding dump rack

Intelligent bus system

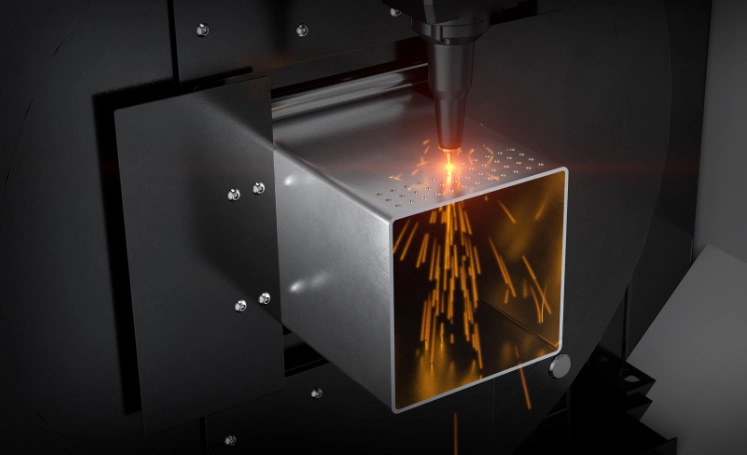

Non-inductive perforation

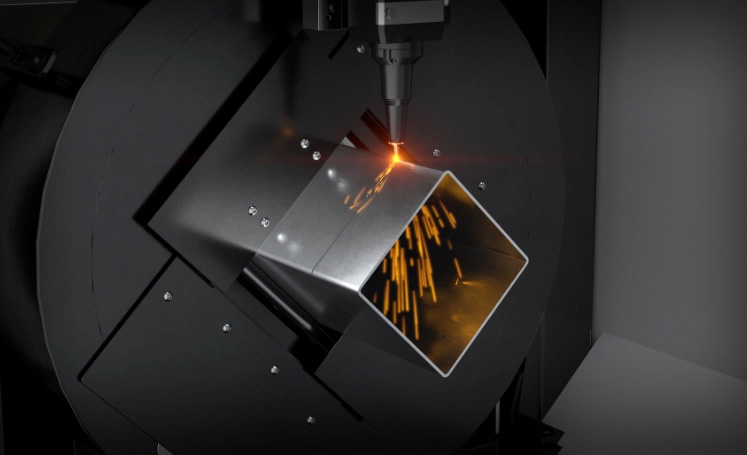

Integrated control

Video

Model
TS12035 TS12020 TS6020
Laser Output Power
1000W~6000W
Diameter Of Round Tube
φ15-350mm φ15-230mm
Side length Of Square Tube
□15-350mm □15-230mm
Positioning Accuracy
±0.05mm
Repeat Positioning Accuracy
±0.05mm
Maximum Speed Of Movement
80m/min 110m/min
Maximum Acceleration
0.8G 1.5G
