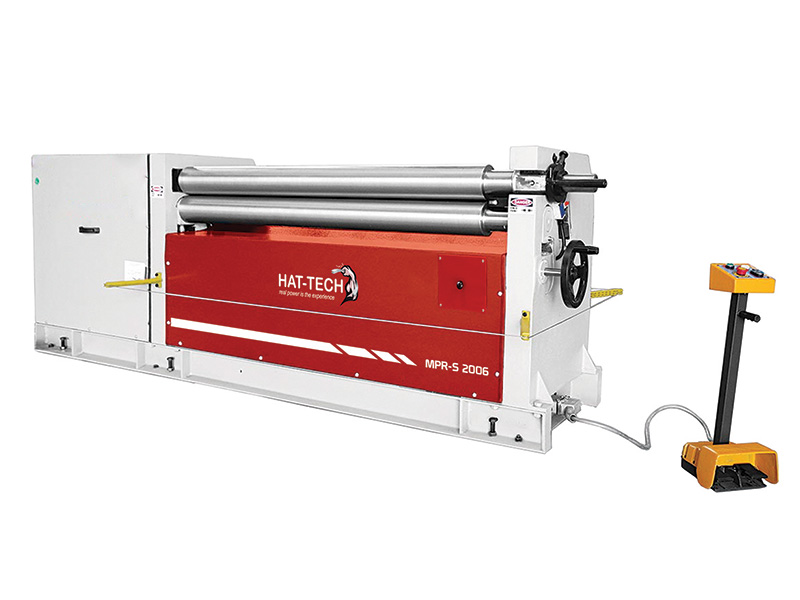

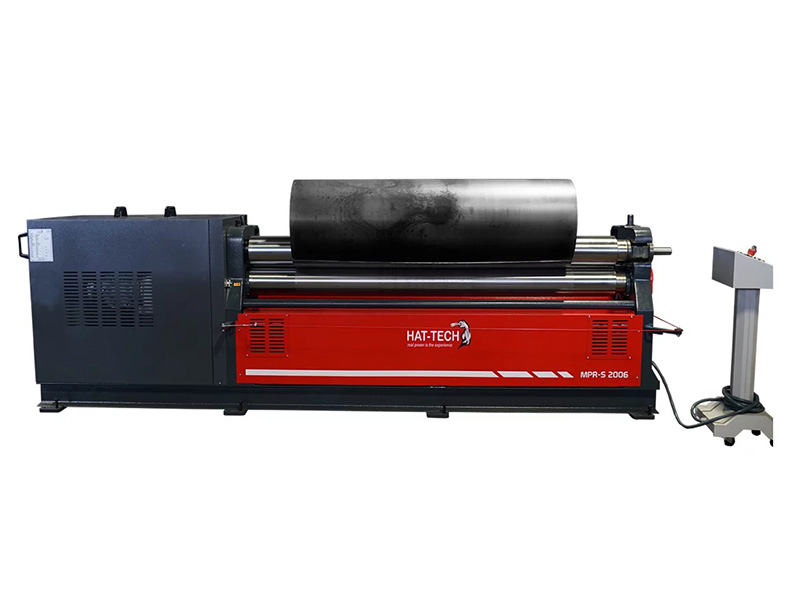

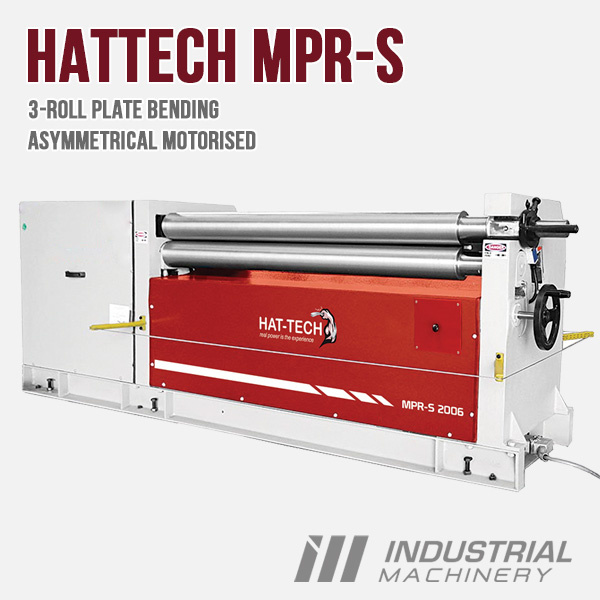

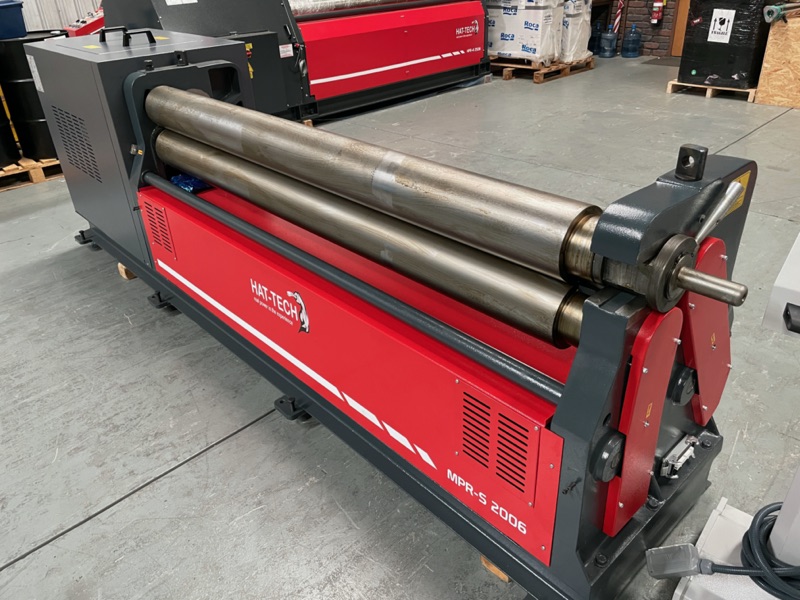

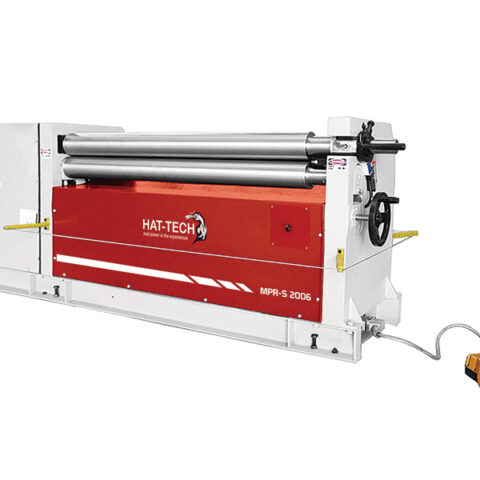

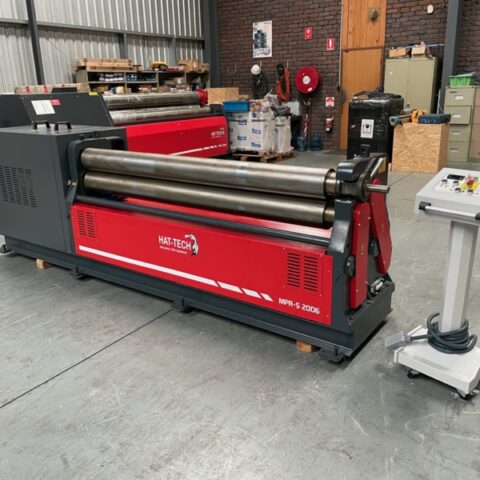

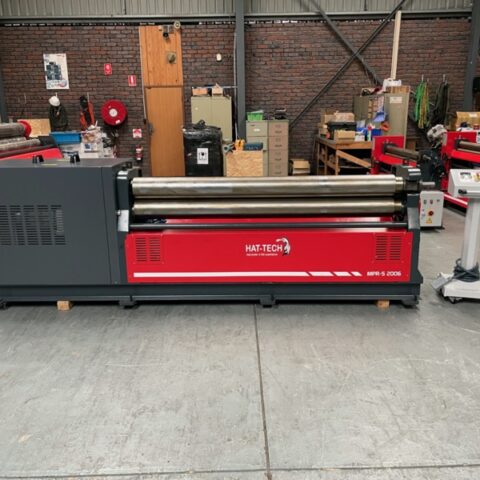

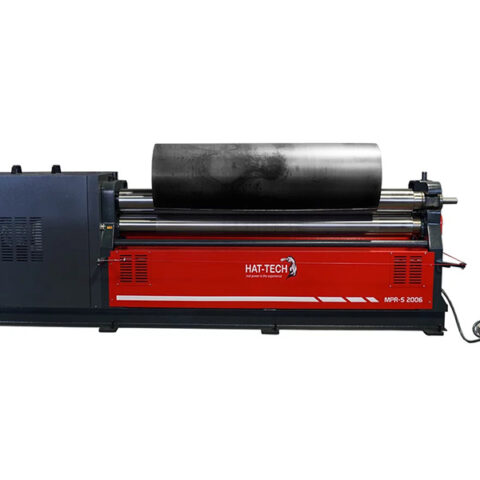

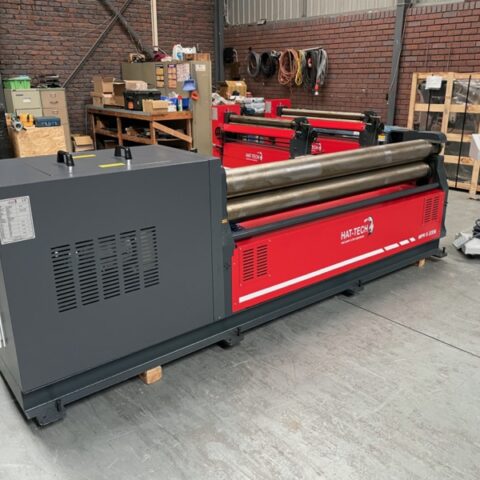

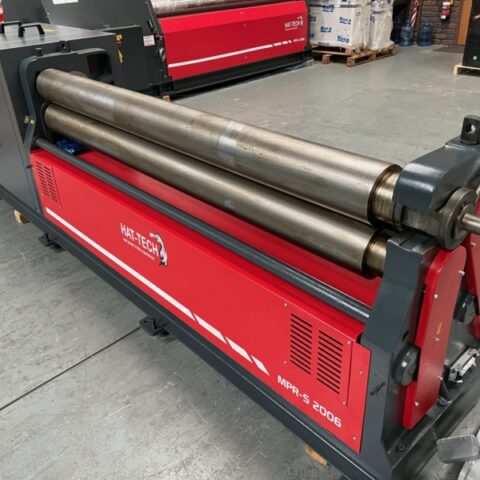

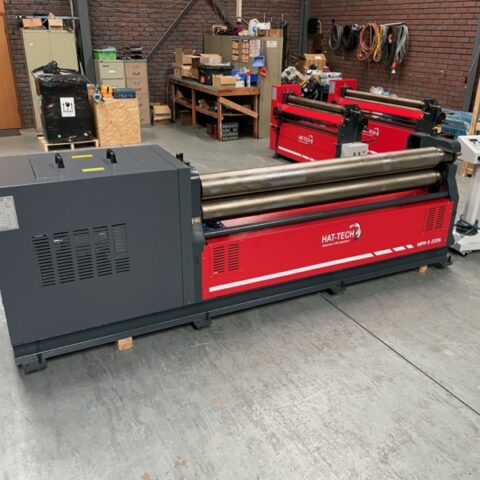

Hattech Plate Rolls MPR-S Asymmetrical Motorised 3-Roll

In stock

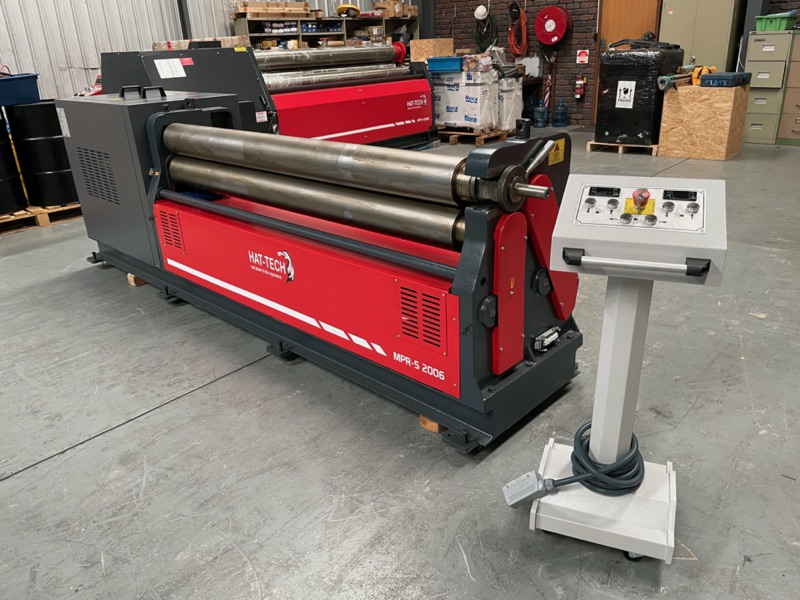

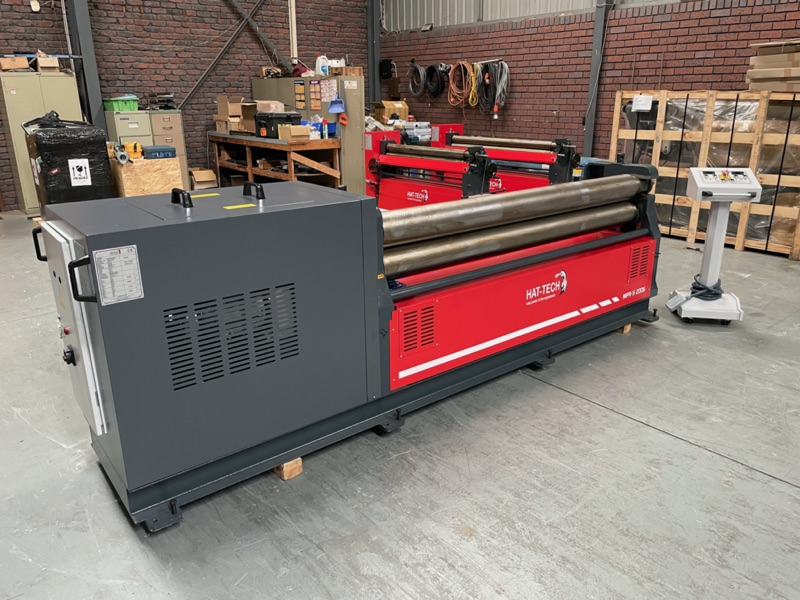

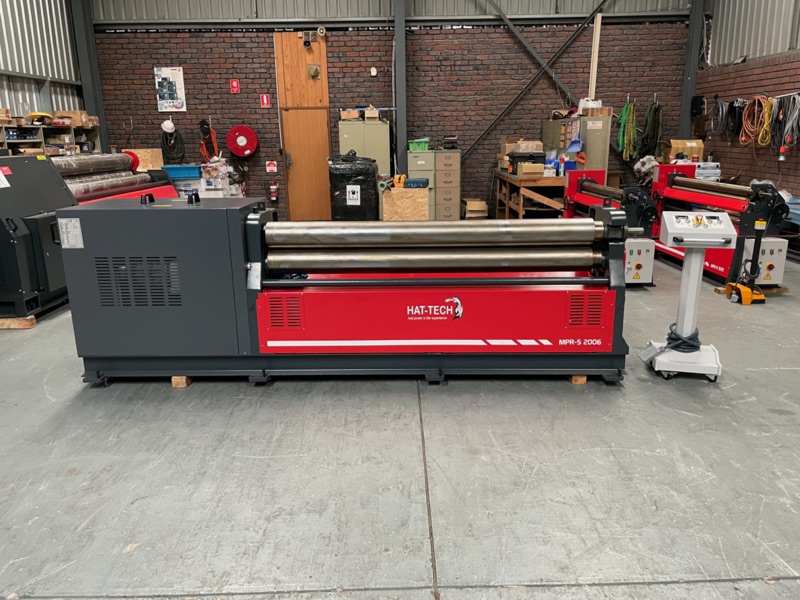

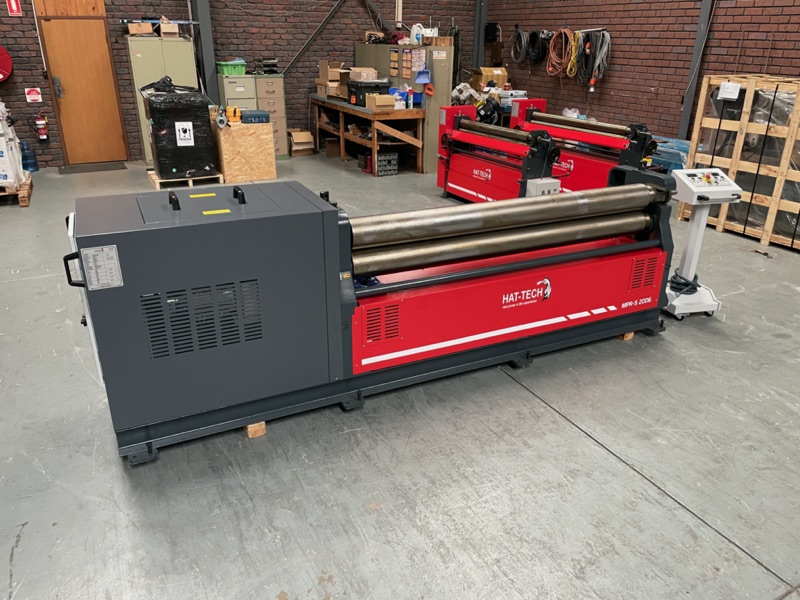

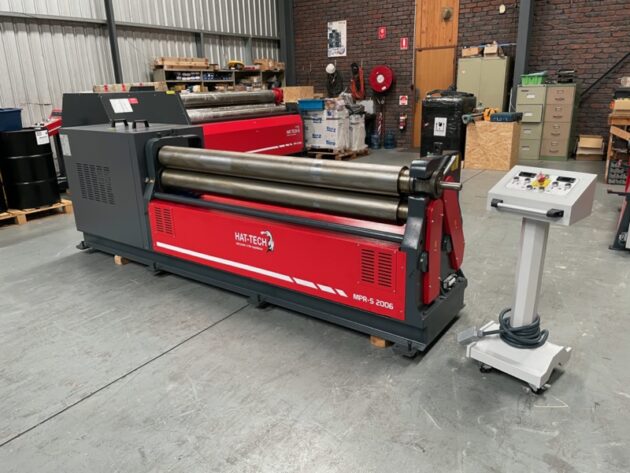

Motorised Asymmetrical Plate Rolls

Elevate your plate rolling capabilities with the Hattech MPR-S Series. This motorised asymmetrical 3-roll machine is designed for precision and versatility. Key features include:

Motorized Efficiency: Effortless plate rolling for various applications.
Asymmetrical Design: Perfect for complex bending tasks.
Superior Results: Consistent and precise plate rolls every time.
Compact Footprint: Saves valuable workshop space.
User-Friendly Controls: Intuitive operation for ease of use.

Categories: Rolls - Plate / Sheet

Brands: Hattech

Tags: CNC Structural Steel Fabrication, Precision Sheet Metal

Description
Specifications

Standard

CE
Conical bending
Motorised back roll
Top & Bottom rolls gear driven

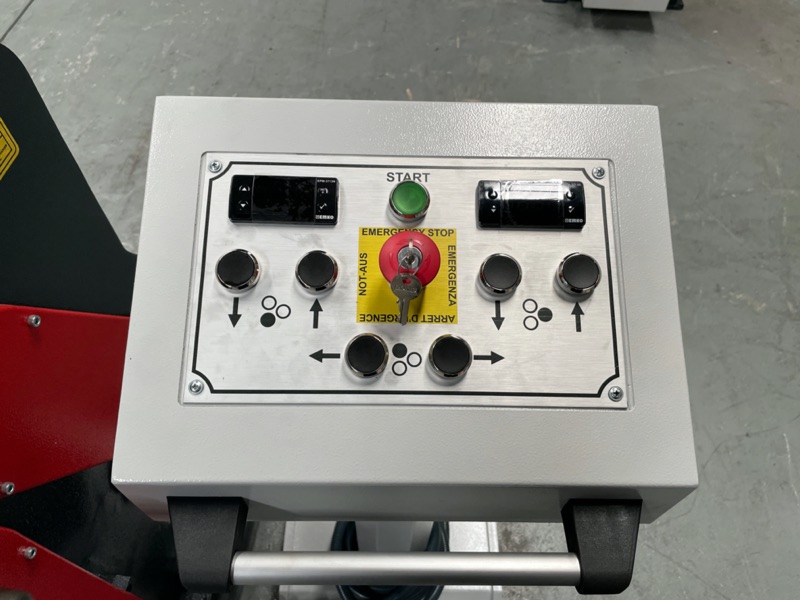

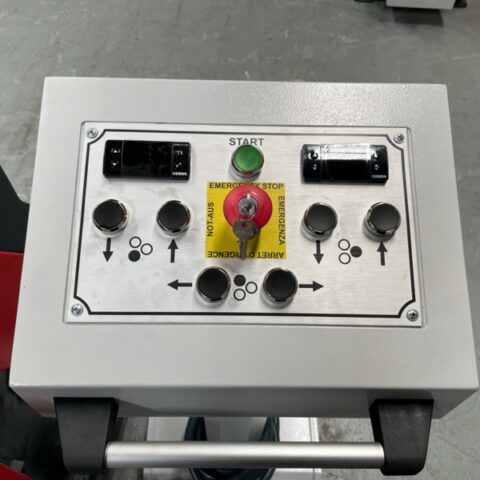

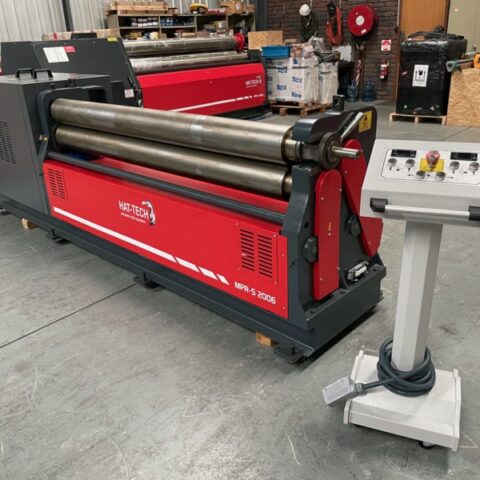

Pendant command panel

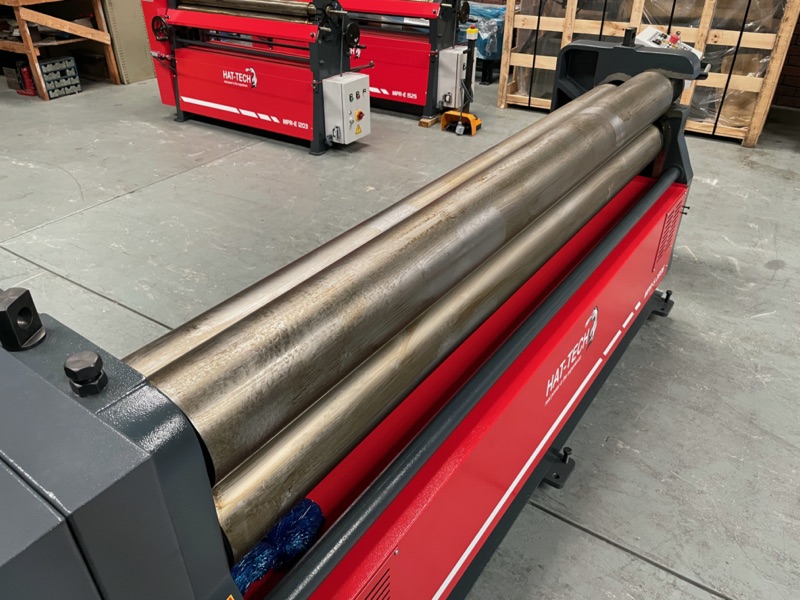

SAE 1050 steel rolls
Induction hardened rolls
Stress relieved steel construction
Support on 2,5 and 3 m machines
Brake system for precise bendings

Options

Digital readout
Motorised bottom roll tightening
Ground rolls
Roll extention for profile bending
Special rolls for profile bending
Special packing for overseas shipments

Show More Show Less

MPR S Series	Unit	1006	1007	1008	1009	1505	1506	1507	1508	2003	2004	2005	2006	2007	2503	2504	2505	2506	3002	3003	3004	3005
Usefull length	mm	1050	1050	1050	1050	1550	1550	1550	1550	2050	2050	2050	2050	2050	2550	2550	2550	2550	3050	3050	3050	3050
Prebending capacity	mm	6	7	8	9	5	6	7	8	3	4	5	6	7	3	4	5	6	2	3	4	5
Bending capacity	mm	7	8	9	10	6	7	8	9	4	5	6	7	8	4	5	6	7	3	4	5	6
Top & Bottom roll Ø	mm	130	150	170	190	130	150	170	190	130	150	170	190	220	150	180	190	220	160	190	200	220
Minimum Bending Ø	mm	195	225	255	285	195	225	255	285	195	225	255	285	315	225	270	285	330	240	285	300	330
Motor Power	kW	2,2	2,2	4	4	2,2	2,2	4	4	2,2	2,2	4	4	4	2,2	4	4	5,5	4	4	4	5,5
Back Roll Motor Power	kW	1,1	1,1	1,1	1,5	1,1	1,1	1,1	1,5	1,1	1,1	1,1	1,5	1,5	1,1	1,5	1,5	2,2	1,1	1,5	1,5	2,2
Length	mm	2750	2750	2850	3200	3250	3250	3350	3700	3750	3750	3850	4200	4350	4250	4350	4700	4700	4850	5200	5200	5200
Width	mm	650	680	720	950	650	680	720	950	650	680	720	950	1150	650	950	950	1150	720	950	950	1150
Height	mm	1020	1040	1050	1300	1020	1040	1050	1300	1020	1040	1050	1300	1400	1020	1300	1300	1400	1050	1300	1300	1400
Weight	kg	1200	1450	1600	2450	1400	1650	1850	2750	1600	1885	2100	3100	3400	2150	3050	3400	5000	2650	3750	4000	6000
