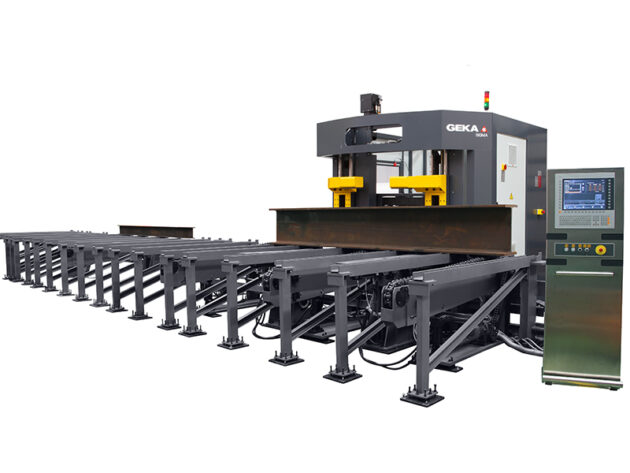

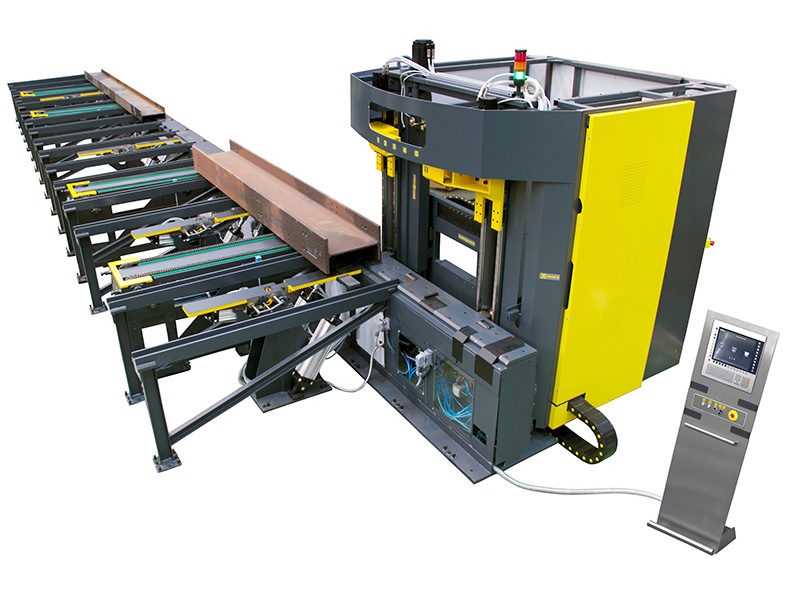

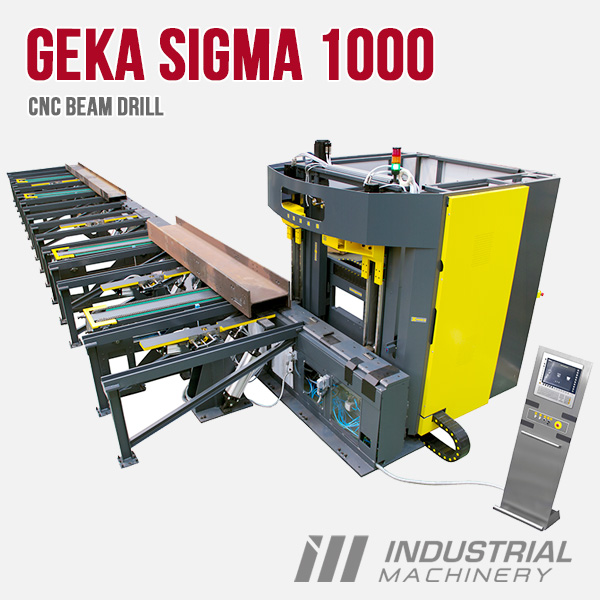

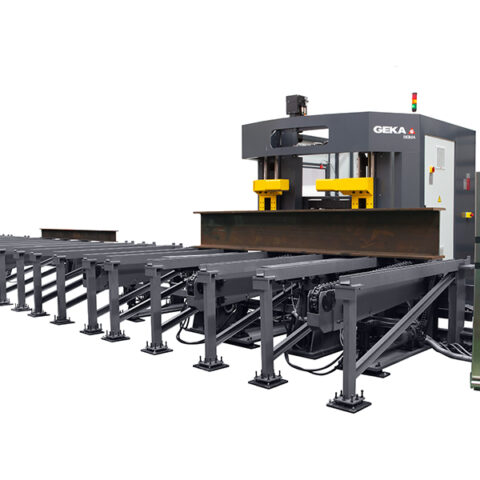

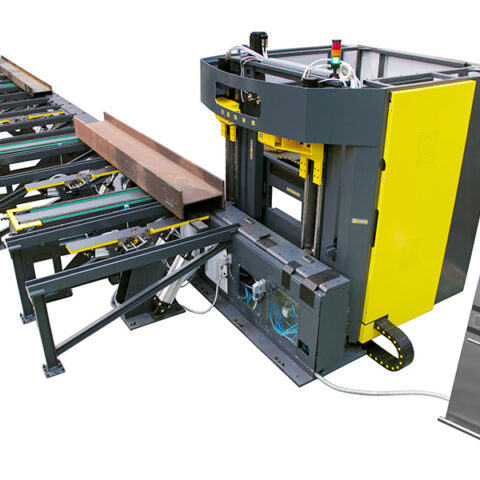

GEKA Sigma 600 1000 CNC Beam Drill
In stock
SIGMA: Your CNC Production Line for Steel Profiles
The SIGMA CNC production line offers a range of impressive features:
- Versatile Profile Processing: Capable of handling steel beam profiles, angles, flat bars, U-profiles, square, and rectangular tubes.
- CNC Precision: Fully programmable via CNC for precise and automated operations.
- Streamlined Machining: The machine references profiles and processes all operations with tool changes optimized for efficiency.
- Innovative Profile Rotator: An optional feature that reduces downtime and manual repositioning, enhancing overall productivity.
Experience the future of steel profile processing with SIGMA. Contact us today to explore the possibilities of this advanced CNC production line.
| MAIN TECHNICAL SPECIFICATIONS | SIGMA-600 | SIGMA-100 | |
| PROFILE CAPACITY | |||
| Section volume | max. (mm) | 600 x 600 | 1000 x 1000 |
| min. (mm) | 70 x 70 | 70 x 70 | |
| Bar length standard | max. (mt) | 12 | 12 |
| Maximum processable length ( Last 100mm Not processable) | max.(mt) | 14 | 14 |
| Suitable for beams, UPN/UPE, angles, flat bar, square tube | yes | yes | yes |
| DRILLING CAPACITY | |||
| Drill heads | no. | 1 | 1 |
| Spindles per vertical drill head | no. | 1 | 1 |
| Drilling diameter | max. (mm) | 40 | 40 |
| Power per head | Kw | 13 | 13 |
| Program controlled spindle rotation speed | RPM | 300-3000 | 300-3000 |
| Automatic tool changer capacity | no. of tools | 5 | 5 |
| Drilling, tapping, milling, countersinking, and marketing (optional) | yes | yes | |
| Tool holder | ISO DIN 69871 (SK40/ISO40) | ||
| OTHER SPECIFICATIONS | |||
| Complementary stroke to the X axis for the vertical head (U-axis) | mm | 250 | 250 |
| X axis positioning speed (portal) | mt/min | 40 | 40 |
| Y axis positioning speed (drill head) | mt/min | 40 | 40 |
| Laser sensor for quick profile position detection and positioning | Std | included | included |
| Internal lubrication | Std | included | included |
| External lubrication | Std | included | included |
| Light security | Std | included | included |
| Operating system | Std | windows 10 | windows 10 |
| Ethernet connection and remote service for troubleshooting | Std | included | included |
| Rotating system for beams up to 600 mm | Optional | ||
