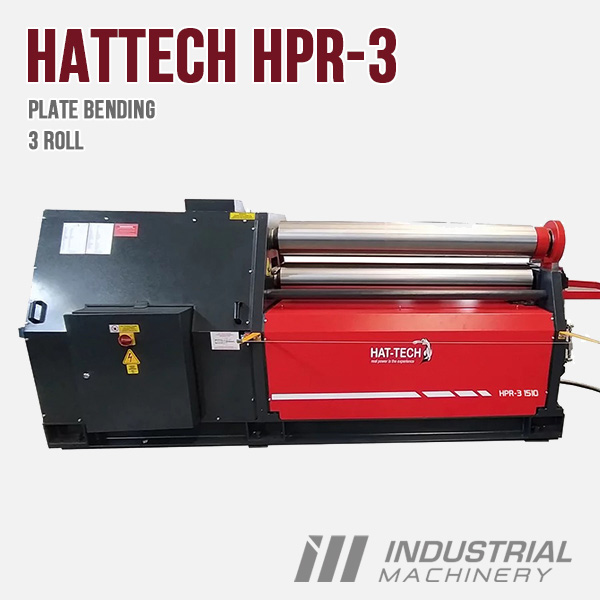

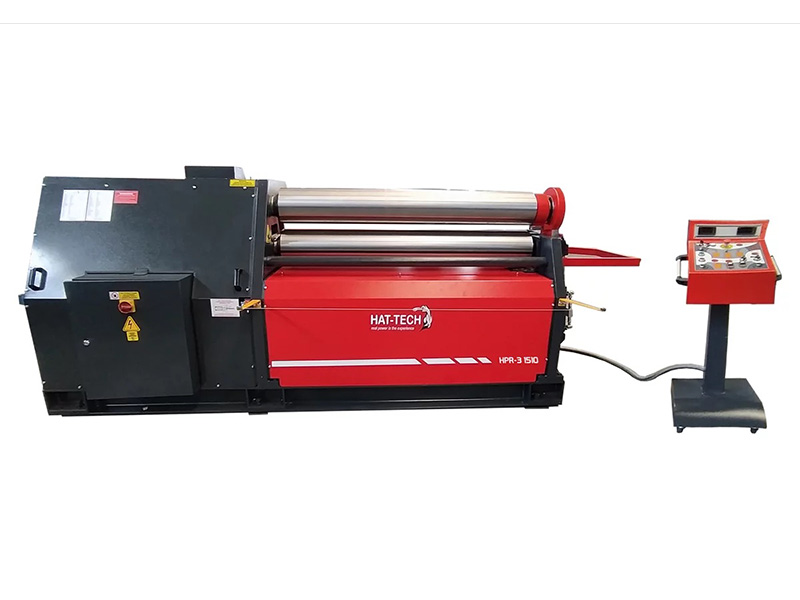

Hattech Plate Rolls HPR-3 Hydraulic 3 Rolls

In stock

Precision 3 Roll Plate Bending Machines

Introducing the Hattech HPR-3 Plate Rolls, where metal forming meets precision engineering. These plate rolls are designed to deliver exceptional results when shaping and bending metal plates. With robust construction, user-friendly controls, and a commitment to accuracy, the Hattech HPR-3 Plate Rolls are your go-to solution for achieving precise and reliable metal forming. Experience the next level of craftsmanship with Hattech.

Standard

PLC control system
Conical bending
Induction hardened rolls
Stress relieved steel construction body
High tensile carbon steel rolls
Sealed spherical roller bearings
3 rolls drive system
Fixed top roll and hydraulic opening cover
Welding possibility on the machine
Electronic synchronized rolls
Overload protection
Safety wire around the machine and emergency
Stop button on control panel
Manual lubrication
User manual
CE

Options

Polished rolls
Adjustable turning speed
Vertical or horizontal working position
Hydraulic vertical support preparation (Full / Mechanical)
Hydraulic vertical support
Hydraulic Side support preparation (Full / Mechanical)
Hydraulic side supports
Hydraulic side supports with double joint
Interchangeable top roll
Longer rolls for profile bending and special bending rolls
Oil cooling
Oil heating
Automatic centralized lubrication system
Plate feeding platform with alignment unit
Special plate support systems
Loading, unloading systems
Seperate power cabinet

Show More Show Less

	Usefull length	Prebending capacity	Bending capacity	Top and Bottom roll Ø	Lateral roll Ø	Min. bending Ø	Weight
	Usefull length	(x1.5 / x5)	(x1.5 / x5)	Top and Bottom roll Ø	Lateral roll Ø	(x1.5 / x5)	Weight
HPR-3 0603	650	2,5/3	3/3,5	80	80	120 / 400	800
HPR-3 1002	1050	1,5/2	2/2,5	80	80	120 / 400	920
HPR-3 1003	1050	2/2,5	2,5/3	100	90	150 / 500	1120
HPR-3 1202	1270	1,5/2	2/3	100	90	150 / 450	1150
HPR-3 1204	1270	3/4	4/5	130	130	195 / 650	1750
HPR-3 1205	1270	4/5	5/7	150	130	225 / 750	1875
HPR-3 1208	1270	5,5/8	8/10	180	150	270 / 900	2100
HPR-3 1210	1270	8/10	10/12	200	180	300 / 1000	2200
HPR-3 1504	1550	2,5/4	4/5	130	130	195 / 650	1850
HPR-3 1505	1550	3,5/5	5/7	150	130	225 / 750	2000
HPR-3 1507	1550	5/7	7/9	180	150	270 / 900	2310
HPR-3 1509	1550	7/9	9/11	200	180	300 / 1000	2450
HPR-3 1510	1550	8/10	10/12	220	180	330 / 1100	3250
HPR-3 1512	1550	10/12	12/15	250	200	375 / 1250	3600
HPR-3 2003	2050	2/3	3/4	130	130	195 / 650	2050
HPR-3 2004	2050	3/4	4/6	150	130	225 / 750	2250
HPR-3 2006	2050	4/6	6/8	180	150	270 / 900	2690
HPR-3 2008	2050	6/8	8/10	200	180	300 / 1000	2950
HPR-3 2009	2050	7/9	9/11	220	180	330 / 1100	3750
HPR-3 2010	2050	8/10	10/12	250	200	375 / 1250	4200
HPR-3 2020	2050	20	25	320
HPR-3 2025	2050	25	30	350
HPR-3 2503	2550	2/3	3/4	150	130	225 / 750	2500
HPR-3 2504	2550	3/4	4/6	180	150	270 / 900	3070
HPR-3 2506	2550	4/6	6/8	200	180	300 / 1000	3450
HPR-3 2507	2550	5/7	7/9	220	180	330 / 1100	4250
HPR-3 2508	2550	6/8	8/10	250	200	375 / 1250	4800
HPR-3 2516	2550	16	20	320
HPR-3 2520	2550	20	25	350
HPR-3 3003	3050	2/3	3/4	180	150	270 / 900	3450
HPR-3 3004	3050	3/4	4/6	200	180	300 / 1000	3950
HPR-3 3006	3050	4/6	6/8	220	180	330 / 1100	4750
HPR-3 3007	3050	5/7	7/9	250	200	375 / 1250	5400
HPR-3 3010	3050	8/10	10/12	280	260		8370
HPR-3 3013	3050	10/12	13/15	300	280		9050
HPR-3 3016	3050	13/16	16/20	350
HPR-3 4004	4100	3/4	4/6	250
