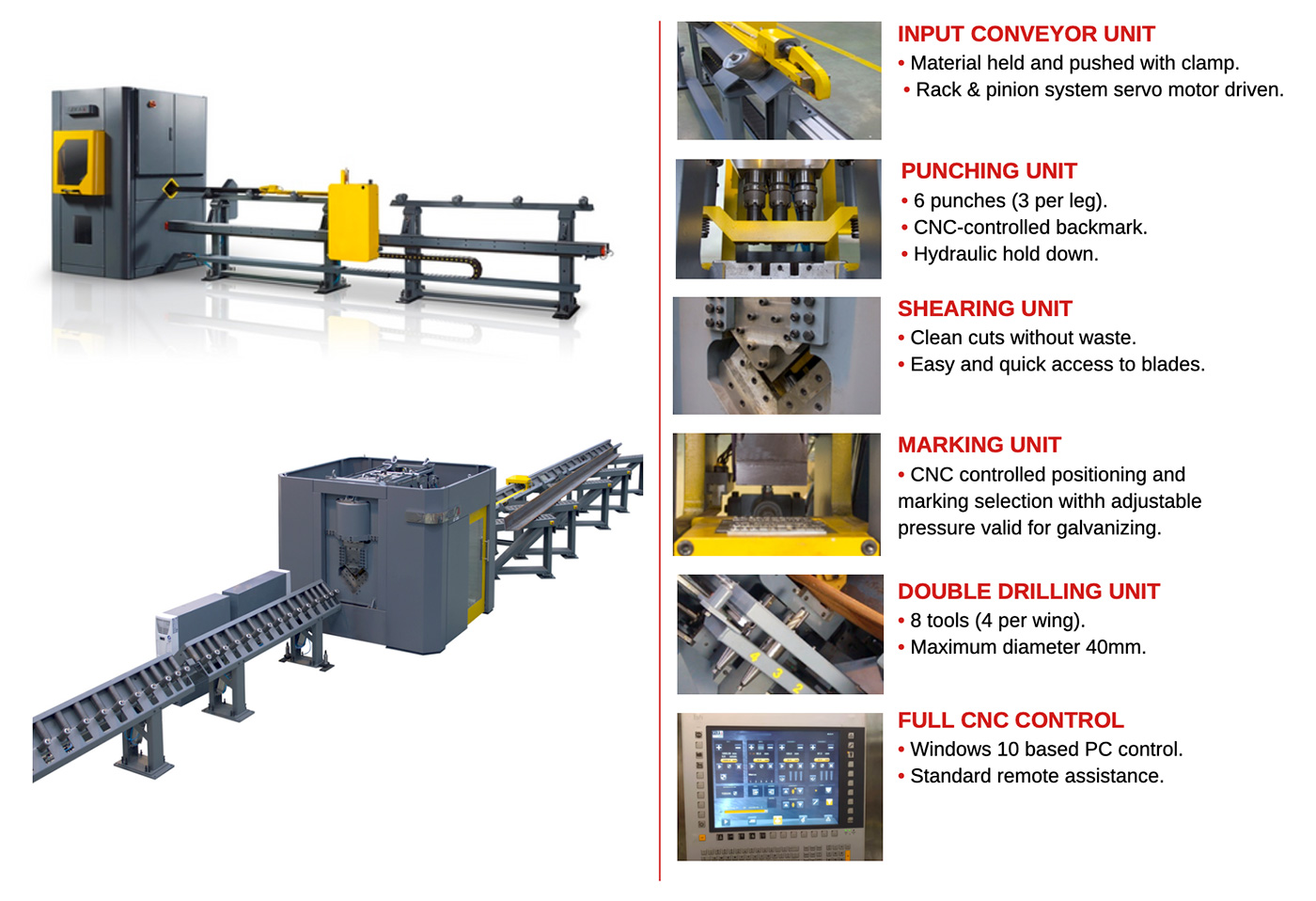

Features

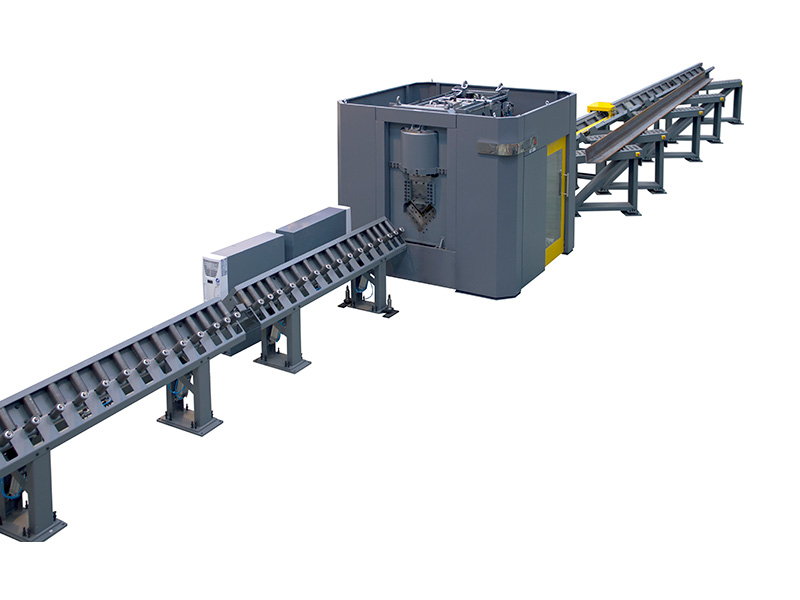

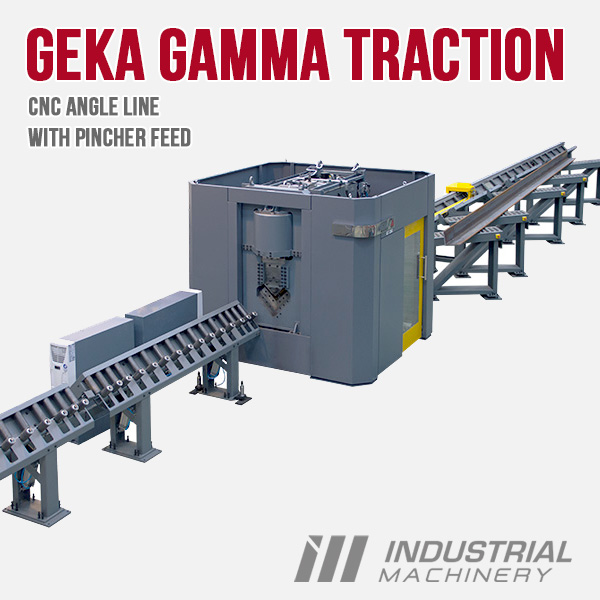

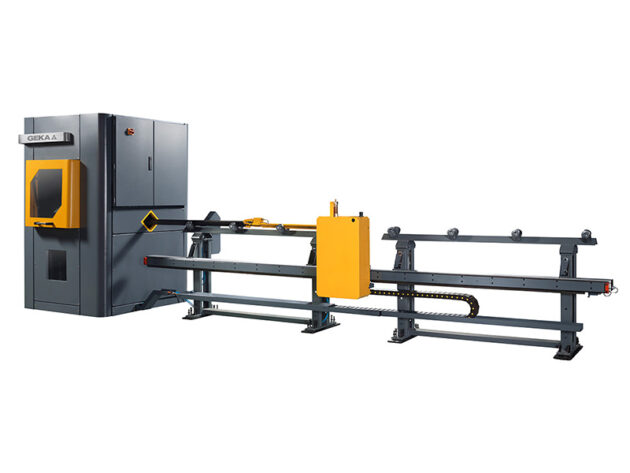

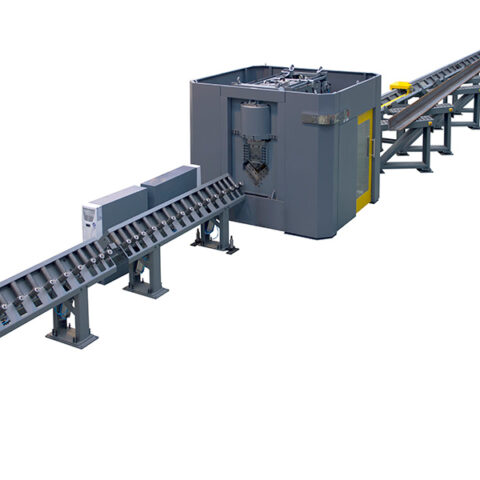

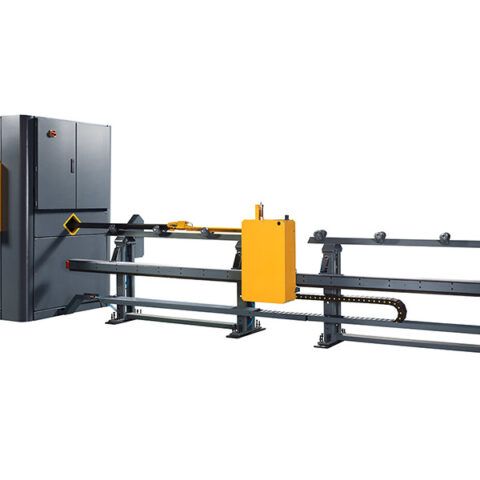

GEKA GT Series CNC Angle Lines
In stock
The GEKA GT (GAMMA TRACTION) Series represents machines engineered for delivering peak output and exceptional processing quality when working with angle bars, flat bars, and U-profiles. These machines employ a pincher + carriage system to maximise efficiency, minimising material wastage and ensuring optimal results in every operation.
Angle Processing Capacity
- From 35 x 35 x 4 mm
- To 250 x 250 x 25 mm
| GAMMA TRACTION | GT-100 | GT-150 | GT-160 | GT-200 | GT-250 | |
| Angle processing (min) (45kg/mm2) | mm | 35 x 35 x 4 | 40 x 40 x 4 | 40 x 40 x 4 | 50 x 50 x 5 | 50 x 50 x 5 |
| Angle processing (max) (45kg/mm2) | mm | 100 x 100 x 10 | 150 x 150 x 15 | 160 x 160 x 16 | 200 x 200 x 20 | 250 x 250 x 25 |
| Flats processing (max) (45kg/mm2) | mm | 100 x 10 | 150 x 15 | 160 x 16 | 200 x 20 | 250 x 25 |
| U-Channel processing (optional) (45kg/mm2) | mm | - | 120 | 120 | 140 | 180 |
| Infeed | type | Pincher | Pincher | Pincher | Pincher | Pincher |
| Number of punches per leg | no. | 1 x 2 | 2 x 2 | 3 x 2 | 3 x 2 | 3 x 2 |
| Punching diameter (max) | mm | 31 | 31 | 31 | 31 | 31 |
| Punching power | tons | 65 | 80 | 80 | 80 | 80 |
| Shearing power | tons | 100 | 150 | 250 | 300 | 500 |
| Pressure marking 5 holders, 10 ch each | Std | Standard | Standard | Standard | Standard | Standard |
| Disc marking | Optional | 40 characters | 40 characters | 40 characters | 40 characters | 40 characters |
| Drilling station | Optional | - | - | - | - | 1 per leg w/4 tools |
| Operating software in Windows 10 | Standard | LinePro Net | LinePro net | LinePro net | LinePro net | LinePro net |
| Optional | LANTEK | LANTEK | LANTEK | LANTEK | LANTEK | |
