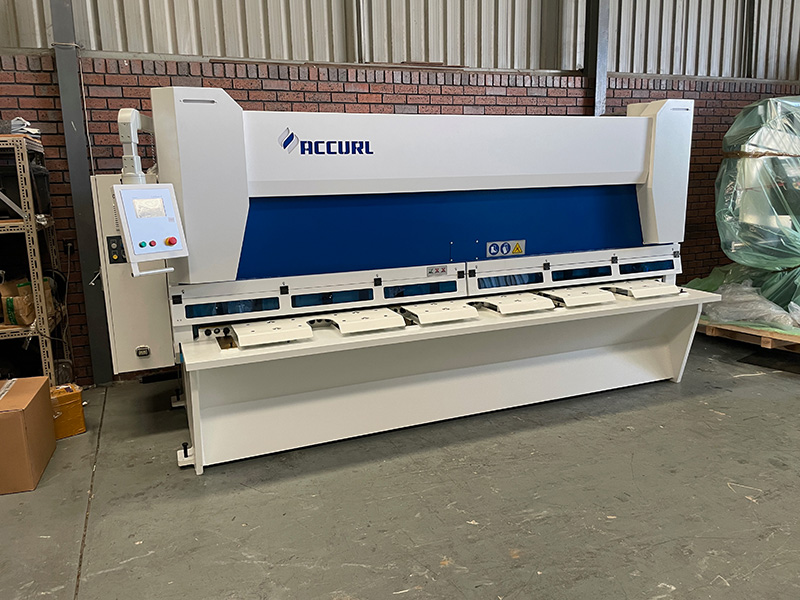

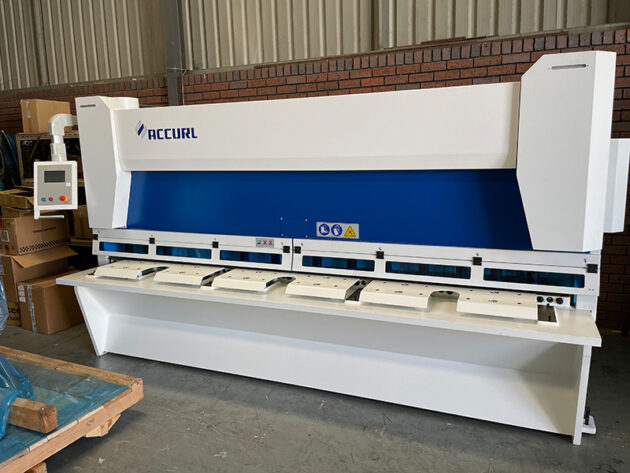

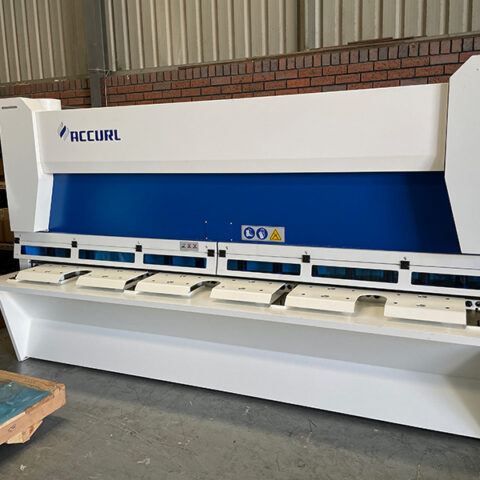

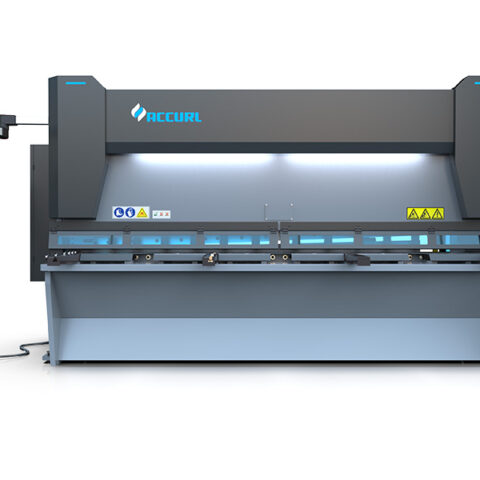

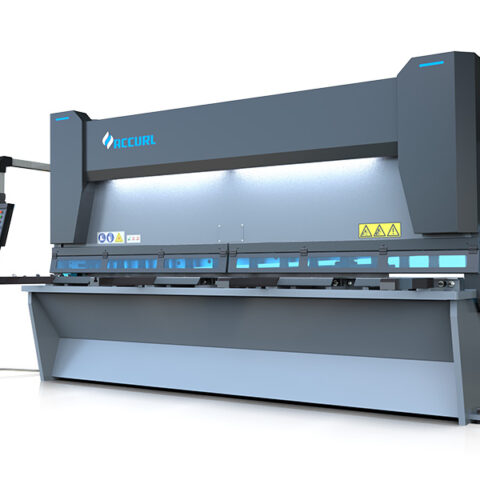

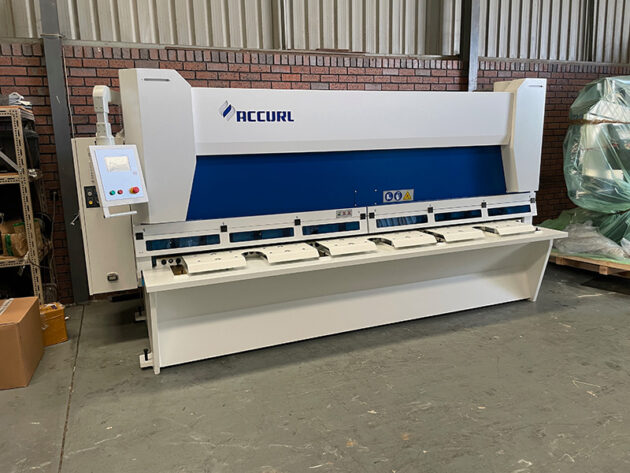

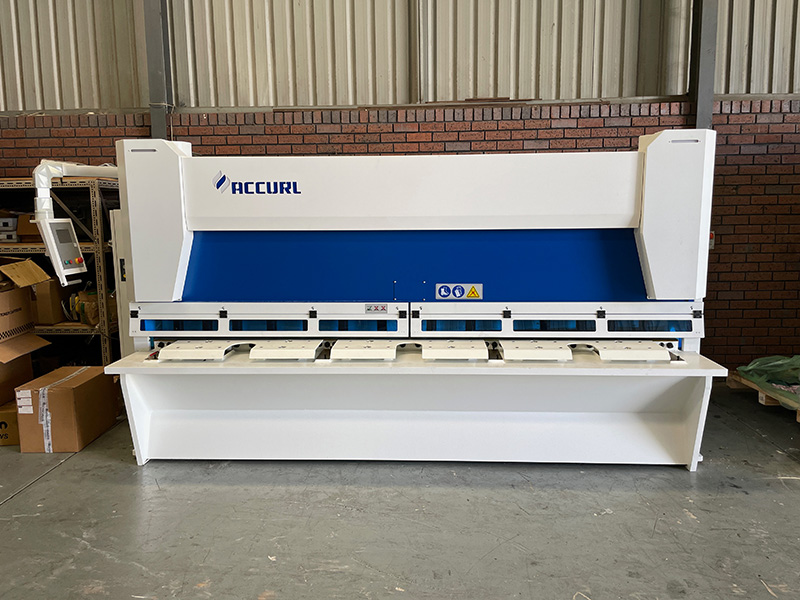

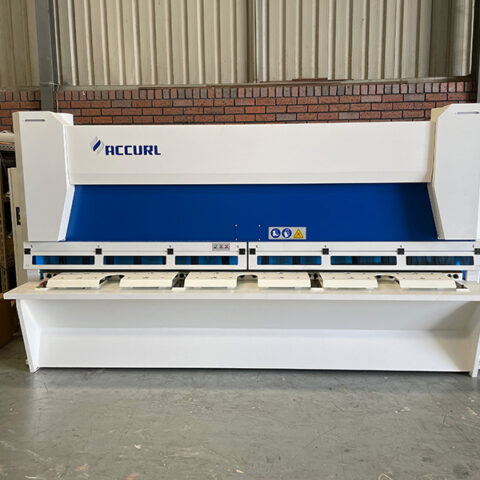

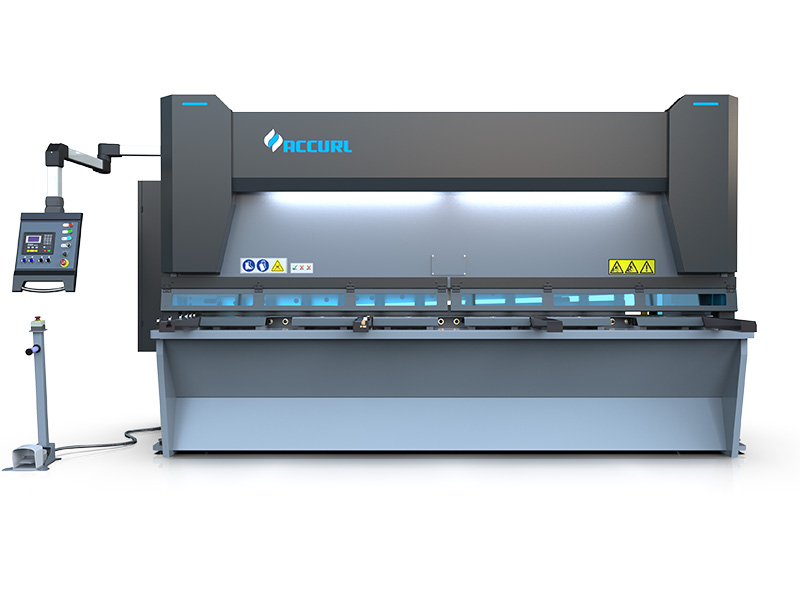

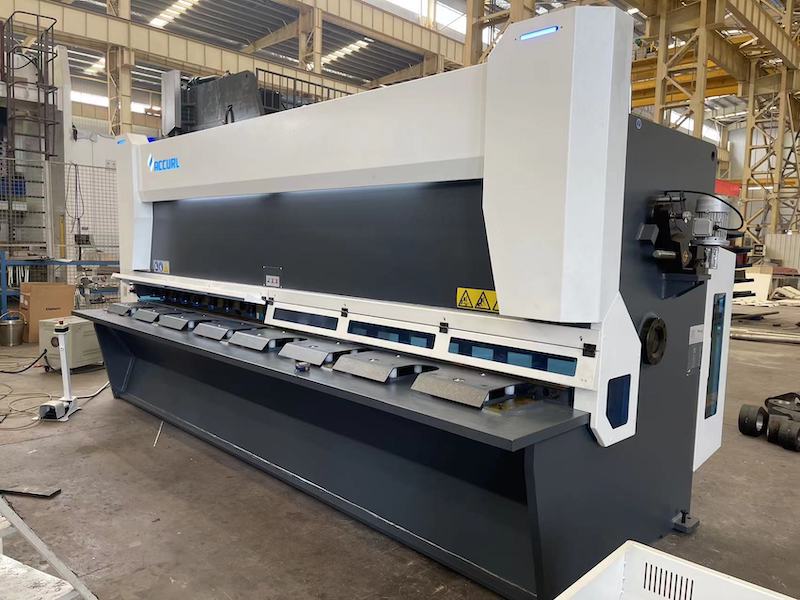

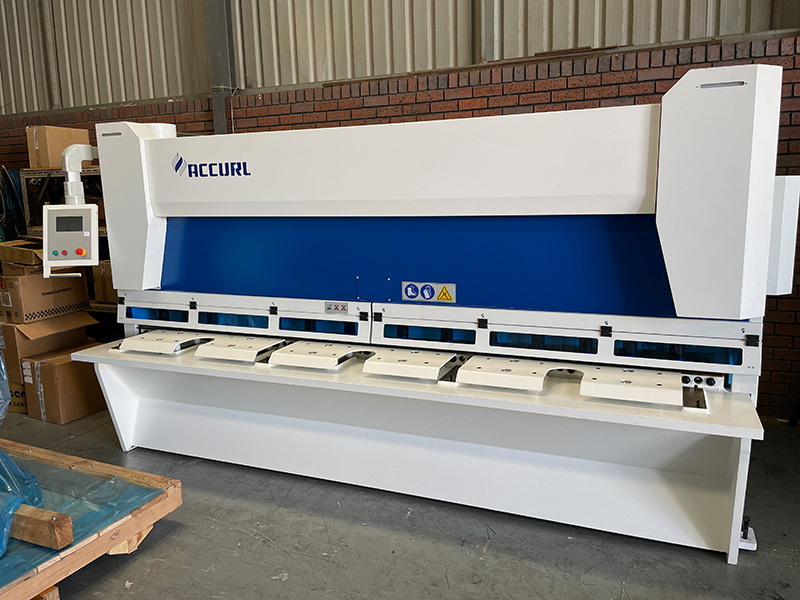

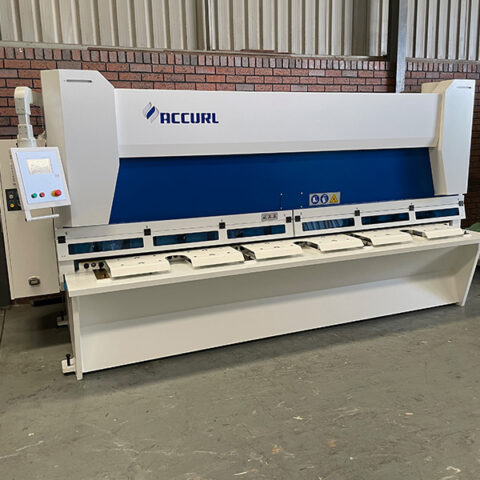

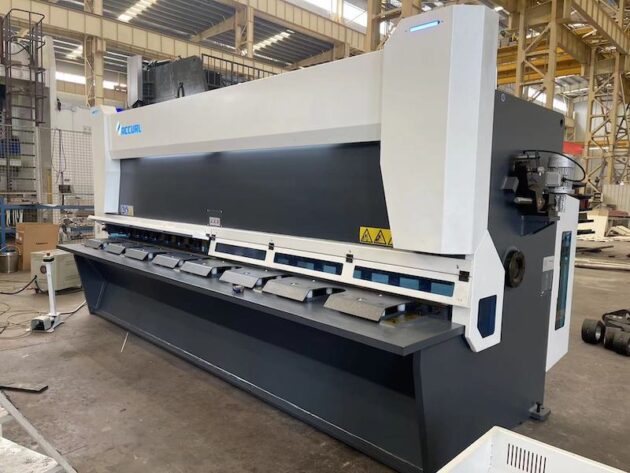

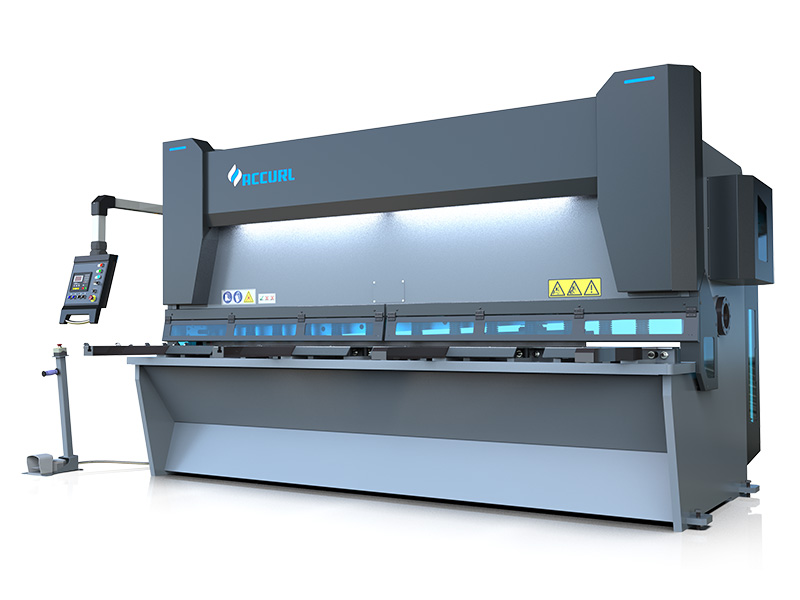

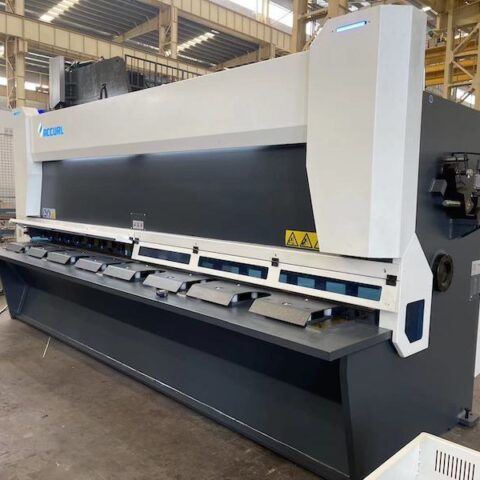

Accurl Master CNC Guillotine 6~16mm

In stock

Precision Cutting at Its Best!

Our hydraulic CNC guillotine shear offers automatic gap adjustment, cutting angle, and length control, ensuring top-notch performance tailored to your material needs.

Experience exceptional cutting speed, complemented by the efficiency of a Servo Backgauge. Explore the capabilities of ACCURL’s MASTER SERIES CNC Guillotine Shears today!

Including Standard Features

User-friendly German Touch Screen CNC control unit
Servo-controlled back gauge.
Portable foot pedal for single and automatic cutting.
Automatic calculations of the shear functions upon entering the material specifications
- Automatic Blade gap adjustment
- Automatic Cutting angle adjustment
Scales with metric and inches.
Rear sliding plates.
Cutting line illumination and shadow line.
Front sliding plates with ball bearings on the table.
Front support arms with T slot, ruler and flip stop.
Wear-resistant blades for Top blade 4 cutting edge and Bottom blade 4 cutting edge
Front finger protection guard appropriate to CE norms, 1 m left side collapsible and switch protected.

Show More Show Less

Model	Cut thickness	Cut length	Shear angle	SPM	Back gauge	Throat depth	Main motor	Net weight	Overall size
	mm	mm	Degree	min-1	mm	mm	kw	kg	cm
MS8-6×3200	6	3200	0.5°-1.5°	14	800	100	7.5	6500	400x180x210
MS8-6×4000	6	4000	0.5°-1.5°	12	800	100	7.5	8400	480x190x220
MS8-8×3200	8	3200	0.5°-1.5°	12	800	100	7.5	7400	410x190x215
MS8-8×4000	8	4000	0.5°-2.0°	11	800	100	11	9500	480x190x230
MS8-10×3200	10	3200	0.5°-2.0°	8	800	120	11	8500	400x185x225
MS8-10×4000	10	4000	0.5°-2.0°	8	800	120	11	11000	480x200x239
MS8-13×3200	13	3200	0.5°-2.0°	7	800	120	18.5	9200	400x190x235
MS8-13×4000	13	4000	0.5°-2.2°	6	800	130	18.5	12800	480x200x249
MS8-13×6000	13	6000	0.5°-2.4°	6	1000	150	18.5	26000	710x242x300
MS8-16×3200	16	3200	0.5°-2.5°	6	800	130	22	12000	430x210x250
MS8-16×4000	16	4000	0.5°-2.5°	6	1000	130	30	26500	485x215x255
MS8-16×6000	16	6000	0.5°-2.5°	6	1000	130	30	33000	710x230x295
MS8-16×8000	16	8000	0.5°-2.5°	5	1000	130	30	75500	900x328x327
