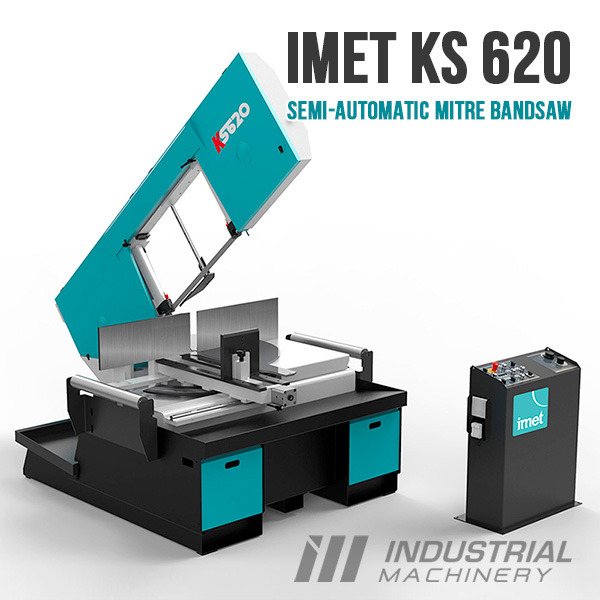

IMET KS 620 Semi-Auto Mitre Bandsaw

$43,200.00

In stock

Semi-Automatic Bandsaw for Steel Constructions

The KS saws are the only ones in their class that can cut 60 ° right and left by positioning the locking vice only once. The vice is sliding transversely on the support surface with locking and rapid approach.

  • 620mm Capacity
  • Semi-Automatic
  • Double Mitre Cutting

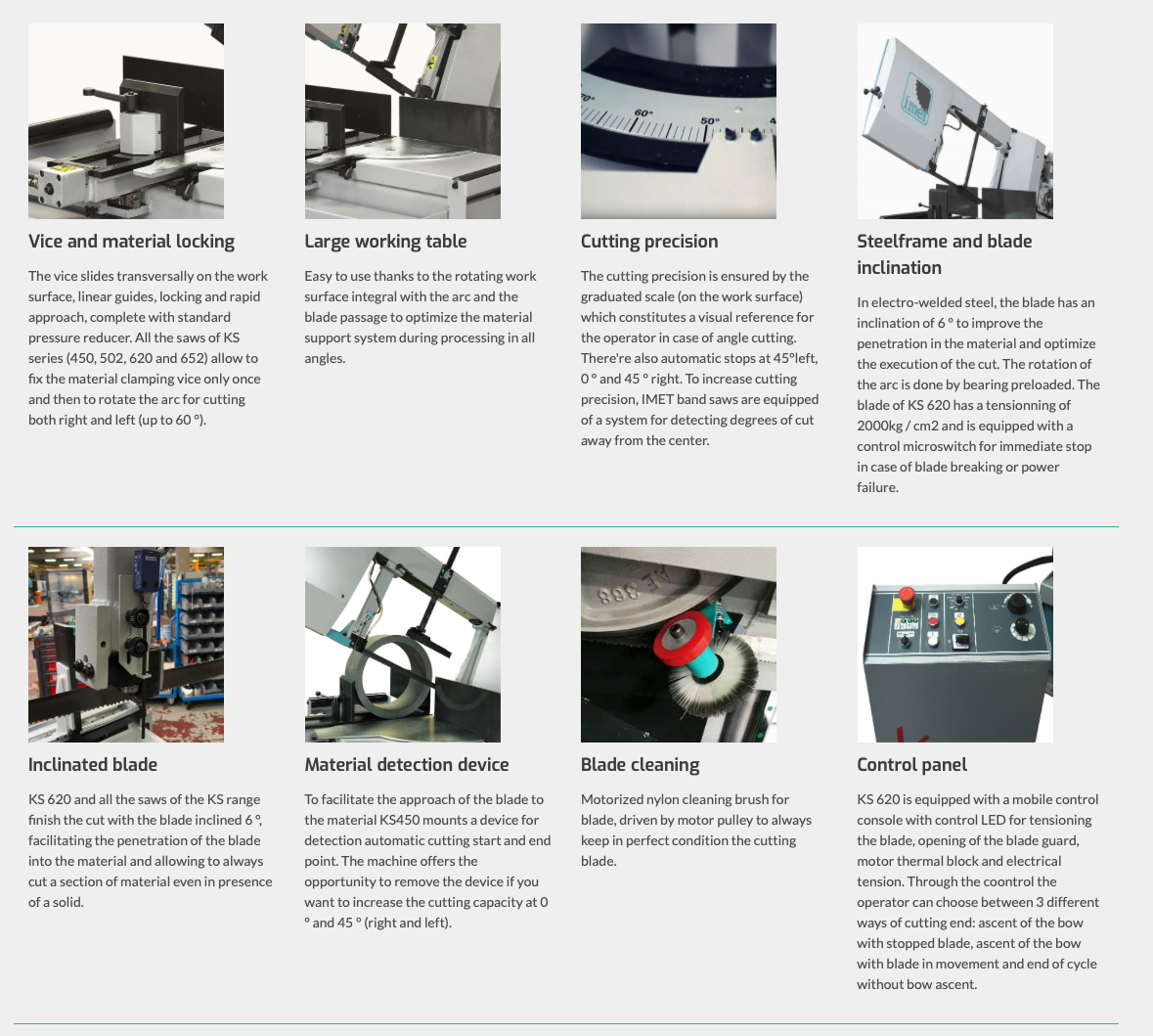

FEATURES KS 620



TECHNICAL INFORMATION

Cutting capacity at 0° Round: 500mm Square: 420mm Rectangular: 600x400mm
Cutting capacity at 45° left/right Round: 445mm Square: 410mm Rectangular: 450x250mm
Cutting capacity at 60° left Round: 320mm Square: 290mm Rectangular: 280x350mm
Cutting capacity at 60° right Round: 245mm Square: 240mm Rectangular: 240x310mm
Cutting capacity (BUNDLE) Max: 500x300mm Min: 160x40mm
Cutting capacity at 0° solids (C45) 250mm
Blade size 5320x34x1.1mm
Blade speed 15-100m/min
Blade 3KW
Working table height 805mm
Blade inclination
Weight 1450kg
Dimensions 1705x2500x2500mm
