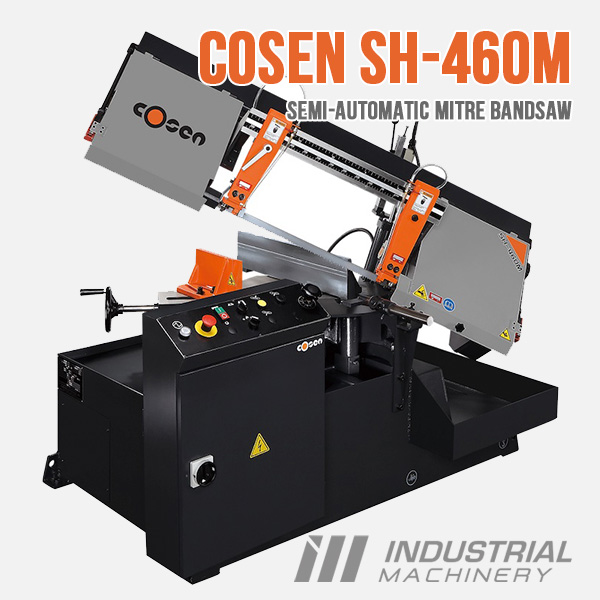

Cosen SH-460M Semi-Automatic Mitre Bandsaw

In stock

Keep it simple and reliable with one of Australia’s favourite general workshop bandsaws. Introducing the Cosen SH-460M Bandsaw.

  • 460mm capacity
  • Semi-automatic
  • Auto lift after cut
  • Swivel frame for mitre cutting
  • Coolant



Brands:

Cosen offers two exceptional bandsaw models, the SH500M and SH460M, designed to cater to a wide range of industrial cutting needs with precision engineering, durability, and advanced features.

Key Features

  • Swivel saw head allows miter cutting from 0 degrees to 60 degrees
  • Hydraulic cylinder plus precision ground hinge support
  • Hardened worm gear for durability
  • Hard-stops at , 45, and 60 degrees for quick angle set up
  • Blade drive equipped with variable pulley system
  • Adjustable flood coolant system
  • Motor driven, synchronised wire blade brush
  • Carbide blade guides and bearing provides additional blade support
  • Rigid cast-iron guide arms
  • Cast-iron hydraulic vice
  • Adjustable down feed control
  • Adjustable material stop
  • Saw head automatically raises after each cut

Please note that design and specifications may be subject to change without prior notice or obligation to update. Both the Cosen SH500M and SH460M Bandsaws are advanced cutting solutions designed to enhance productivity and precision in industrial cutting operations.



MODEL SH-460M SH-500M
Cutting capacity 90º Ø 250; 230x460mm Ø 330; 280x500mm
Cutting capacity 45º Ø 230; 230x230mm Ø 290; 280x280mm
Cutting capacity 60º Ø 110; 110x230mm Ø 220; 280x200mm
Main motor 1.5 kW 3HP
Angular cut 0~60º 0~60º
Blade size 3505x27x0.9mm 4150x27x0.9mm
Weight 650 kg 990 kg
