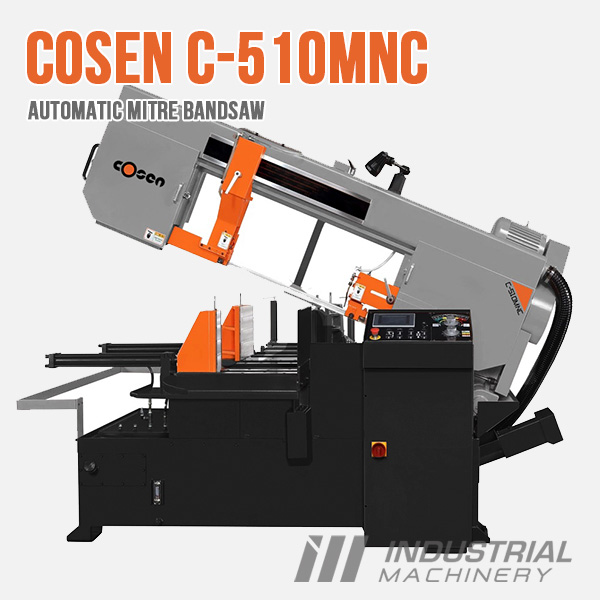

Cosen C-510MNC Automatic Mitre Bandsaw

$46,750.00

In stock

In stock, available now. Delivery Australia wide! With Options

Introducing the C-510MNC: Automated Horizontal Scissor-Style, Mitering Band Saw

Features:

  • Straight and miter cuts from 0 to 60 degrees
  • Hydraulic cylinder support with ball joint for the saw head
  • Gearbox built to handle high lateral pressure without thermal distortion
  • Inverter blade drive system for variable blade speeds
    Enhanced User Experience:

  • 5.7” HMI touchscreen
  • Adjustable flood coolant system
  • Motor-driven synchronized wire blade brush
  • Carbide blade guides and bearings for optimal support
  • Rigid cast-iron guide arms
  • Automatic hydraulic blade tensioning
  • Cast-iron hydraulic vise
  • Save-A-Blade feature
  • Precision dual valve feed pressure and feed rate system
  • Computer-controlled indexing up to 999” max length
    Innovative SNC-100 Technology:

  • Smart NC-100 (SNC-100) controller
  • Programmable for up to 100 different jobs
  • Including cut quantity and length
  • Automatic compensation for Kerf loss
  • Ideal for mass fabrication with rugged dependability

Experience the cutting-edge efficiency of Cosen’s C-510MNC and C-650MNC, perfect for high-production settings.

MODEL  C-510MNC C-650MNC
Round Rectangle Round Rectangle
Capacity 90° ⌀ 360 mm 330 x 510 mm ⌀ 420 mm 380 x 650 mm
45° ⌀ 360 mm 330 x 330 mm ⌀ 400 mm 400 x 400 mm
60° ⌀ 230 mm 230 x 230 mm ⌀ 250 mm 400 x 250 mm
Speeds 20 ~ 100 m/min 20 ~ 100 m/min
Main motor 5HP 7.5 HP
Automatic index 503mm (max. 6500mm) 800 mm (max. 6500 mm)
Blade size 5000 x 34 x 1.1mm 5300 x 41 x 1.3 mm
Weight 2135 kgs 3000 kgs
Floor space 3300 x 2750 x 2200 mm 3600 x 2900 x 2500 mm

    Your enquiry will automatically include a reference to this product page.
