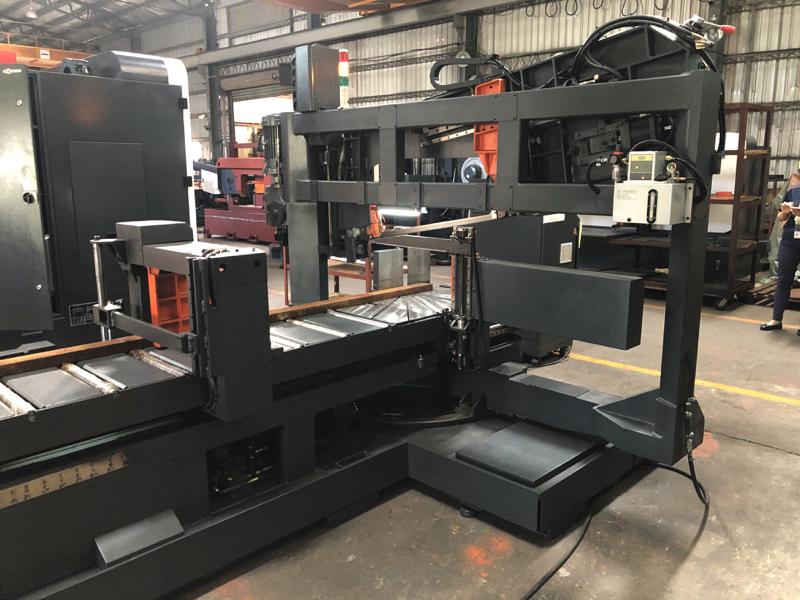

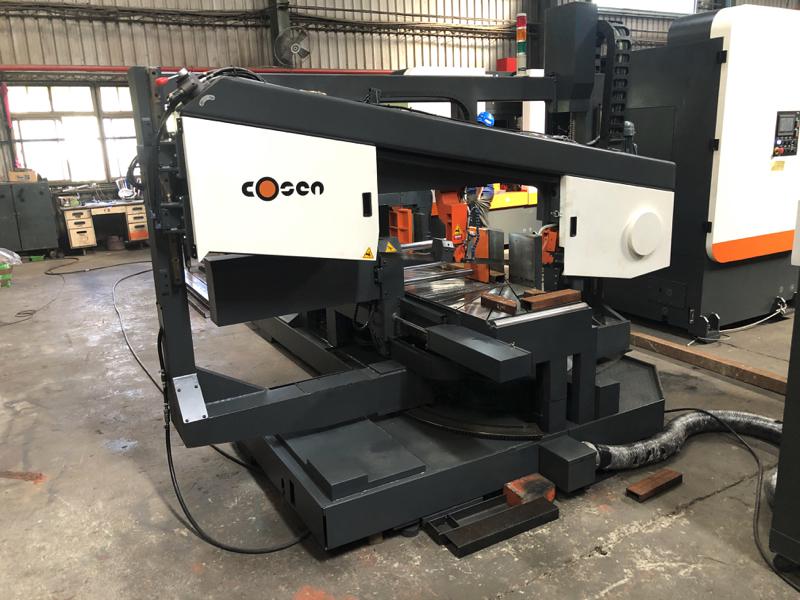

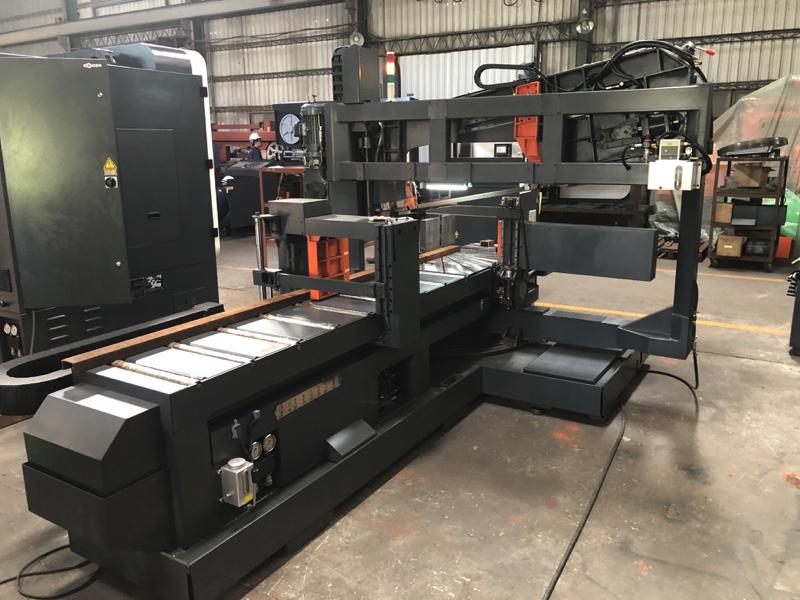

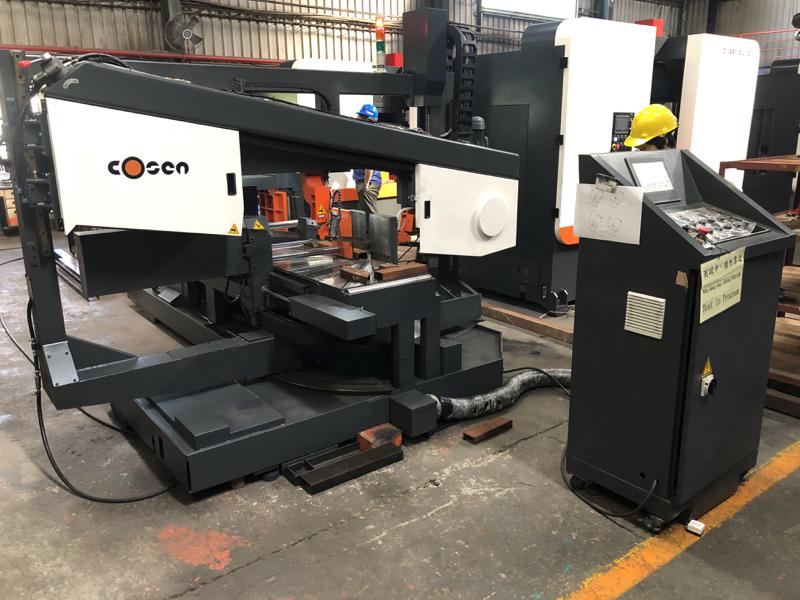

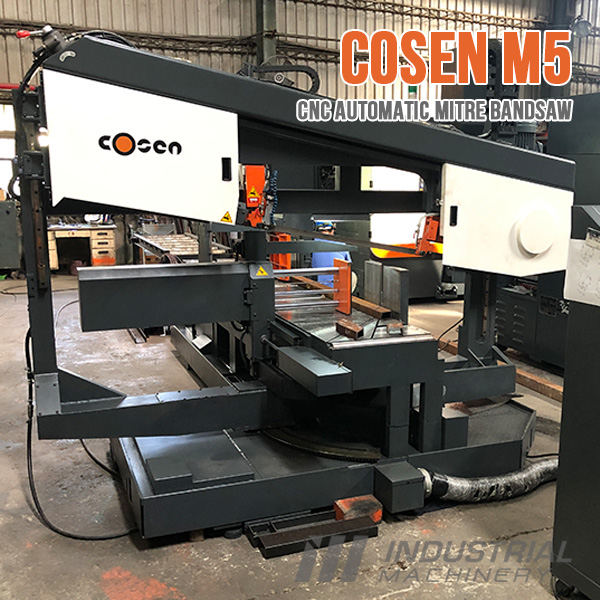

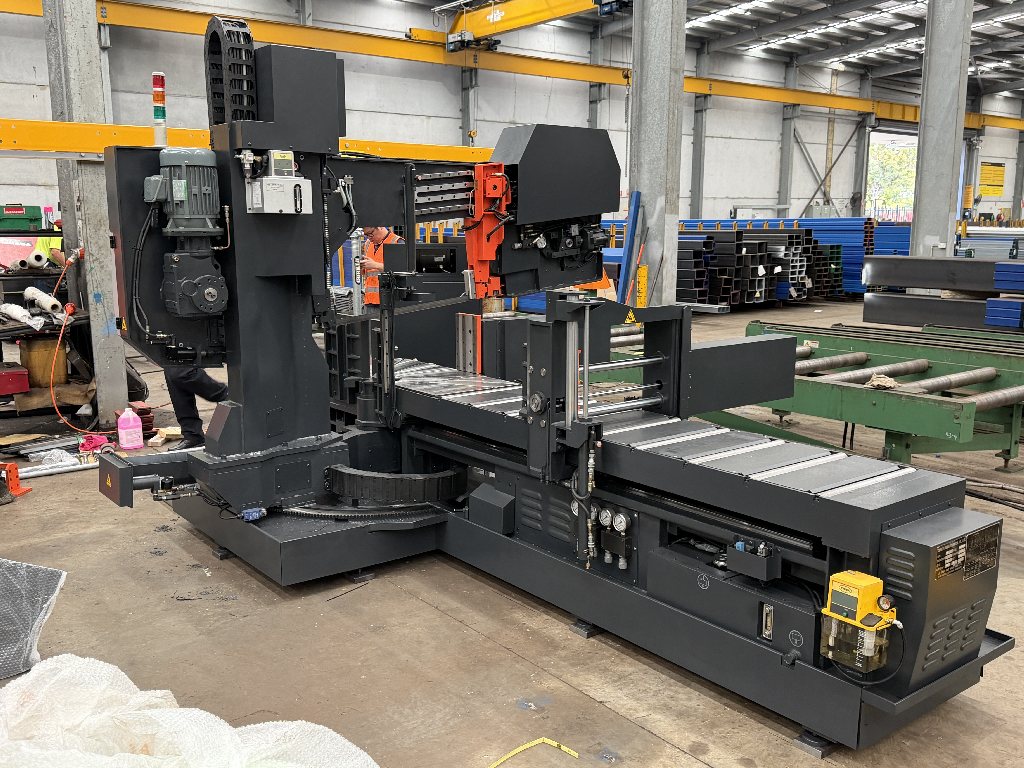

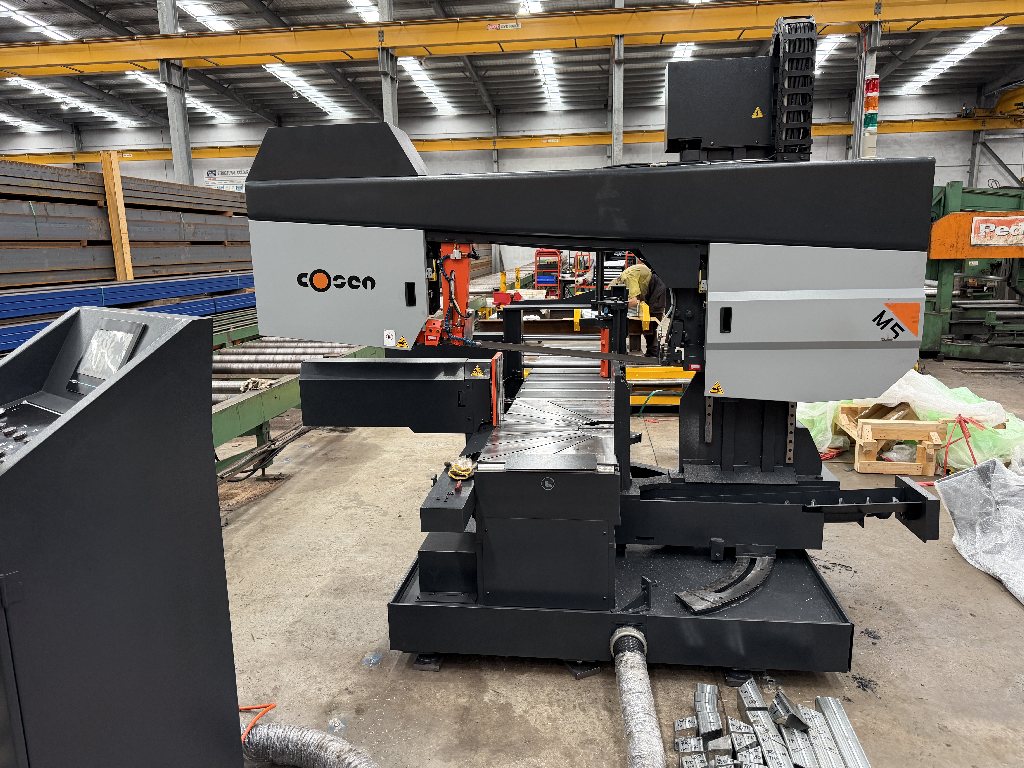

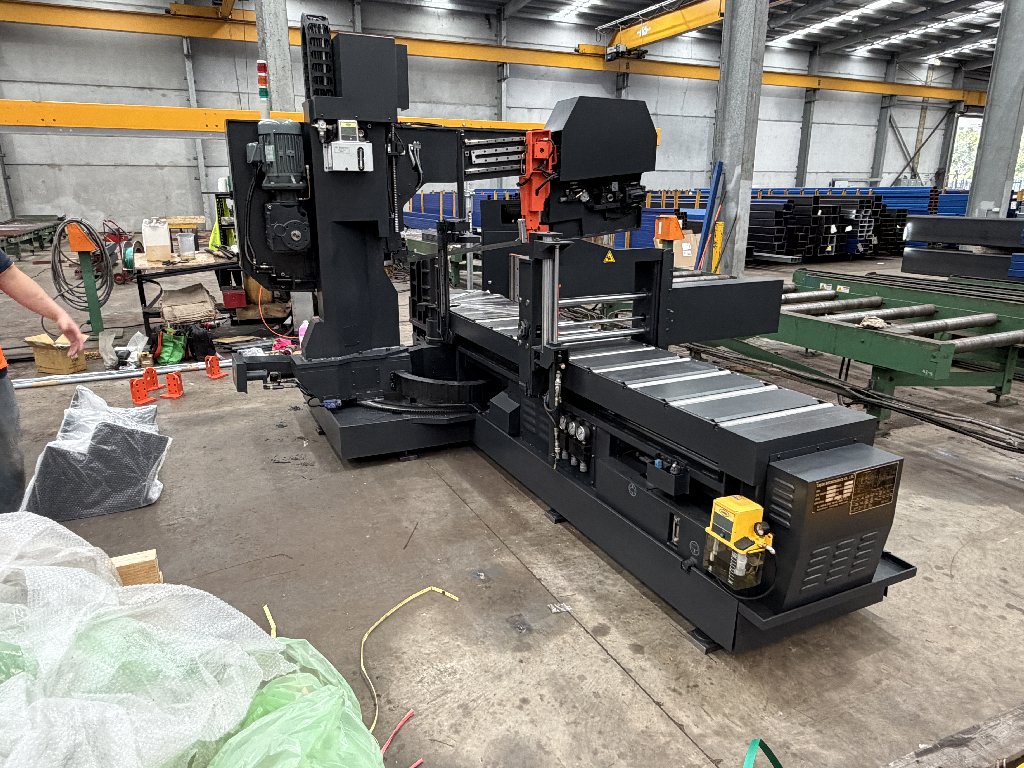

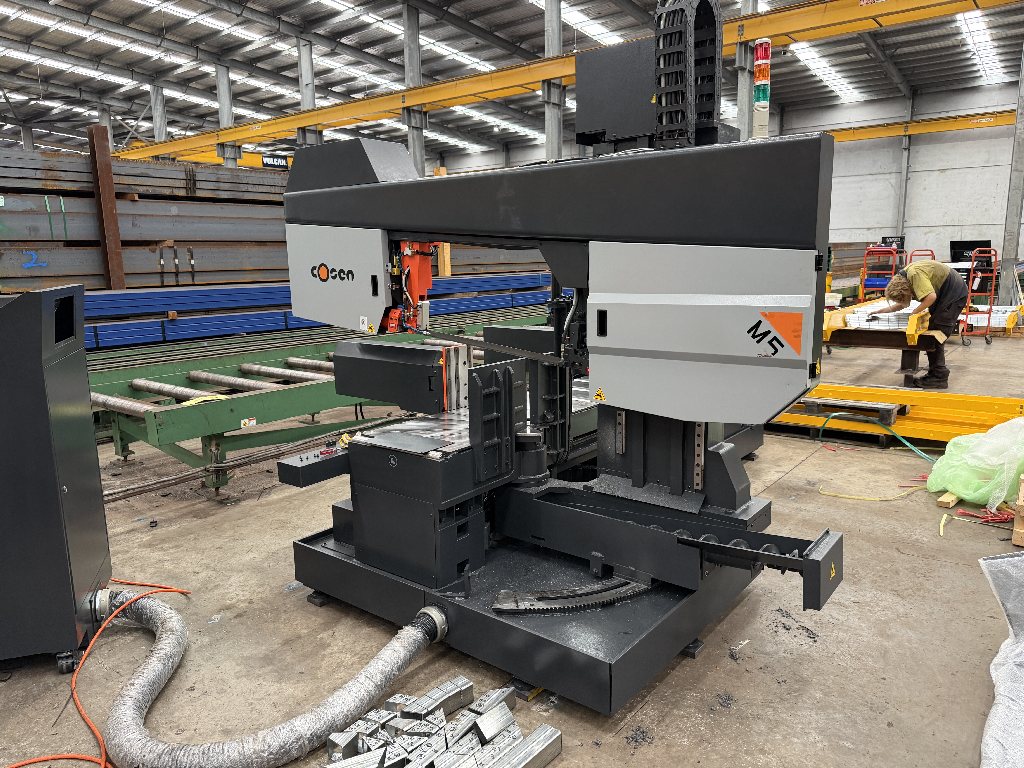

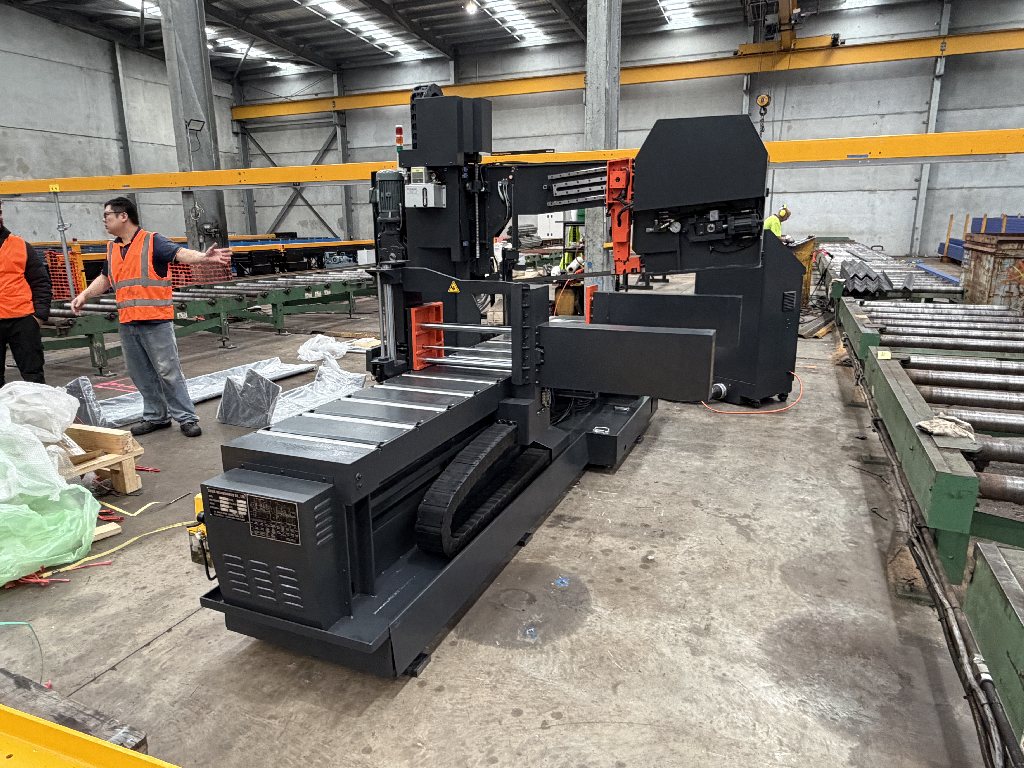

Cosen M5 CNC Automatic Mitre Bandsaw

The Cosen M5 is a heavy-duty CNC automatic double mitre-cutting bandsaw designed for structural steel, fabrication workshops, and high-volume steel processing applications.

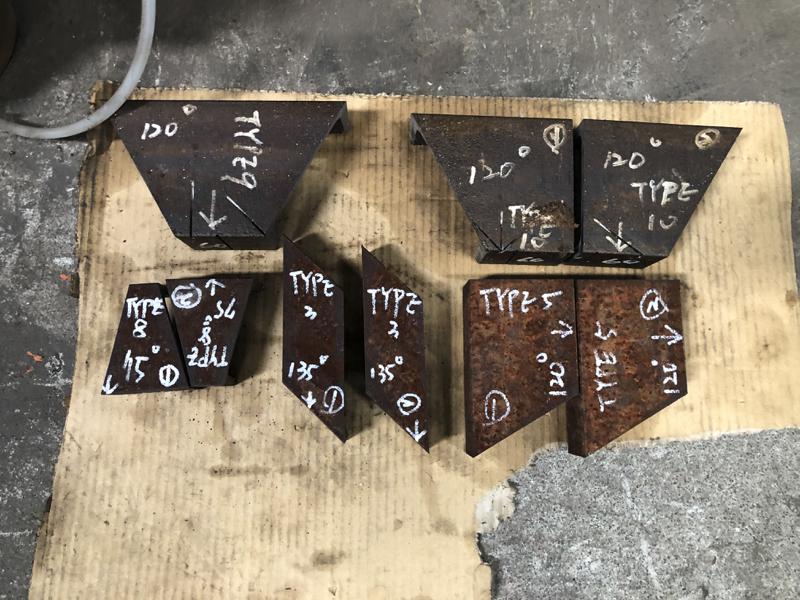

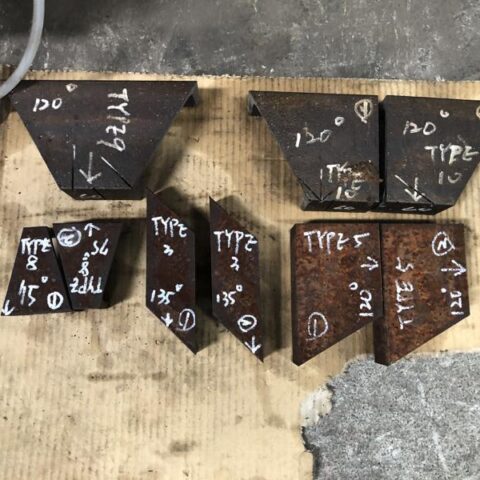

With automatic programmable mitre angle positioning from +60° to -60°, the M5 allows operators to program cutting length, quantity, and angle through the CNC control. The machine is suitable for cutting beams, channels, profiles, RHS, pipe, and general steel sections with strong accuracy and repeatability.

The machine features servo material feeding, a 2.1 metre single feeding stroke, hydraulic blade tensioning, carbide blade guides, automatic kerf loss compensation, and powered mitre positioning. The 10° blade cant is designed to improve cutting performance on structural steel sections.

Key Features:

CNC automatic double mitre cutting

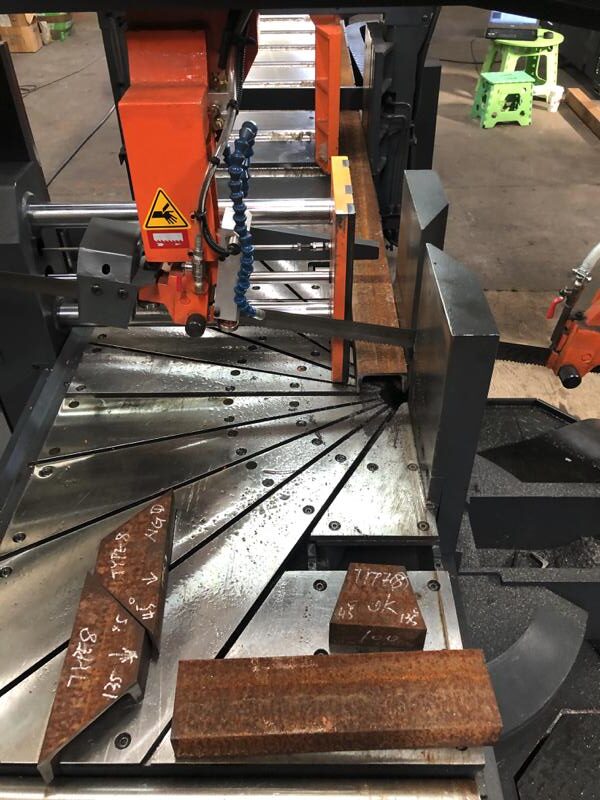

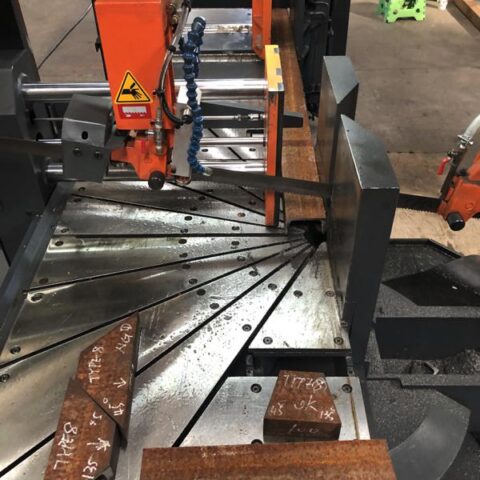

Programmable mitre angle positioning from +60° to -60°
2.1 metre single feeding stroke

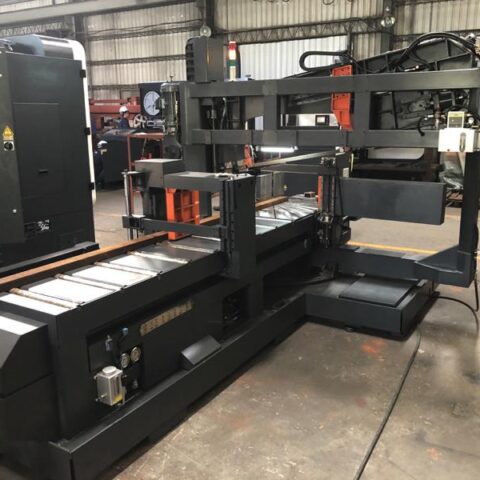

Servo motor material feeding
Mitsubishi CNC control

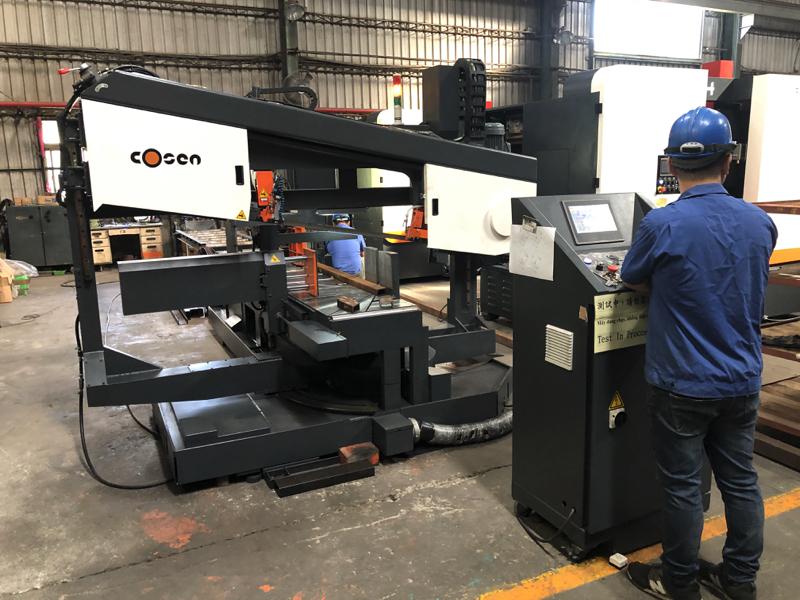

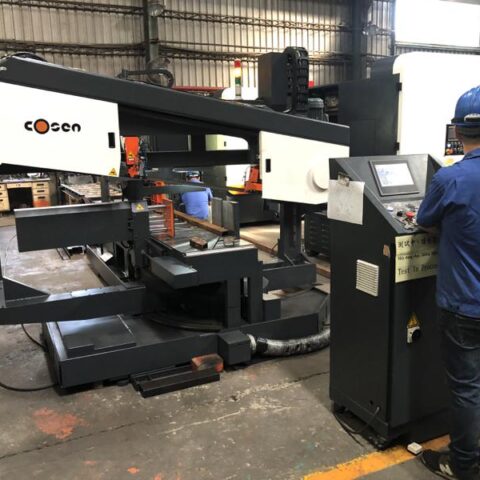

Touch panel operation
Automatic kerf loss compensation
Hydraulic blade tensioning
Carbide blade guides
Power driven blade brush
Variable blade speed 20–135 m/min
Heavy-duty hydraulic vises
Blade life indicator
Error code display for simplified diagnostics
Hydraulic chip conveyor included
Variable vice pressure regulator included
Mist spray coolant system included
Blade deviation detector included
Vibration damper included

Main Capacity:

Round: 310mm at 90°, 310mm at 45°, 200mm at 60°
Square: 310mm x 310mm at 90° and 45°, 200mm x 200mm at 60°
Rectangle: 310mm H x 510mm W at 90°, 310mm H x 350mm W at 45°, 310mm H x 200mm W at 60°

The Cosen M5 is a serious automatic bandsaw solution for fabricators requiring accurate mitre cutting, strong material handling, and efficient production cutting.

Show More Show Less

MODEL		M5			M8
MAX. CAPACITY(mm)	Angle	0^。	±45^。	±60^。	0^。	±45^。	±60^。
	Round (mm)	310	310	200	500	500	400
	Square (mm)	310H X 310W	310H X 310W	200H x 200W	500H X 500W	500H X 500W	400H x 400W
	Rectangle (mm)	310H x 510W	310H x 350W	310H x 200W	400H x 800W	400H x 550W	400H x 400W
SAWBLADE	SPEED	20-135 m/min			20-100 m/min
	SIZE (L x W x T)	5720 x 34 x x 1.1mm			7310 x 54 x x 1.6mm
	TENSION	HYDRAULIC BLADE TENSION (Factory adjusted) (with pressure gauge)			HYDRAULIC BLADE TENSION (Factory adjusted) (with pressure gauge)
	GUIDE	CARBIDE (Hydraulic Clamping Force)			CARBIDE (Hydraulic Clamping Force)
	CLEANING	POWER DRIVEN WIRE BRUSH			POWER DRIVEN WIRE BRUSH
MOTOR OUTPUT	HYDRAULIC	0.75 kW (1HP)			2.25 kW (3HP)
	SAW BLADE	3.75kW (5HP)			7.5kW (10HP)
	COOLANT PUMP	0.125kw (1/8HP)			0.375kw (1/2HP)
HYDRAULIC TANK CAPACITY		45L			85L
COOLANT CAPACITY		40L			200L
FEEDING STROKE		2100mm			2000mm
WORK BED HEIGHT		700mm			850mm
VISE CONTROL METHOD		FULL STROKE CYLINDER VISE			FULL STROKE CYLINDER VISE
FLOOR SPACE (LXWXH)		3249 x 2830 x 1858 mm			4000 x 3475 x 2620 mm
