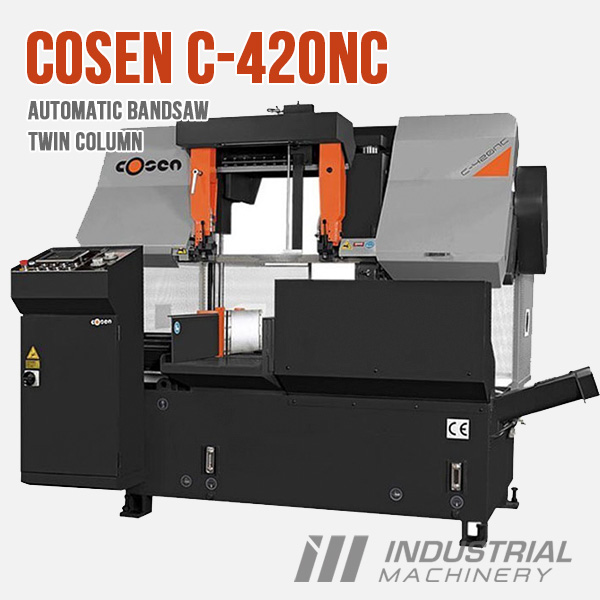

Cosen C-420NC Automatic Twin Column Bandsaw

Original price was: $55,000.00.Current price is: $51,000.00.

In stock

In stock for immediate delivery Australia wide! MANY OPTIONS INCLUDED.

Features

  • Capacity 420 x 420mm
  • Twin Column
  • Smart NC Technology
  • Program up to 100 jobs, with various quantities and lengths.

Options

  • Hydraulic Chip Conveyor (included).
  • Nesting Fixtures (included).
  • Variable Vice Pressure Regulator (included).
  • 2M Heavy Duty Roller Table (included).



Brands:
SKU: Max. Cut Width 420mm

Features

  • Fully Automatic Horizontal Dual Column Band Saw
  • Hydraulic dual column design
  • Gearbox designed to accept high lateral pressure (no thermal distortion
  • Inverter blade drive system which allows infinitely variable blade speeds
  • 5.7” HMI touchscreen
  • Adjustable flood coolant system
  • Motor driven, synchronised wire blade brush
  • Carbide blade guides and bearing provides additional blade support
  • Rigid cast-iron guide arms
  • Automatic hydraulic blade tensioning device
  • Cast-iron hydraulic vise
  • Split vice jaw for reduced burr
  • Save-A-Blade feature
  • Precision feed pressure and feed rate dual valve system for optimal cutting performance
  • Computer controlled multiple indexing up to 999” max length

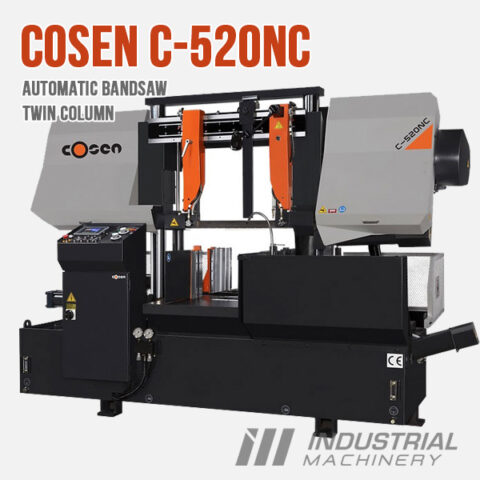

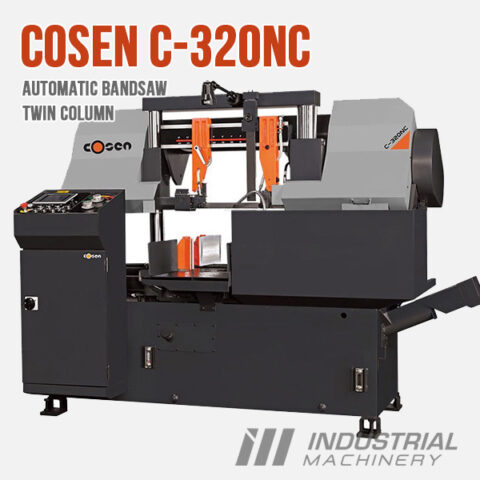

MODEL C-320NC C-420NC C-520NC C-620NC
Capacity round 320 mm 420 mm 520 mm 620 mm
Capacity rectanlge 380 x 320 mm 420 x 420 mm 560 x 520 mm 760 x 620 mm
Speeds 20 ~ 100 m/min 20 ~ 100 m/min 20 ~ 100 m/min 20 ~ 100 m/min
Main motor 5 HP 7.5 HP 7.5 HP 10 HP
Blade tension Hydraulic Hydraulic Hydraulic Hydraulic
Blade size 4240 x 34 mm 4770 x 41 mm 6040 x 54 mm 7200 x 54 mm
Indexing stroke 403 mm 503 mm 500 mm 600 mm
Weight 2200 kgs 3300 kgs 4300 kgs 5400 kgs
