Main Features
- The main machine structure is made of high-quality cast iron, X, Y axis and Ram guideway are hardened and precision ground.
- All the slideways, main Ram guideway, and X, Y,Z axis ball screws are complete with automatic lubrication system to ensure the machine running smoothly and long life.
- The swivel head can rotate right and left direction. to ensure optimal keyway parallelism, It’s also for helical cutting or taper keyway slotting purpose.
- Use ultra-high load (Axial dynamic load up to 30 tons) high precision ball screw for Z axis plus full-cycle lubrication system to ensure safe life of ball screw running.
- The X, Y, Z axis are complete with HIWIN high precision C3 class double nuts ball screws and precision bearings specially for precision ball screw to ensure position accuracy.
- CNC-450 S model powered spindle head adopt precision AC servo motor drive 1:2 high precision gear set for high precision indexing accuracy, powered spindle head use BT50 spindle match with two high accuracy ultra-axial load tapered roller bearing to ensure enough heavy slotting force.

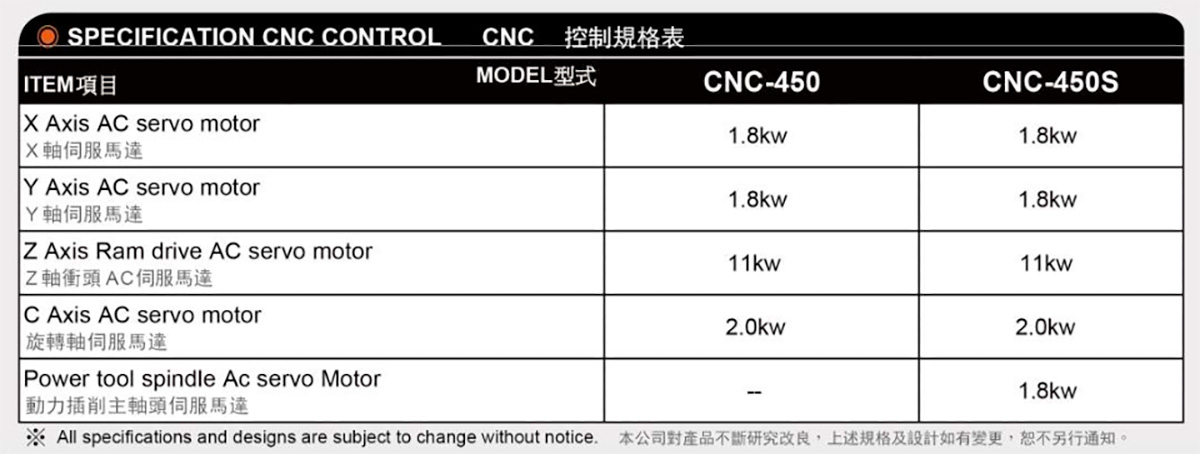

CNC Controller with Cutting-Edge Features
Key Features:
- SYNTEC (WIN-CE) CNC control system, high compatibility, and good stability.
- Complete with ladder and I/O diagnosis function, and modularized electric circuit system, Easy to maintain.
- Controller provides network function and USB access interface.
- Our controller can be combined with automated robot for human-machine collaboration to achieve the goal of smart factory (option).

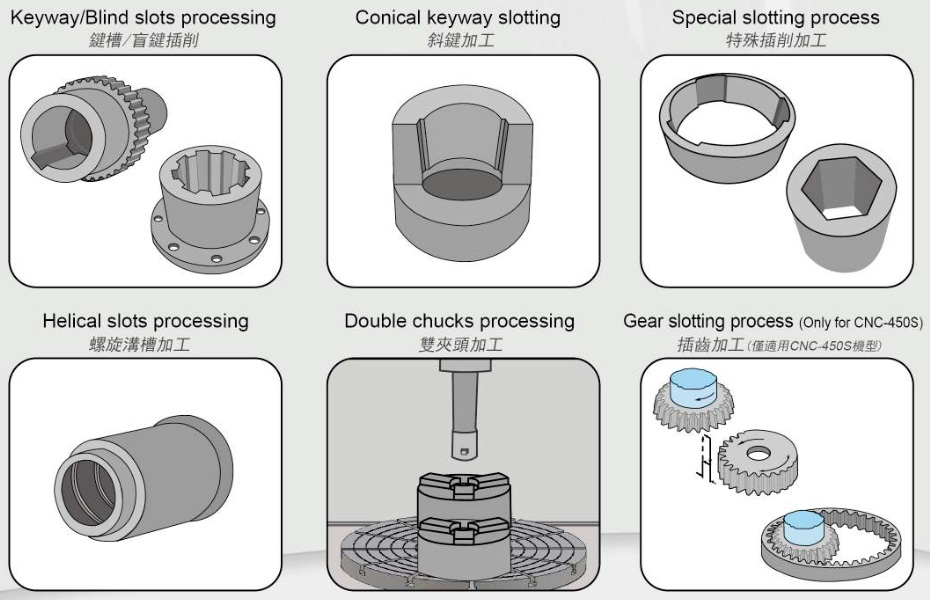

Slotting Processing
StandardAccessories:
- X, Y, Z axis C3 ball screws
- X,Y axis slideway covers
- X, Y axis ball screws protection covers
- Rotary Table
- Coolant system
- Centralised automatic lubrications system
- Electric box heat exchanger
- Portable MPG Handwheel
- Halogen work light
- Alarm light
- Adjusting tools & box
Optional Accessories
- Transformer (except for 220V)
- 3 jaws scroll chuck
- Screw chip conveyor
- Slotting bar
- Clamping kits set
