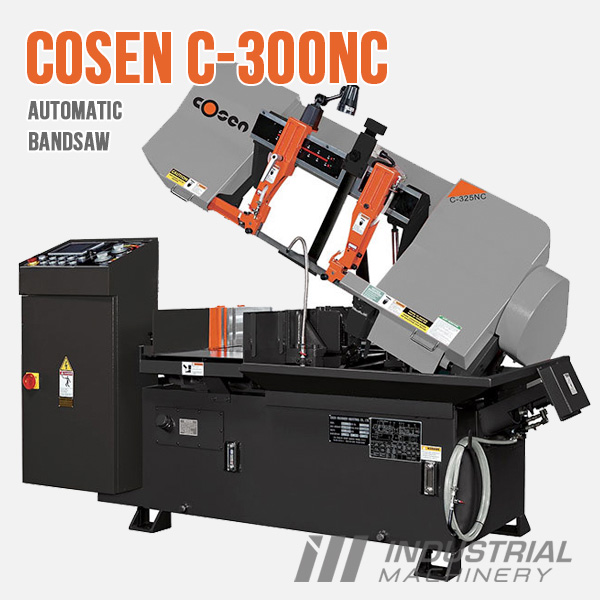

Cosen C-300NC Automatic Hinge Type Bandsaw

$35,910.00

In stock

In stock for immediate delivery Australia wide! MANY OPTIONS INCLUDED.

Features

  • Capacity 340 x 300mm
  • Smart NC Technology
  • Program up to 100 jobs, with various quantities and lengths.
  • Hydraulic Chip Conveyor (included).
  • Nesting Fixtures (included).
  • Variable Vice Pressure Regulator (included).
  • 2M Heavy Duty Roller Table (included).



    Standard Features

  • 5.7” HMI Touch Screen & Mitsubishi PLC Controller
  • 100 individual jobs can be programmed and stored
  • Automatic kerf compensation
  • “Save-a-Blade” function
  • Rapid troubleshooting via error feedback system
  • Double retracting vises
  • Scrape-free vise plates
  • Full stroke hydraulic cylinder
  • Split front vise
  • Inverter-controlled infinitely variable blade speed
  • Automatic hydraulic blade tension device
  • Hydraulic Chip Conveyor
  • Vibration Damper
  • Blade Height Decoder
  • Vise Pressure Regulator
    Options

  • Hydraulic Chip Conveyor (included).
  • Nesting Fixtures (included).
  • Variable Vice Pressure Regulator (included).
  • 2M Heavy Duty Roller Table (included).



MODEL C-260NC C-300NC C-400NC C-460NC
Capacity Dia.260; 300x260mm Dia.300; 340x300mm Dia.400; 400x400mm Dia.460; 460x460mm
Speeds 20 ~ 100m/min 20 ~ 100m/min 20 ~ 100m/min 20 ~ 100 m/min
Main motor 3 HP 5 HP 7.5 HP 7.5 HP
Blade tension Hydraulic Hydraulic Hydraulic Hydraulic
Blade size 3660 x 34 x 1.1mm 3820 x 34 x 1.1mm 4570 x 41 x 1.3mm 4670 x 41 x 1.3mm
Automatic Feed - single stroke 403mm 403mm 593mm 593mm
Automatic Feed - multiple 99M 99M 99M 99M
Weight 1500 kgs 1800 kgs 2750 kgs 2900 kgs
