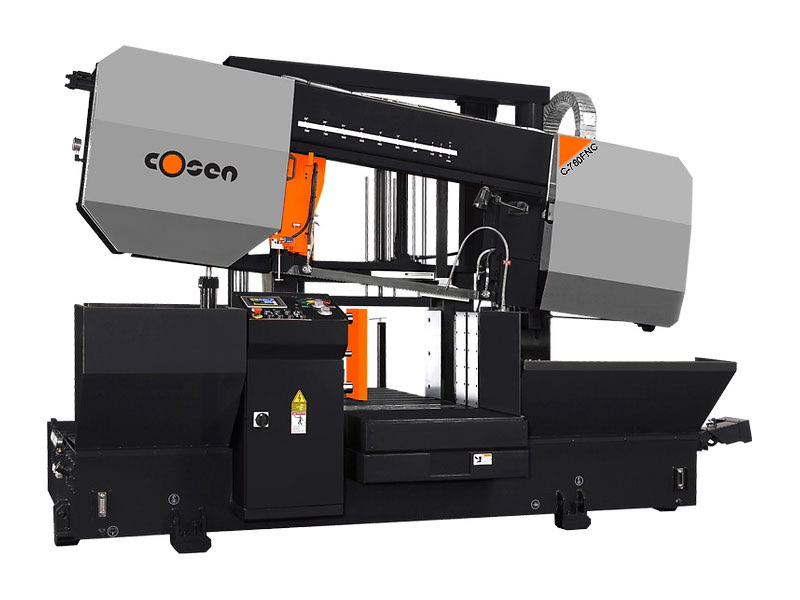

Cosen C-780FNC Pack Cutting Saw

In stock

Introducing the COSEN C-780FNC Pack Cutting Saw: Precision Redefined

Elevate your pack cutting operations with the COSEN C-780FNC Pack Cutting Saw. This high-performance saw offers exceptional precision and efficiency for a wide range of materials and profiles.

  • C-780FNC = standard feed length 600mm (single stoke)
  • C-780FNC-3L = long feed length 3000mm (single stoke)
Brands:

Machine Features

  • Hydraulic dual column design
  • Gearbox designed to accept high lateral pressure (no thermal distortion)
  • Inverter blade drive system which allows infinitely variable blade speeds
  • 5.7” HMI touchscreen
  • Adjustable flood coolant system
  • Motor driven, synchronised wire blade brush
  • Carbide blade guides and bearing provides additional blade support
  • Rigid cast-iron guide arms
  • Automatic hydraulic blade tensioning device
  • Cast-iron hydraulic vise
  • Split vise jaw for reduced burr
  • Save-A-Blade feature
  • Precision feed pressure and feed rate dual valve system for optimal cutting performance
  • Computer controlled multiple indexing up to 999” max length
Model C-780FNC C-780FNC-3L
Round Capacity 550 mm 550 mm
Rectangular Capacity (HxW) 550 x 780 mm 550 x 780 mm
Automatic Feeding - Single Stroke 600 mm 3000 mm
Automatic Feeding - Multi Stroke Max. 99M Max. 99M
Blade Speed
20 – 100 M/min
23 – 105 M/min
Blade Size (LxWxT)
7200 x 54 x 1.6 mm
7200 x 54 x 1.6 mm
Blade Motor
10 HP (7.5 kW)
10 HP (7.5 kW)
Hydraulic Motor 2HP (1.5 kW) 2HP (1.5 kW)
Coolant Motor
1/4 HP (0.1875 kW)
1/4 HP (0.1875 kW)
Coolant Tank Capacity 85 litres 85 litres
Hydraulic Tank Capacity 40 litres 40 litres
Work Bed Height 600 mm 600 mm
Weight 5400 kgs
Floorspace (LxWxH)
4030 x 2090 x 2417 mm
4050 x 2423 x 4680 mm
