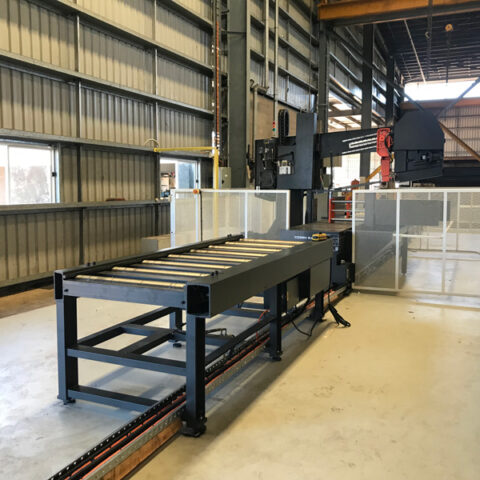

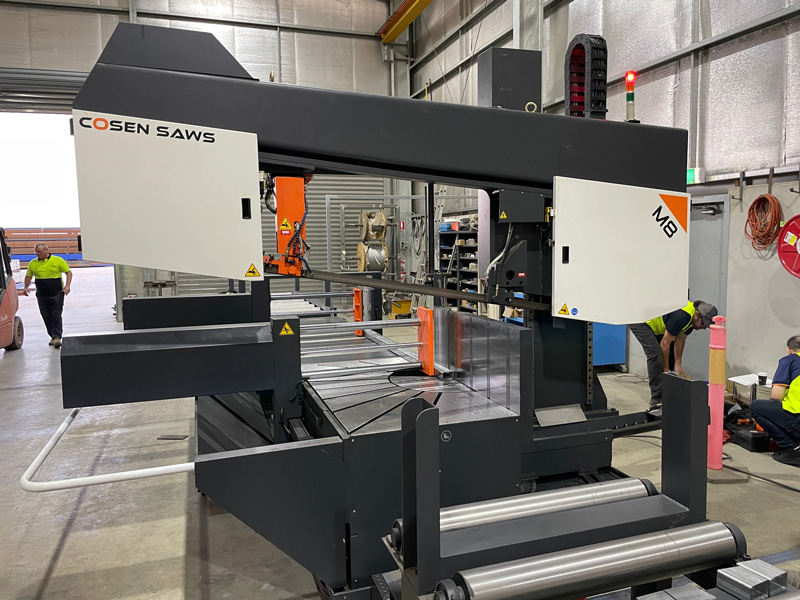

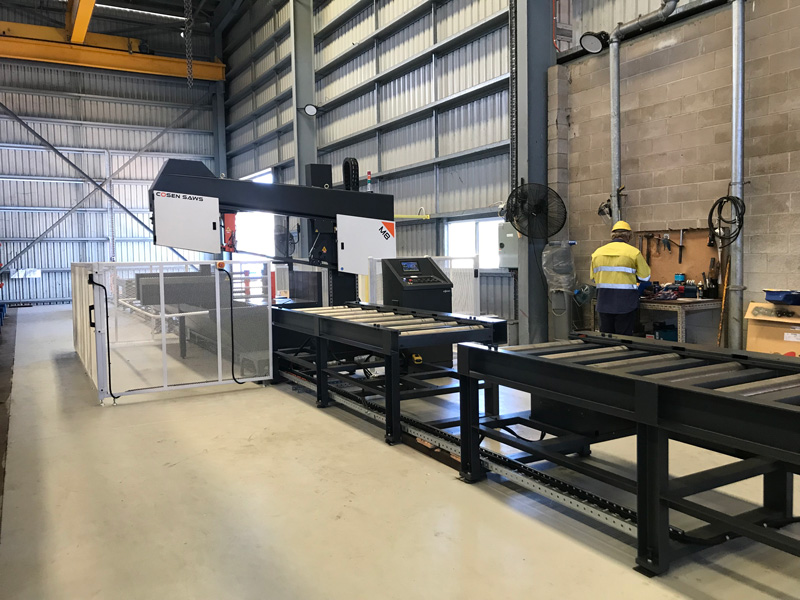

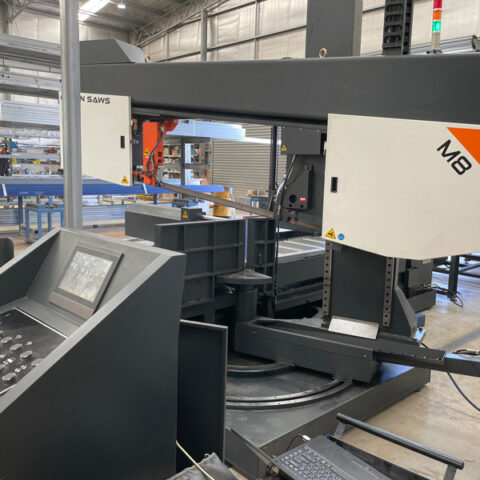

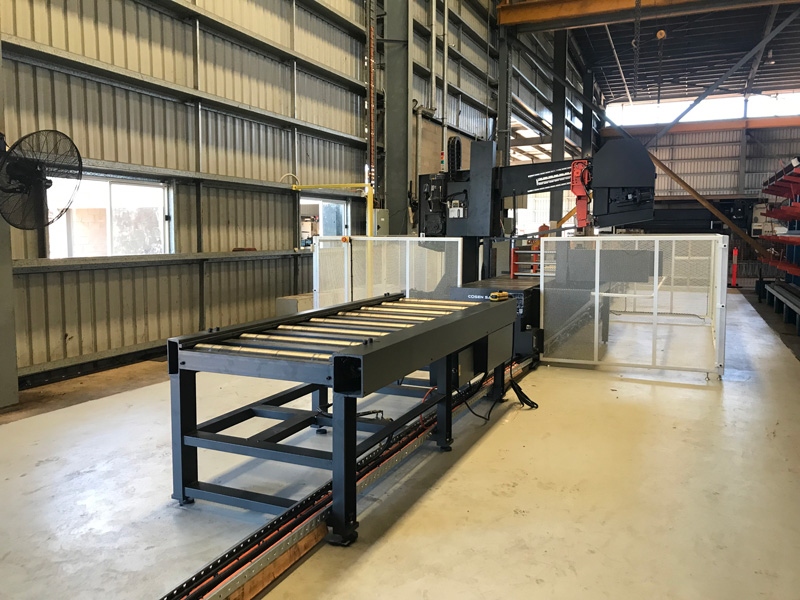

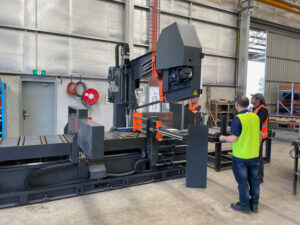

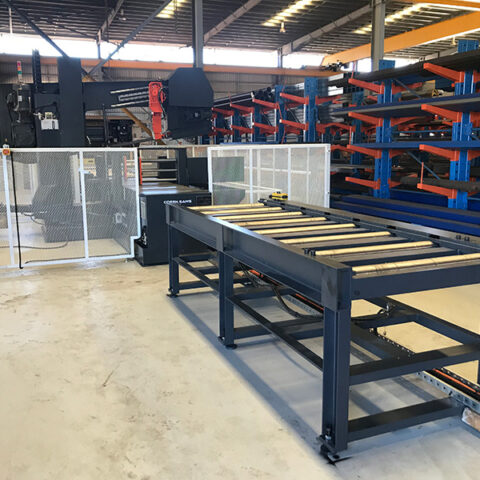

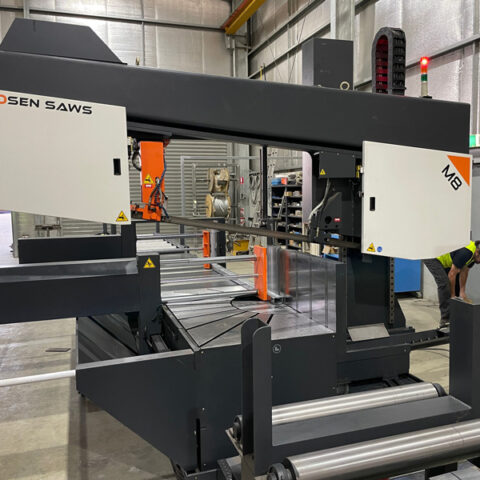

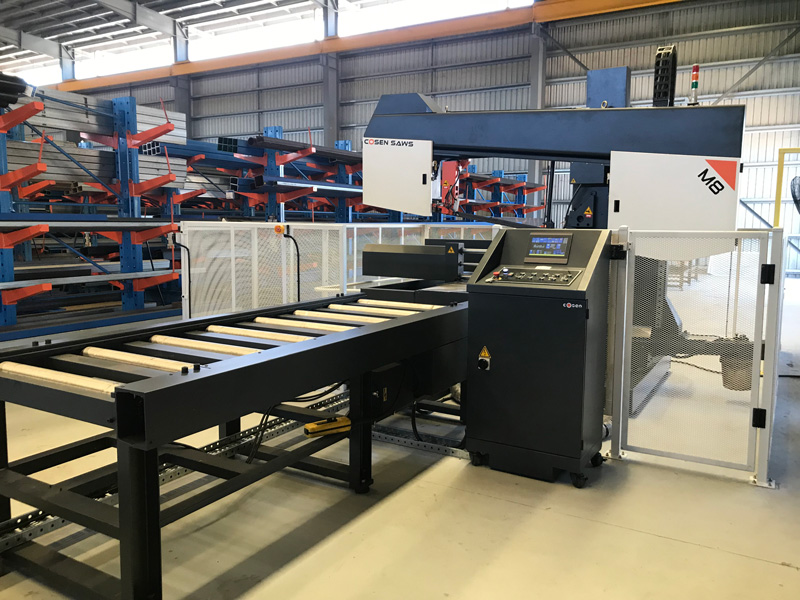

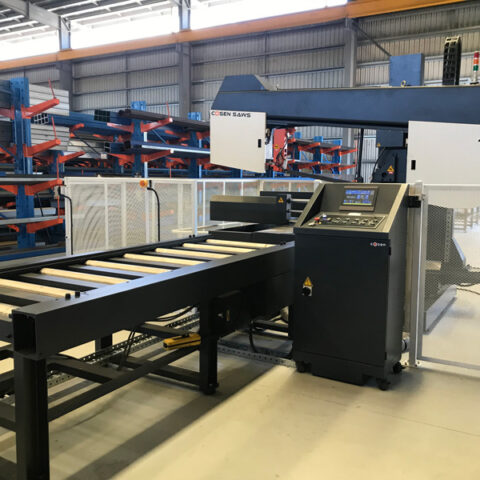

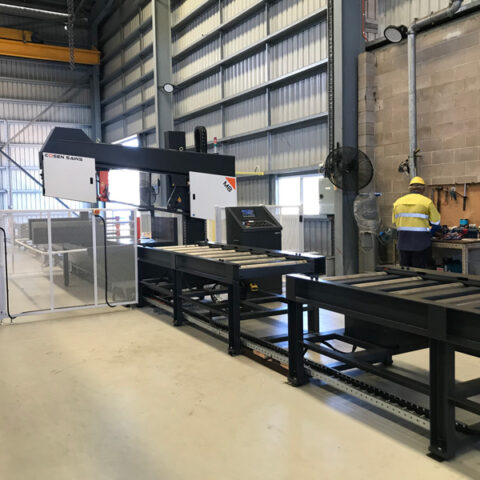

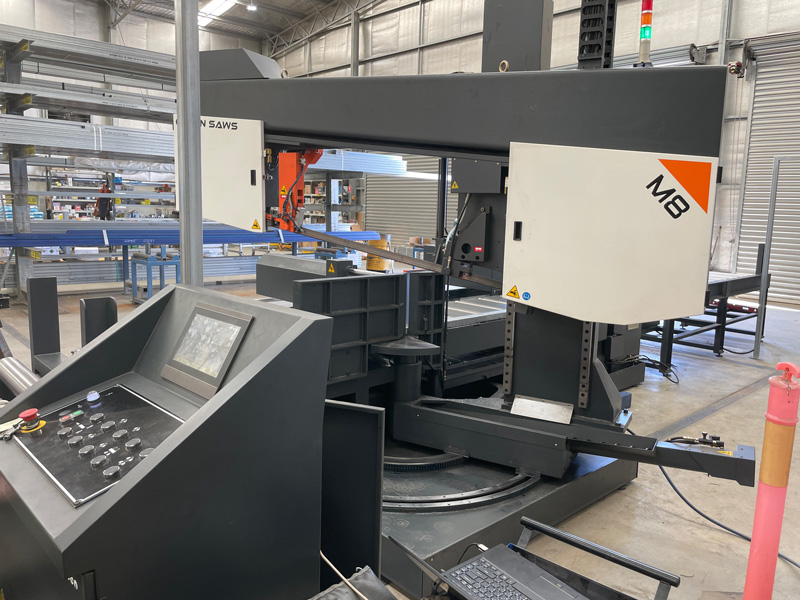

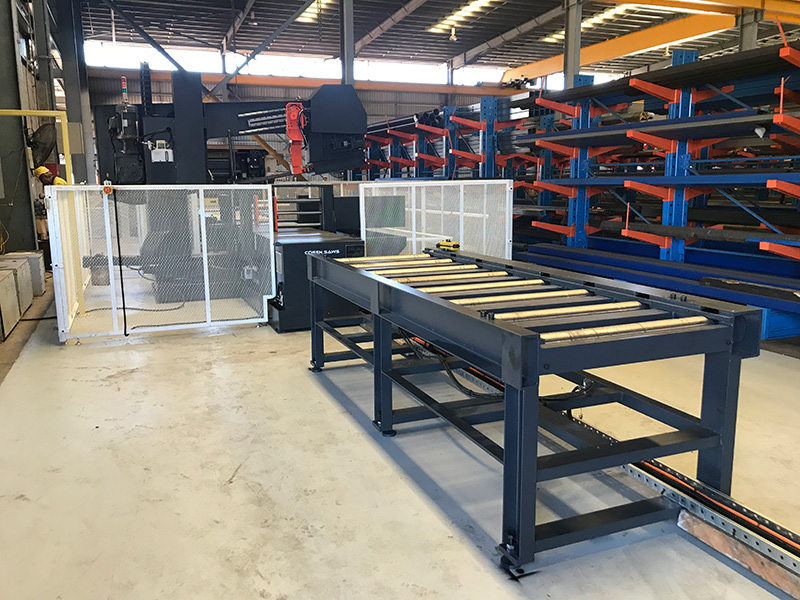

Cosen M8 CNC Automatic Mitre Bandsaw

$161,500.00

In stock

Introducing Cosen’s M8 Automatic CNC Mitre Bandsaws

Large Automatic Cutting for Structural Steel

Features

  • Fully Automatic
  • CNC controlled
  • Ultra fast 2M servo feeding shuttle vice
  • Automatic positioning of the mitre angle
  • Mist coolant



Key Features

  • SERVO Drive System: Our M-Series Bandsaws are equipped with a state-of-the-art SERVO drive system, ensuring precise control and ultra-fast operation.
  • Forward and Backward Miter Cutting: With the capability to miter-cut both forward and backward up to 60°, the M-Series provides flexibility for various cutting tasks.
  • Optimized Blade Cant: The 10° blade cant is specifically designed for cutting structural steel, including H-beams, I-beams, channels, and profiles, under optimal cutting conditions.
  • CNC Smart Technology: Full CNC smart technology offers automatic mitre positioning and rotation of the saw head, simplifying complex cutting operations.
  • High-Speed Shuttle Feed Vice: The M-Series features a high-speed shuttle feed vice with a 2000mm single stroke that automatically indexes for long cuts.



MODEL M5 M8
MAX. CAPACITY(mm) Angle 0 ±45 ±60 0 ±45 ±60
Round (mm) 310 310 200 500 500 400
Square (mm) 310H X 310W 310H X 310W 200H x 200W 500H X 500W 500H X 500W 400H x 400W
Rectangle  (mm) 310H x 510W 310H x 350W 310H x 200W 400H x 800W 400H x 550W 400H x 400W
SAWBLADE SPEED 20-135 m/min 20-100 m/min
SIZE (L x W x T) 5720 x 34 x  x 1.1mm      7310 x 54 x x 1.6mm
TENSION HYDRAULIC BLADE TENSION (Factory adjusted) (with pressure gauge) HYDRAULIC BLADE TENSION (Factory adjusted) (with pressure gauge)
GUIDE CARBIDE (Hydraulic Clamping Force) CARBIDE (Hydraulic Clamping Force)
CLEANING POWER DRIVEN WIRE BRUSH POWER DRIVEN WIRE BRUSH
MOTOR OUTPUT HYDRAULIC 0.75 kW (1HP) 2.25 kW (3HP)
SAW BLADE 3.75kW (5HP) 7.5kW (10HP)
COOLANT PUMP 0.125kw (1/8HP) 0.375kw (1/2HP)
HYDRAULIC TANK CAPACITY 45L 85L
COOLANT CAPACITY 40L 200L
FEEDING STROKE 2100mm 2000mm
WORK BED HEIGHT 700mm 850mm
VISE CONTROL METHOD FULL STROKE CYLINDER VISE FULL STROKE CYLINDER VISE
FLOOR SPACE (LXWXH) 3249 x 2830 x 1858 mm 4000 x 3475 x 2620 mm
