FEATURES KS 450FT
Order Now

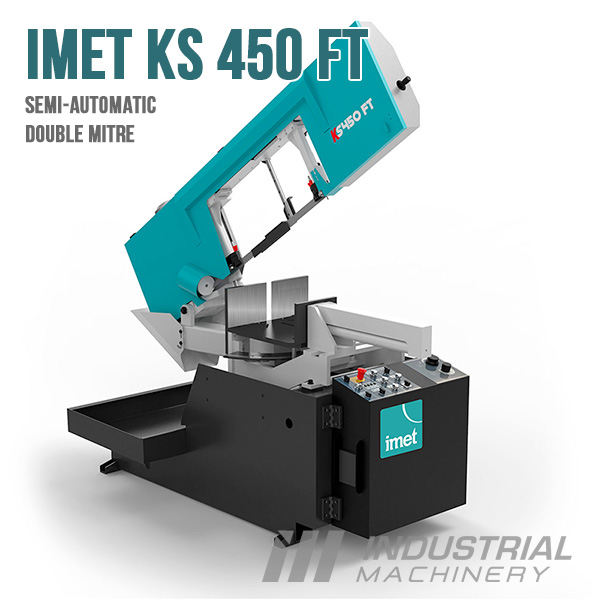

IMET KS 450 FT Semi-Auto Mitre Bandsaw
Compact Semi-automatic Bandsaw
KS 450 FT is the compact version of KS 450, IMET semi-automatic sawing machine for cutting pipes, beams, profiles and for steel constructions. The machine cuts at angle from 0° to 60° right and left.
- 450mm Capacity
TECHNICAL INFORMATION
| Cutting capacity at 0° | Round: 350mm Square: 330mm Rectangular: 450x320mm |
| Cutting capacity at 45° right/left | Round: 330mm Square: 320mm Rectangular: 320x300mm |
| Cutting capacity at 60° left | Round: 210mm Square: 200mm Rectangular: 180x270mm |
| Cutting capacity at 60° right | Round: 160mm Square: 150mm Rectangular: 150x270mm |
| Cutting capacity at 90° (solids) | Round: 250mm |
| Cutting capacity (BUNDLE) | Max. 400x250mm Min. 160x40mm |
| Blade size | 4250x34x1.1mm |
| Blade speed | 40/80 m/min |
| Variable speed inverter (ESC) | 15/100 m/min |
| Blade motor | 1.7/2.2 KW |
| Blade motor with inverter (ESC) | 2.2 KW |
| Working table height | 850mm |
| Dimensions | 900x2500x2180mm |
| Weight | 865kg |
