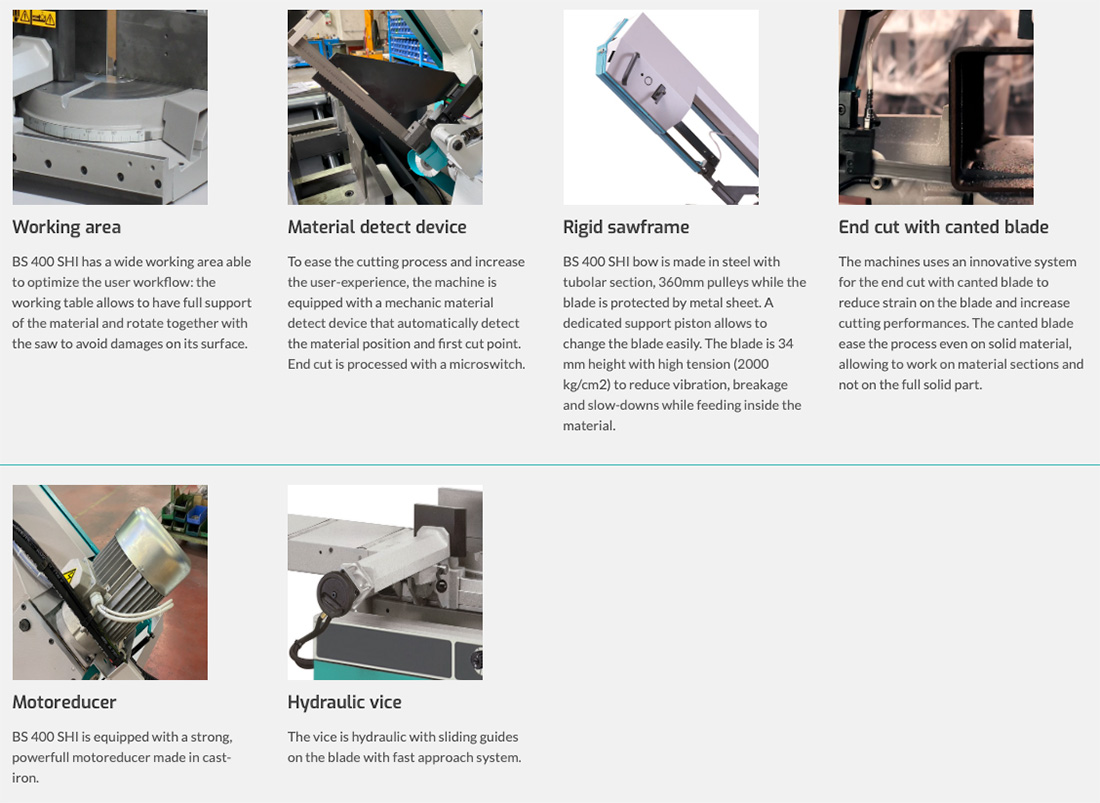

Features

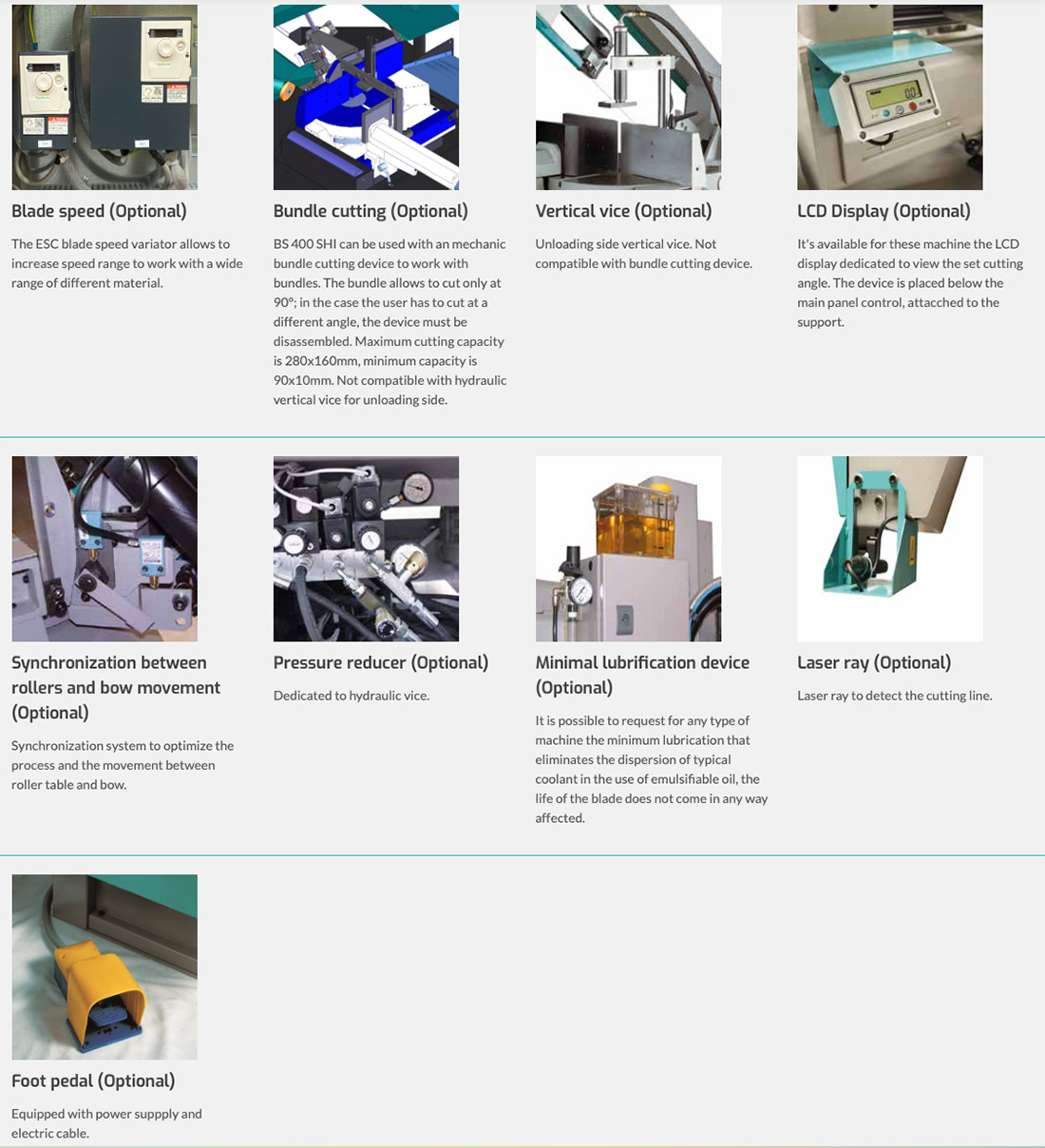

Options
Roller Tables
Hot

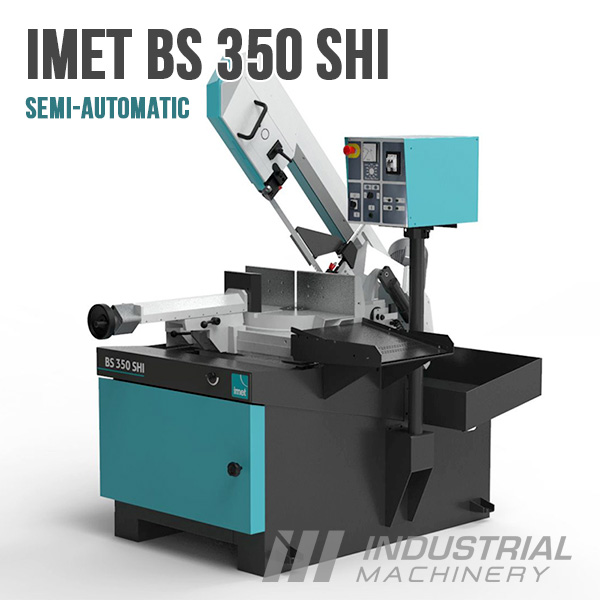

IMET BS 350 SHI Semi-Auto Mitre Bandsaw
Introducing IMET BS350SHI Bandsaw:
| MODEL | BS 350 SHI | BS 400 SHI |
| Cutting capacity at 0° | Round: 305mm | Round: 310mm |
| Square: 250mm | Square: 280mm | |
| Rectangular: 350x200mm | Rectangular: 400x250mm | |
| Cutting capacity at 45° left | Round: 250mm | Round: 280mm |
| Square: 230mm | Square: 270mm | |
| Rectangular: 230x200mm | Rectangular: 300x220mm | |
| Cutting capacity at 45° right | Round: 255mm | Round: 280mm |
| Square: 230mm | Square: 270mm | |
| Rectangular: 230x200mm | Rectangular: 300x220mm | |
| Cutting capacity at 60° left | Round: 175mm | Round: 210mm |
| Square: 155mm | Square: 200mm | |
| Rectangular: 170x100mm | Rectangular: 200x200mm | |
| Cutting capacity solid material (C45) | Round 200mm | 250mm |
| Cutting capacity bundle cutting | Max: 230x160mm | Max: 280x160mm |
| Min: 90x10mm | Min. 90x10mm | |
| Blade motor | 1.5/2.2 KW | 1.5/2.2KW |
| Blade motor with ESC speed variator | 2.2 KW | 2.2 KW |
| Blade speed | 37/74 m/min | 37/74 m/min |
| Blade speed with ESC speed variator | 18/100 m/min | 18-100 m/min |
| Blade size | 3370x27x0.9mm | 4020x34x1.1mm |
| Height of the work surface | 940mm | 940mm |
| Weight | 649kg | 680Kg |
| Dimensions | 1480x1750x1900mm | 1530x1790x2240mm |
