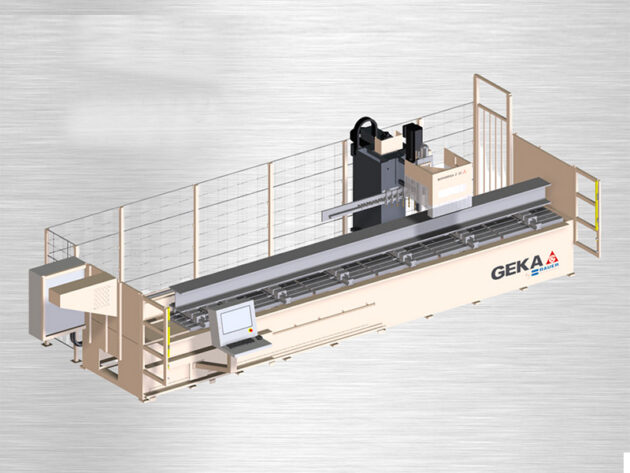

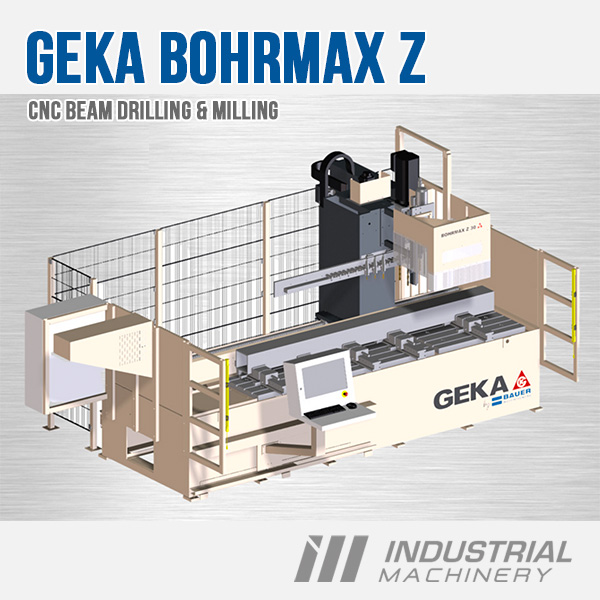

Geka BOHRMAX Z CNC Drilling & Milling for Beams

In stock

Introducing the groundbreaking GEKA BOHRMAX Z CNC Beam Drilling and Milling Machine, pioneering new technology and setting an industry precedent. As the first of its kind in the market, this innovative machine redefines metalworking standards, offering unmatched precision and versatility specifically tailored for beam drilling and milling. With its cutting-edge features and pioneering advancements, the GEKA BOHRMAX Z stands as a game-changer, heralding a new era of excellence in the industry.


CNC Milling Drilling for Beams

Versatility: Drilling, milling, long holes, circles, breakthrougs, cutting threads or milling casting holes.

Processing: Up to 8 meters in length.

User-friendly: no programming knowledge required.

Mobile column with fixed table.

DXF: Easy data import.

Easy control: User interface and CNC.

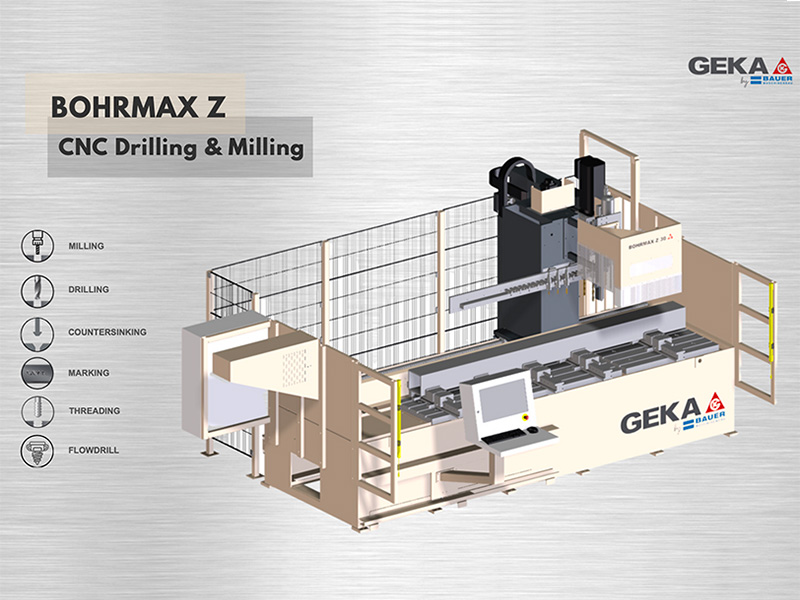

  • Operations available: Drilling, Milling, Tapping, Countersinking, Marking, Flow Drill.
  • Automatic tool change with capacity up to with 10 tools. Tool holder SK 40.
  • 21“ Mitsubishi CNC PC with Windows 10 OS.
  • Front light barrier on the operator side with a movable control panel.
  • Rear access guarding, on-site.
  • Simple programming on the machine and remote assistance.

  • Automatic tool length measurement.
  • Variable angle drilling head.
  • Independent work areas with their own zero points.
  • Moveable chip and splash guard.
  • Chip conveyor system.
  • Spray mist system.


BOHRMAX Z Z 20 Z 30 Z 40 Z 60 Z 80 Light 30 L Light 60L
X-axis traverse mm 2050 3200 4200 6300 8100 3050 6000
Y-axis traverse mm 620 620 620 620 620 400 400
