Larger range of pipe cutting
The maximum diameter of the processed pipe can reach 590mm, and the load can reach 1200kg; It is not limited to processing conventional pipes such as round pipes and square pipes, as well as profiles such as angle steel, channel steel and H-beam; Other special-shaped tubes such as drop-shaped, C-shaped, etc. can also be cut
Optional:Three-dimensional five-axis cutting head
Give full play to the advantages of simple and efficient two-chuck model, less cutting action, and high cost performance; Adjustable feeding support, easy to operate, effectively support the pipe; Follow-up blanking support, auxiliary blanking lifting table, improve cutting accuracy and facilitate blanking

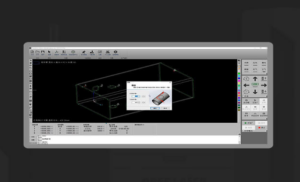

Professional pipe EtherCAT bus system
Equipped with a professional pipe cutting bus system to achieve high-precision and high-quality processing.
1.Professional 3D nesting software;
2.Rich database of pipe cutting process;
3.Automatically generate reports and processing records;
4.The interface is simple, easy to learn and easy to understand, and the operation is efficient.
Small footprint, compared to the three-chuck and four-chuck pipe cutting machines on the market, the floor space is reduced by 30%; At the same time, the installation is simple, the disassembly and assembly are convenient, and it is convenient for customers to put into production quickly.
