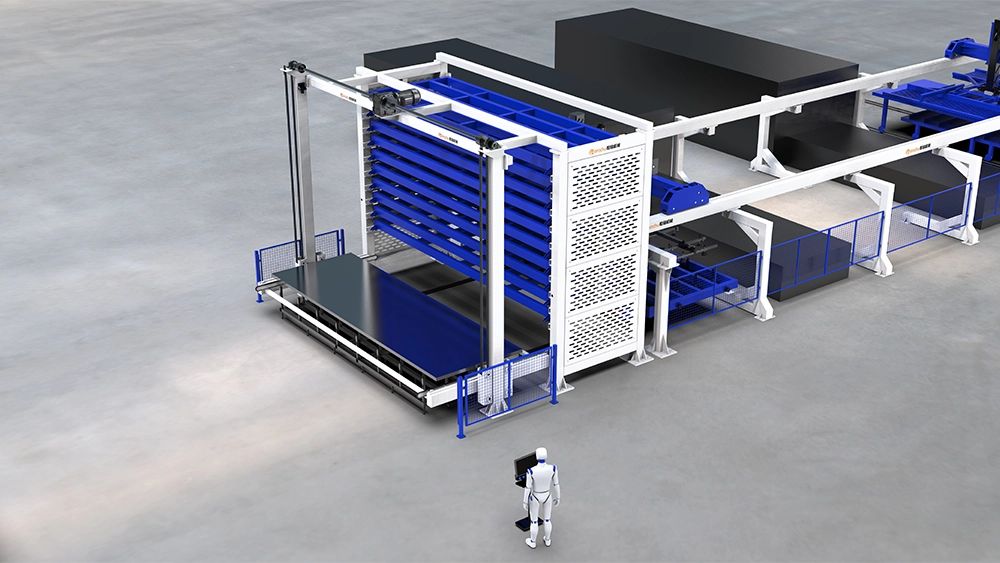

The IMS Automatic Sheet Storage Towers are engineered for speed, safety, and space efficiency. Designed for centralised, high-capacity storage, these systems feature automated weight detection, loading, and retrieval – all controlled via PLC and an intuitive touch screen interface.
Available in single or dual tower configurations, the IMS storage towers are built for heavy-duty industrial use, with load capacities of up to 5 tonnes per layer and storage heights from 8 to 13 levels. Forklift or overhead crane loading options make them adaptable to any workshop environment, while seamless integration with laser cutting machines ensures smooth workflow and faster production.
Key Benefits
- Centralised, high-density sheet storage for maximum space efficiency
- Automated weight detection, loading, and retrieval
- PLC + touch screen controls for safe, easy operation
- Heavy-duty load capacity: 3T or 5T per layer
- Forklift or overhead crane loading options
- Expandable design to grow with your production needs
- Direct integration with laser cutting machines
- Improves product quality and boosts overall efficiency
Specifications
- Models available: 3015, 4015, 4020, 6015, 6020
- Sheet sizes: 3000 × 1500 / 4000 × 1500 / 4000 × 2000 / 6000 × 1500 / 6000 × 2000 mm
- Number of floors: 8–13
- Load per layer: 3T or 5T
- Movement system: linear guide rail + chain drive
- Vertical lifting speed: 9 m/min
- Inlet/outlet speed: 12 m/min
- Plate support: optional
