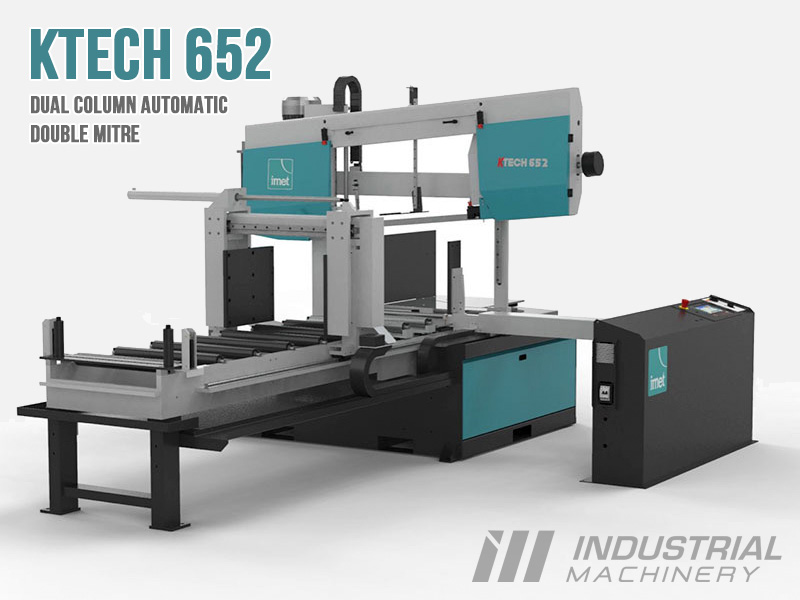

IMET KTECH 502 652 Automatic Mitre

Out of stock

Introducing IMET KTECH: Precision and Efficiency in Automatic Double Column Bandsaws with CNC Control

The IMET KTECH Series is a state-of-the-art automatic double column bandsaw, equipped with the latest technological advancements for cutting bars, tubes, solids, and profiles. Offering remarkable versatility, it effortlessly handles angles of up to 60° in both left and right directions. This automatic sawing machine features CNC-controlled feed and sawframe, managed via a user-friendly 10″ touch screen interface. It’s the ultimate professional’s tool, delivering unparalleled precision and efficiency for a wide range of cutting applications. Experience the future of cutting technology with IMET KTECH 502 and 652.

KTECH 502 and KTECH 652 Bandsaws:

Cutting Precision
Versatile Mitre Cuts
Robust Build
User-Friendly Operation
Ample Cutting Capacity
Precision Blade Control
Efficient Chip Removal
Advanced Blade Guidance

Discover Precision and Versatility with KTECH Bandsaws.

Model	KTECH 502	KTECH 652
Cutting capacity at 0°	Round: 350mm	Round: 510mm
	Quadrato: 330mm	Square: 480mm
	Rectangular: 500x310mm	Rectangular: 650x450mm
Cutting capacity ata 45° (sx)	Round: 300mm	Round: 440mm
	Quadrato: 300mm	Square: 440mm
	Rectangular: 300x300m	Rectangular: 440x440mm
Cutting capacity ata 45° (dx)	Round: 300mm	Round: 440mm
	Quadrato: 300mm	Square: 440mm
	Rectangular: 300x300mm	Rectangular: 440x440mm
Cutting capacity ata 60° (sx)	Round: 150mm	Round: 250mm
	Quadrato: 150mm	Square: 250mm
	Rectangular: 150x320mm	Rectangular: 250x450mm
Cutting capacity ata 60° (dx)	Round: 150mm	Round: 250mm
	Quadrato: 150mm	Square: 250mm
	Rectangular: 150x320mm	Rectangular: 250x450mm
Cutting capacity bundle / scrap-end	Max: 500x250mm	Max: 650x450mm
	Min: 130x20mm	Min: 130x20mm
	Scrap-end: 255mm	Scrap-end: 280mm
Cutting capacity at 0° solids (C45)	250mm	280mm (350mm with blade 41mm)
Minimum cutting diameter	10mm	10mm
Minimum cutting length	25mm	25mm
Minumum scrap-end	240mm (single cut at 0°)	265mm (single cut at 90°)
Blade size	4250x34x1.1mm	5320x34x1.1mm
Blade speed	From 18 to 100 m/min	Da 18 a 100 m/min
Blade motor	2.2KW	3KW (4KW motor with blade 41mm)
Blade tension	1900kg/cm2	1900kg/cm2
Feeder length	2000mm (option F3000/6000mm)	2000mm (in option 3000/6000mm)
Feeder motor power	Brushless BMH 2.5 N-m	Brushless BMH 2.5 N-m
Max load on feeder	2000kg	2500kg
Sawframe rotation power	0,55Kw	0,55Kw
Hydraulic unit power	0,55Kw	0,55Kw
Size - Working plate height - weight	3700x2300x2180mm / 845mm / 2250kg	3930x2870x2300mm / 845mm / 4000kg
