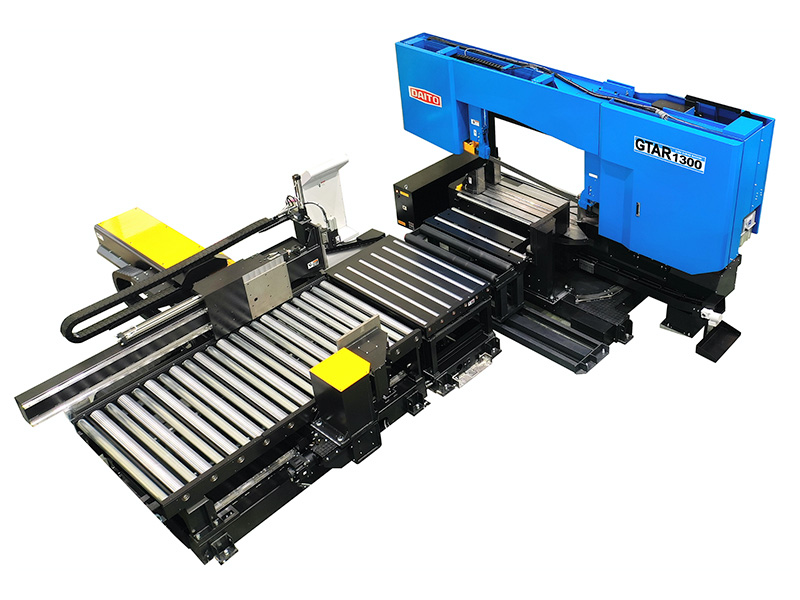

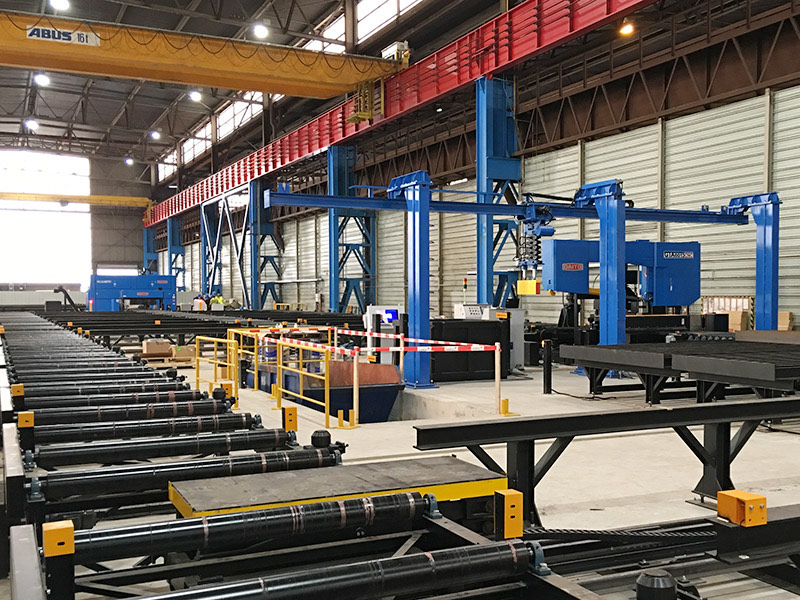

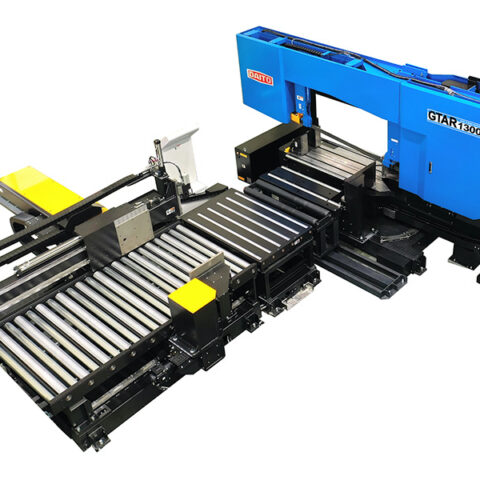

Daito GTAR Automatic Bandsaw Line

Introducing the Ultimate Bandsaw: World-Class Speed, Precision, and Reliability

Prepare to be amazed by Daito GTAR / GTR, the world’s fastest, most productive, most reliable, and most accurate bandsaws ever created. With a cutting capacity of either 1000mm or 1300mm, these bandsaws are engineered to redefine your cutting experience. Here’s why they stand out:

Cutting Capacities: 1000mm or 1300mm
CNC Controlled for Precision
Automatic Cut Optimization
Width Checking for Error Prevention
Versatile Integration Options

Features

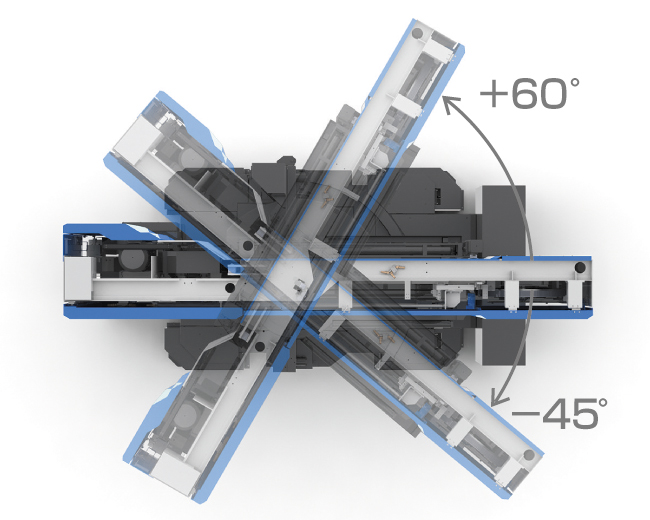

Double Mitre Cutting Left / Right.
The saw frame automatically swivels left and right, -45 degree Right and +60 degrees Left.
Mitre position is controlled by the CNC and driven by servo motor and absolute encoder.
Zero backlash swivel frame.
Optimised cutting by CNC.
Automatic work height recognition.
Linear guide ways for smooth operation.
Trim cut removal by magnet (*option).
Automatic pinching escape.
Last cut function.
Dual Flood and mist coolant system with built in coolant tank in the base of the machine. Dramatically improves blade life, performance and longevity of the saw.

Layout

Show More Show Less

BAND SAW		GTAR-1000	GTAR-1300
Capacity Width	90º	1020mm	1300mm
	-45º	600mm	800mm
	+60º	350mm	400mm
Material Feeding and Measurment		Pinch Roller / Measuring Disk
Trim Cut Removal		Automatic (Option)
Blade Size		9280 x 67 x t1.6	9840 x 67 x t1.6
Down Feed / Movement		Digital servo drive
Coolant system		Dual system (fluid and mist)
