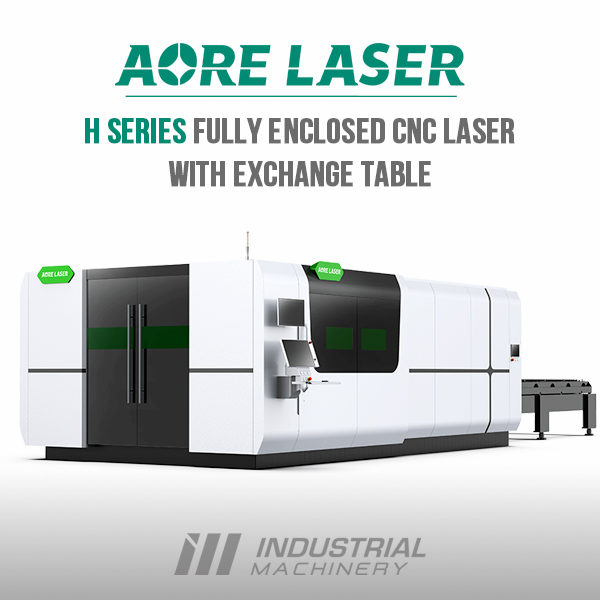

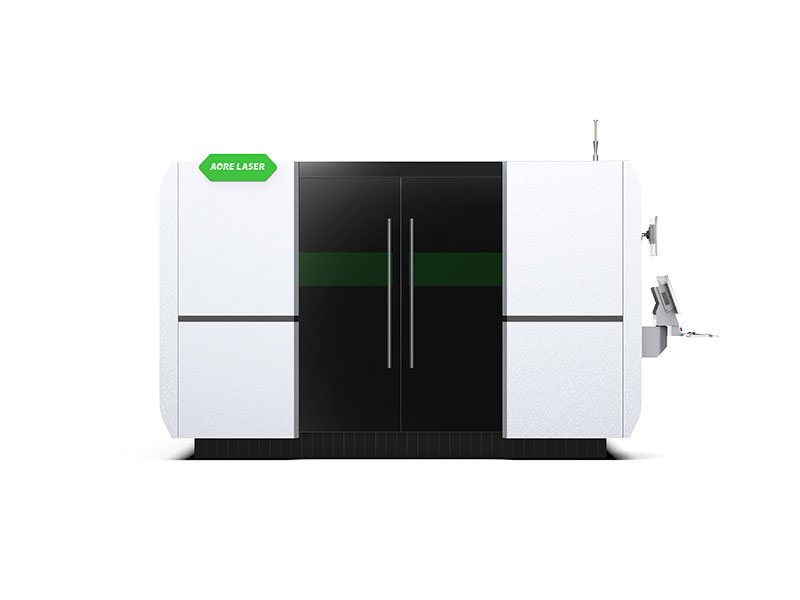

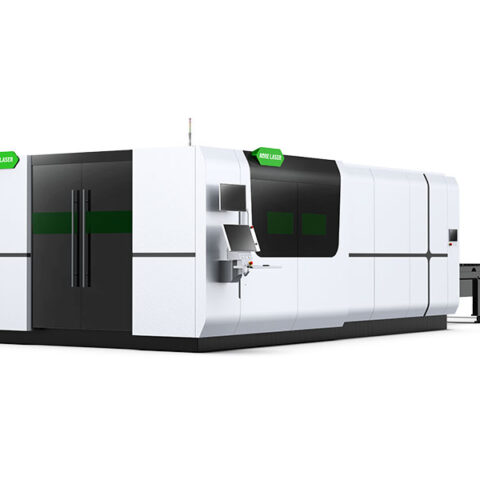

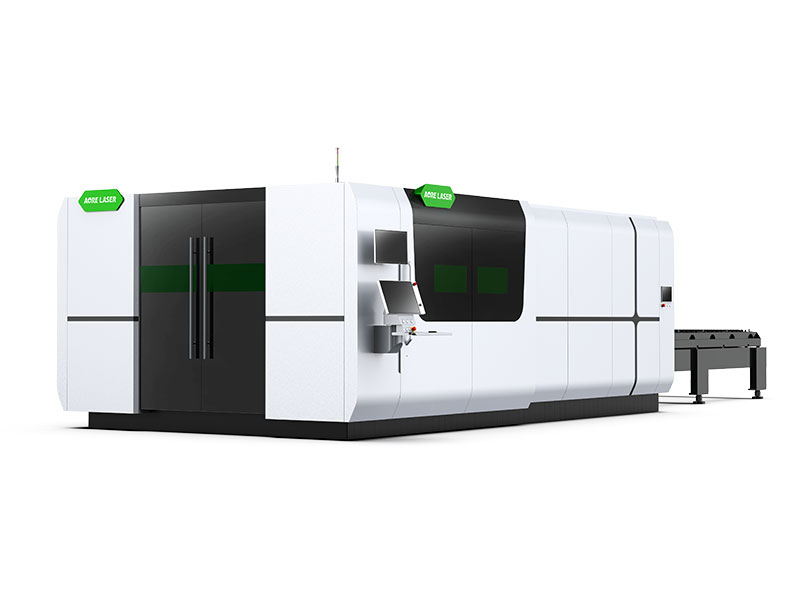

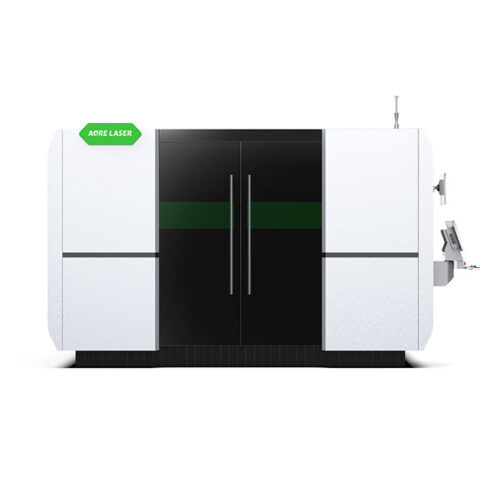

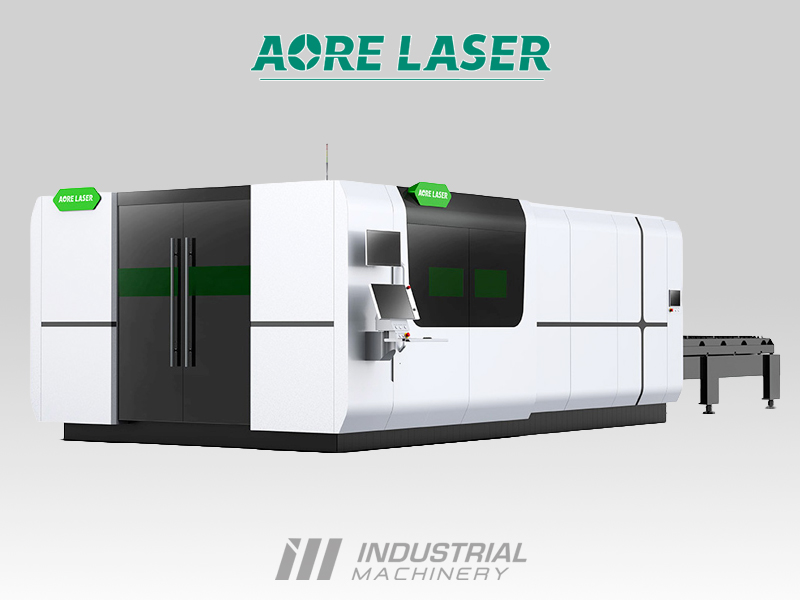

Aore H Series CNC Laser

In stock

Ultra fast, fully enclosed with lightning exchange table.

6kW ~ 30kW

  • Ultra fast acceleration
  • High end components
  • Auto Focus Laser Head
  • Full Protection Cover
  • Lightning swap exchange table
  • High-load wrap-around hollow bed
Brands:

High-load wrap-around hollow bed

The special bed for ultra-high power laser cutting machine is made of high-strength steel. The cutting area is hollow to prevent the machine from overheating and deforming. This bed has the advantages of fatigue resistance and overburn prevention, ensuring the cutting accuracy of the machine bed.



The Fifth-generation Aviation Aluminium Alloy Beam

The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.





Auto Focus Laser Head

Lightweight design, fast acceleration, the monitoring data can be read on the mobile terminal or CNC system, autofocus is simple, fast and more precise, distance sensor 0 drift measurement is more accurate, CoolTec cooling technology quickly cools the sheet metal surface temperature, the airtight light path protects against dust falling and protects the lens for continuous monitoring.

Full Protection Cover

The front and back of the protective cover are equipped with built-in cameras and use the intelligent central control system to monitor the operation. The European CE standard OD4+ level protective glass observation window, thickened sheet metal protective cover, safe production.

Lightning swap

Equipped with a six-sided steel track, the pulley and the track are inlaid tightly, powerful pneumatic tightening, and the built-in pulley runs smoothly. The fastest can achieve a complete exchange in 10s.
laser cutting machine, metal laser cutter, metal laser cutting machine, cnc laser cutting machine, fiber laser cutter, fiber laser cutting machine, laser cutting machine price, sheet metal laser cutting machine, steel laser cutting machine, laser cutting machine for sale, laser cutting machine suppliers

Cutting Sample

Model
OR-H 3015 OR-H 6025
Laser Power
6000w~30000w
Working Area
3050*1530mm 6050*2530mm
Positioning Accuracy
±0.03mm
Repeat Repositioning Accuracy
±0.02mm
Max Movement Speed
200m/min
Max Acceleration
2.5G
