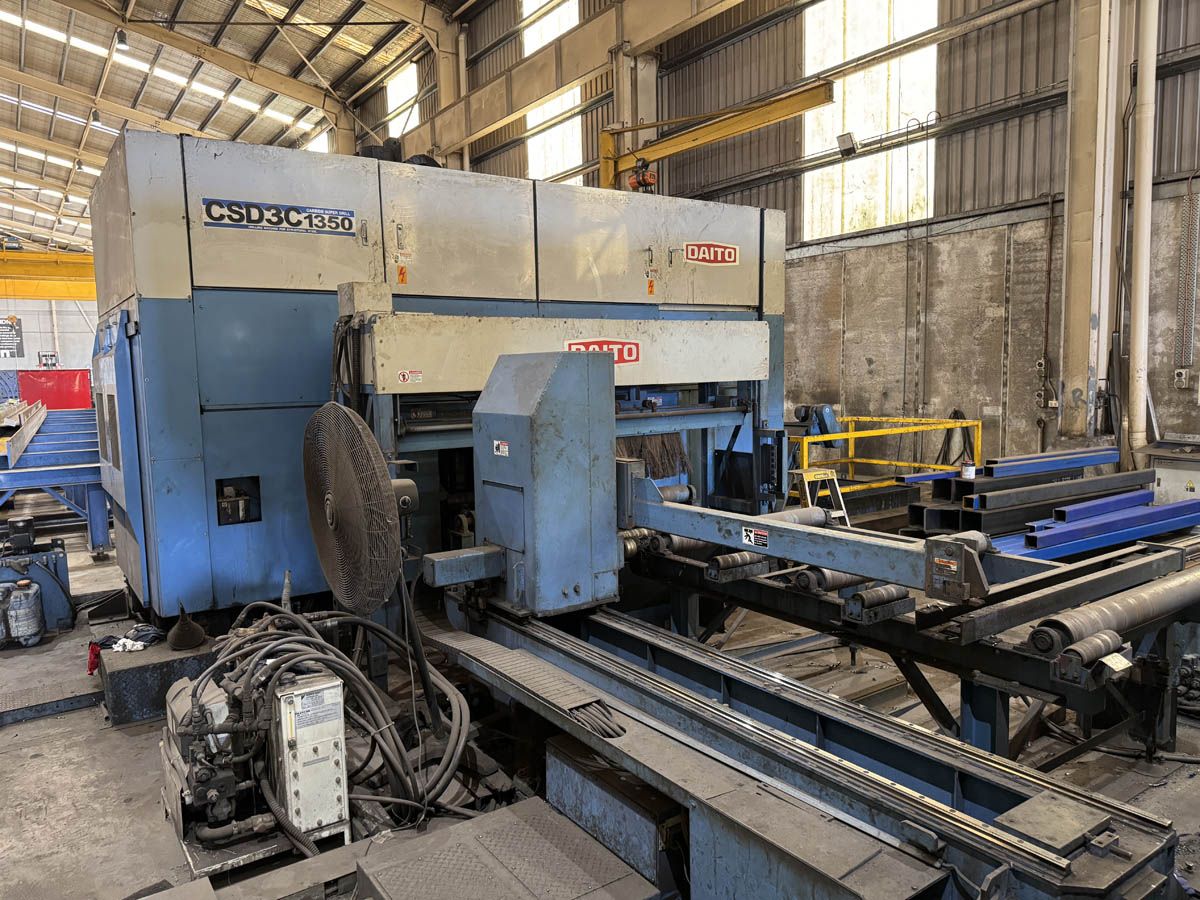

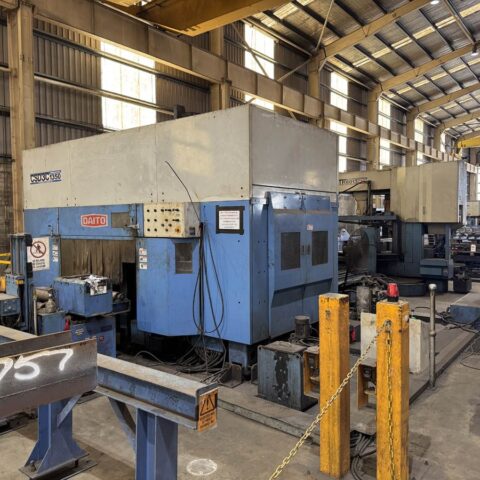

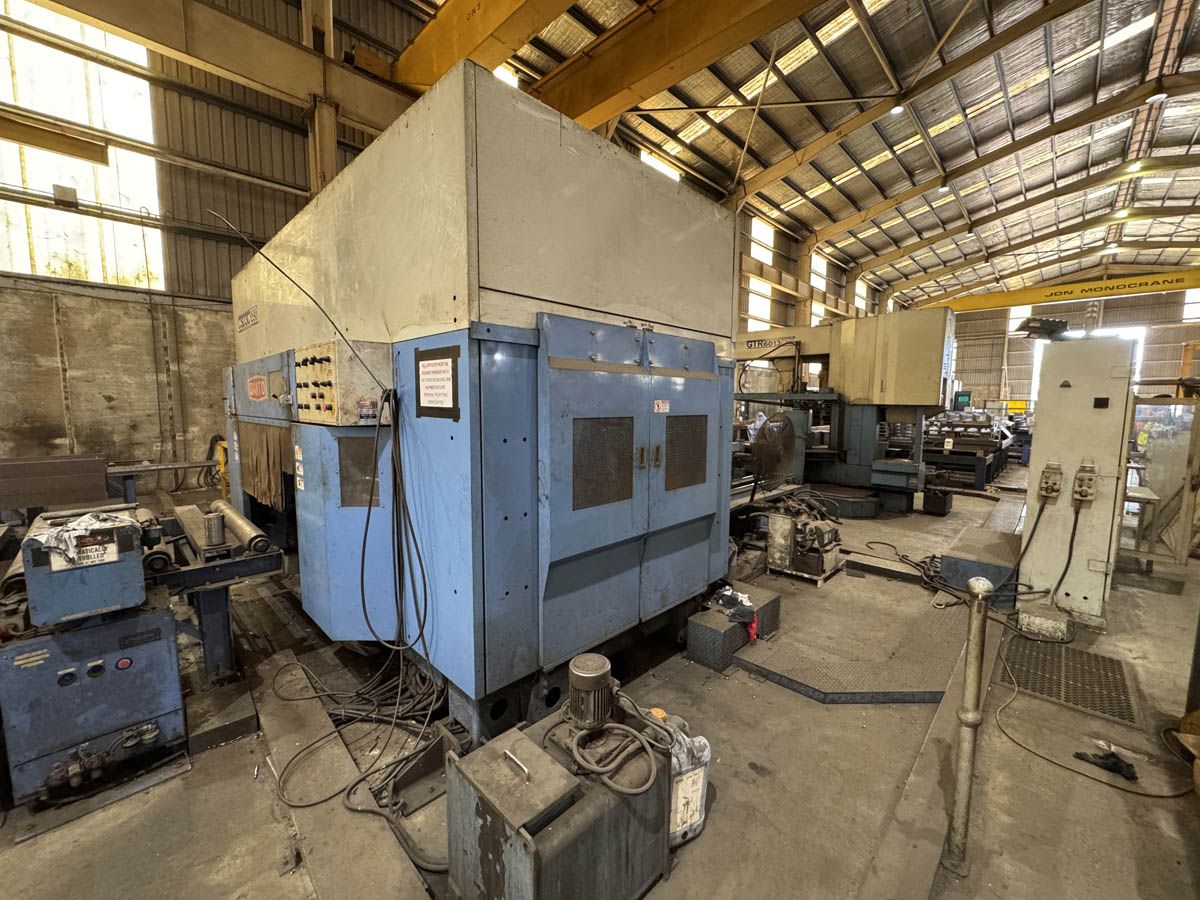

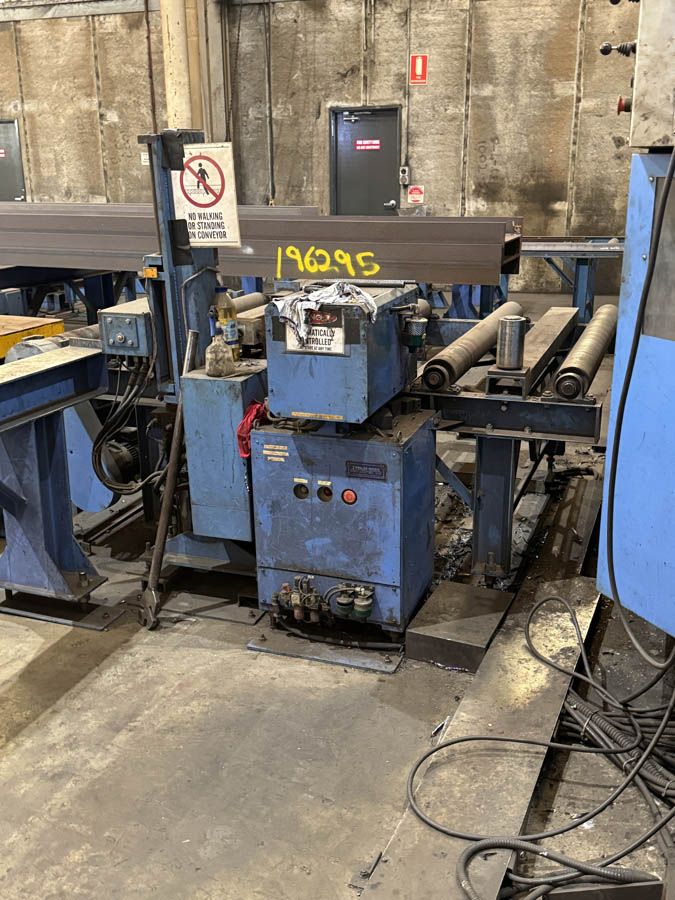

Daito CSD3C-1350 CNC Beam Drilling Line with GTR-6013 Bandsaw
The Daito CSD3C-1350 is a high-performance CNC beam drilling line designed for structural steel fabrication. Paired with the GTR-6013 CNC Bandsaw, this tandem configuration offers efficient drilling and sawing capabilities.

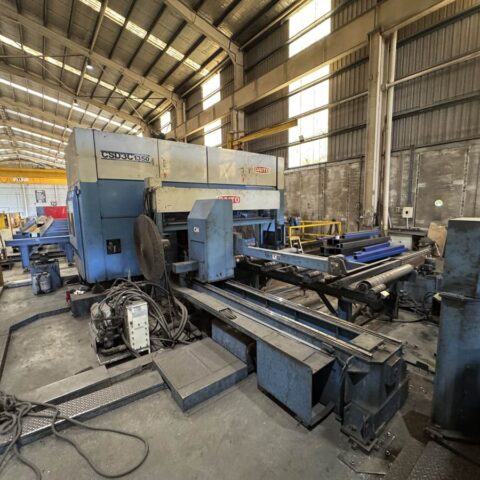

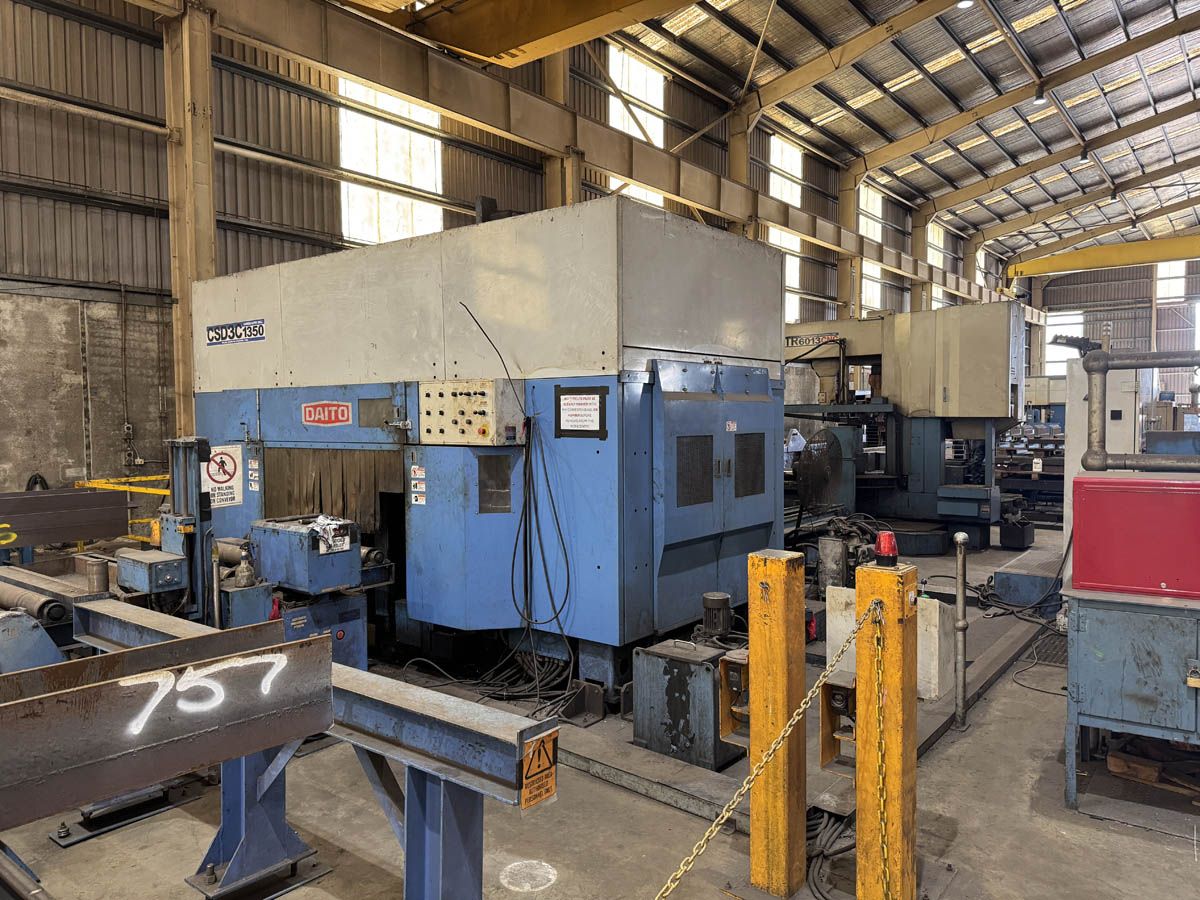

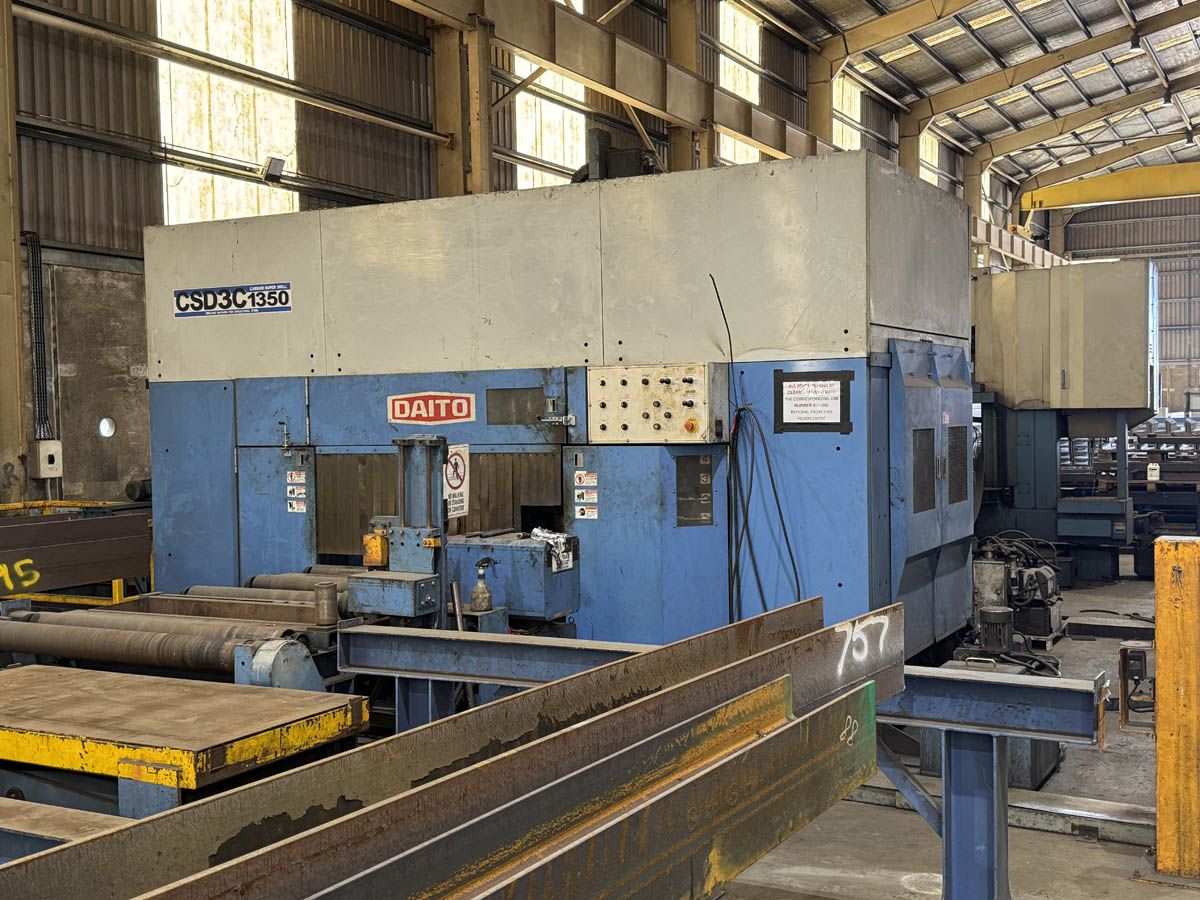

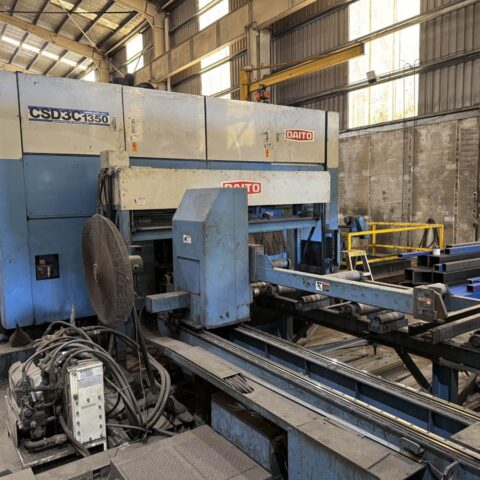

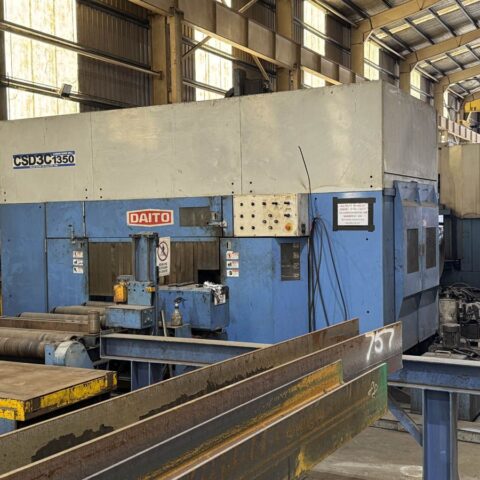

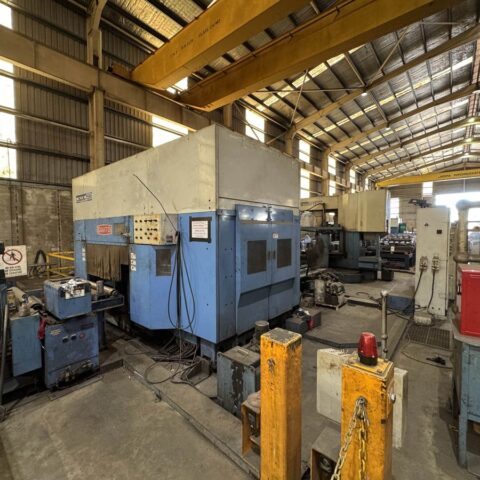

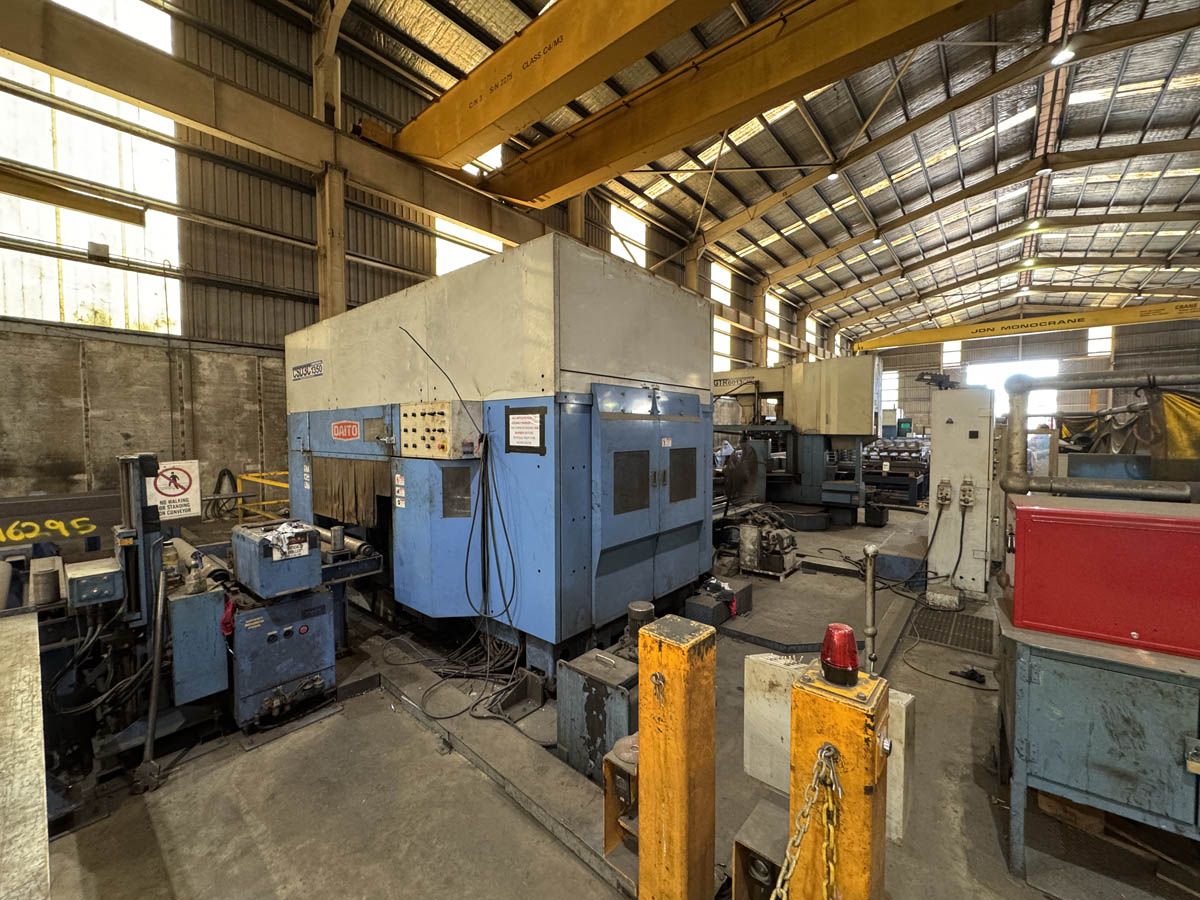

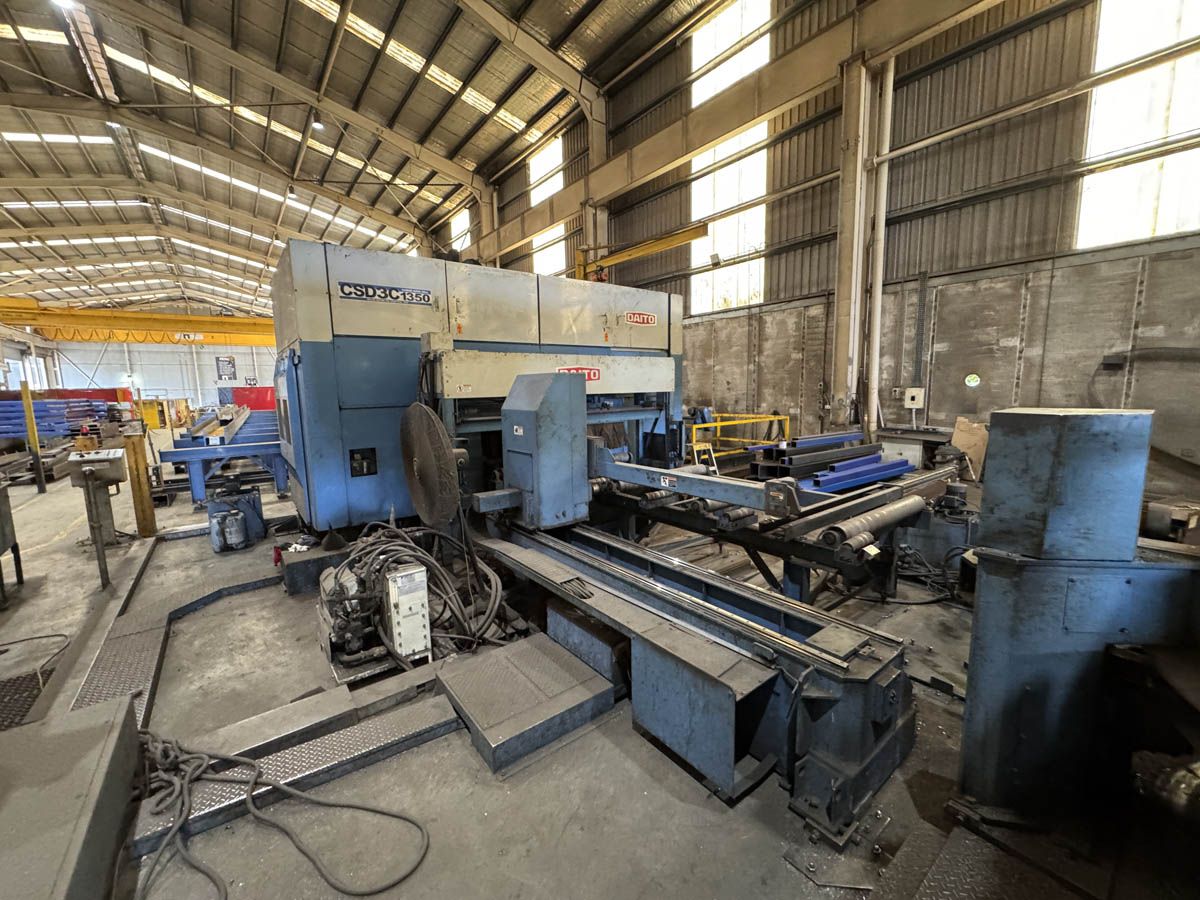

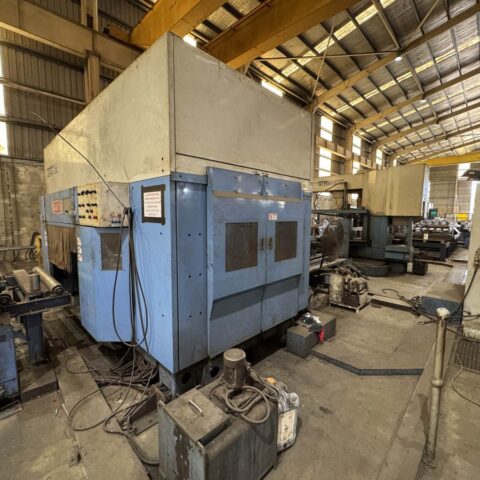

Drilling Unit: CSD3C-1350
- Maximum Beam Width: 1,310 mm
- Maximum Beam Height: 500 mm
- Drill Diameter Range: 8–50 mm
- Drilling Units: 3 independent spindles
- Spindle Motor Power: 15 kW (20 HP) per spindle
- Automatic Tool Changers: Yes, on all spindles
- Drill Travel (X/Y/Z): 450 mm / 1,350 mm / 550 mm
- Layout Marking: 4-side scribing, including underside marking
- Material Feed System: Roller feed with feed bar
- Machine Dimensions (W×D×H): 3,970 × 2,707 × 3,140 mm
- Machine Weight: 10,310 kg

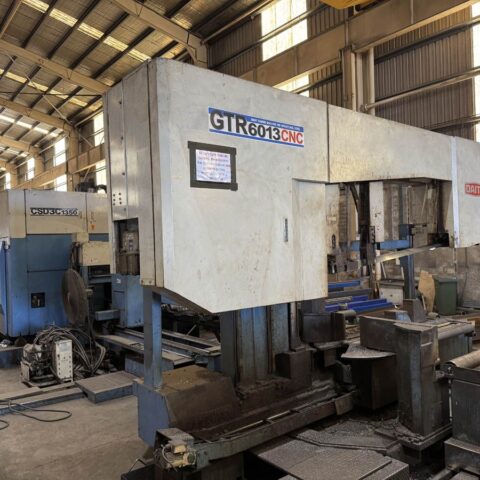

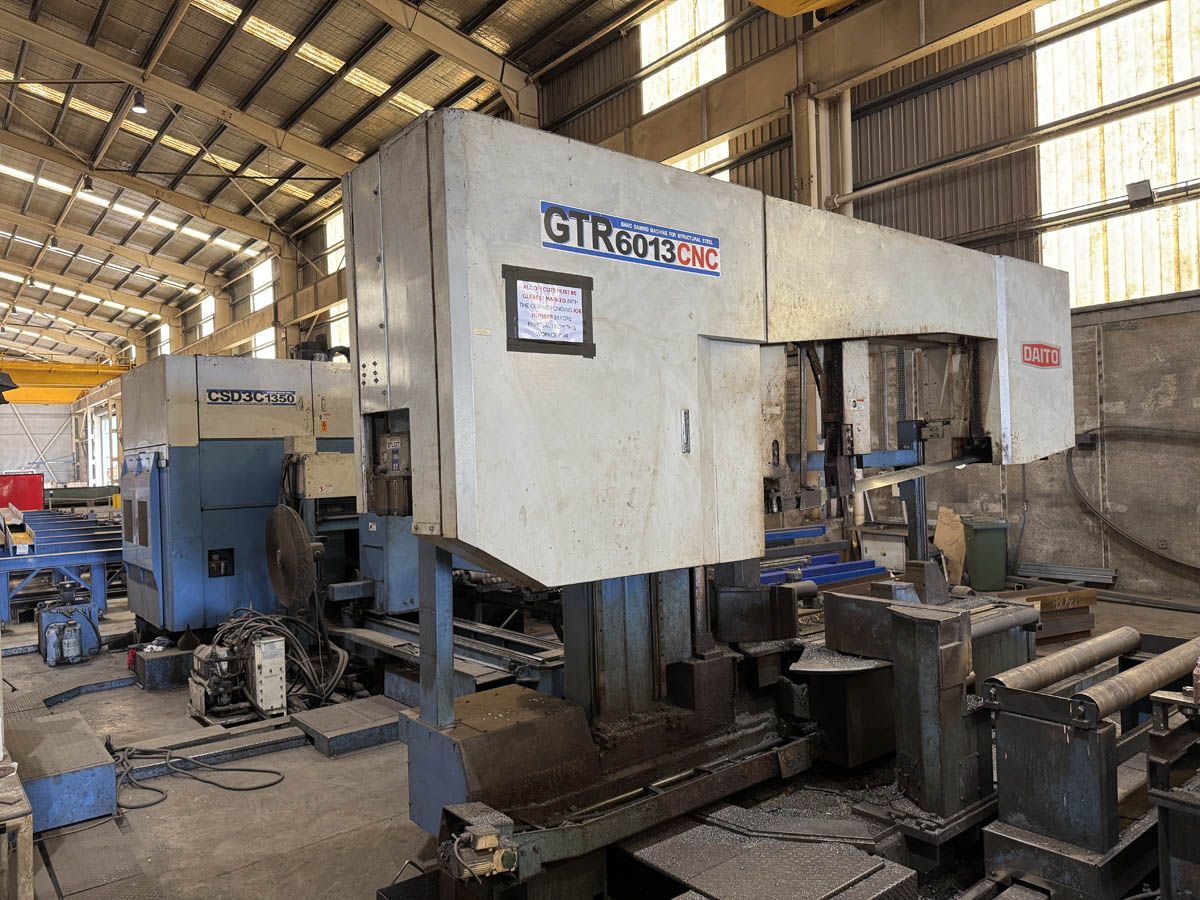

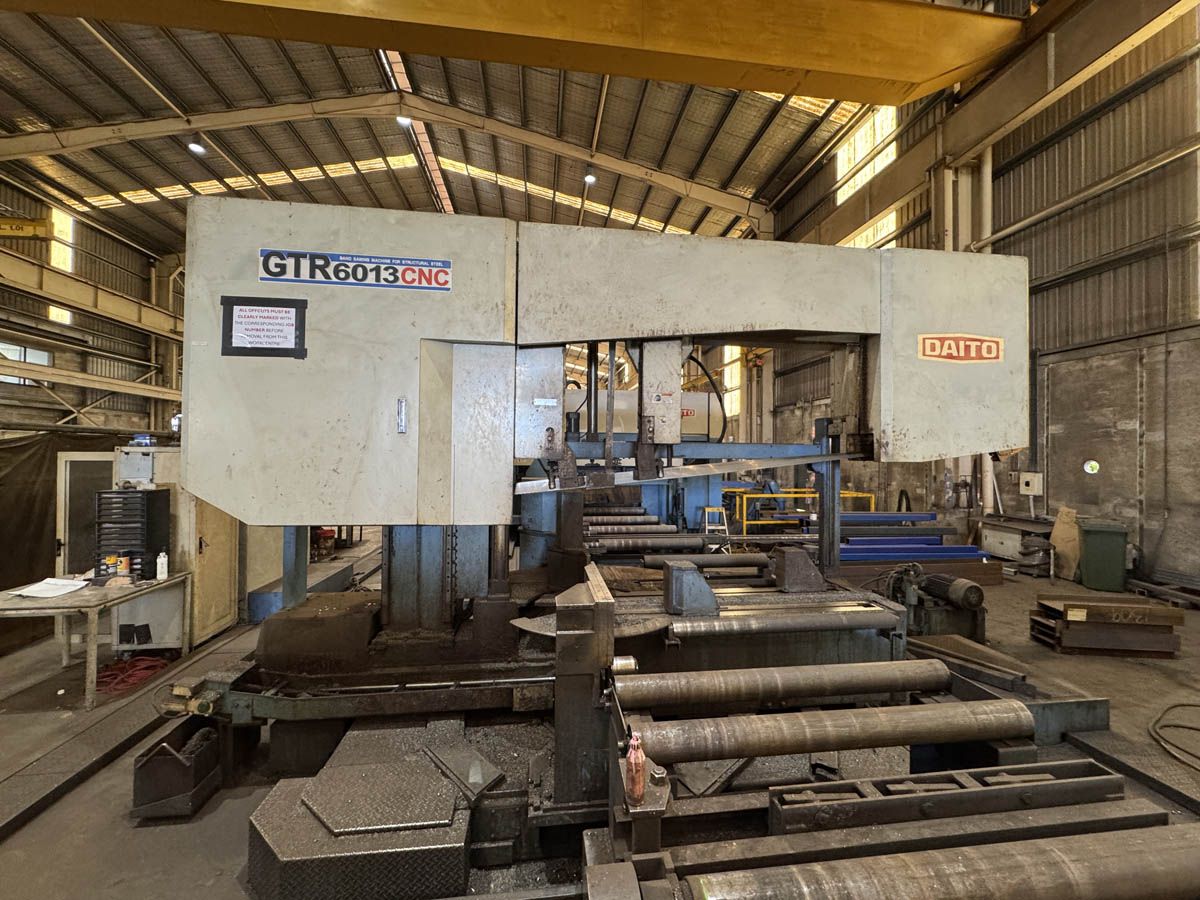

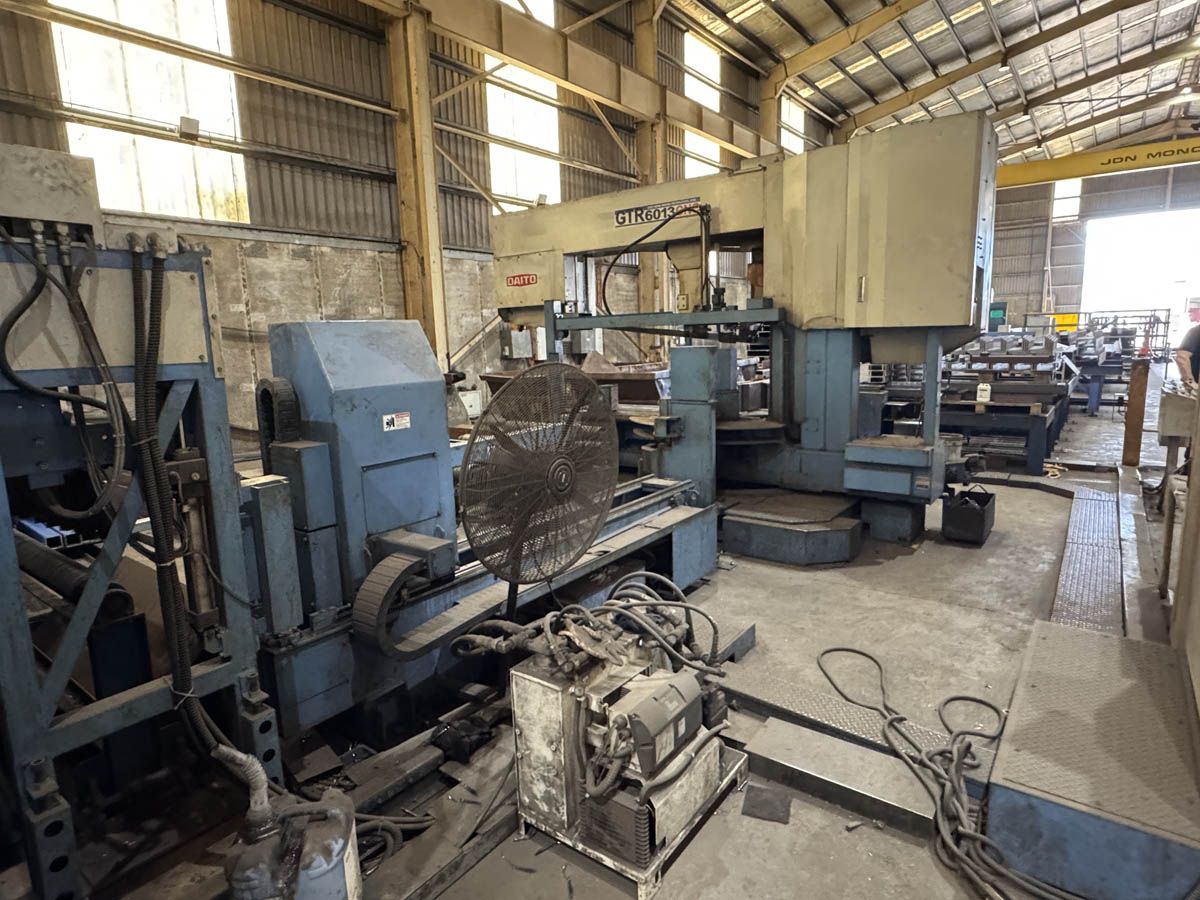

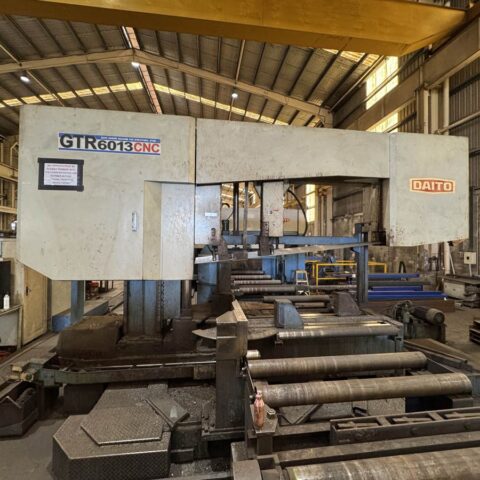

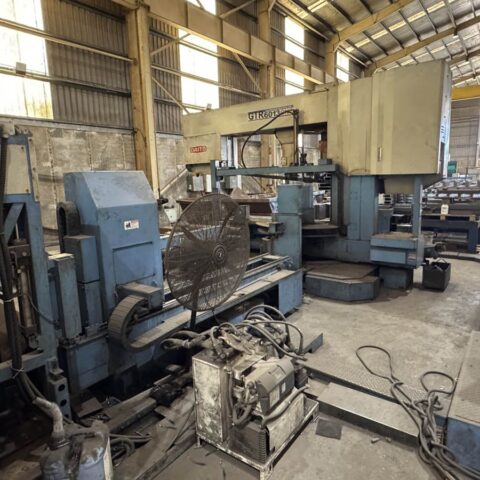

Bandsaw Unit: GTR-6013
- Maximum Cutting Width at 90°: 1,300 mm
- Maximum Cutting Height: 515 mm
- Mitre Cutting Range: +60° (clockwise) / -45° (anticlockwise)
- Blade Size: 9,840 × 67 × 1.6 mm
- Blade Feed System: Digital servo drive with linear guides
- Coolant System: Dual system (flood and mist)
- Chip Removal: Raker-type chip conveyor
Key Features
- Independent Travelling Drills: Each of the three drill heads travels independently in all directions, allowing all holes within range to be drilled without the need to re-index and re-clamp the workpiece.
- Positioning Compensation: The workpiece positioning error caused by inertia is compensated by the positioning of each drill.
- Flange and Web Supports: Flange supports prevent movement caused by the force of the top drill, while web supports prevent thinner webs from bending under drilling pressure.
- Double Mitre Cutting: The saw can perform mitre cuts both left and right, fully controlled by the CNC, which automatically rotates to the correct angle.
- Optimised Cutting: Blade speed and feed rate are automatically adjusted according to the profile, with the machine constantly reading the cutting resistance from the blade.
- Chip Management: Built-up chips accumulated during carbide drilling are effectively swept away from the workpiece, and the saw frame travels on linear guides for smooth and accurate blade feeding.
- User-Friendly CNC Control: The intelligent CNC system simplifies programming, making operation straightforward.
