Model: PH3015
Laser Type: Fiber laser cutting system
Laser Power: 6 000 W
Work Area: 3000 × 1500 mm
Positioning Accuracy: ±0.03 mm
Repeat Positioning Accuracy: ±0.02 mm
Maximum Cutting Speed: ~100 – 120 m/min
Max Acceleration: ~1.5 G
Control System: CNC with touchscreen controller (typically CypCut or similar)

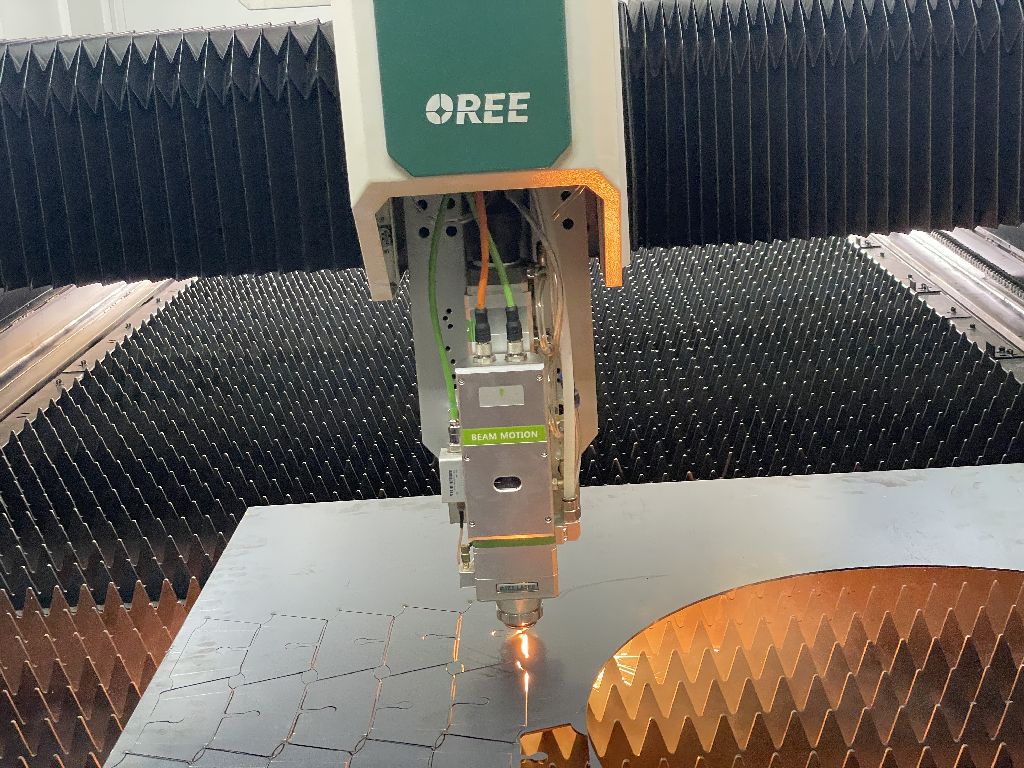

Cutting Head: Raytools autofocus (common on this model)
Platform: Fully enclosed design for safety & efficient extraction
Typical Cutting Capacities (indicative):
- Mild Steel: up to ~20–25 mm
- Stainless Steel: up to ~15–20 mm
- Aluminium: ~10–16 mm
Machine Weight: ~5 500–6 500 kk
