Technomark GX Small Laser Marking Station

Compact Class 1 fibre laser station for the workbench

Technomark

20 or 30 W fibre
Max. Window 140 x 140 mm

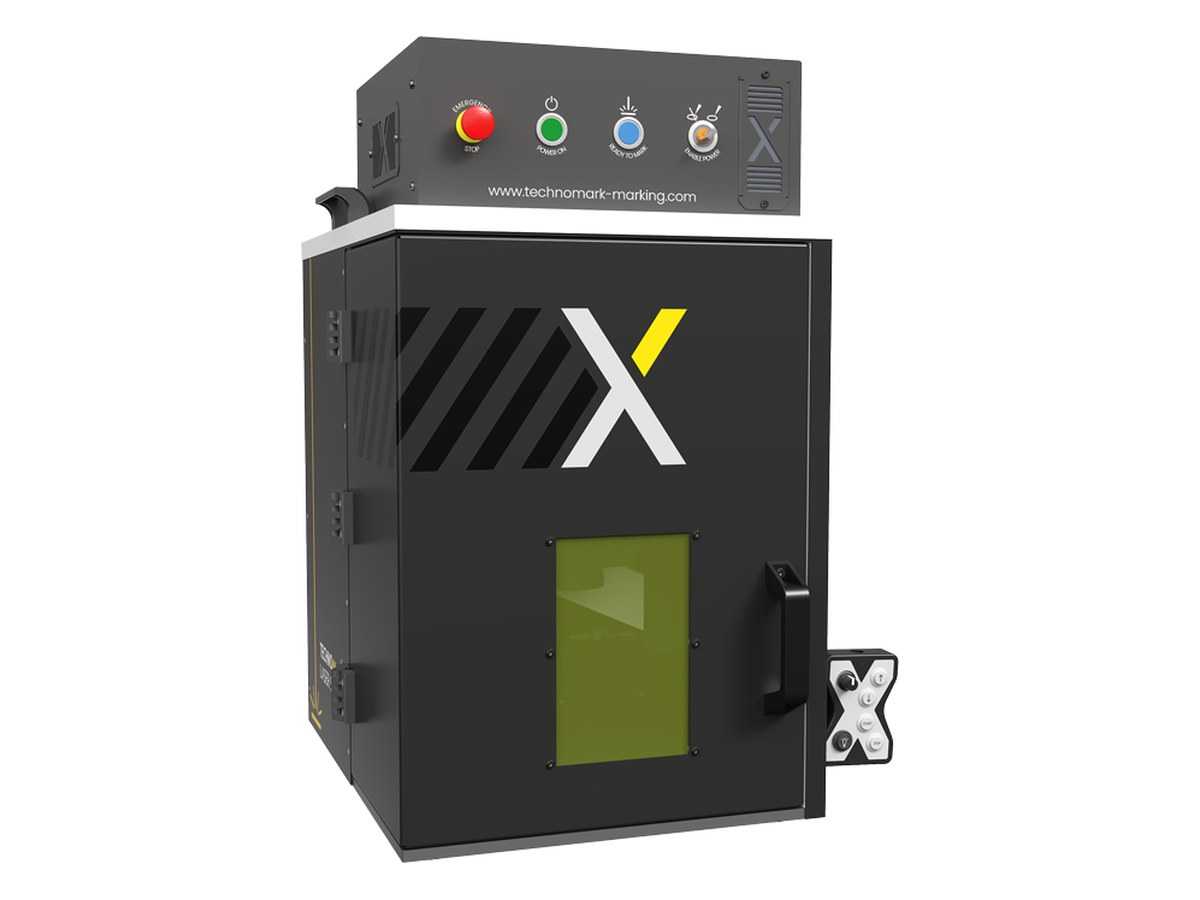

The Technomark GX Small is a compact Class 1 fibre laser marking station for the workbench. Parts are loaded through an L-shaped door onto a 325 x 390 mm base plate and marked inside the enclosure, with a door interlock and laser-protective viewing window.

A 20 W or 30 W source marks text, serial numbers, logos, barcodes and Datamatrix codes on metals and plastics, through a 100 x 100 or 140 x 140 mm window. A motorised column sets the head height from a removable remote, and the software imports marking data from CSV or an SQL database.

Get a quote Brochure (PDF)

Key features

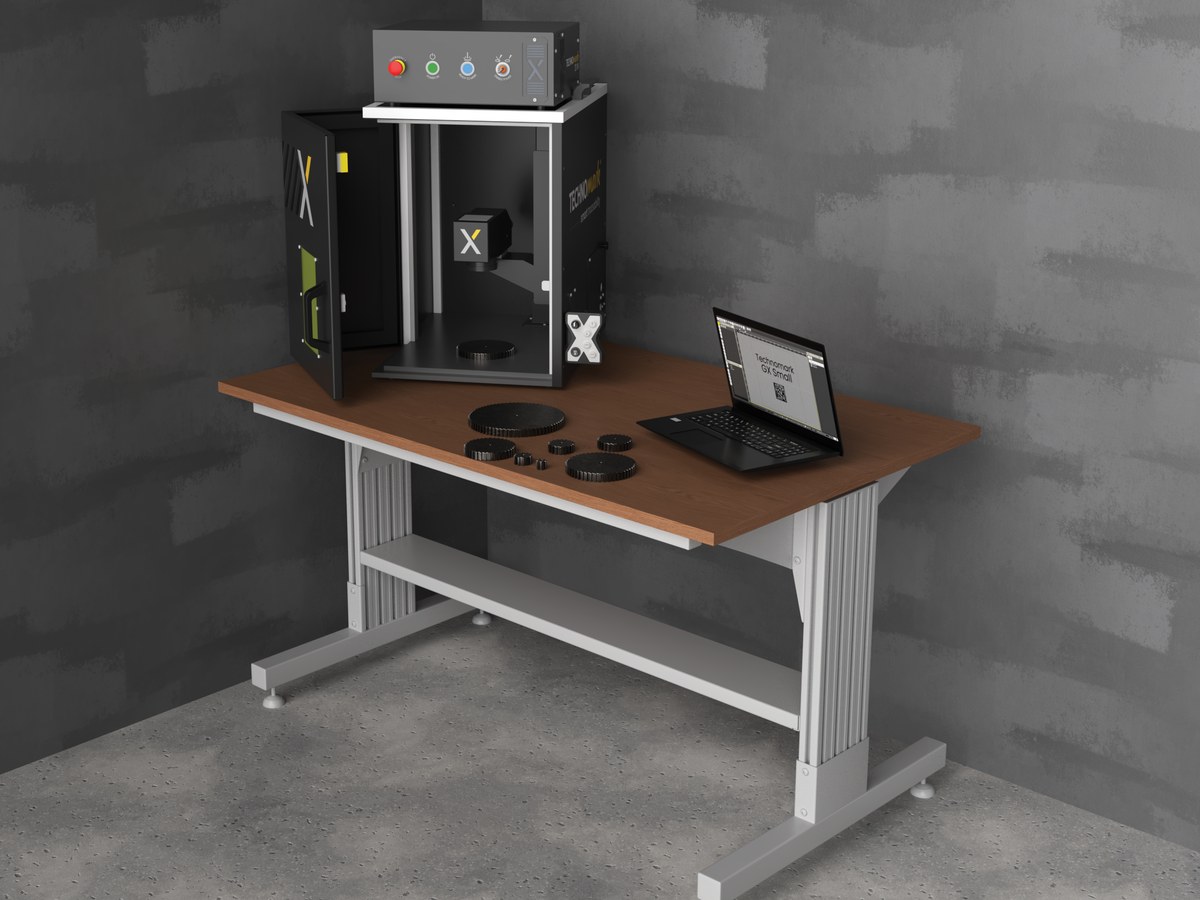

Benchtop laser station

The station measures 500 x 582 x 712 mm with the controller fitted and weighs 29 kg, so it sits on a standard workbench. Top handles allow it to be moved, and the controller can be mounted on the station or up to 3 m away.

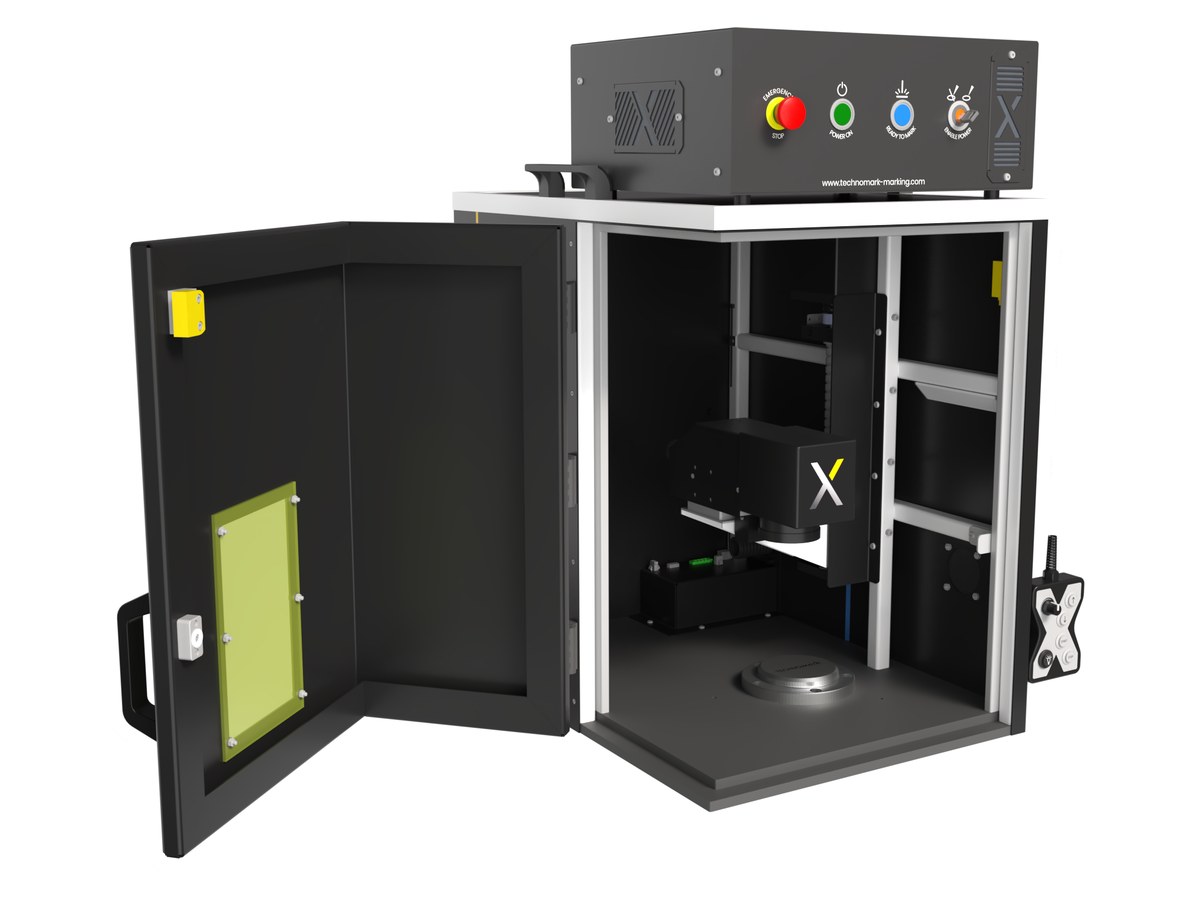

L-shaped door

The manual door opens 347 mm across the front and 210 mm down the side onto a 325 x 390 mm loading area. Parts are loaded from whichever side suits them, and a door interlock stops the laser whenever the door is open.

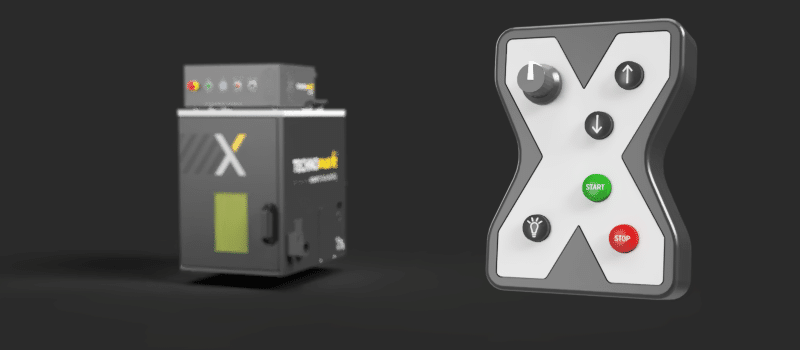

Motorised Z axis and remote control

A motorised column gives up to 200 mm of head travel with the 160 mm lens and 85 mm with the 254 mm lens. The removable remote sets head height and speed, starts and stops marking and switches the internal lighting.

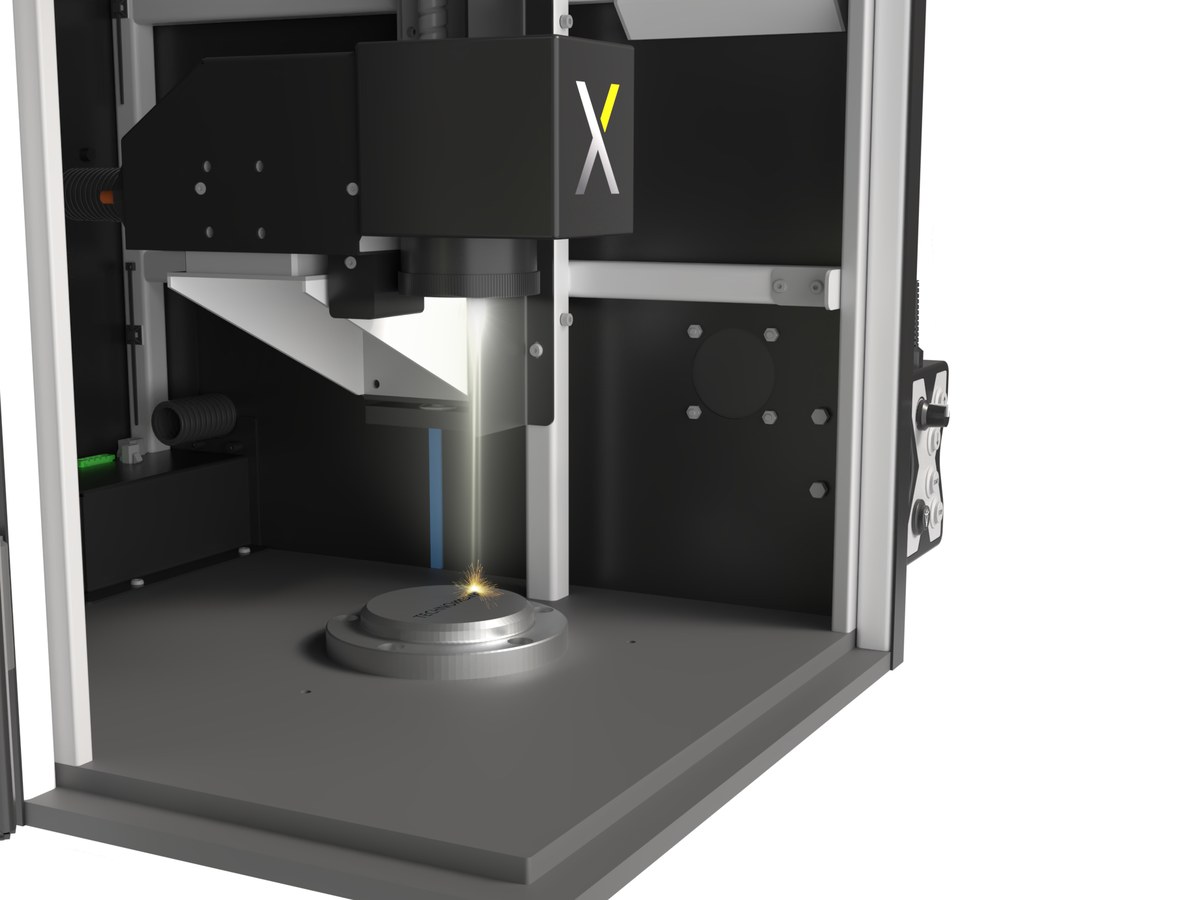

Marking head and two windows

The aluminium head is supplied with a 160 mm lens for a 100 x 100 mm window or a 254 mm lens for a 140 x 140 mm window. A cross laser pointer sets the focal distance quickly and accurately for each part.

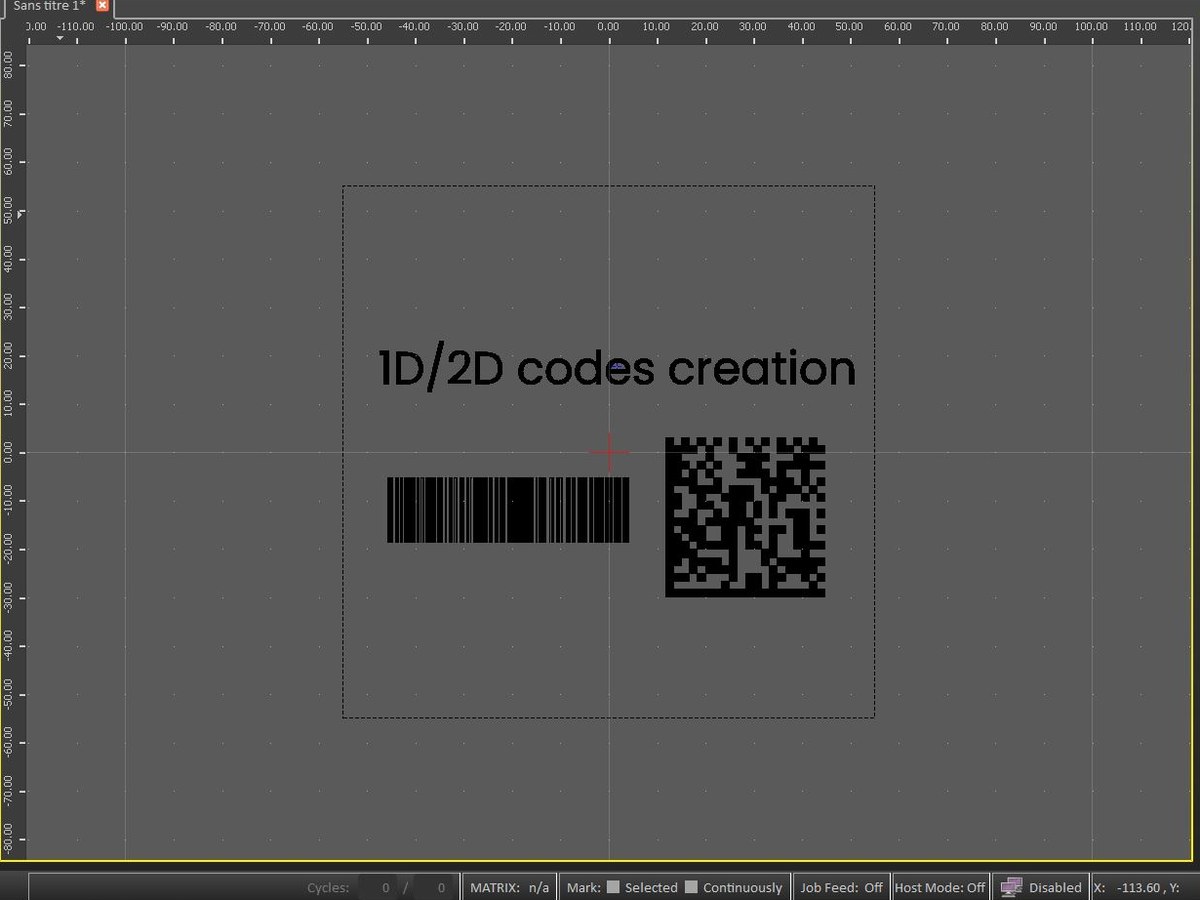

Marking software

Jobs combine text, serial numbers, logos, 1D barcodes, Datamatrix codes, shapes and images, with supervisor and user profiles and a marking history. A test mode trials marking parameters before a production run.

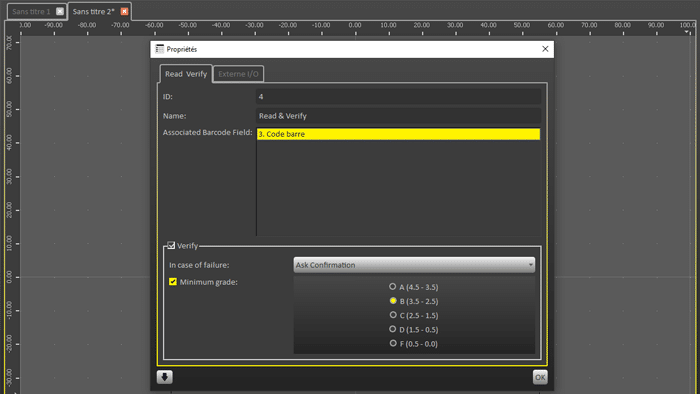

Read and Verify option

An optional camera reads each 1D or 2D code after marking and grades it against a set minimum quality level. Unreadable marks are caught at the station rather than further down the line.

Network and data connection

The station runs from a PC on the same network or stand-alone over Ethernet TCP/IP, with RS232 slave control. Optional licences add Ethernet/IP or Profinet control and marking data import from an SQL or CSV database.

More features

Marks steel, cast iron, stainless steel, aluminium, brass, titanium and many plastics
Straight, angled, radial and mirror text layouts
Class 1 enclosure with laser-protective viewing window
Illuminated marking area
HDPE base plate with 4 inserts for fixtures and a D axis
Aluminium head (2.1 kg), controller (8.9 kg) and enclosure (18 kg)
Controller with emergency stop, key switch, power button and status lights
Offline job creation, with files and logos saved to a network folder

Options

30 W laser source
160 mm or 254 mm lens
Read and Verify camera and licence
Field network licence (Ethernet/IP or Profinet)
Database licence (SQL or CSV import)
Rotary D axis
Fume extractor

Specifications

Model	GX Small
Laser source	Class 1 fibre laser station
Laser power	20 W or 30 W
Wavelength	1060 to 1085 nm
Marking window	100 x 100 mm (160 mm lens) or 140 x 140 mm (254 mm lens)
Focus aid	Cross laser pointer
Z axis	Motorised column, 200 mm stroke (160 mm lens), 85 mm (254 mm lens)
Loading area	325 x 390 mm, HDPE base plate with 4 inserts
Door opening	L-shaped, 347 mm front, 210 mm side
Station dimensions (W x D x H)	500 x 582 x 712 mm with controller
Weight	29 kg (head 2.1 kg, controller 8.9 kg, enclosure 18 kg)
Controller cable	3 m
Communication	Ethernet TCP/IP, RS232; Ethernet/IP or Profinet option
Power supply	100 to 240 VAC, 50/60 Hz
Screen	Not included, runs from a PC

Material suitability is confirmed by sample marking before order.

Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
