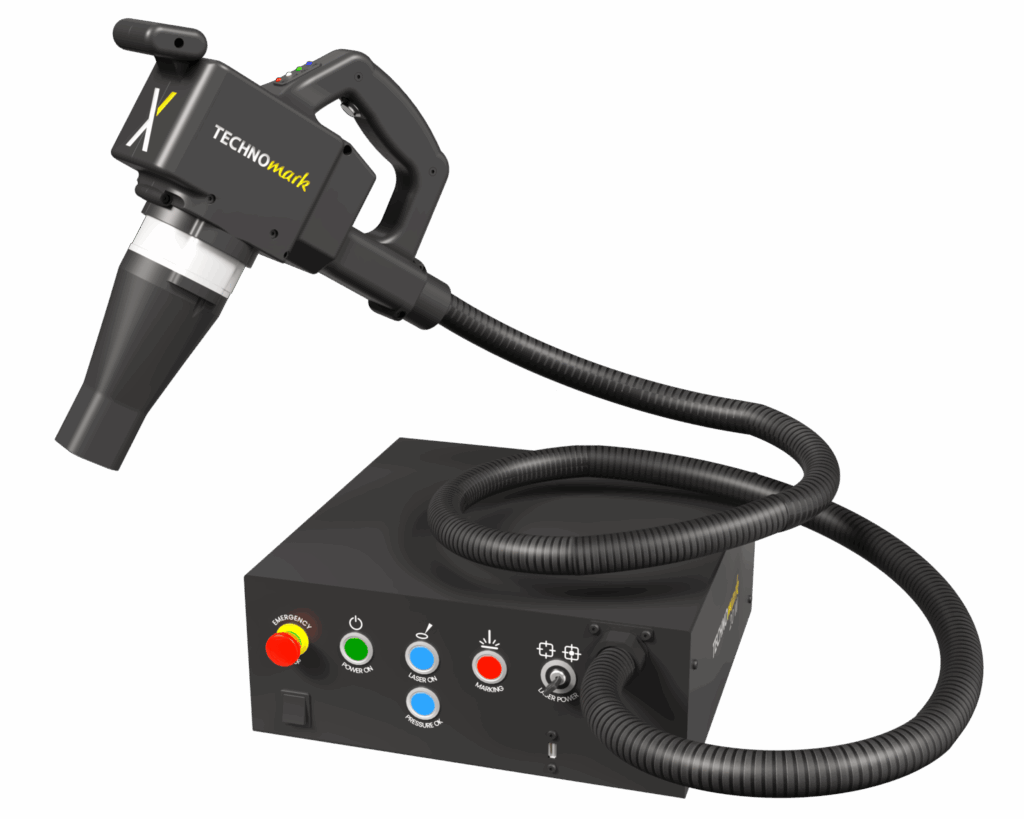

Technomark GX Mate Portable Laser Marker
Portable 20 W fibre laser marking head for large and fixed parts
- 20 W fibre
- Max. Window 100 x 30 mm

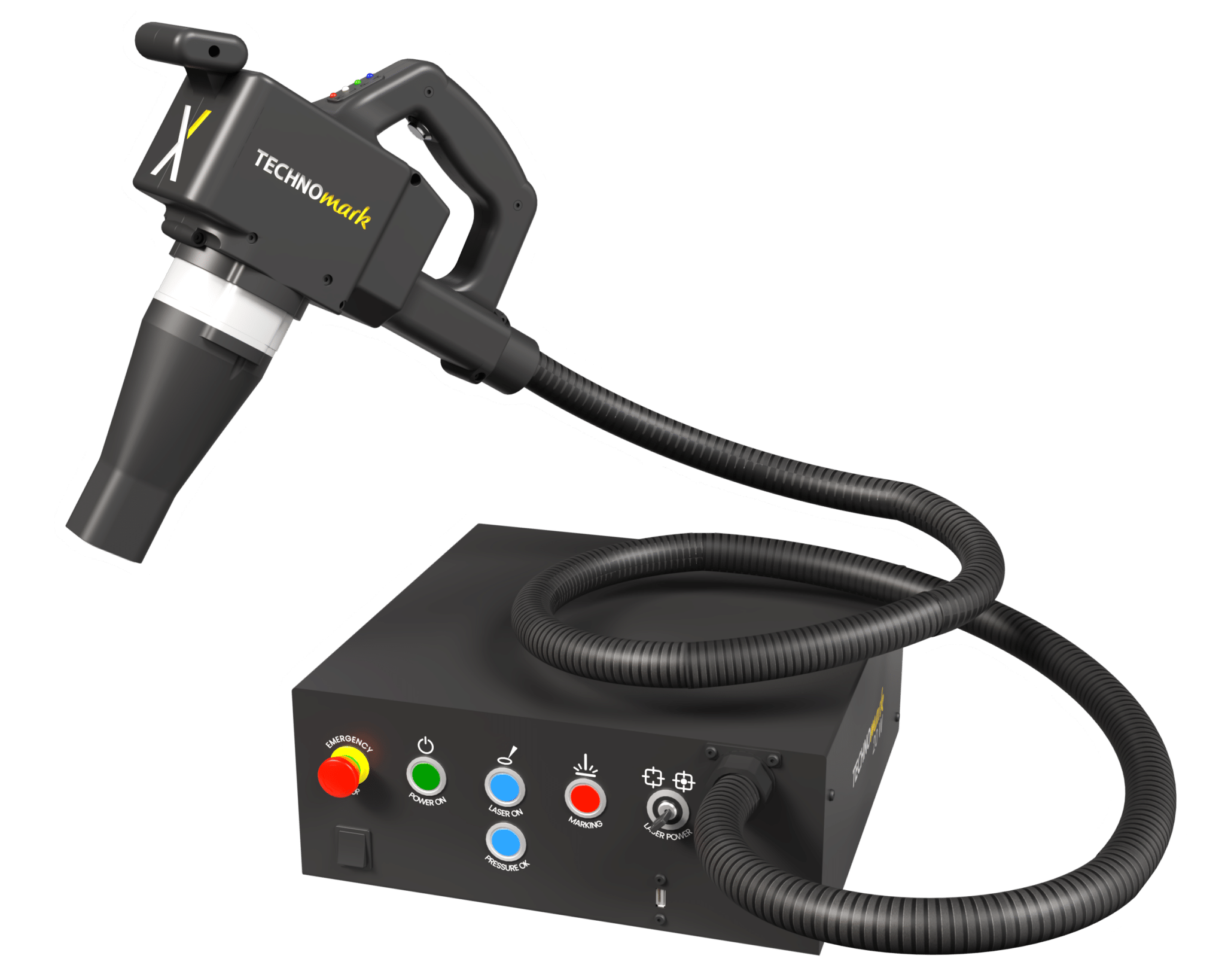

The Technomark GX Mate is a portable 20 W fibre laser marker. The 2.9 kg head is taken to the part, so heavy, bulky or fixed components are marked where they sit rather than carried to a bench laser station.
An air seal at the support nose confirms the head is seated on the surface before marking can start. Text, serial numbers, logos, barcodes, QR and Datamatrix codes are marked from the software, with data imported from CSV or an SQL database.
Key features
Portable marking head
The 2.9 kg head is carried to the part on a 3 m hose and held by two handles, with the controller on an optional transport cart. Heavy, bulky and fixed parts are marked in place instead of being moved to a bench laser.

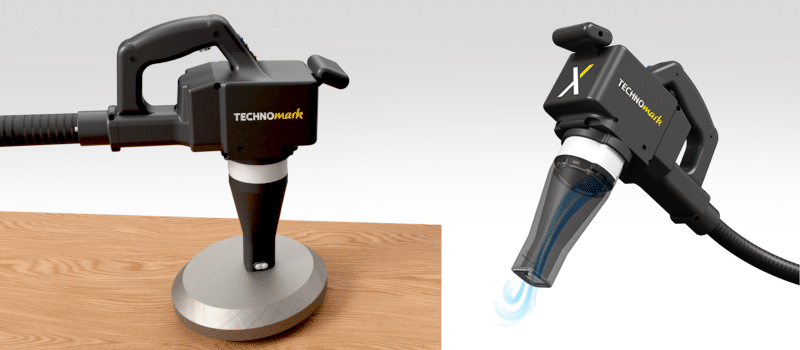

Air seal contact check
Air is pushed through the head to create a slight overpressure at the contact area, and marking is enabled only when the pressure indicator confirms a seal against the surface. The laser cannot start until the head is seated correctly on the part.

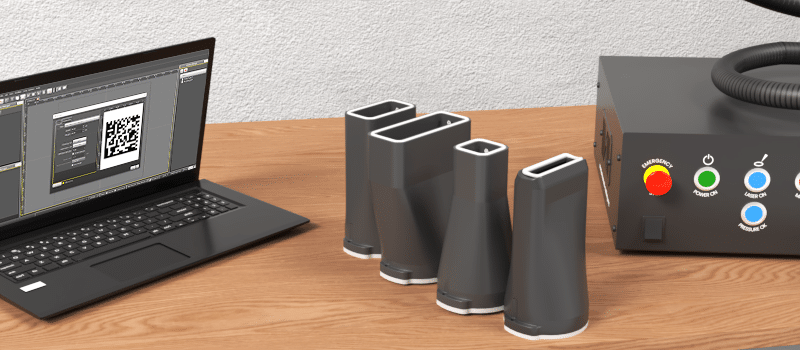

Interchangeable support nose
The support nose sets the focal distance and conforms to the workpiece, and is changed to suit the part, with custom noses available. Marks stay in focus without manual adjustment.
Two standard marking windows
Marking windows of 25 x 25 mm and 100 x 30 mm are standard, with 60 x 25 mm and 60 x 10 mm available as options. The window is matched to the mark, from a small Datamatrix code to a long line of text.
Marking software
Text, serial numbers, time stamps, logos, barcodes, QR and Datamatrix codes are laid out straight, angled, radial or mirrored. Data is imported from CSV or an SQL database, with supervisor and user profiles and a connection to the company network.
More features
- Status lights for air supply, air pressure, marking in progress and laser on
- Marking start button on the head
- Marks steel, cast iron, stainless steel, aluminium, brass, titanium and many plastics
- Controller with Ethernet connection and compressed air inlet
- 100 to 240 VAC, 50/60 Hz supply
Options
- 60 x 25 mm and 60 x 10 mm marking windows
- Custom support noses
- Transport cart
- SQL database licence
Specifications
| Model | GX Mate |
| Laser source | Class 1 fibre laser |
| Laser power | 20 W |
| Wavelength | 1060 to 1085 nm |
| Marking window | 25 x 25 mm or 100 x 30 mm (60 x 25 and 60 x 10 mm optional) |
| Head weight | 2.9 kg |
| Head dimensions | 355 x 110 x 388 mm with support nose |
| Hose length | 3 m |
| Controller weight | 11.7 kg |
| Controller dimensions | 360 x 389 x 151 mm |
| Connections | Ethernet, compressed air inlet |
| Air supply | 6 to 8 bar |
| Power supply | 100 to 240 VAC, 50/60 Hz |
| Screen | Not included |
Material suitability is confirmed by sample marking before order.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
