Technomark Combo Bench and Portable Dot Peen Marker

2-in-1 dot peen marker: bench column or wireless in the hand

Technomark

Max. Window 120 x 60 mm
Max. Height 290 mm
10-inch controller

The Technomark Combo is a 2-in-1 dot peen marker that works as a bench station and as a wireless portable unit. On the column it marks small and medium parts up to 290 mm high; lifted off, the same head marks large, heavy or fixed parts up to 10 m from the controller.

Changing between the two takes less than 10 seconds without tools. The head has a 120 x 60 mm window, marks parts up to 63 HRC, and Intelligent Driving Impact keeps the stylus at the right distance over uneven surfaces of 3 to 8 mm. A 10-inch controller holds the marking files, data import and a predictive maintenance module.

Get a quote Brochure (PDF)

Key features

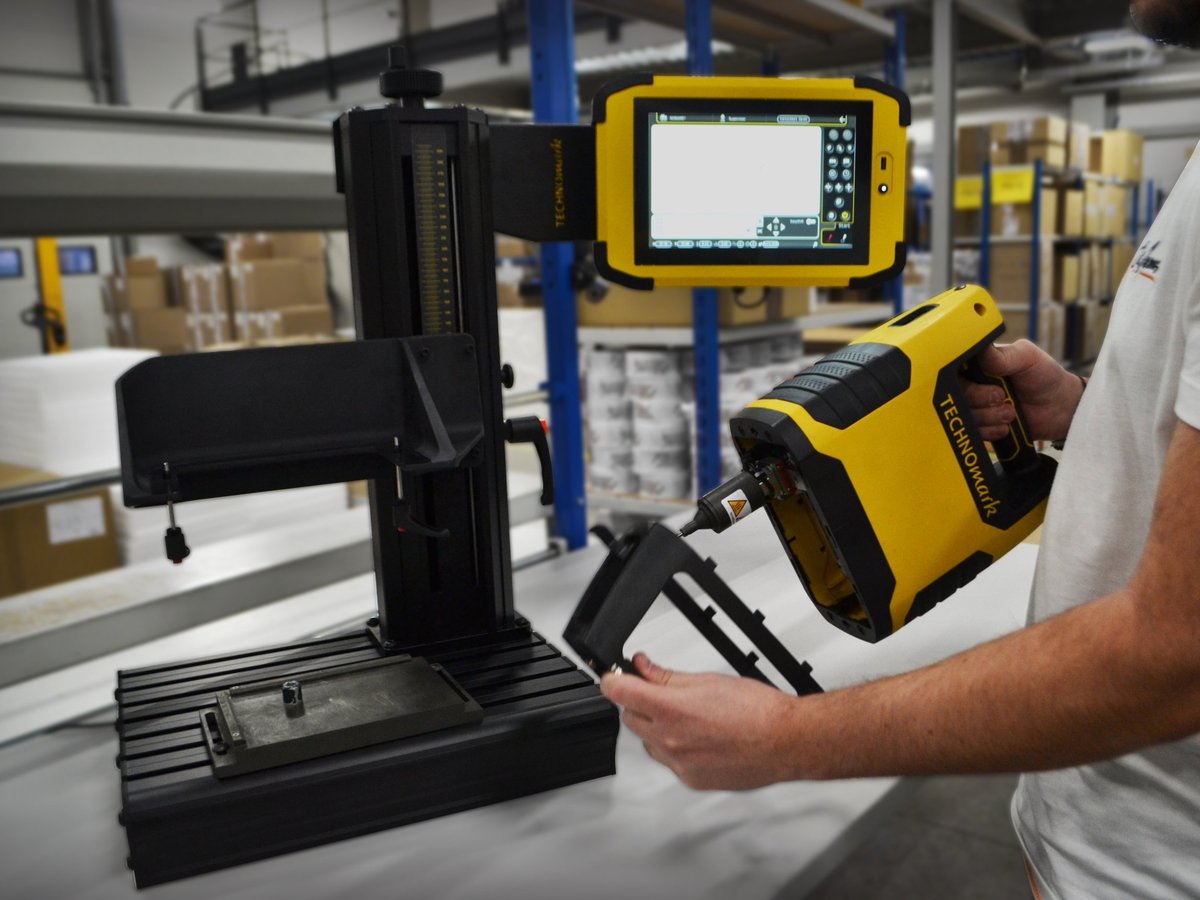

2-in-1 bench and portable

The head clips into the column holder for bench marking and lifts out to work as a wireless portable unit, in less than 10 seconds without tools. One machine covers small parts at the bench and large, heavy or fixed parts in the workshop.

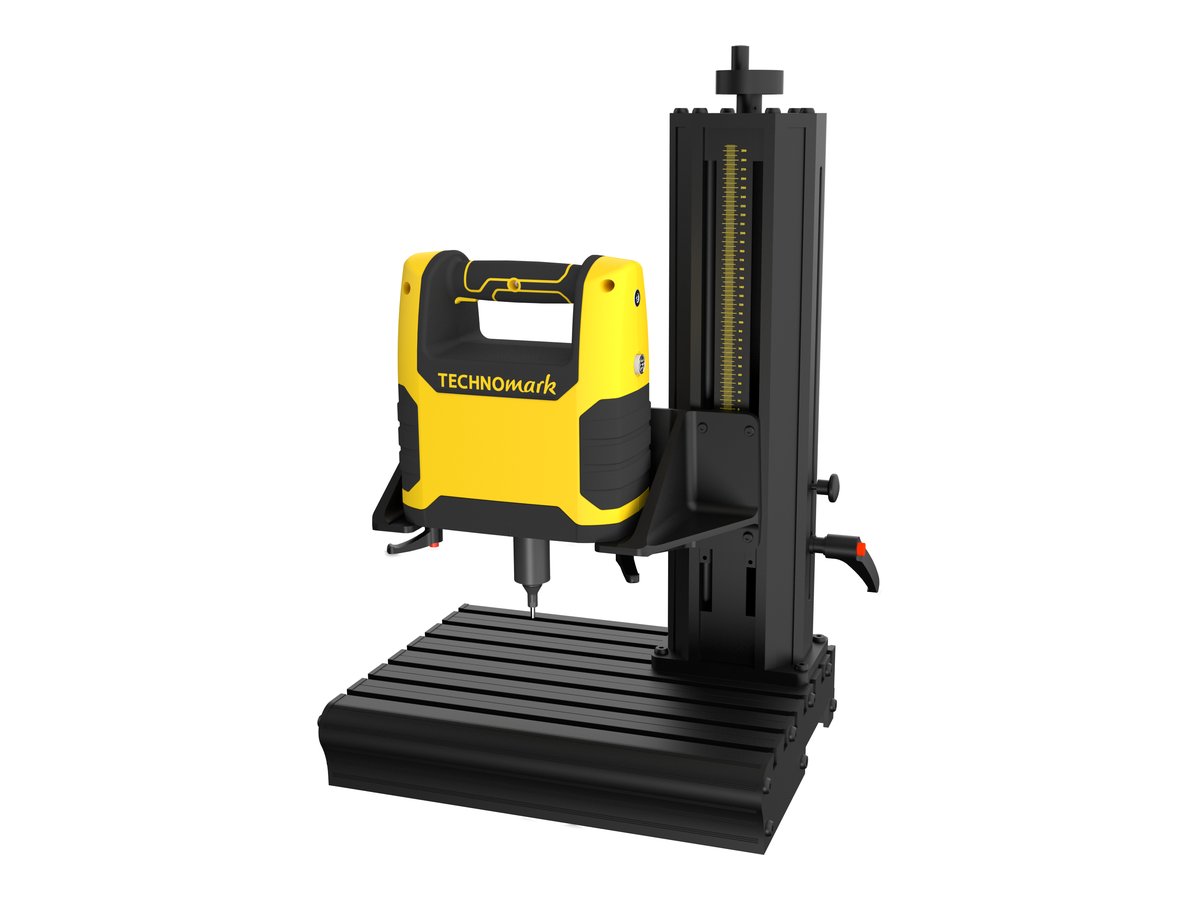

Benchtop column with Quick Shift

The column takes parts up to 290 mm high, or more with the 150 mm extension, and Quick Shift resets its height quickly between different parts. The T-slot base takes a plate holder, rotary axis and other clamping.

Intelligent Driving Impact

IDI automatically adjusts the distance between stylus and part during marking, so one mark runs across uneven surfaces with 3 to 8 mm of height variation. Depth stays even without resetting the column for each step in the part.

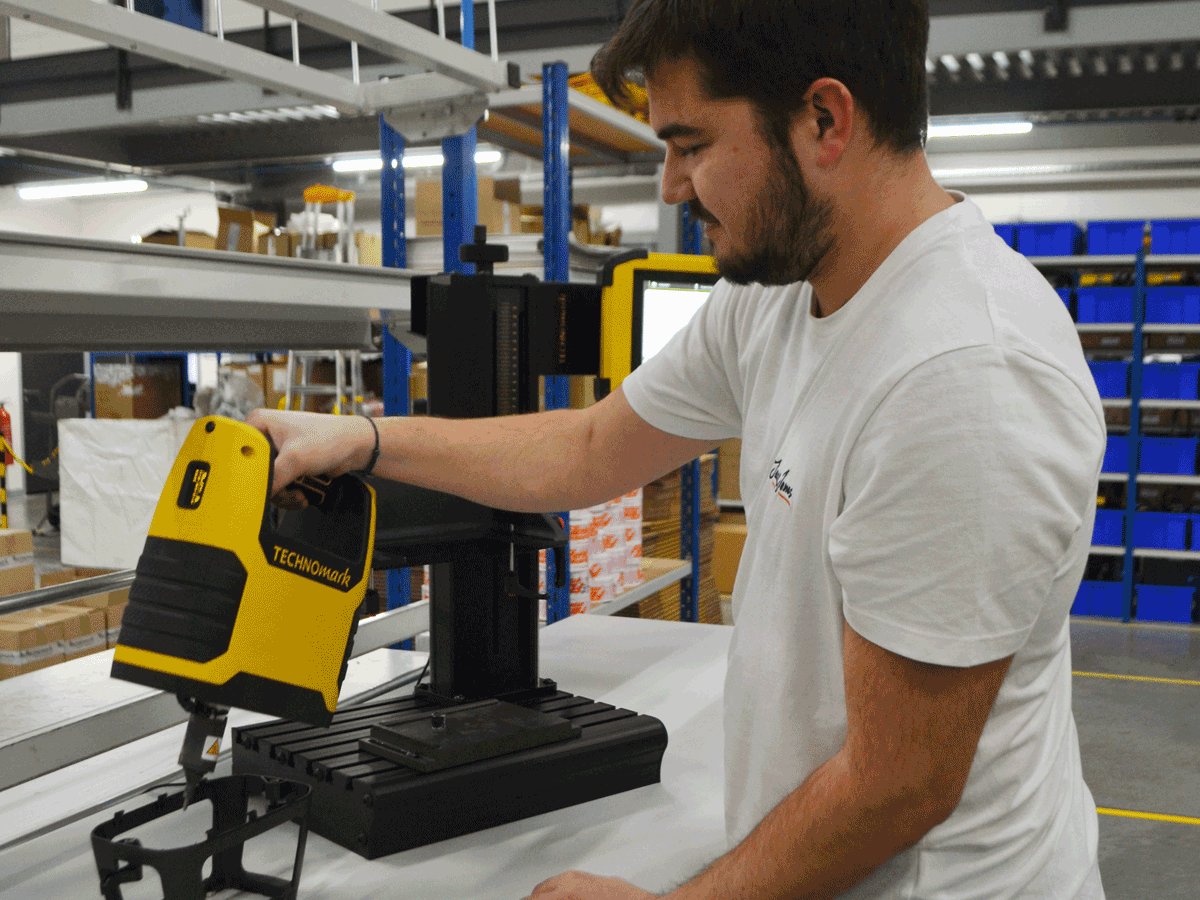

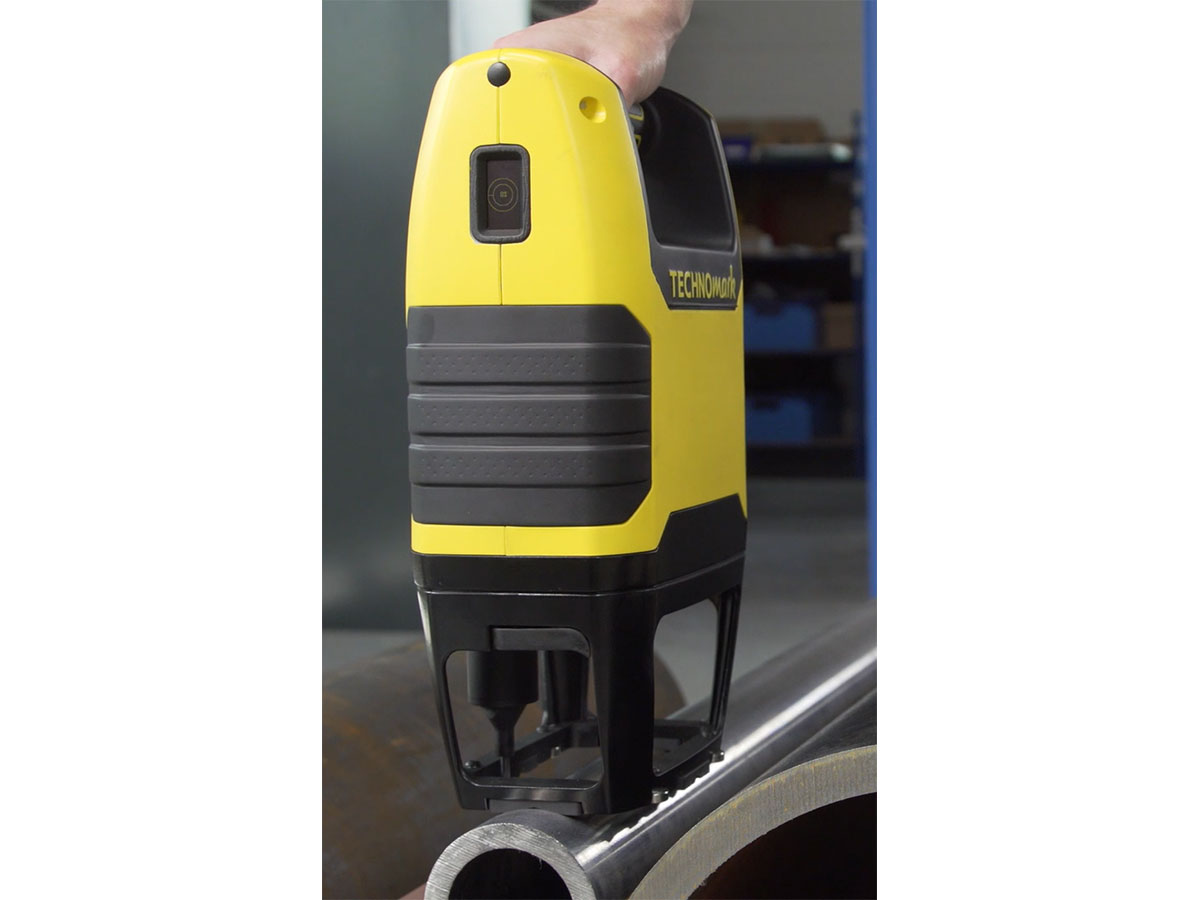

Portable mode

Off the column, the 3.2 kg head connects to the controller over secure Wi-Fi at up to 10 m and pairs automatically by RFID. The 5-in-1 support foot sets it on flat parts, cylinders and steel without a fixture.

Energy select

The head runs on its 22 V lithium-ion battery for light to deep marking, or on mains power for deep marking, heavy use and bench mode. Plug-in hybrid mode keeps production going when the battery runs low.

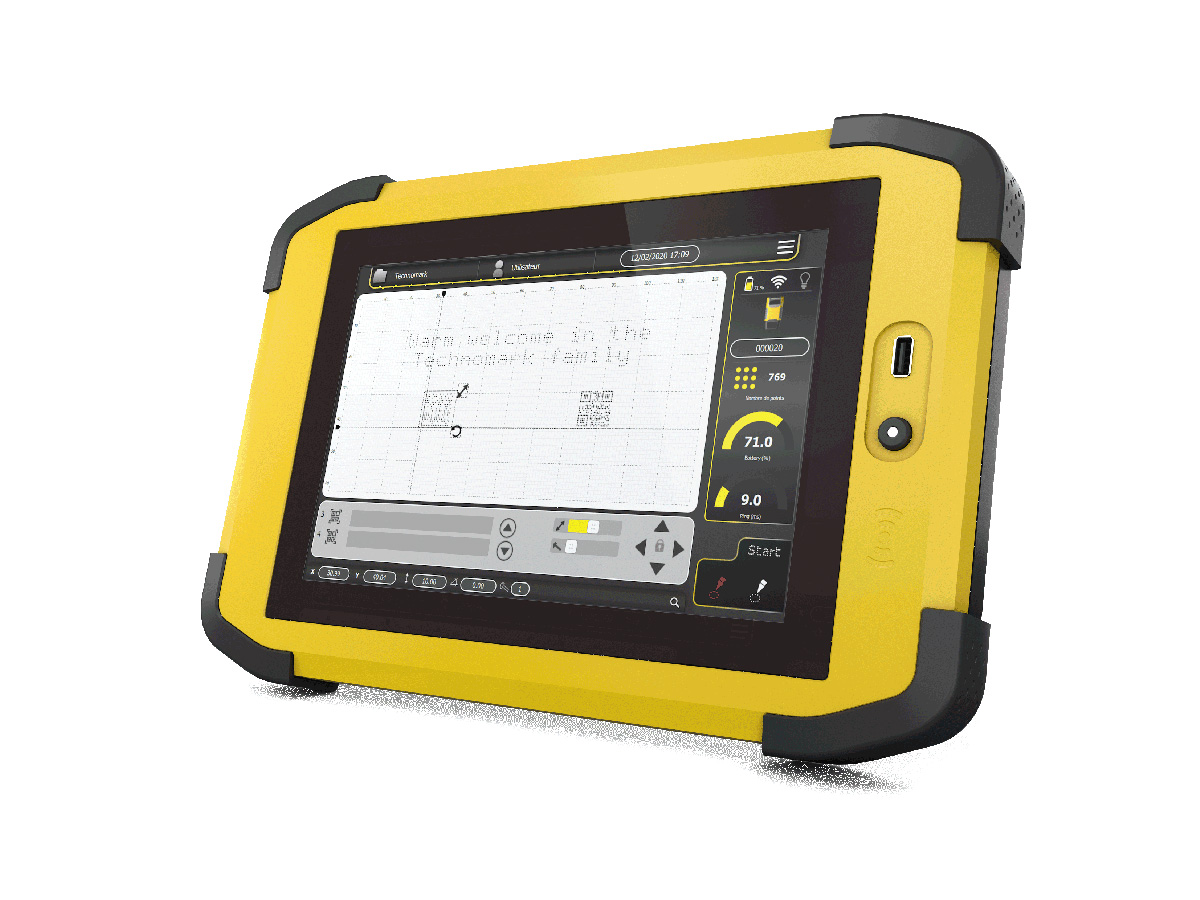

10-inch controller

Marks are set up in three clicks on a 10-inch tempered glass touch screen, which also controls the rotary axis and runs a predictive maintenance module. The controller runs on 220 V, connects by Ethernet and has 3 USB ports for a keyboard, code reader or USB stick.

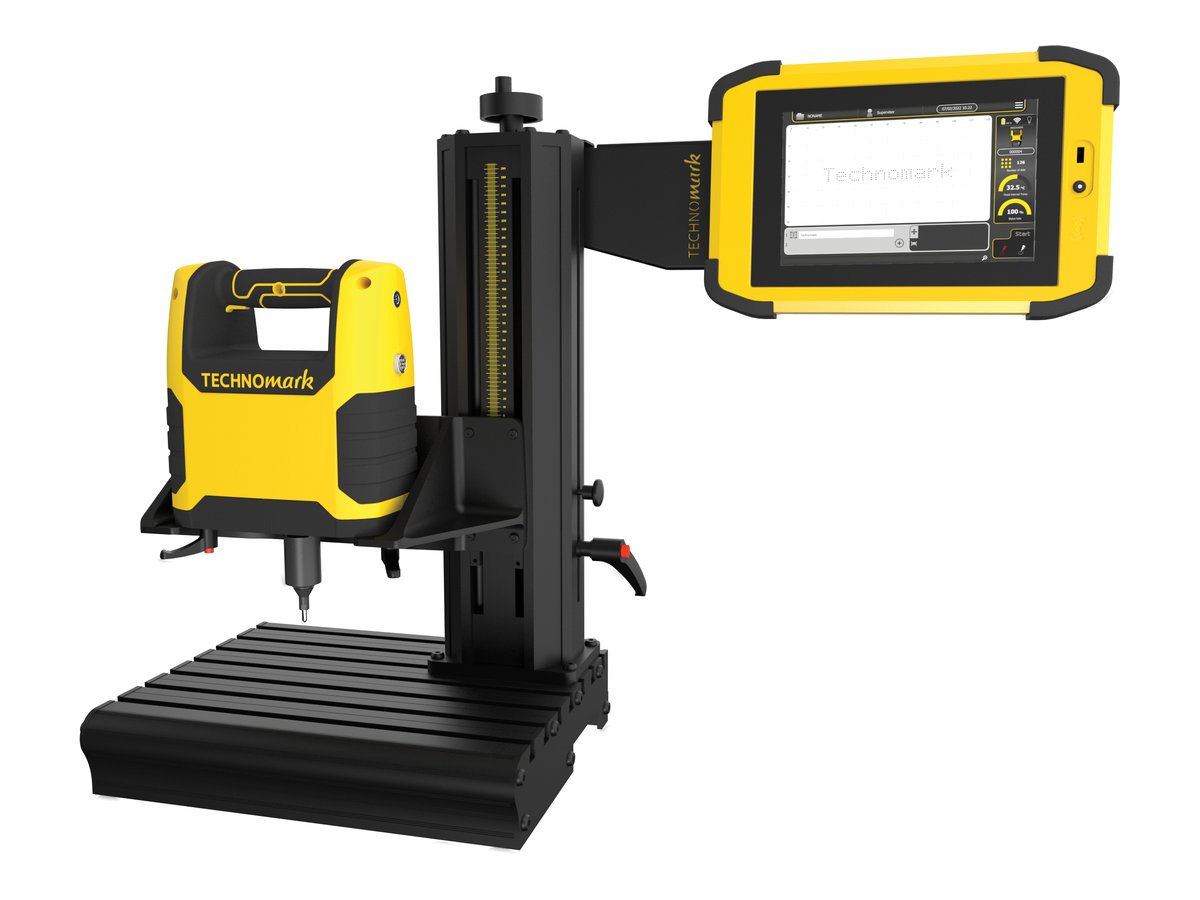

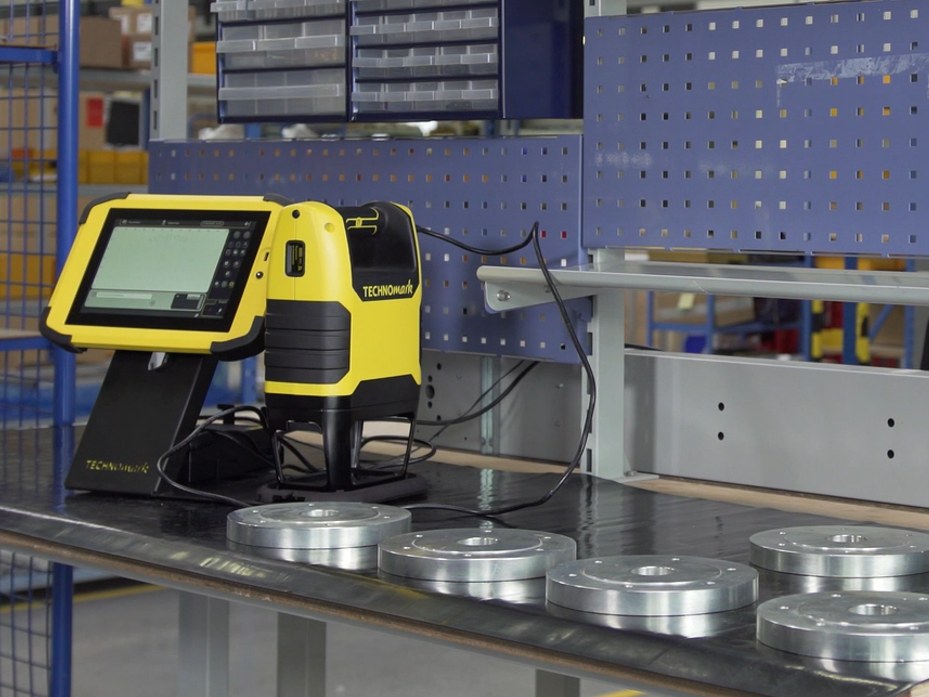

Controller holders

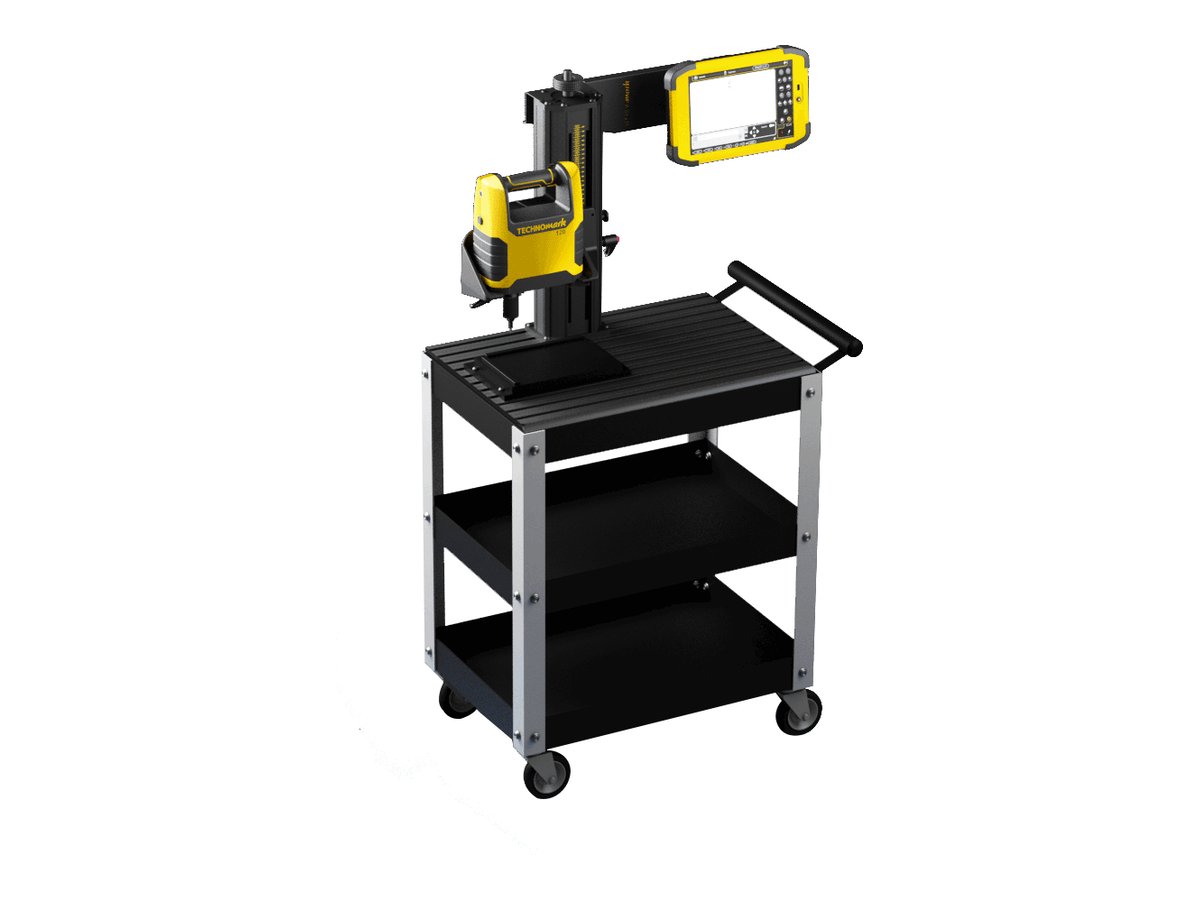

The controller mounts in a Light bench holder, an Upgraded arm on the column, or a Full mobile trolley carrying the column, head and controller together. VESA 100 fixings suit other mounting arrangements.

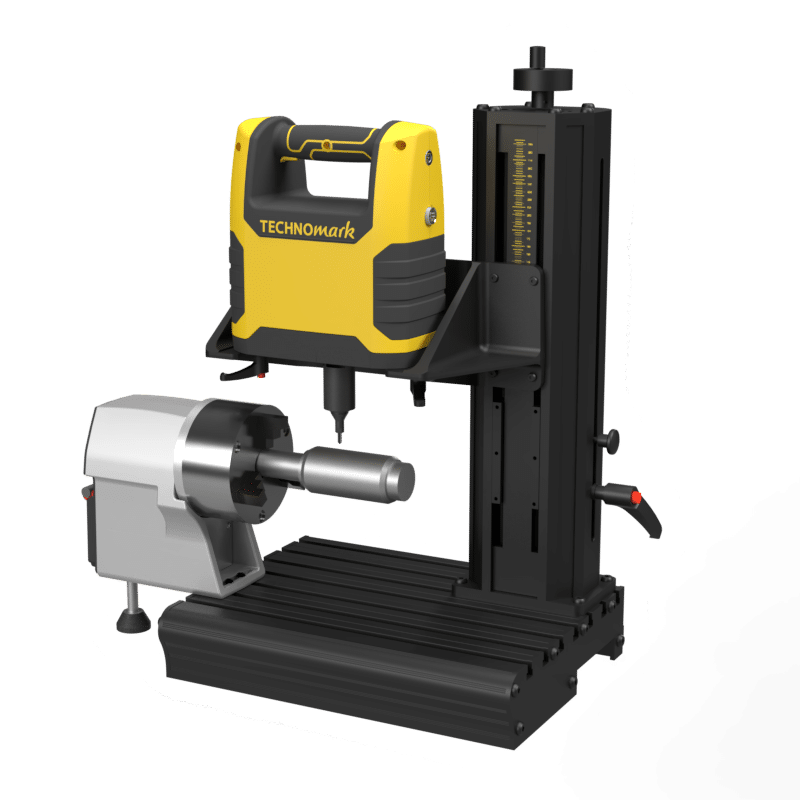

Rotary D axis option

An optional software-controlled rotary axis holds cylindrical parts up to 80 mm diameter and 10 kg for marking around the circumference. It connects to the head and is driven from the controller.

More features

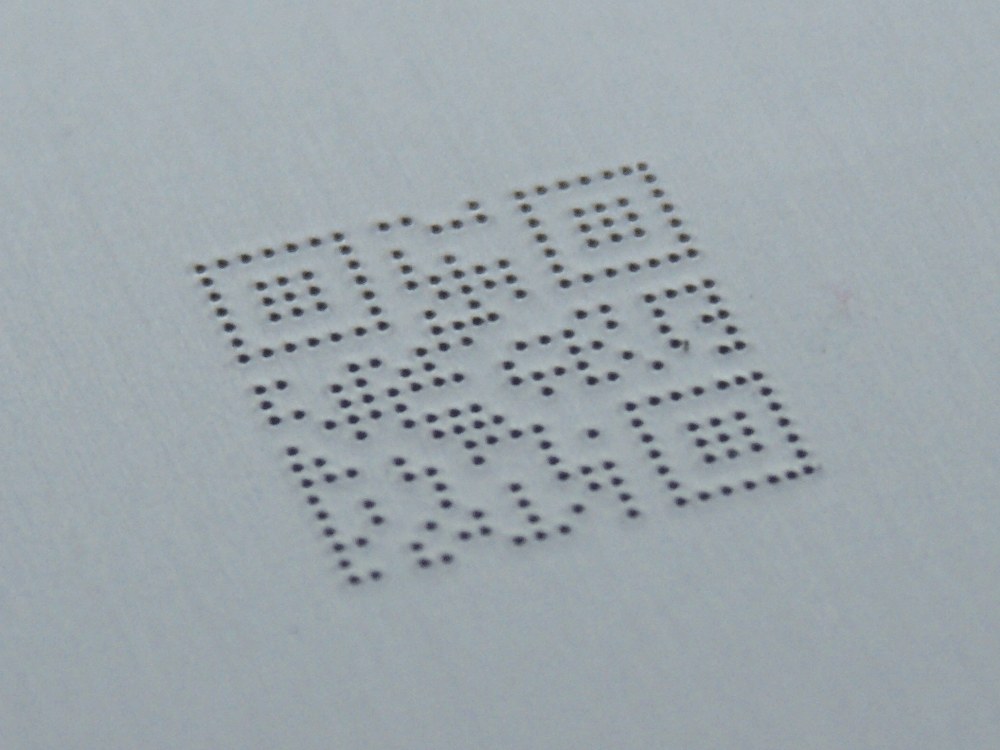

Electromagnetic dot peen, marks parts up to 63 HRC
3 marking speeds and 11 marking forces
Easy Shift moves the stylus as text is repositioned on screen
5-in-1 support foot with non-slip base, magnets, support guide and V-blocks for cylinders
Illuminated marking area
360 degree use in portable mode
RFID user access and head pairing
Operator, supervisor and administrator user modes
Protective bumpers and technical plastic shell on head and controller

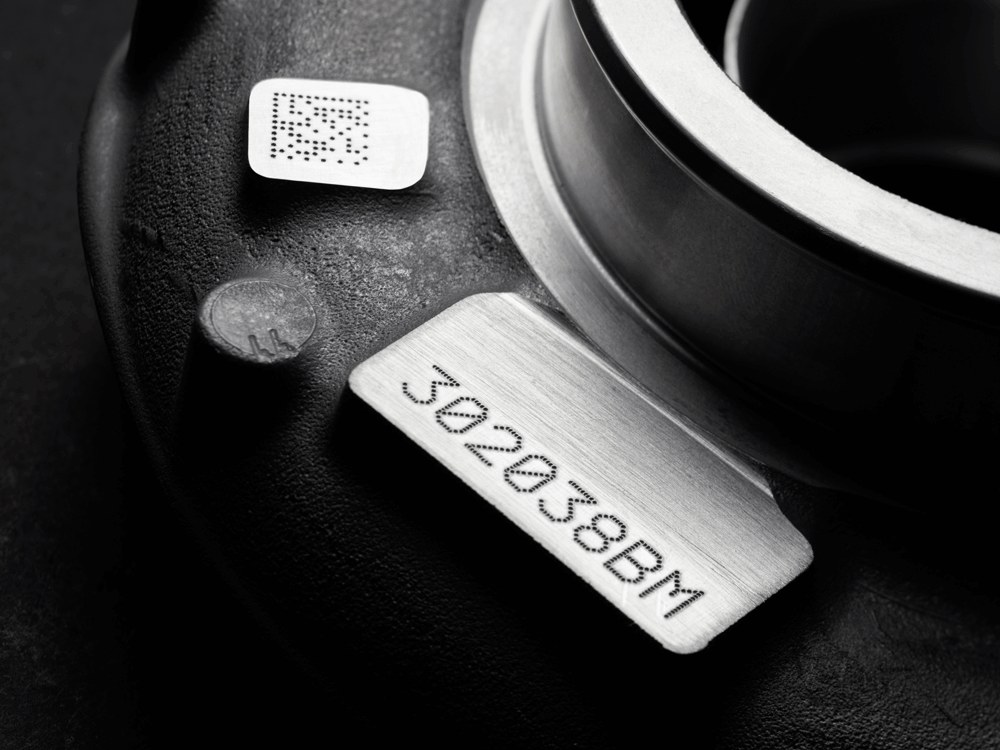

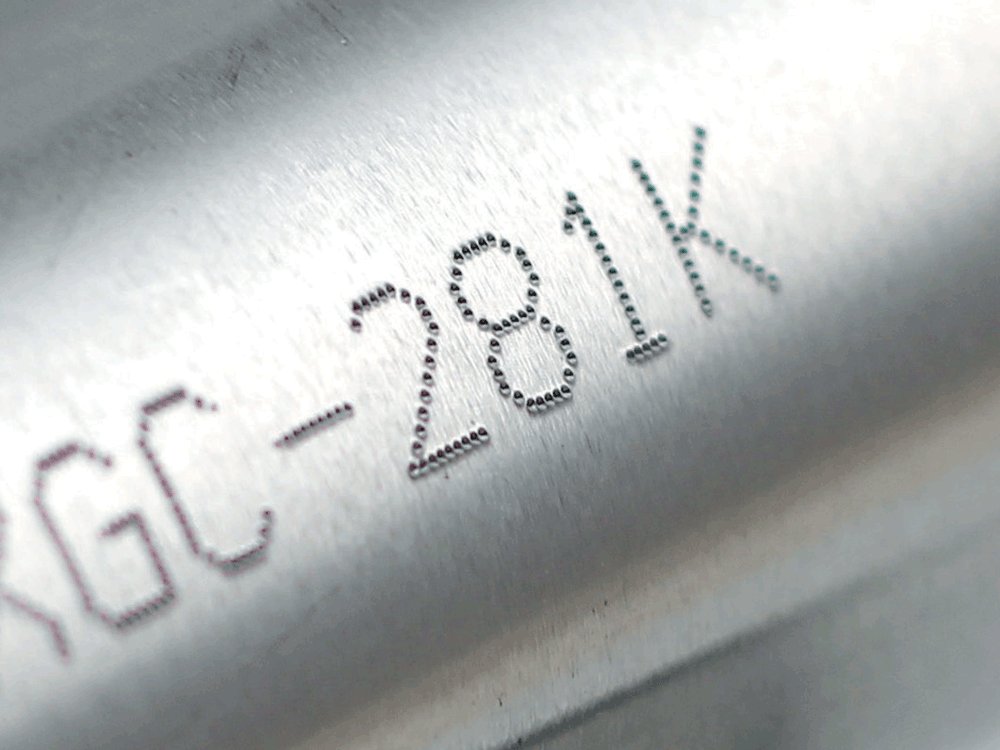

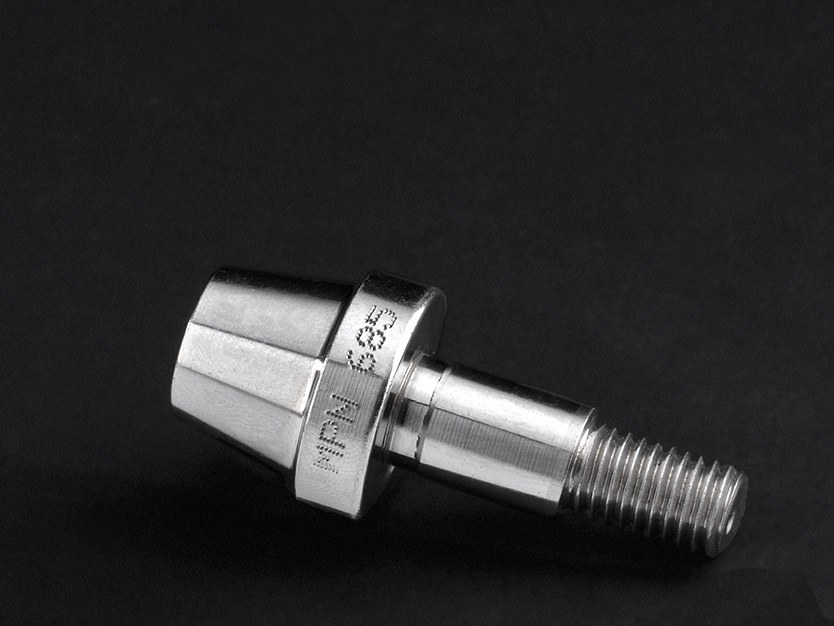

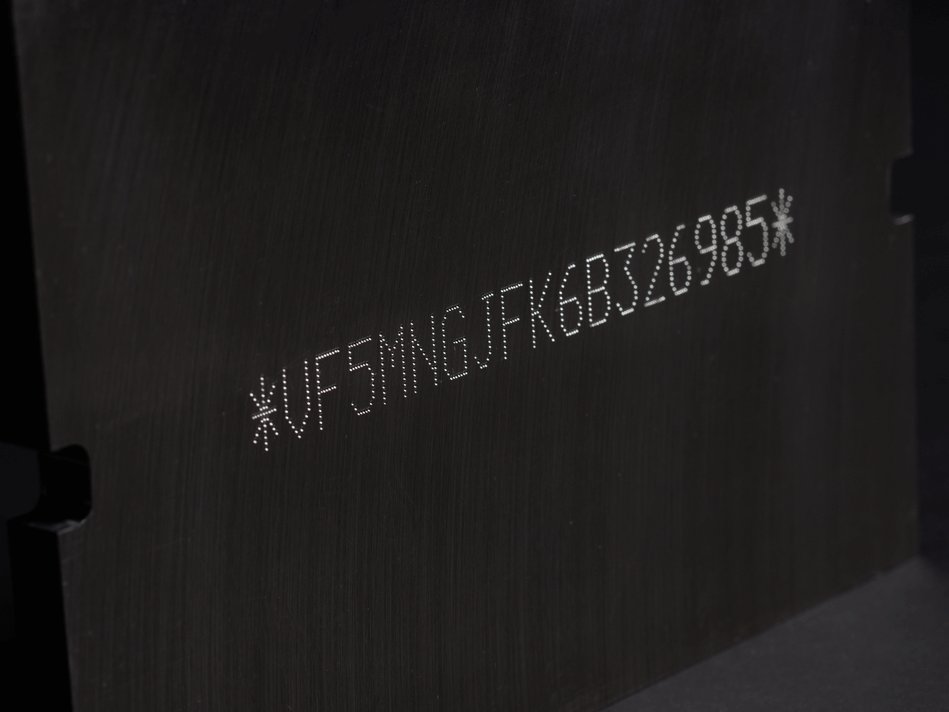

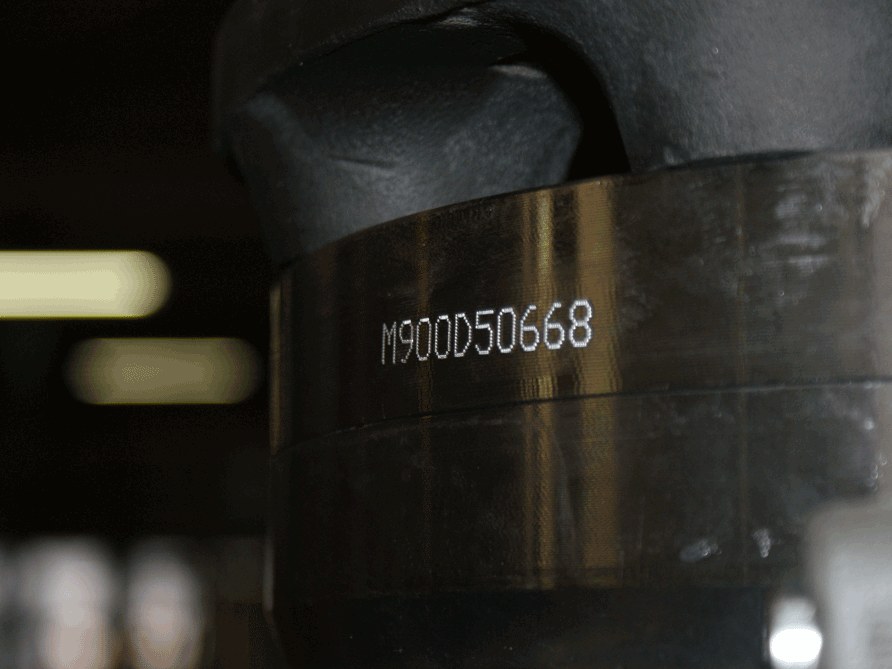

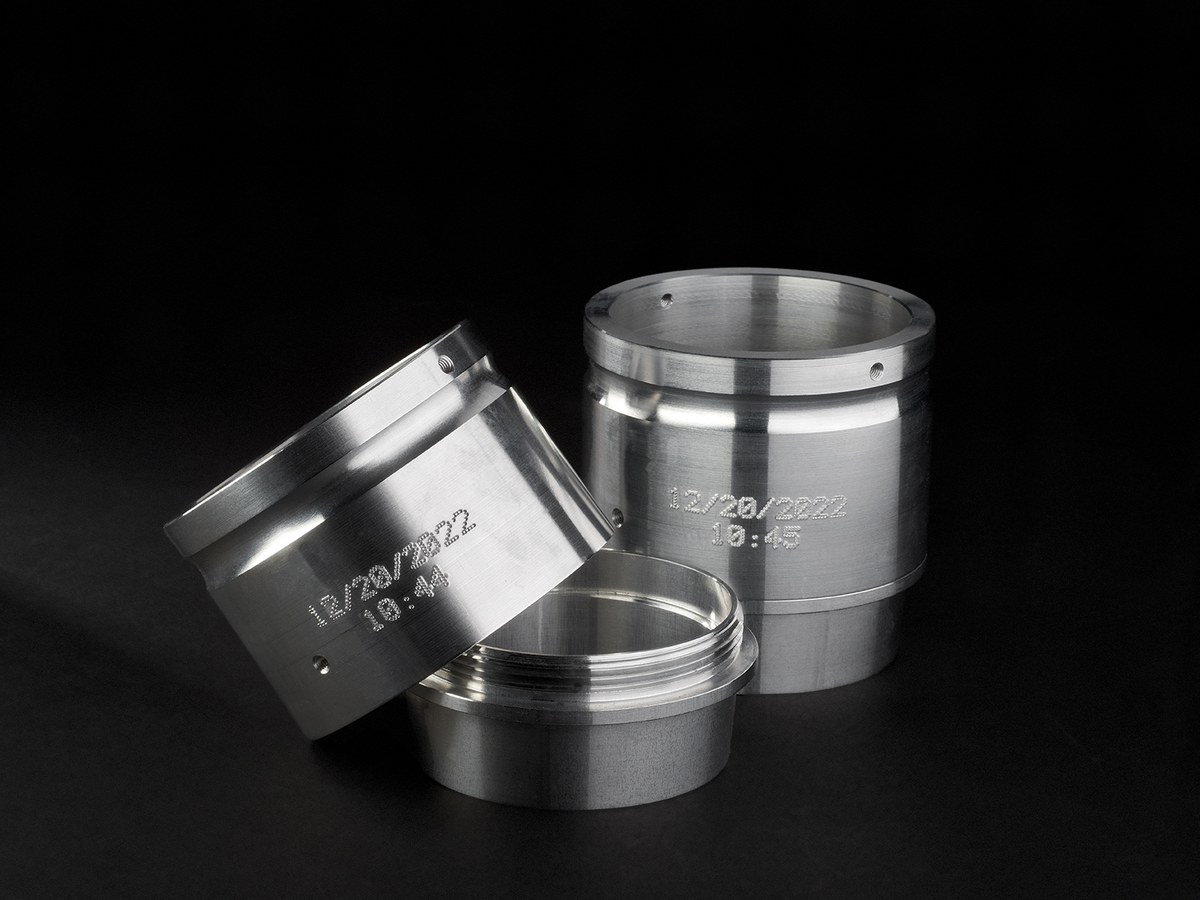

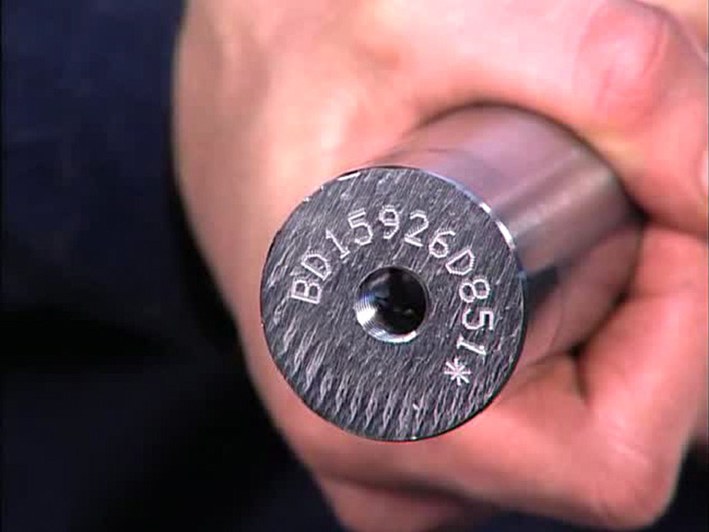

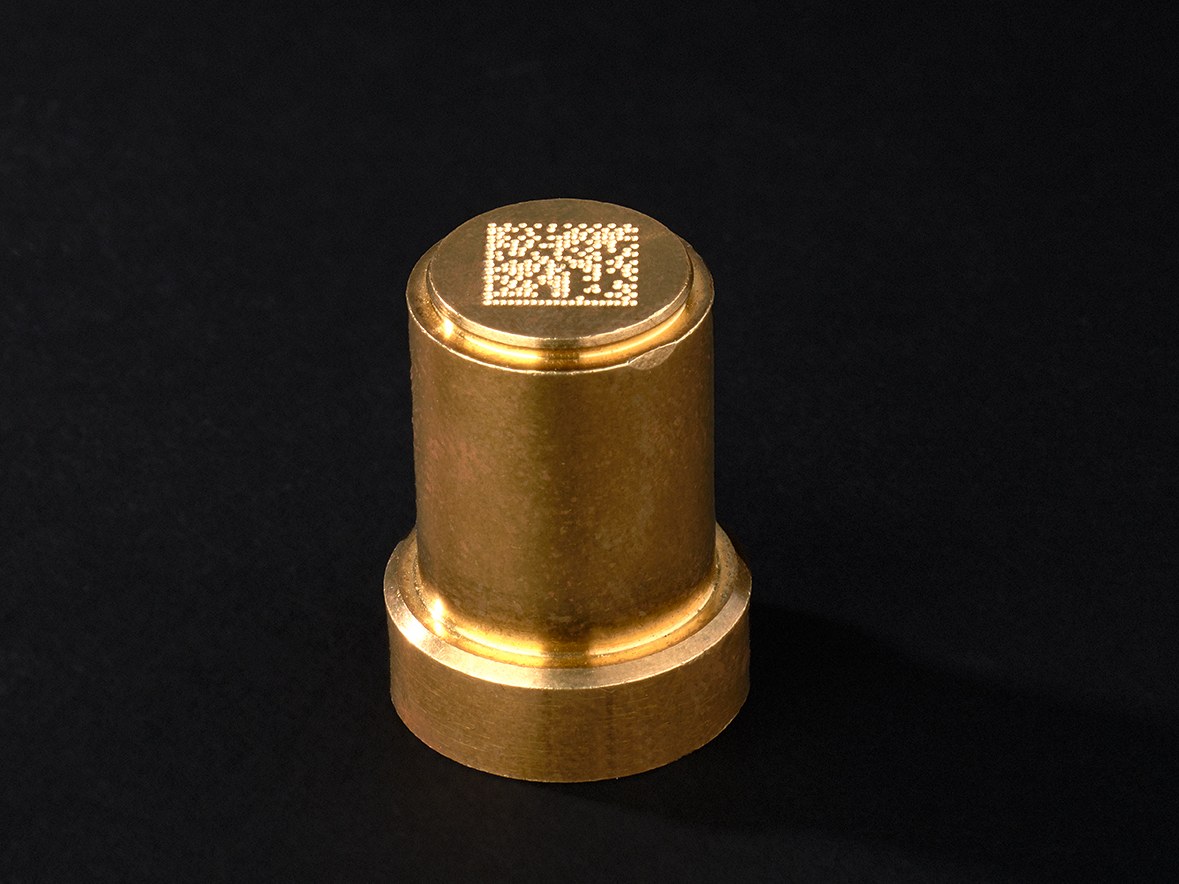

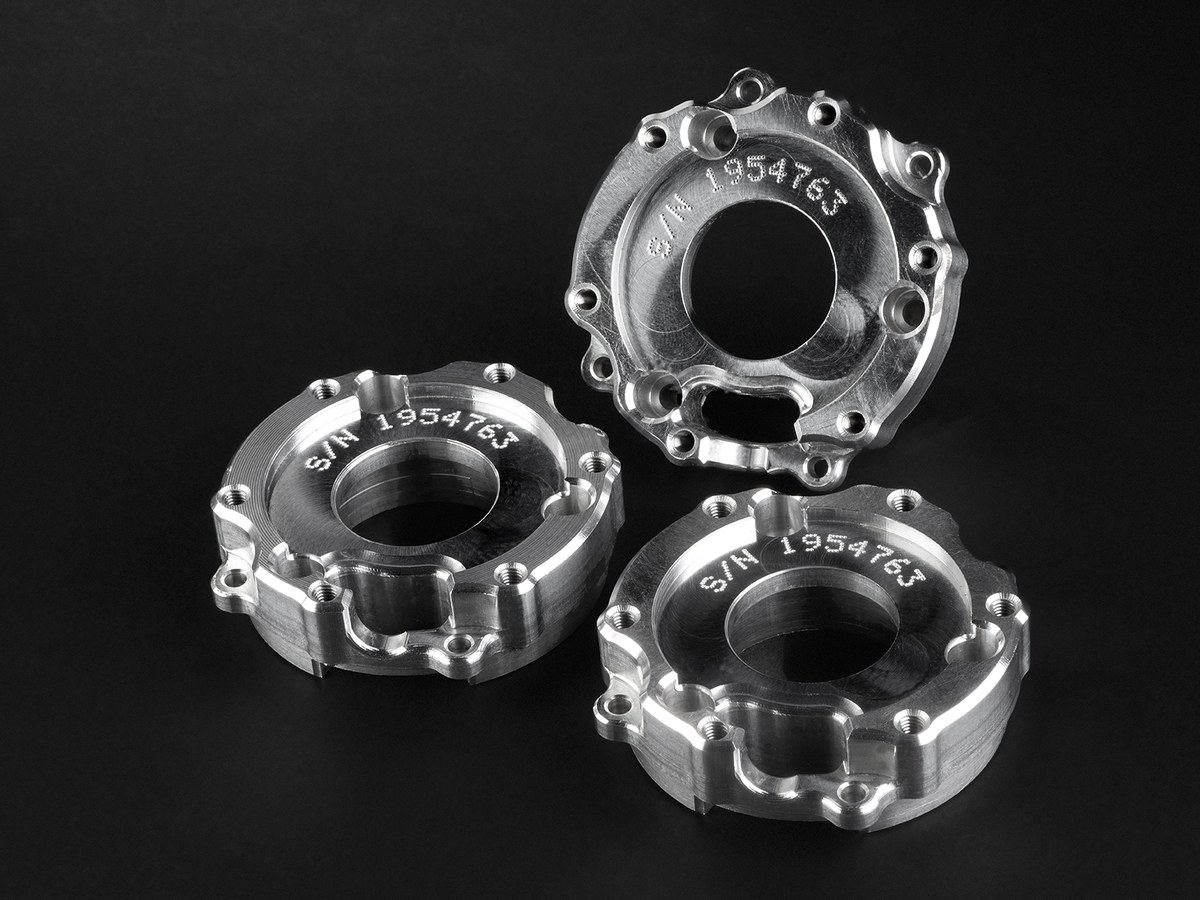

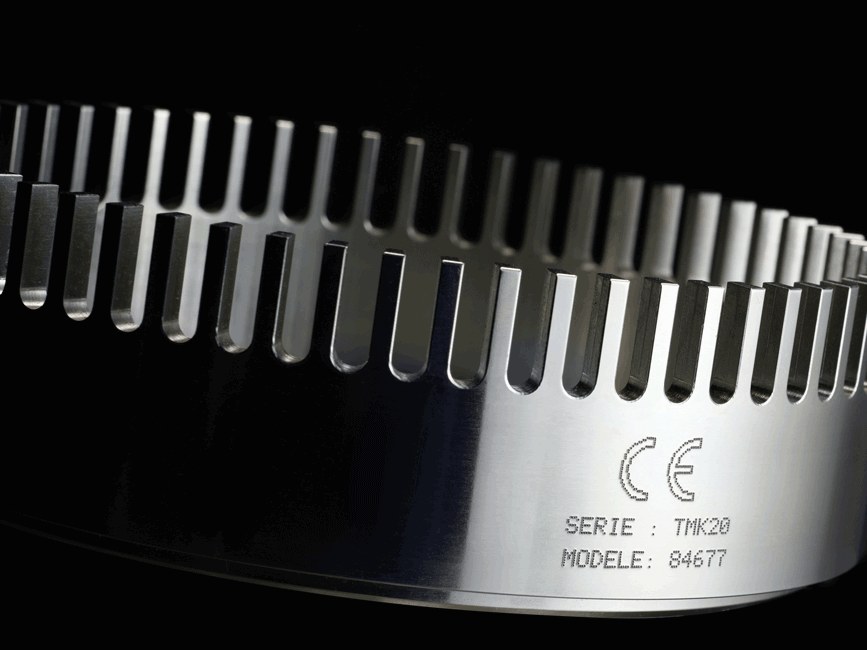

Marks steel, cast iron, stainless steel, aluminium, brass, copper, titanium and many plastics

Options

Light, Upgraded or Full controller holder
150 mm column extension
Rotary D axis for cylindrical parts
Metal foot for hot parts and flange-marking foot
Set and Drive PC software
USB production tracker licence
Font creator licence
Custom HMI licence
RFID log-on licence

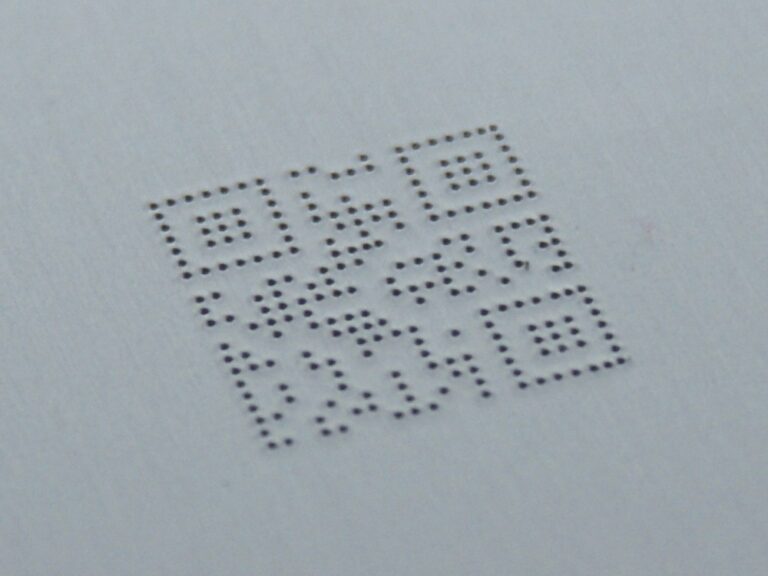

Vision code reader for verifying 1D and 2D codes

Specifications

Model	Combo
Technology	Electromagnetic dot peen
Material hardness	Up to 63 HRC
Marking window	120 x 60 mm
Max. part height on column	290 mm (150 mm column extension option)
Uneven surfaces (IDI)	3 to 8 mm height variation
Bench to portable change-over	Less than 10 s, no tools
Head weight	3.2 kg
Head to controller, max	10 m, secure Wi-Fi, RFID pairing
Battery	22 V lithium-ion in the head
Power modes	Battery, mains or plug-in hybrid
Marking speeds / forces	3 / 11
Controller	10-inch tempered glass touch screen
Controller connections	Ethernet, 3 x USB, VESA 100
Controller power	220 V

Configuration and options are confirmed against your parts and marking content at quotation.

Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
