Titan WADE CNC Press Brake

In stock

Electro-hydraulic CNC press brake with closed-loop Y1/Y2 control, 50 to 300 tonnes

Titan

4+1 axis
Servo-hydraulic
Y1 and Y2 synchronised
CNC backgauge

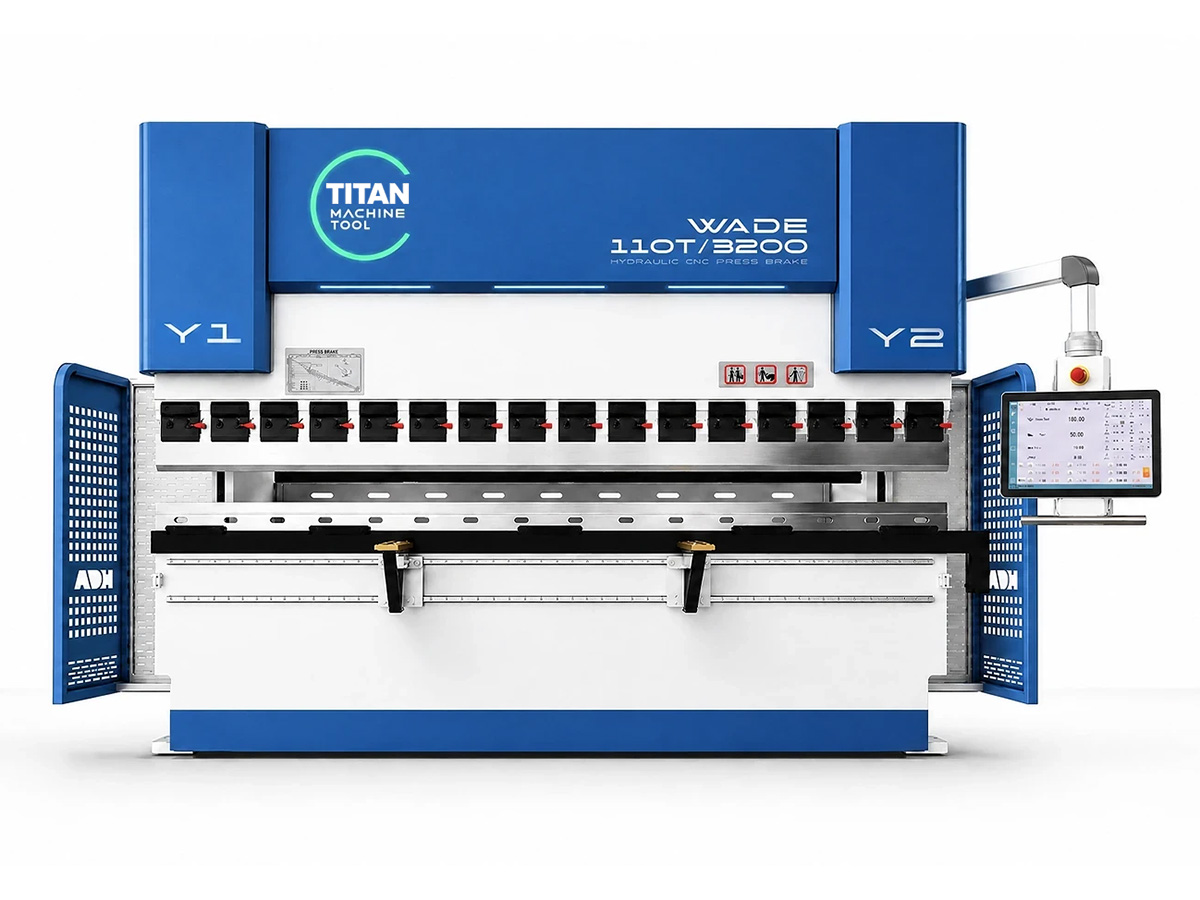

The Titan WADE is an electro-hydraulic CNC press brake with independent Y1 and Y2 cylinder control, proportional hydraulics, motor-driven crowning and an X and R servo backgauge, supplied with the Delem DA-53TX controller as standard. The range runs from 50 t x 1300 mm to 300 t x 6000 mm.

It suits brackets, folded sections, enclosures and general fabrication where repeatable angles and quick setup matter more than complex offline programming. Light curtains are supplied as standard.

Get a quote

Key features

Delem DA-53TX controller

The Delem DA-53TX is supplied as standard, with ACS930S and ACS990 controllers available as options. Bend programs are stored with ram and backgauge positions, so repeat jobs are recalled from the controller rather than set up again.

Closed-loop Y1/Y2 ram control

Independent cylinder control with position feedback and proportional hydraulics keeps both ends of the ram in step with the programmed stroke. Angles stay consistent along the bend, including off-centre and part-length work.

X and R servo backgauge

The X axis sets flange length over 500 mm of travel and the R axis sets finger height, both programmed with each bend. The operator loads the sheet against the fingers instead of measuring and setting stops by hand.

Additional backgauge axes

Extra axes and finger layouts are available where a part needs references a two-axis gauge cannot reach. Axes are chosen from the drawings and bend sequence at quotation, so the machine is configured for the work it will run.

Motor-driven crowning

Motorised crowning in the lower beam compensates for deflection under load along the working length. Long bends hold the same angle in the middle as at the ends, without shimming or trial bends.

Tool clamping

Quick-release or pneumatic clamping holds punches at a fixed working reference. Segmented tooling loads and unloads along the beam without dismantling the clamp, which shortens changeover between jobs.

More features

Mono-block frame, CNC machined in one setting, with a 15-year structural warranty
Schneider electrical components
Precision-ground top punch and double-V bottom die

Options

ACS930H, ACS930S or ACS990 controller
Additional backgauge axes and fingers
Pneumatic tool clamping
Angle measurement
Front sheet followers
Wireless foot pedal
Hybrid servo pump drive
Tooling packages

Is the Titan WADE right for your workshop?

Tell us the material, thickness and longest bend you run, and the parts you make most of. We will size the tonnage and length to the work and specify the backgauge, clamping and tooling to suit.

Talk to a specialist

Specifications

Model (t x mm)	Approach / work / return (mm/s)	Column distance (mm)	Throat (mm)	Stroke (mm)	Open height (mm)	Main servo (kW)	Weight (kg)
50 x 1300	160 / 13 / 160	1120	250	150	460	4.4
70 x 2000	220 / 13 / 160	1600	300	150	460	5.5
70 x 2500	220 / 0 to 15 / 200	2050	300	150	460	7.5	4400
80 x 2500	220 / 12 / 145	2050	300	150	460	8.7
110 x 3200	220 / 12 / 160	2700	400	200	480	10.8	7200
110 x 4100	220 / 12 / 160	3600	400	200	480	10.8	8700
135 x 3200	220 / 10 / 130	2700	400	200	480	10.8	8300
135 x 4100	220 / 10 / 130	3600	400	200	480	10.8	9900
170 x 3200	160 / 10 / 100	2700	450	200	480	13.2	10300
170 x 4100	160 / 10 / 100	3600	450	200	480	13.2	12000
170 x 5000	160 / 10 / 100	4000	450	200	480	13.2	13400
170 x 6000	160 / 10 / 100	4800	450	200	480	13.2	18500
220 x 3200	160 / 9 / 105	2600	450	200	480	16.7	11800
220 x 4000	160 / 0 to 11.5 / 135	3100	450	200	480	18.5	13200
220 x 5000	160 / 9 / 105	4000	450	200	480	16.7	16200
220 x 6000	160 / 9 / 105	4800	450	200	480	16.7	19900
250 x 3200	130 / 8.5 / 100	2600	450	250	540	16.7	15000
250 x 4000	130 / 8.5 / 100	3100	450	250	540	16.7	16600
250 x 5000	130 / 8.5 / 100	3800	450	250	540	16.7	20500
250 x 6000	130 / 8.5 / 100	4800	450	250	540	16.7	25000
300 x 3200	120 / 8.5 / 110	2600	500	250	570	21.4	18000
300 x 4000	120 / 8.5 / 110	3100	500	250	570	21.4	19900
300 x 5000	120 / 8.5 / 110	3800	500	250	570	21.4	26300
300 x 6000	120 / 8.5 / 110	4800	500	250	570	21.4	29700

Bending force is stated in tonnes. Main servo power is shown for the Estun drive; Inovance and Techmation drives are also available. X axis travel is 500 mm and R axis 200 mm on all models. Weights are indicative. Light curtains are supplied as standard.

Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
