Titan WAD Heavy-Duty Press Brake

Heavy-duty CNC press brake for thick and long plate, 400 to 1200 tonnes

Titan

Capacity 400 to 1200 t
Length 4000 to 8000 mm
Open height Up to 920 mm

The Titan WAD Heavy-Duty is the heavy-duty build of the Titan WAD, with a reinforced frame, ram and worktable, multi-cylinder electro-hydraulic synchronisation, motor-driven crowning and Delem CNC control as standard. The range runs from 400 t x 4000 mm to 1200 t x 8000 mm, with open heights up to 920 mm.

It suits structural, transport, mining and plate fabricators bending thick or long plate, where the foundation, tooling and part handling are engineered with the machine. Larger custom builds are available on request.

Get a quote

Key features

Reinforced frame and worktable

The frame, ram and worktable are sized for the full load case, stress relieved and machined as one assembly. Tooling and guide references stay true under the force of bending thick plate over long lengths.

Cylinder layout by model

Cylinder count and position are set by tonnage and length, with the hydraulic system and ram control coordinating every cylinder. Models from 800 t use twin main servo motors to hold speed under load.

Long-travel backgauge

A 980 mm X axis and 200 mm R axis reference wide flanges and deep parts. The finger layout is chosen for the bend sequence on heavy plate.

Motor-driven crowning

Motorised crowning compensates for worktable deflection along the full length. Long, heavy bends hold their angle from end to end without shimming.

Support for long and heavy parts

Front support arms and lifting equipment are specified to the part weight and length. Heavy plate is carried through the bend rather than held by the operator.

Tooling rated for line load

Punches and dies are rated for the force over the actual bend length, not just the machine tonnage. Tooling is selected from the material, thickness and V-opening at quotation.

Options

Higher Delem or ESA controllers
Additional backgauge axes and fingers
Hydraulic or pneumatic tool clamping
Angle measurement
Front sheet followers
Wireless foot pedal
Hybrid servo pump drive
Custom tonnage and length above 1200 t

Is the Titan WAD Heavy-Duty right for your workshop?

Tell us the plate grade, thickness and longest bend, the heaviest part and your crane capacity. We will size the tonnage and length, specify tooling and part support, and plan the foundation with you before manufacture.

Talk to a specialist

Specifications

Model (t x mm)	Column distance (mm)	Throat (mm)	Stroke (mm)	Open height (mm)	Weight (kg)
400 x 4000	3100	500	300	610	24800
400 x 5000	3800	500	300	610	30000
400 x 6000	4800	500	300	610	35500
500 x 4000	3100	500	300	610	33500
500 x 5000	3800	500	300	610	36200
500 x 6000	4800	500	300	610	41800
600 x 4000	3100	600	320	650	43100
600 x 5000	3800	600	320	650	48300
600 x 6000	4800	600	320	650	56200
800 x 4000	2800	600	320	800	57000
800 x 5000	3700	600	320	800	66000
800 x 6000	4600	600	320	800	74000
800 x 8000	6300	600	320	800	87500
1000 x 5000	3600	600	400	920	78000
1000 x 6000	4600	600	400	920	88000
1000 x 7000	5600	600	400	920	96000
1000 x 8000	6300	600	400	920	106000
1200 x 5000	3500	600	400	920	97000
1200 x 6000	4500	600	400	920	106000
1200 x 7000	5300	600	400	920	113000
1200 x 8000	6300	600	400	920	123000

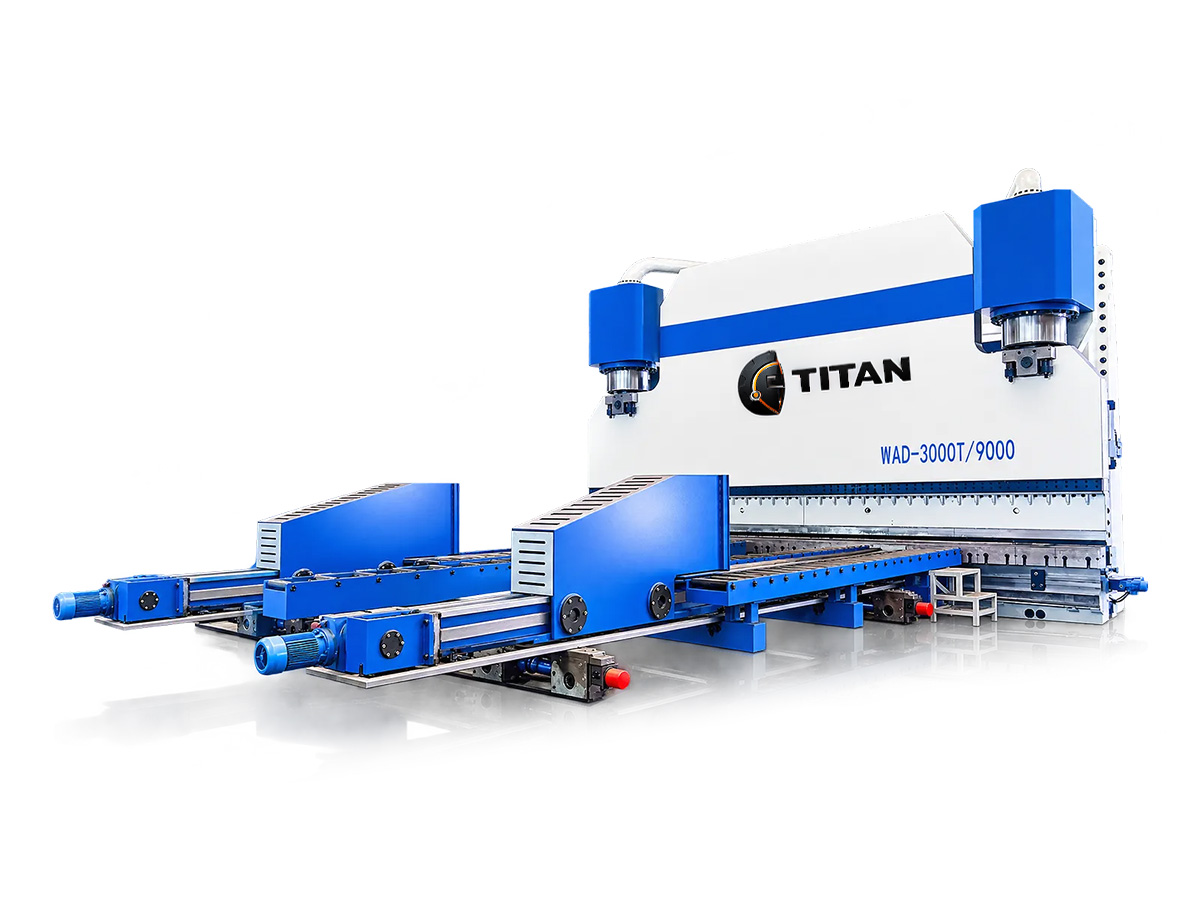

Bending force is stated in tonnes. Approach speed is 80 mm/s on all models; X axis travel is 980 mm and R axis 200 mm. Models from 800 t use twin main servo motors. Builds above 1200 t, including 3000 t x 9000 mm, are engineered to order. Weights are indicative. Light curtains are supplied as standard.

Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
