Titan WAD CNC Press Brake

Electro-hydraulic CNC press brake with Delem control, 50 to 300 tonnes

Titan

6+1 axis
Electro-hydraulic
2 to 6 axis backgauge
CNC crowning

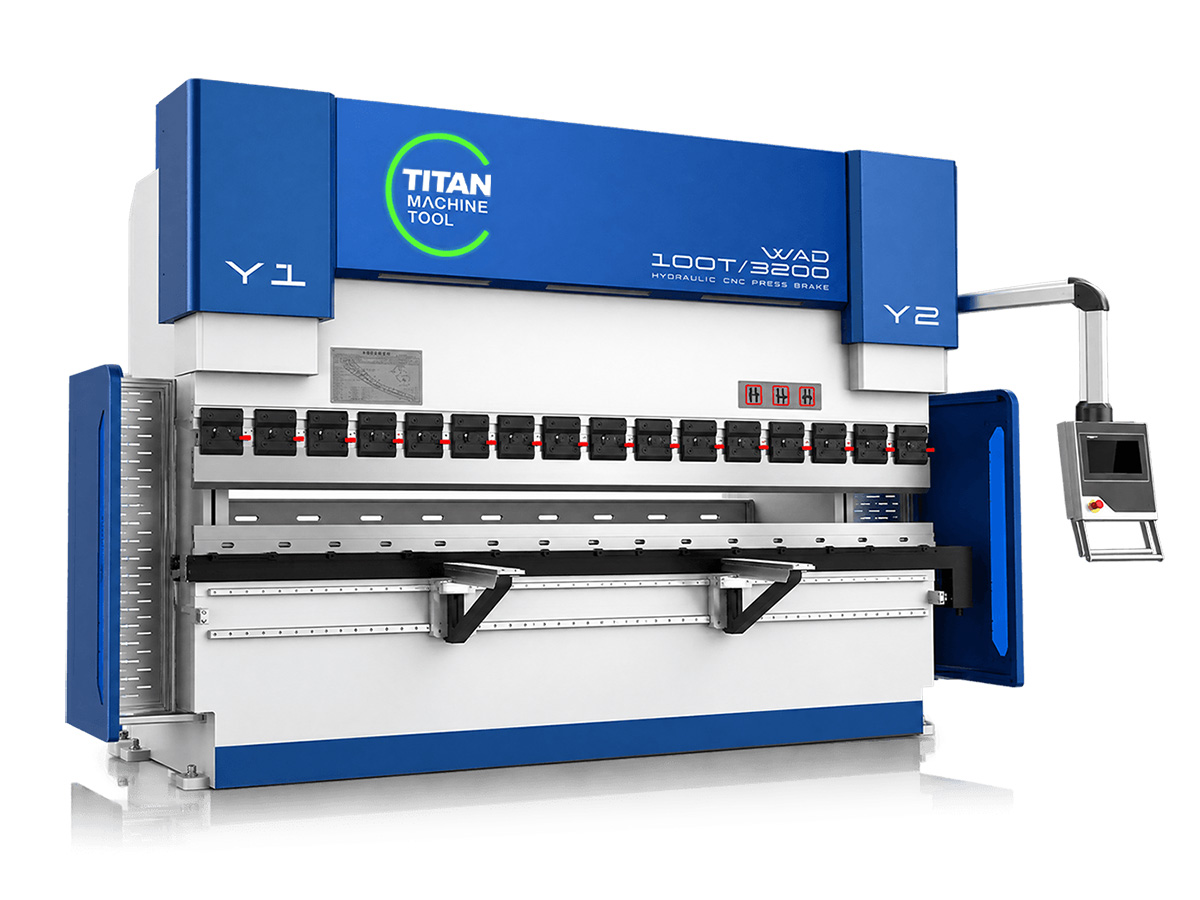

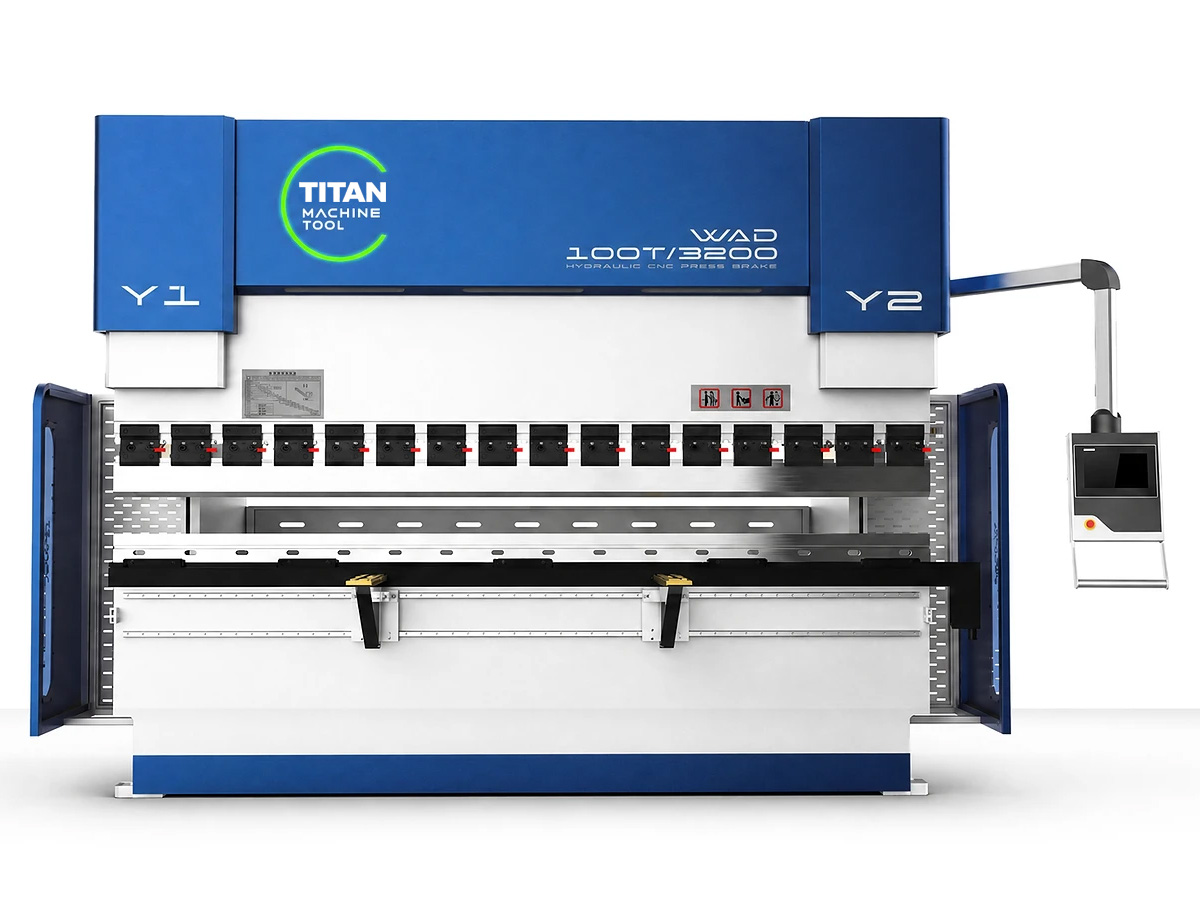

The Titan WAD is an electro-hydraulic CNC press brake with independent Y1 and Y2 ram control, motor-driven crowning and a servo backgauge, supplied with the Delem DA-53T as standard and the DA-58T, DA-66T or DA-69T available. The range runs from 50 t x 1300 mm to 300 t x 6000 mm.

It suits job shops and production lines that program complex parts, run multi-axis backgauges or want 2D and 3D graphical programming at the machine. Light curtains are supplied as standard.

Get a quote

Key features

Delem CNC control

The Delem DA-53T is supplied as standard, with the DA-58T, DA-66T and DA-69T adding 2D and 3D graphical programming, and the ESA S640 as an alternative. Bend sequences and axis positions are stored, so repeat parts run straight from the program.

Independent Y1/Y2 ram control

Separate position feedback on the left and right cylinders adjusts the hydraulics against the programmed ram position through the stroke. Angle stays consistent end to end, including off-centre bends and short parts.

X and R servo backgauge

X sets flange length and R sets finger height, both servo-driven and programmed with each bend. Extra axes and finger layouts are available for parts that need more references.

Tooling matched to the work

Punch profile and die opening are selected for the parts and line load at quotation. Segmented tooling lets one set cover short flanges, boxes and full-length bends.

Quick or pneumatic clamping

Quick-release or pneumatic clamping holds tools at their working reference. Pneumatic clamping locks and releases the full length of tooling at once, cutting changeover time on short-run work.

Motor-driven crowning

Motorised crowning compensates for deflection under load along the working length. Long parts come off with the same angle across the full bend, without shimming the die.

Hybrid servo pump drive (optional)

The hydraulic pump can be driven by a servo motor that runs only while the ram is moving. Energy use can fall by up to 40 percent, with lower oil temperature and noise than a constant-speed pump.

More features

Mono-block frame, CNC machined in one setting, with a 15-year structural warranty
Schneider electrical components
Estun servo drive

Options

Delem DA-58T, DA-66T or DA-69T controller
ESA S640 controller
Additional backgauge axes and fingers
Pneumatic tool clamping
Angle measurement
Front sheet followers
Wireless foot pedal
Hybrid servo pump drive
Production data connection

Is the Titan WAD right for your workshop?

Tell us the parts you bend, the material and thickness, the longest bend and how you program today. We will size the machine, choose the controller and backgauge axes, and specify tooling and clamping to suit.

Talk to a specialist

Specifications

Model (t x mm)	Approach / work / return (mm/s)	Column distance (mm)	Throat (mm)	Stroke (mm)	Open height (mm)	Main servo (kW)	Weight (kg)
50 x 1300	160 / 13 / 160	1120	250	150	460	4.4
50 x 1600	160 / 0 to 18 / 200	1300	250	150	460	4.4	3500
70 x 2000	220 / 13 / 160	1600	300	150	460	5.5
70 x 2500	220 / 0 to 15 / 200	2050	300	150	460	5.5	4400
80 x 2500	220 / 12 / 145	2050	300	150	460	8.7
110 x 3200	220 / 12 / 160	2700	400	200	480	10.8	7500
110 x 4100	220 / 12 / 160	3600	400	200	480	10.8	8700
135 x 3200	220 / 10 / 130	2700	400	200	480	10.8	8300
135 x 4100	220 / 10 / 130	3600	400	200	480	10.8	10500
170 x 3200	160 / 10 / 100	2700	450	200	480	13.2	10800
170 x 4100	160 / 10 / 100	3600	450	200	480	13.2	12500
170 x 5000	160 / 10 / 100	4000	450	200	480	13.2	13400
170 x 6000	160 / 10 / 100	4800	450	200	480	13.2	19500
220 x 3200	160 / 9 / 105	2600	450	200	480	16.7	12500
220 x 4000	160 / 0 to 11.5 / 135	3100	450	200	480	16.7	13500
220 x 5000	160 / 9 / 105	4000	450	200	480	16.7	17500
220 x 6000	160 / 9 / 105	4800	450	200	480	16.7	20500
250 x 3200	130 / 8.5 / 100	2600	450	250	540	16.7	16500
250 x 4000	130 / 8.5 / 100	3100	450	250	540	16.7	16600
250 x 5000	130 / 8.5 / 100	3800	450	250	540	16.7	20500
250 x 6000	130 / 8.5 / 100	4800	450	250	540	16.7	25500
300 x 3200	120 / 8.5 / 110	2600	500	250	570	21.4	18800
300 x 4000	120 / 8.5 / 110	3100	500	250	570	21.4	19900
300 x 5000	120 / 8.5 / 110	3800	500	250	570	21.4	26300
300 x 6000	120 / 8.5 / 110	4800	500	250	570	21.4	29700

Bending force is stated in tonnes. Main servo power is shown for the Estun drive; an Inovance drive is also available. X axis travel is 500 mm and R axis 200 mm on all models. Weights are indicative. Light curtains are supplied as standard.

Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
