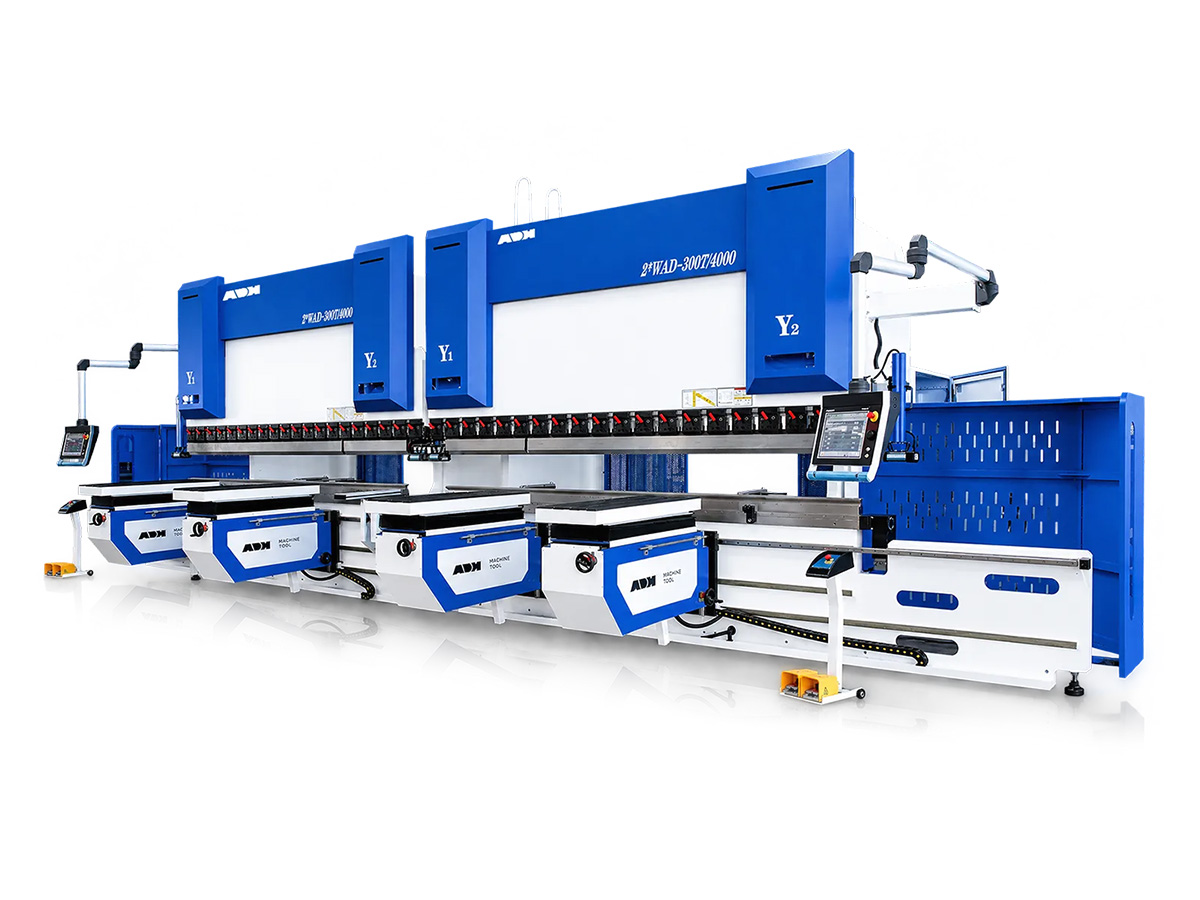

Titan WAD Tandem Press Brake
Two matched Titan WAD press brakes run as one bend line for long parts
- How it is decided
- Force and length of each machine, chosen from the part length and force per metre
- Sum of both machines, set by the longest part
- Linked tandem and independent operation, confirmed per project
The Titan WAD Tandem pairs two matched Titan WAD press brakes on a common tooling and workpiece reference, with linked ram and backgauge control. The two machines bend together as one long line, or separately as two press brakes when the work allows.
It suits poles, lighting columns, trailer and truck sections and long architectural panels that exceed the length of a single machine. Each tandem is specified from the part length, force per metre and site.
Key features
Matched and aligned machines
Both press brakes are aligned to a common tooling and workpiece reference, with frame geometry, worktable height and the junction between machines commissioned together. A long part sees one continuous bend line.
Linked ram control
Linked control coordinates the ram axes of both machines through a tandem bend. Force and position are shared across the full length, so a long part is formed in one stroke.
Linked backgauge positioning
The tandem control package positions both backgauges together for the selected mode. Flange length is held consistent across the full width of the part.
Crowning across the junction
Each worktable carries its own motor-driven crowning, set together so angle and straightness hold across the joint between machines. Long parts are checked at agreed points, including the junction.
Long-part handling
Follower supports and lifting equipment are selected for the part weight, length and access. Long workpieces are supported and turned on a defined route rather than by hand.
Linked or independent modes
The two machines run as one tandem for long parts, or as two separate press brakes for shorter work. Capacity is not tied up when long parts are not on the schedule.
Options
- Delem DA-66T or DA-69T controllers
- Additional backgauge axes
- Sheet followers
- Hydraulic or pneumatic tool clamping
- Angle measurement
- Hybrid servo pump drive
Is the Titan WAD Tandem right for your workshop?
Tell us the longest part you need to bend, the material and thickness, and how often long parts run. We will specify the machine pair, linked controls, tooling and handling, and plan the layout with your site.
Talk to a specialistSpecifications
| What varies | How it is decided |
| Machine pair | Force and length of each machine, chosen from the part length and force per metre |
| Combined bending length | Sum of both machines, set by the longest part |
| Operating modes | Linked tandem and independent operation, confirmed per project |
| Controller and axes | Selected for the pair and the parts |
| Tooling | Matched across both machines to a common reference |
| Part support | Followers and lifting set by part weight and access |
| Foundation and layout | Planned with the site before manufacture |
Each Titan WAD Tandem is specified as a project. Send us the longest part, material, thickness and force per metre, and we will specify the machine pair, controls and handling around them. Light curtains are supplied as standard.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
