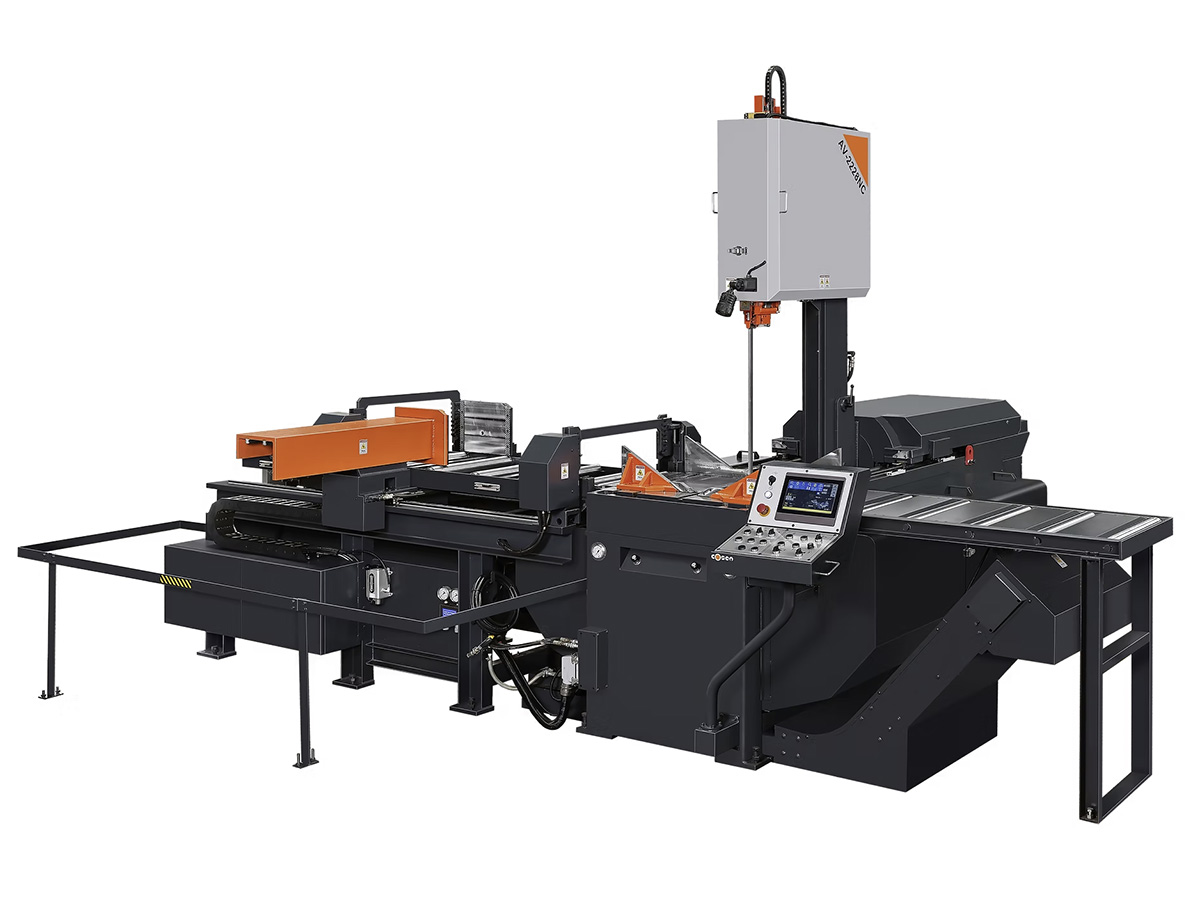

Cosen V / AV Vertical Mitre Bandsaw
Vertical tilt-frame mitre bandsaws with semi-automatic or fully automatic operation.
- Vertical double mitre
- 60 degrees left and right
- up to 712 mm wide
The Cosen V and AV Series are vertical bandsaws with a tilt frame that mitres to 60 degrees left and right, for double-mitre cutting of beam, channel and large sections. Material lies on a fixed work bed while the blade cuts vertically, and the frame cants 0 to 5 degrees forward to suit the section shape.
The V-2026NC and V-2228NC are semi-automatic. The AV-2026NC and AV-2228NC add a hydraulic tilt-frame head and servo feeding, so a cut list runs automatically once loaded. Capacity at 90 degrees is 510 x 660 mm on the 2026 models and 560 x 712 mm on the 2228 models.
Key features
Tilt-frame double mitre
The saw frame tilts to any angle from 60 degrees left to 60 degrees right, so double mitres are cut without turning the section on the bed.
0 to 5 degree blade cant
The frame cants forward up to 5 degrees so the blade enters beam and channel progressively rather than square on. Capacity reduces slightly at full cant.
Vertical cutting on a fixed bed
Material lies flat on a fixed work bed while the blade cuts vertically, so long and heavy sections are not lifted or swung for each angle.
Servo feeding on AV models
The AV-2026NC and AV-2228NC feed material by servo to programmed lengths and set the mitre with a hydraulic tilt-frame head, so a cut list runs automatically once loaded.
Is a Cosen vertical mitre saw right for your workshop?
Send us your sections, mitre angles and cut lists. We'll confirm the model that suits them, and quote the machine as it would be installed.
Get a quoteSpecifications
| Model | V-2026NC | V-2228NC | AV-2026NC | AV-2228NC |
|---|---|---|---|---|
| Operation | Semi-automatic | Semi-automatic | Automatic, servo feed | Automatic, servo feed |
| Mitre range | 60 degrees left and right | 60 degrees left and right | 60 degrees left and right | 60 degrees left and right |
| Capacity at 90 degrees | 510 x 660 mm | 560 x 712 mm | 510 x 660 mm | 560 x 712 mm |
| Capacity at 45 degrees left | 510 x 465 mm | 560 x 510 mm | 510 x 460 mm | 560 x 510 mm |
| Capacity at 60 degrees left | 510 x 325 mm | 560 x 350 mm | 510 x 310 mm | 560 x 350 mm |
| Capacity at 45 degrees right | 510 x 435 mm | 560 x 510 mm | 510 x 420 mm | 560 x 510 mm |
| Capacity at 60 degrees right | 510 x 265 mm | 560 x 300 mm | 510 x 250 mm | 560 x 300 mm |
| Capacity at 90 degrees, 5 degree cant | 510 x 610 mm | 510 x 630 mm | 510 x 630 mm | 510 x 630 mm |
| Blade size (L x W x T) | 5230 x 34 x 1.1 mm | 5645 x 41 x 1.3 mm | 5230 x 34 x 1.1 mm | 5645 x 41 x 1.3 mm |
| Blade motor | 5.5 kW (7.5 HP) | 7.5 kW (10 HP) | 5.5 kW (7.5 HP) | 7.5 kW (10 HP) |
| Workbed height | 1035 mm | 1115 mm | 1030 mm | 1115 mm |
| Weight | 2310 kg | 3133 kg | 3872 kg | 5050 kg |
| Floor space (L x W x H) | 2861 x 2675 x 2536 mm | 3576 x 3663 x 3173 mm | 4157 x 3179 x 2911 mm | 5521 x 4277 x 3173 mm |
Capacities shown are at 0 degree blade cant; at 5 degree cant capacity reduces slightly. Model and options are confirmed against the sections and cut list at quotation.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
