OMSG Capri Hook Shot Blaster

Hanging-hook blasting for castings, forgings and small fabrications

OMSG

Hook load 300 to 5000 kg

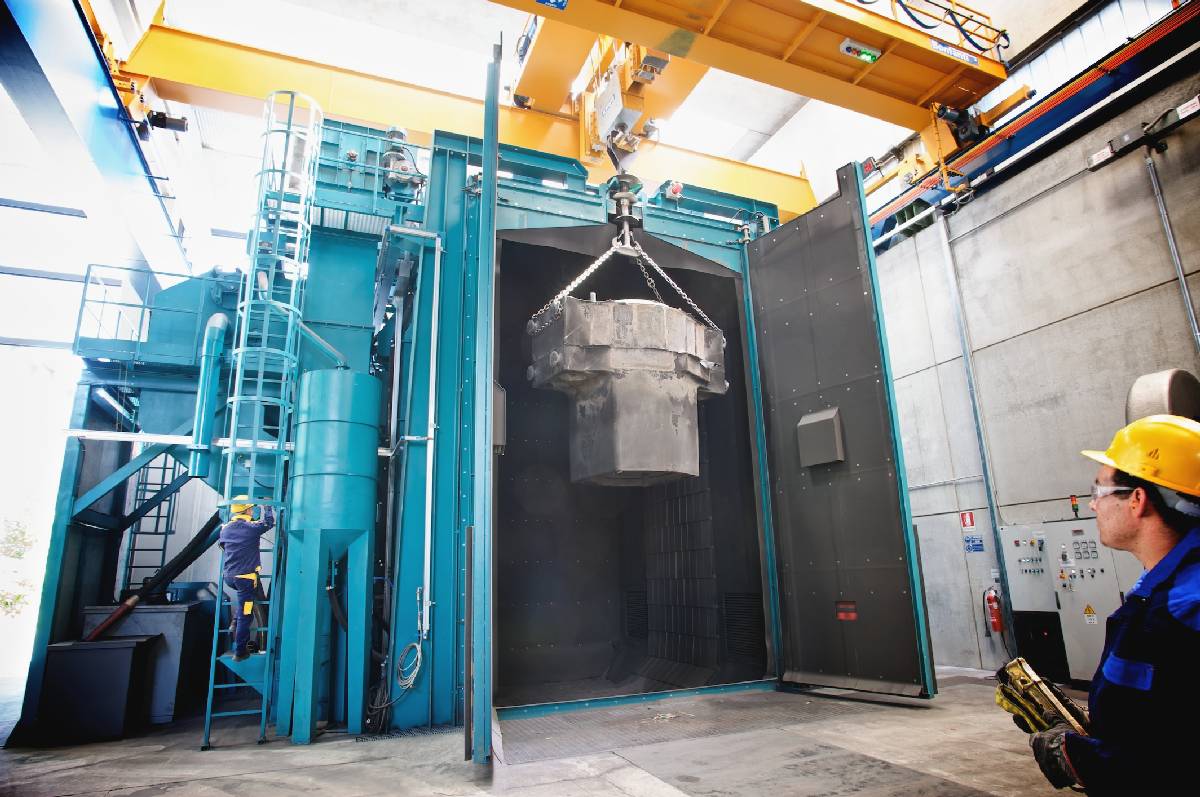

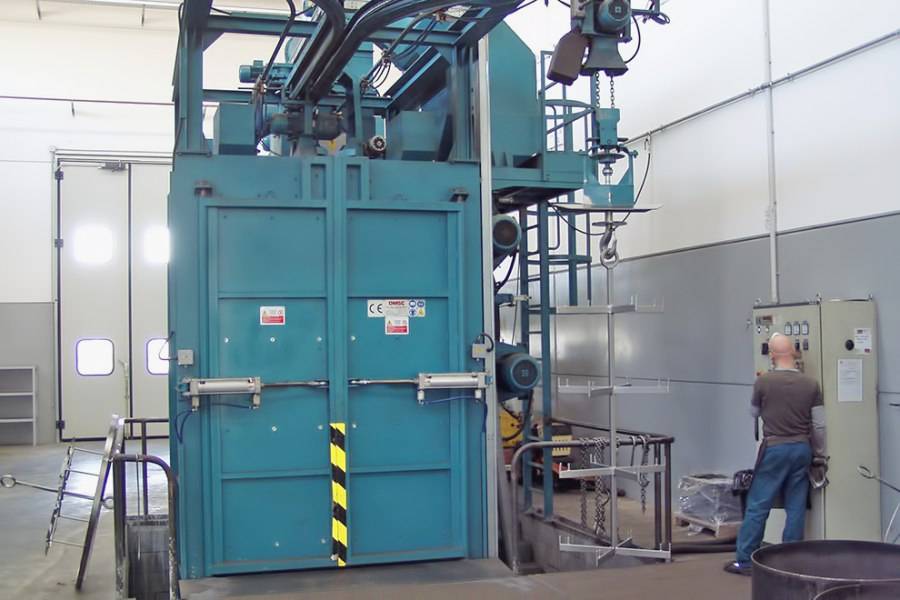

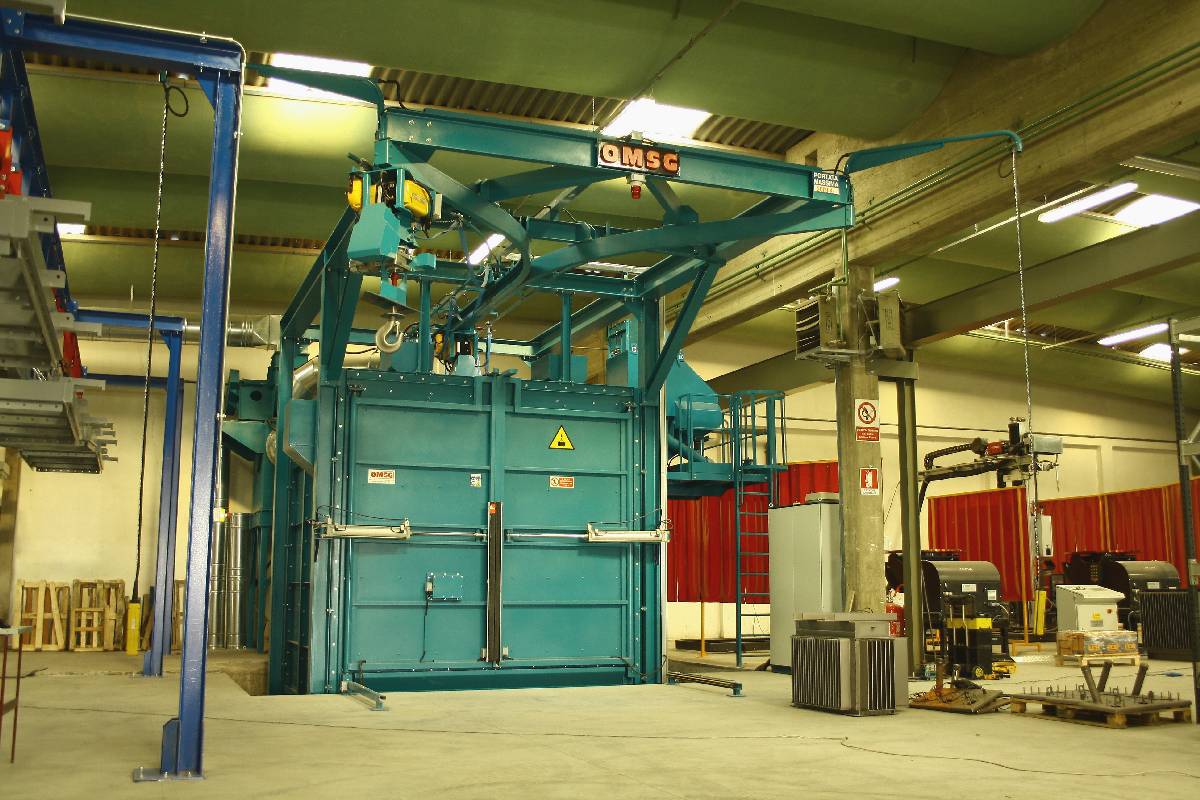

The Capri is the OMSG hook-type shot blaster. Parts are hung singly or in batches on a hook that travels into the chamber and rotates in front of patented side-mounted blast wheels, so every surface is exposed to the abrasive.

Chamber size, wheel count and power, and the hook loading system are chosen to the part, from a manual hook for light castings to hoist handling of 2000 to 5000 kg, and 16000 kg and over on special builds. Foundry versions add vibrating screens and magnetic separators to take sand and scale out of the shot.

Get a quote Brochure (PDF)

Key features

Rotating hook

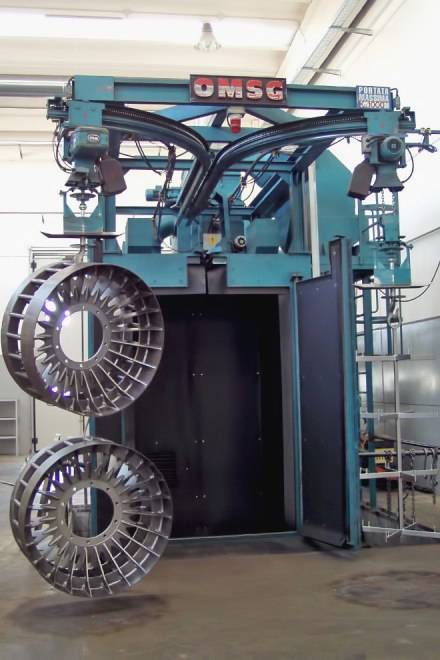

Parts hang on a hook that travels into the blast chamber and rotates during the cycle. Every face is turned towards the wheels, including undercuts and pockets that a fixed part would shadow.

Four loading systems

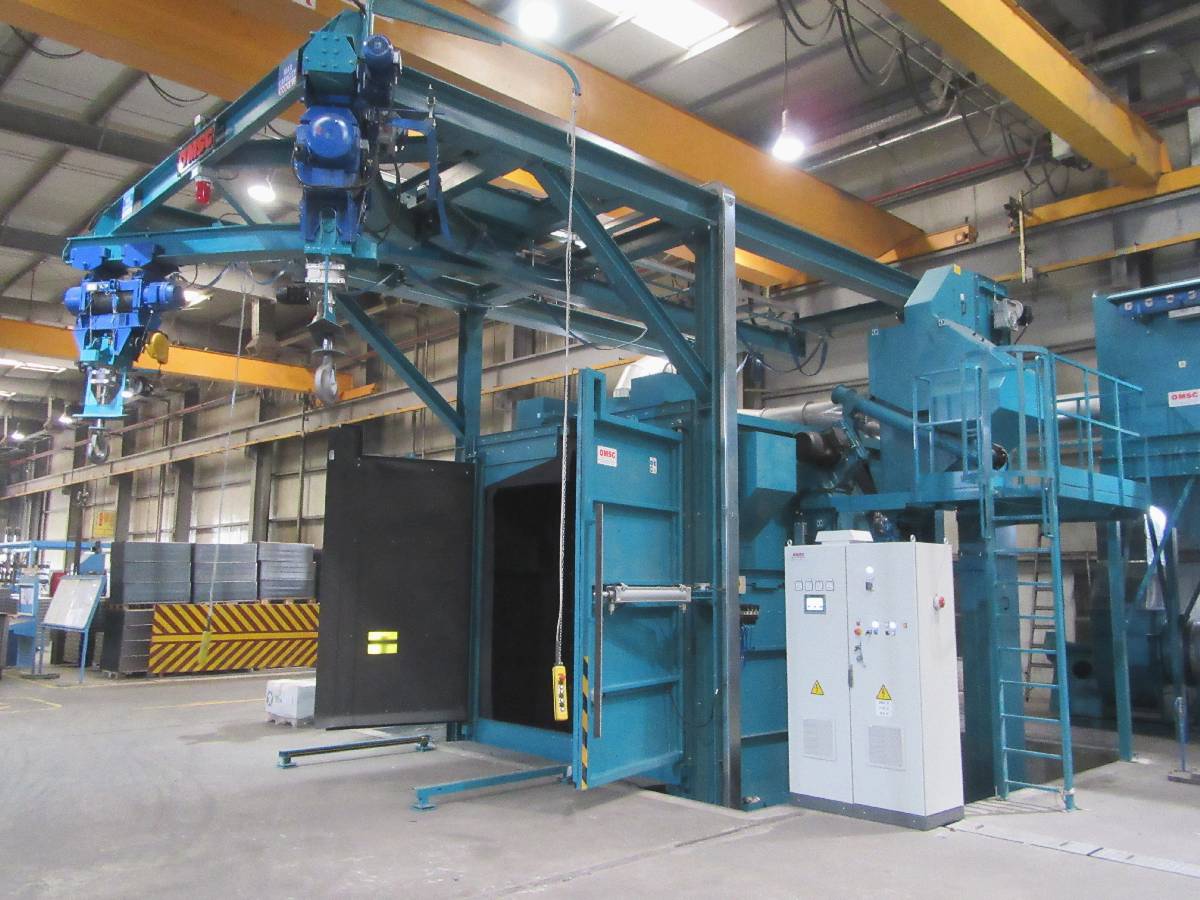

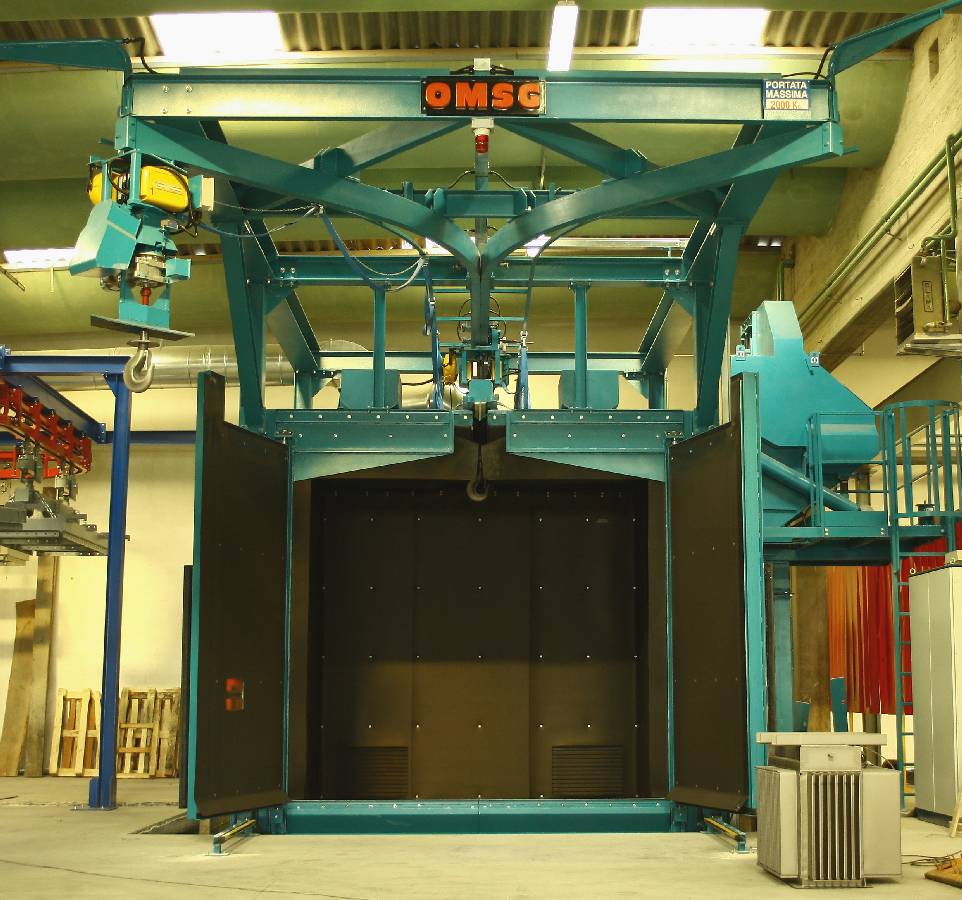

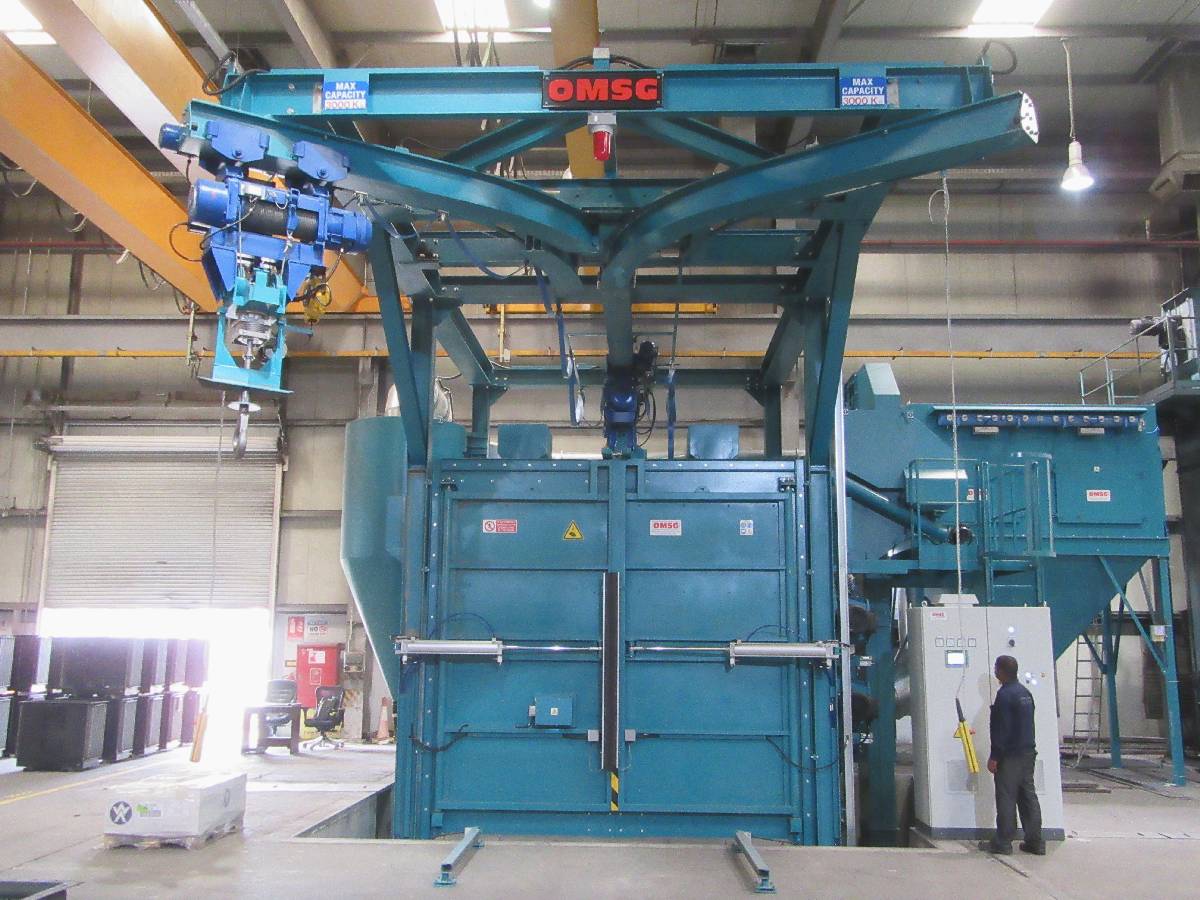

The Capri M has a manual hook for light parts, the C a chain-driven hook, the CS a combined chain and hoist for medium to large parts, and the H hoist handling for heavy work. Loading is matched to part weight and how many parts go through per shift.

Side-mounted patented wheels

OMSG blast wheels are mounted on the side of the chamber and throw abrasive across the rotating load. Coverage is even from the top of the hook to the bottom.

Foundry equipment

For castings, the Capri can be fitted with a vibrating screen and magnetic separator to remove moulding sand and scale from the abrasive. The shot stays clean and wheel wear stays down when blasting sand-cast parts.

Is the Capri right for your workshop?

Tell us what you cast, forge or fabricate, the size and weight of the largest part and how many parts go through per shift. We will recommend the loading system, chamber size and wheel layout to suit the work you blast.

Talk to a specialist

Specifications

Model	Capri M	Capri C	Capri CS	Capri H

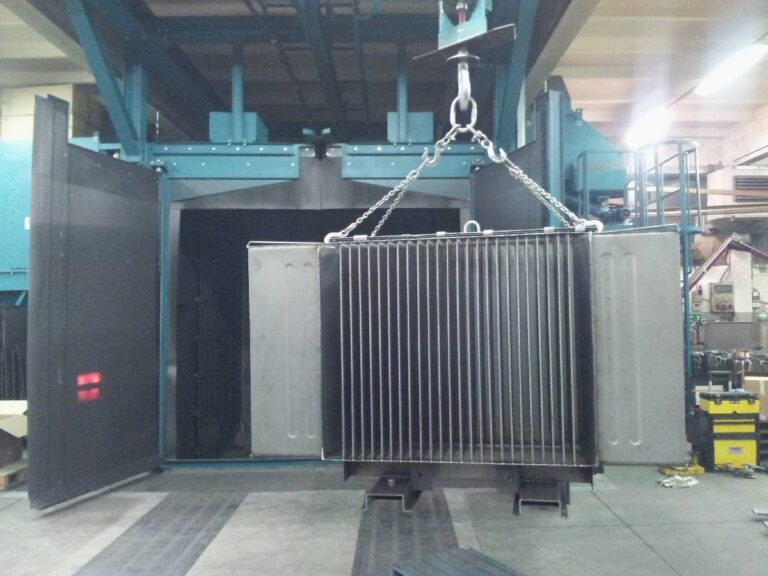

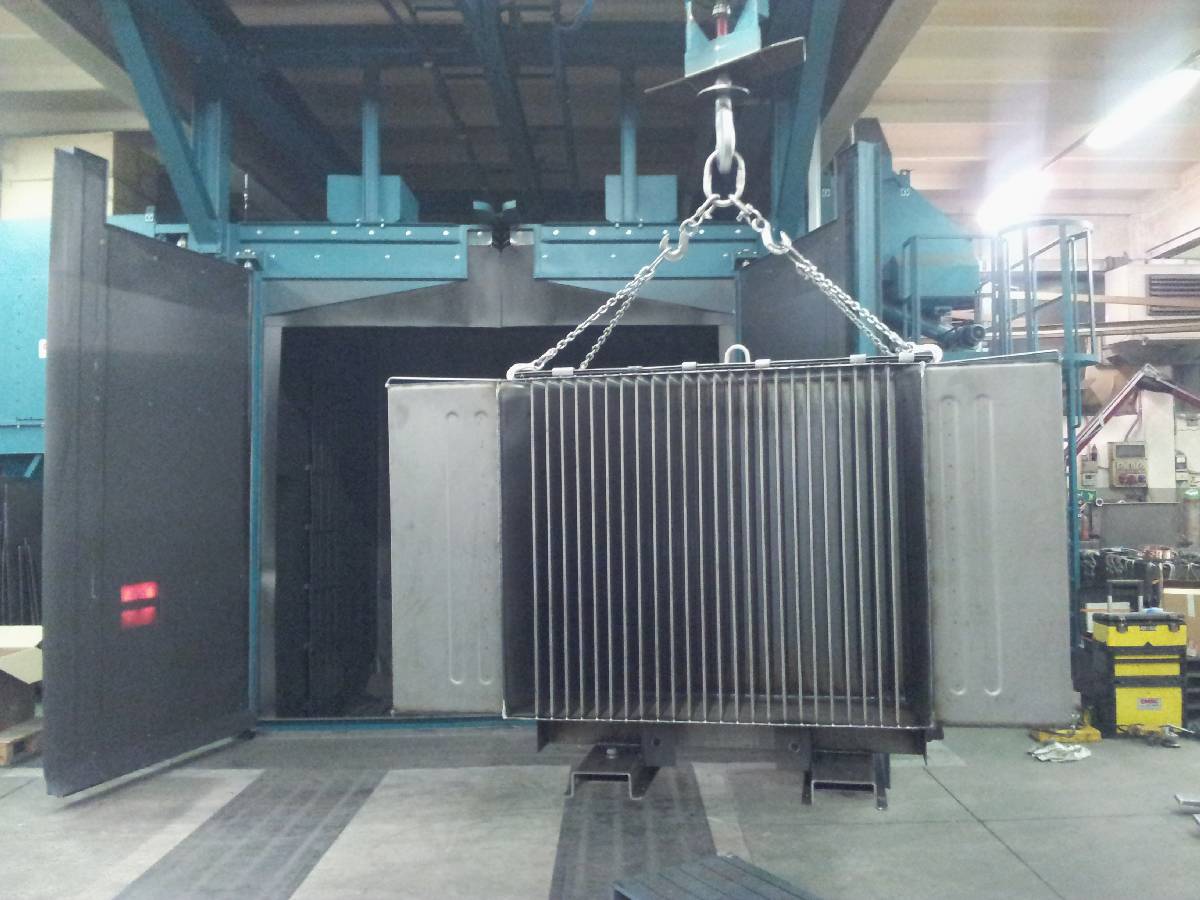

Hook handling	Manual	Chain	Chain and hoist	Hoist
Standard hook load (kg)	300 to 1000	500 to 1000	1000	2000 to 5000
Typical work	Light parts	Small to medium parts	Medium to large parts	Large and heavy parts
Chamber size	To suit the part	To suit the part	To suit the part	To suit the part
Blast wheels	Set by part and output	Set by part and output	Set by part and output	Set by part and output

Hoist versions are built for loads of 16000 kg and over on special order. Chamber size and wheel layout are set by the parts you blast and the output you need.

Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
