Kotec Roller Tables

Heavy-duty roller tables for feeding and handling long material.

Kotec

Heavy welded frames
Thick-wall rollers
Pillow block bearings
Infeed and outfeed

Kotec roller tables support and move long material into and out of bandsaws, beam lines and other processing machines. Infeed tables carry full-length material to the machine and align it to the datum line. Outfeed tables carry processed pieces away. Every table is built on a heavy welded steel frame with thick-wall rollers on solid shafts running in pillow block bearings.

To move material onto and off the tables, see Kotec Loading and Unloading Systems. To see how the tables, alignment equipment and carts work together as one line, see Kotec Material Handling Line Systems.

Get a quote

Key features

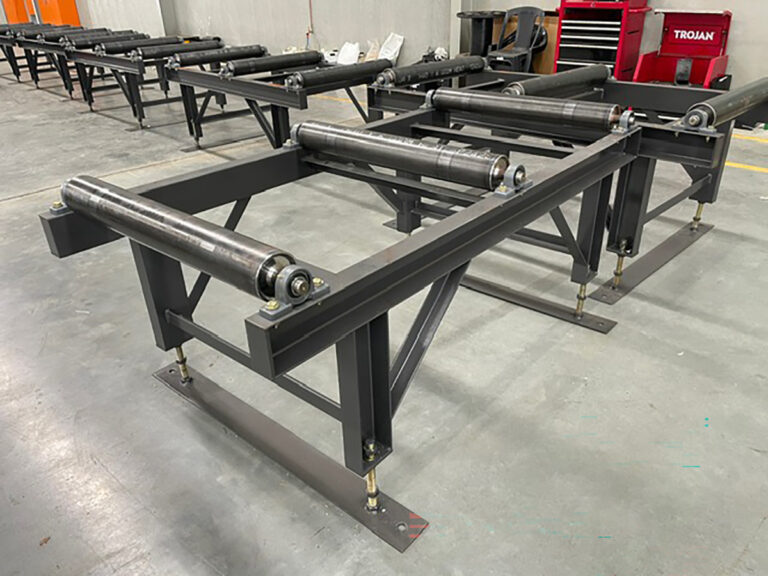

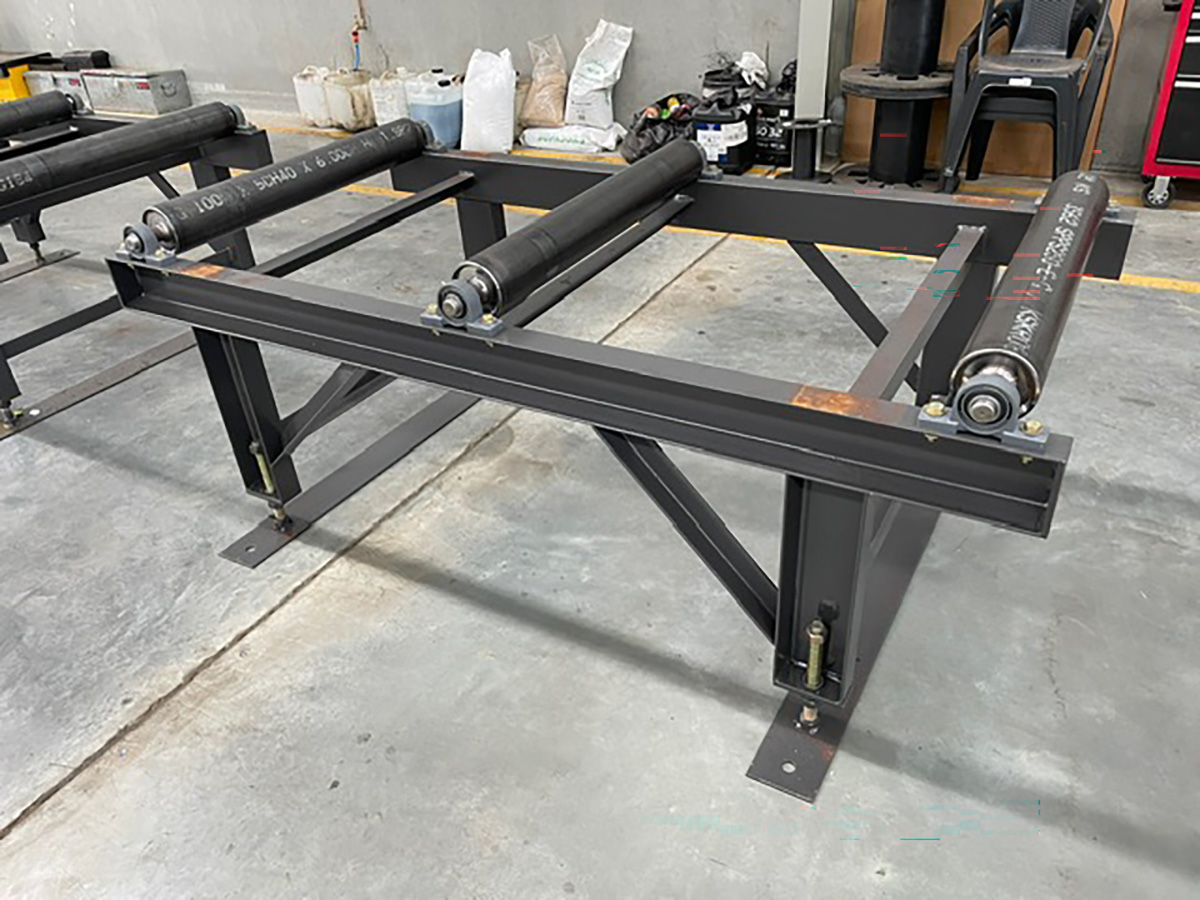

Heavy-Duty Free Rollers

Free roller tables carry full-length material on the infeed. The thick steel frame, thick-wall rollers and pillow block bearings take the weight of beam and bar without flexing, and the rollers turn freely so material moves with little effort.

Vertical Alignment Rollers

Vertical rollers along one side of the infeed set the datum line for the machine. Material runs against them, so every length enters the saw or beam line in the same position.

Alignment Pushers

Pushers move skewed material across against the vertical rollers. Material is square to the datum before it reaches the machine, without an operator levering it into place.

Pop-Up Powered Rollers

Pop-up rollers lift above the level of the free rollers and drive long lengths forward or back. Long material is fed without fitting a powered roller to every station on the infeed.

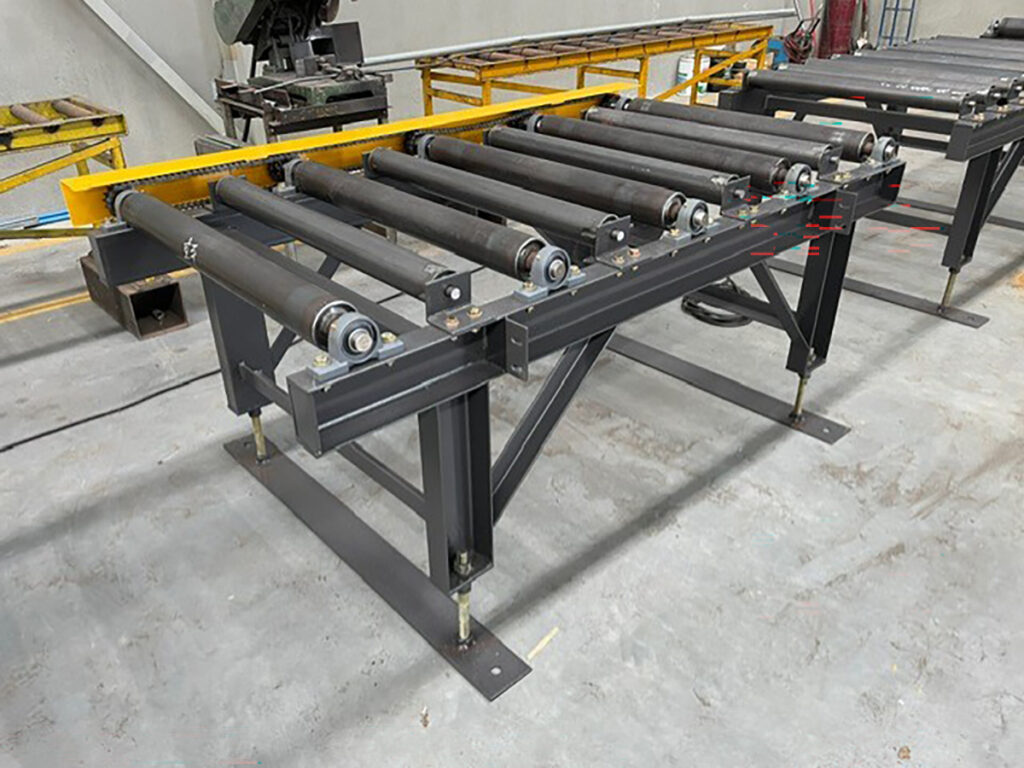

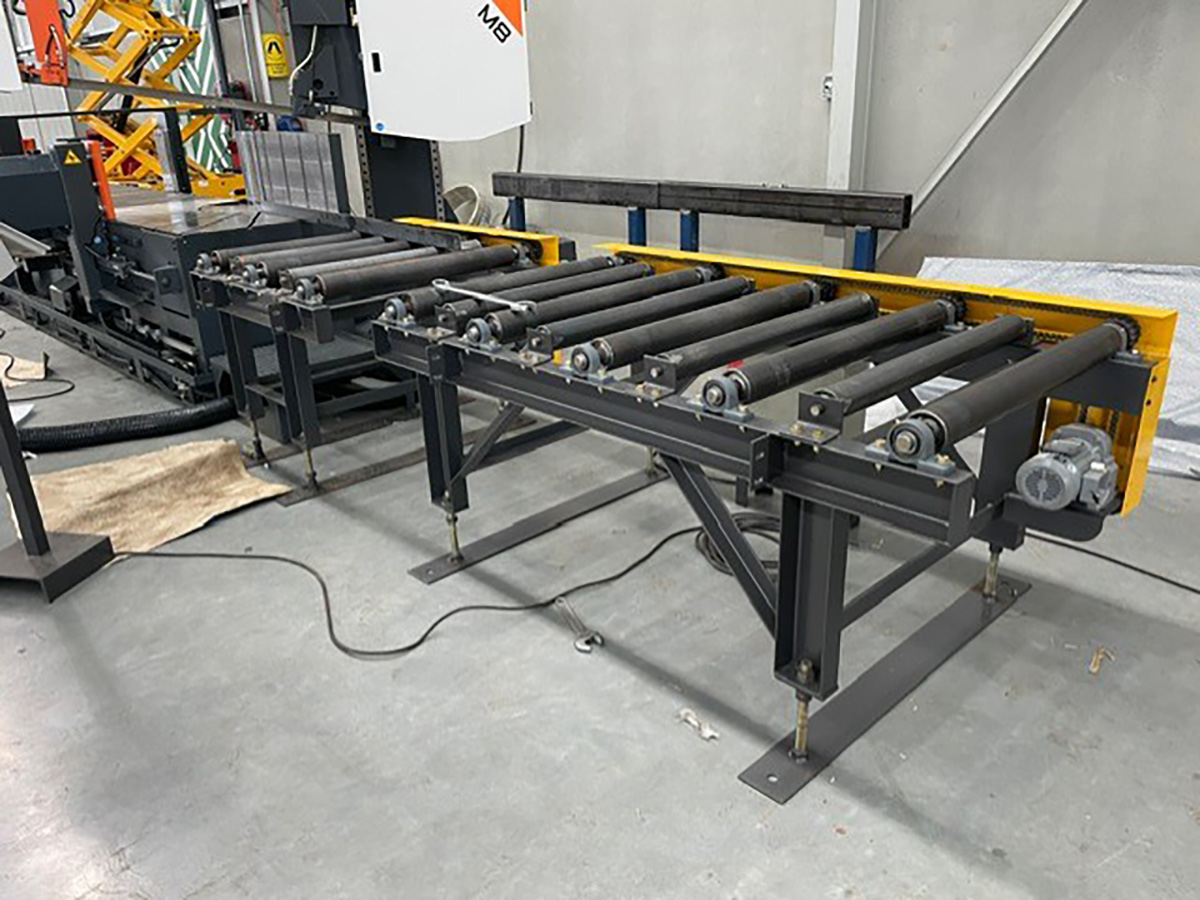

Powered Outfeed Rollers

On the outfeed, a motor drives every roller through a guarded chain. Processed material is carried away from the machine as soon as it is cut, keeping the exit clear for the next piece.

Close-Pitch Rollers for Short Pieces

Outfeed rollers are set close together, so short cut pieces stay supported. They are less likely to drop between rollers or jam on the way out.

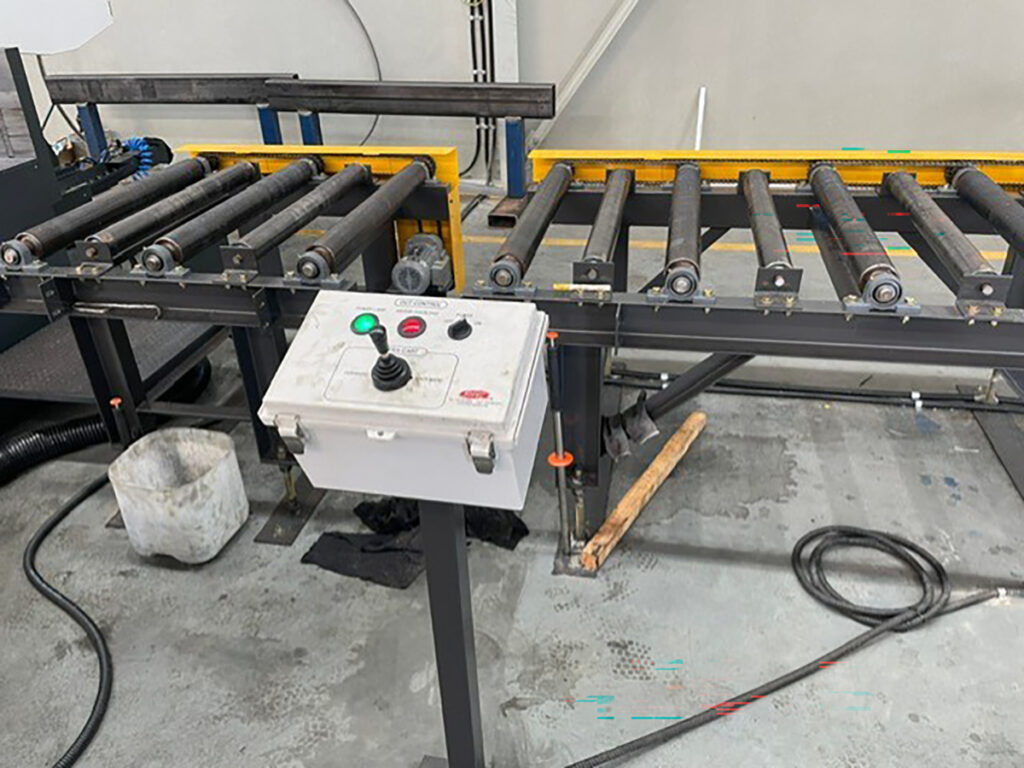

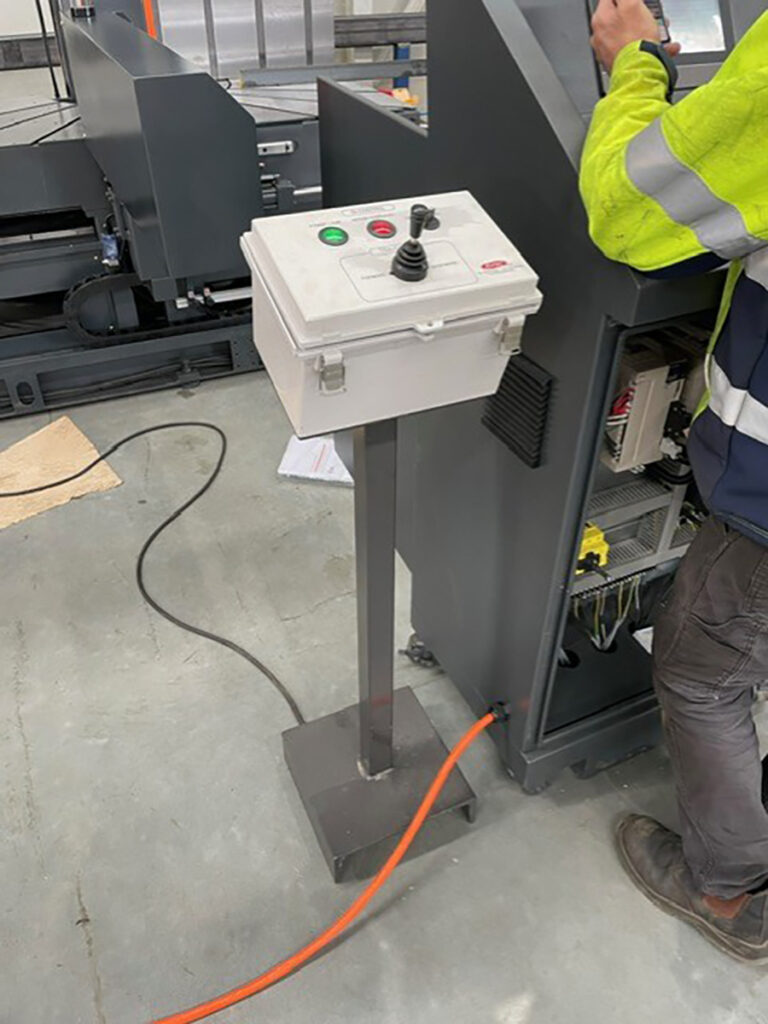

Independent Controls

Powered sections run from their own operation box with power and overload lamps and a forward and back joystick. An electrical cabinet and hydraulic unit are supplied when the layout needs them.

Options

Alignment pushers
Vertical alignment rollers
Pop-up powered rollers
Hydraulic power unit
Operation box and electrical cabinet

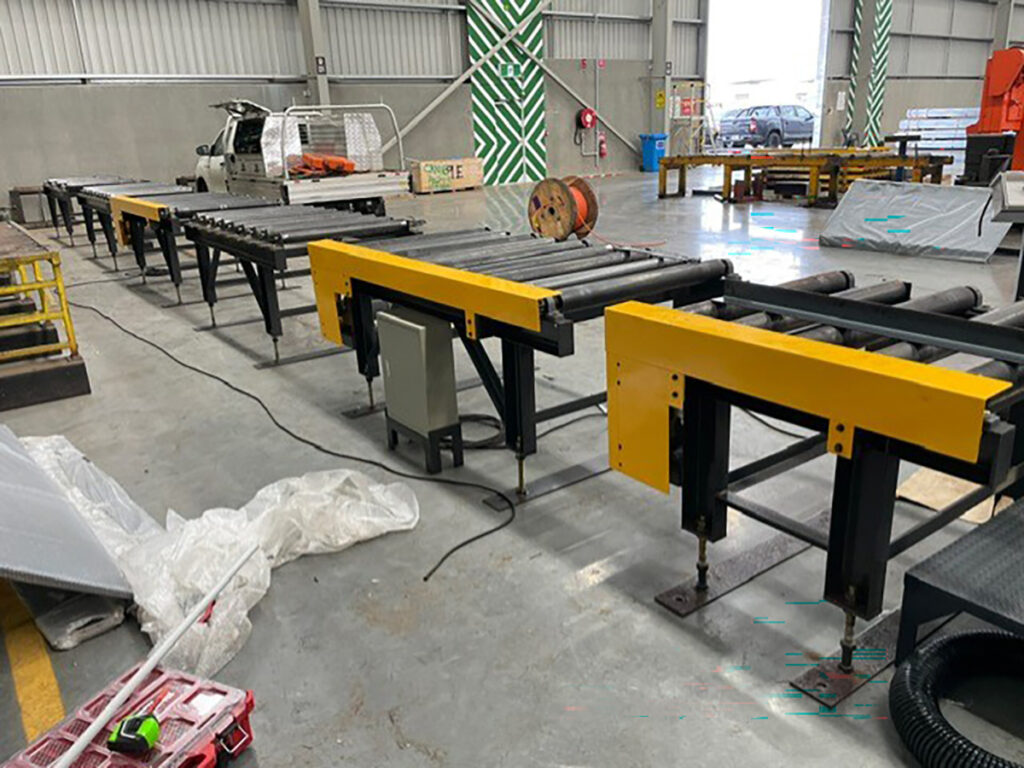

Part of a complete line

Kotec Material Handling Line Systems

See how roller tables, alignment equipment and lift and carry carts work together around a bandsaw or beam line.

View line systems →

Need roller tables for your saw or beam line?

Tell us the machine, material sizes and lengths and the floor space available. We will lay out the infeed and outfeed and quote them installed.

Get a quote

Specifications

Component	Position	What it does
Free roller table	Infeed	Supports full-length material. 2 m sections with 3 or 5 rollers
Vertical alignment rollers	Infeed	Provide the datum line for the machine
Alignment pusher	Infeed	Pushes skewed material against the datum rollers
Pop-up powered rollers	Infeed	Lift above the free rollers and drive long lengths forward or back at 7.8 m/min
Powered roller table	Outfeed	Motorised, chain-connected rollers carry material away. 2 m sections with 9 rollers
Free roller table	Outfeed	Extra run-out support. 2 m sections with 9 rollers
Table widths	800 or 1000 mm
Control	Independent operation box, electrical cabinet and hydraulic unit when required

Number of tables, roller pitch and options are set to suit the machine, material lengths and floor space.

Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
