AORE V Series High-Speed Tube Laser
High-speed tube laser for tube and light sections to 360 mm

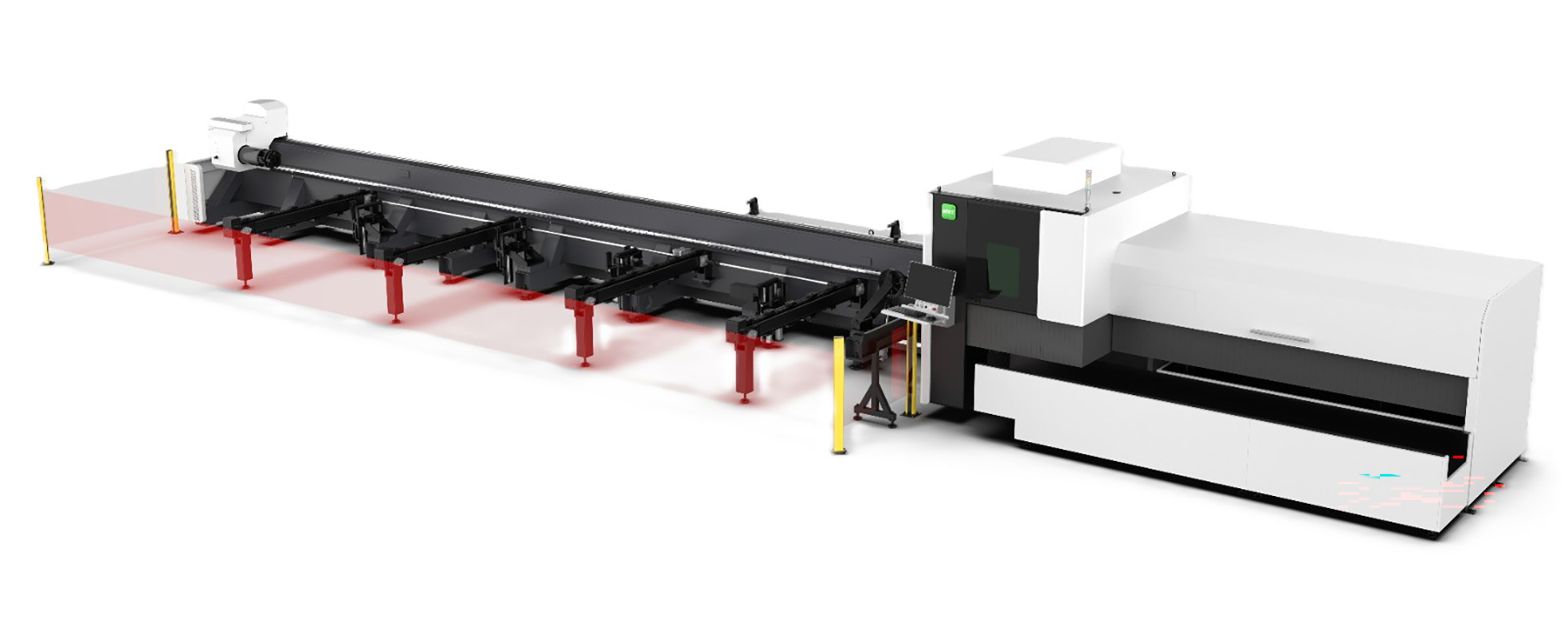

The AORE V Series is a fibre tube laser built for fast cutting of round, square and rectangular tube and light open sections. Supports follow the tube from loading to unloading, and a front-shift chuck keeps the end remnant short.
Five models cover chuck sizes from 120 to 360 mm, with laser power of 3, 6 or 12 kW and processing lengths of 6.5, 9 or 12 m. Automatic loading and an outfeed table are standard; bevel cutting is an option.
Key features
High-speed axes and chuck

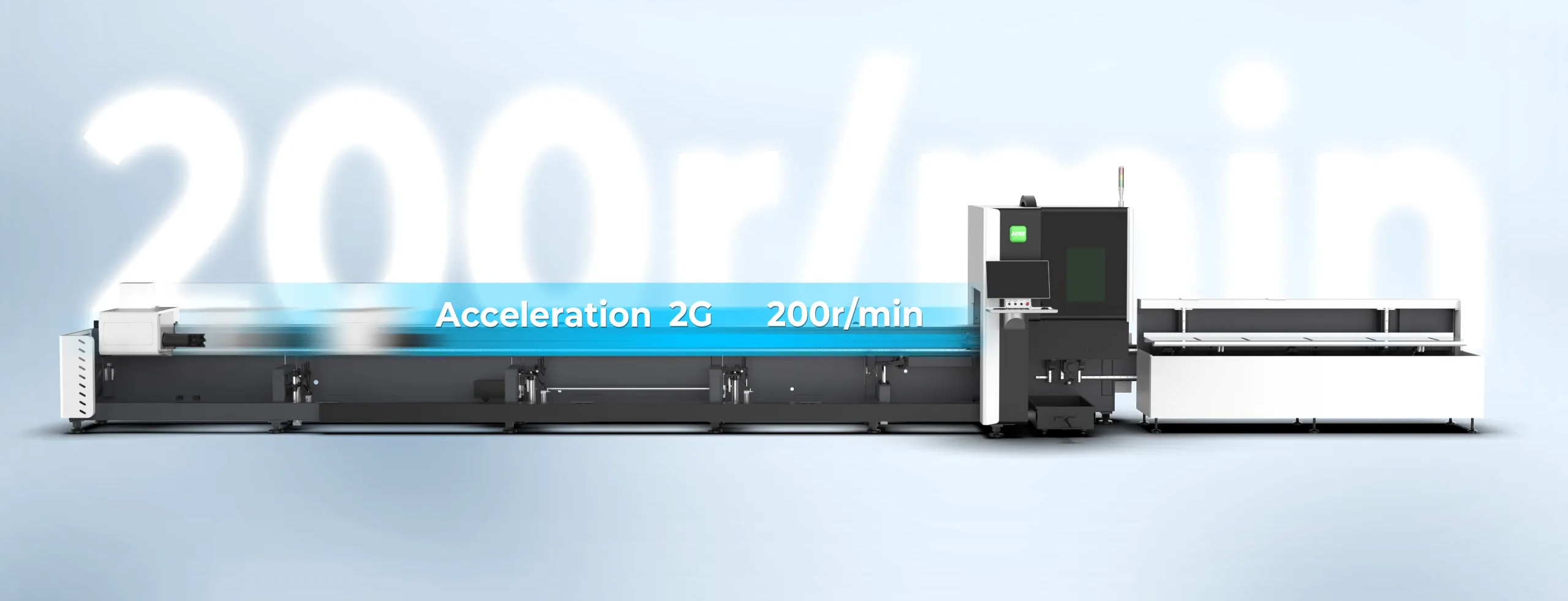

The V12 reaches 2 G axis acceleration and 200 r/min chuck rotation, which shortens the positioning moves between cuts on small tube. Cycle time still depends on the part and the cut length.
Dual adaptive and concave roller supports

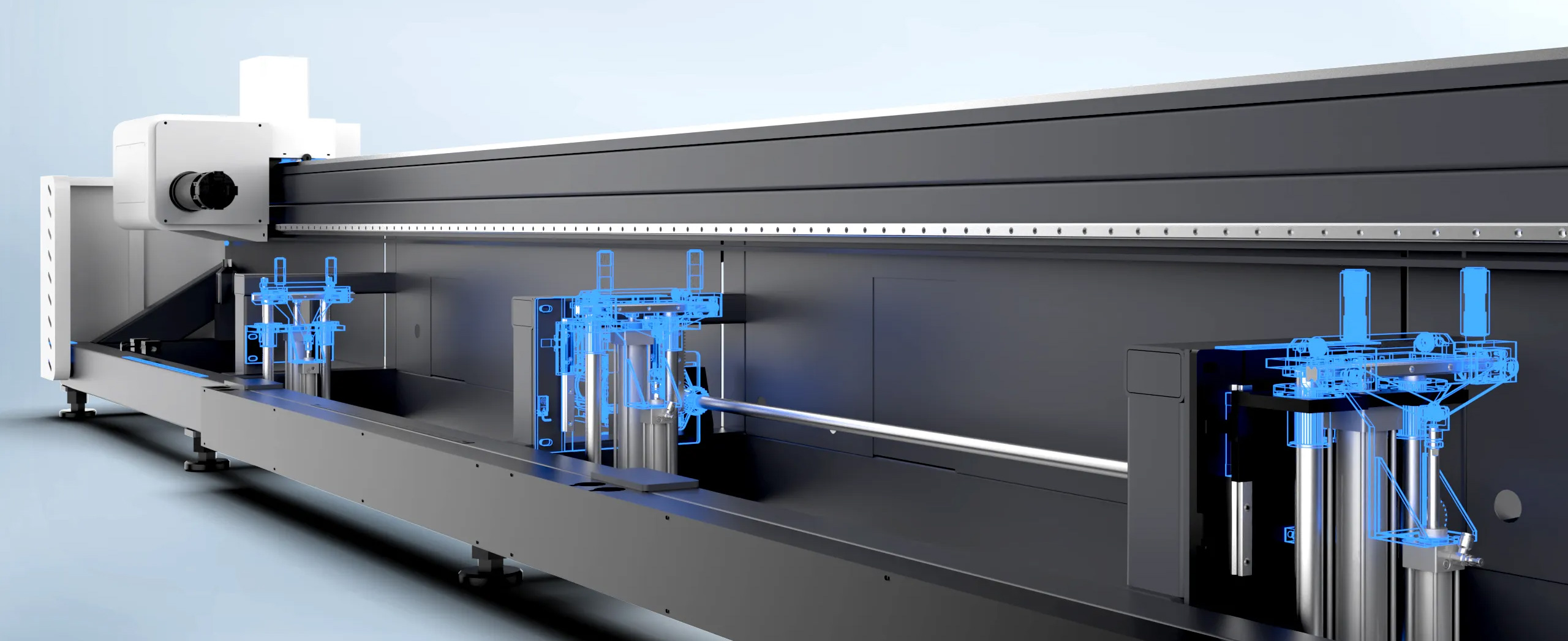

Adaptive and concave rollers support the tube either side of the cut and hold it against movement while the chuck rotates at speed. This keeps thin-wall tube steady at the cutting head.
Continuous support from loading to unloading
Supports follow the tube through automatic loading, cutting and unloading to the outfeed table, so a long length is carried for the whole cycle rather than only in the cutting zone.
Front-shift chuck for minimal tailing
The front chuck advances on servo drive so the final part is cut close to the end of the bar, leaving a short remnant. The chuck reaches that position without reclamping, which reduces chuck wear.
Safety guarding and full enclosure
Safety guarding and light curtains are standard; the light curtains monitor the working area and stop the machine if it is entered during operation. Full guarding is an option that encloses the machine, keeping operators outside while it cuts, loads and unloads, and contains sparks, fume and spatter. It can be paired with an additional advanced dust extraction system to draw fume out of the workshop.
Is the V Series right for your workshop?
Send us your largest section, stock lengths and a few typical part drawings. We'll confirm the model, laser power and bed length that suit them, and quote the machine as it would be installed.
Get a quoteSpecifications
| Model | V12 | V16 | V24 | V28 | V36 |
|---|---|---|---|---|---|
| Chuck size | 120 mm | 160 mm | 240 mm | 280 mm | 360 mm |
| Laser power | 3 kW | 3 or 6 kW | 3 or 6 kW | 3, 6 or 12 kW | 3, 6 or 12 kW |
| Round tube | Ø8 to Ø120 mm | Ø15 to Ø160 mm | Ø15 to Ø240 mm | Ø20 to Ø280 mm | Ø20 to Ø360 mm |
| Square tube | 8 to 120 mm | 15 to 160 mm | 15 to 240 mm | 20 to 280 mm | 20 to 360 mm |
| Rectangular tube, max diagonal | 170 mm | 225 mm | 335 mm | 380 mm | 495 mm |
| Angle, leg | 20 to 80 mm | 15 to 150 mm | 15 to 240 mm | 20 to 280 mm | 20 to 350 mm |
| Channel and H-beam, width | 20 to 80 mm | 15 to 150 mm | 15 to 240 mm | 20 to 280 mm | 20 to 350 mm |
| Channel and H-beam, max diagonal | 170 mm | 212 mm | 335 mm | 380 mm | 495 mm |
| Max load per tube | 80 kg | 150 kg | 300 kg | – | 1200 kg |
| Max air cutting speed | 150 m/min | 120 m/min | 120 m/min | – | 80 m/min |
| Max chuck speed | 200 r/min | 120 r/min | 120 r/min | – | 80 r/min |
| Processing length | 6.5, 9 or 12 m | 6.5, 9 or 12 m | 6.5, 9 or 12 m | 6.5, 9 or 12 m | 6.5, 9 or 12 m |
| Loading | Automatic, outfeed table | Automatic, outfeed table | Automatic, outfeed table | Automatic, outfeed table | Automatic, outfeed table |
| Bevel cutting | Optional | Optional | Optional | Optional | Optional |
Section capacities are for the standard chuck jaws, with a minimum wall thickness of 0.8 mm for clamping. Load, speed and power figures are AORE published figures; V28 figures are confirmed at quotation. Finished-part accuracy depends on material straightness, wall thickness and cutting conditions.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Videos
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
