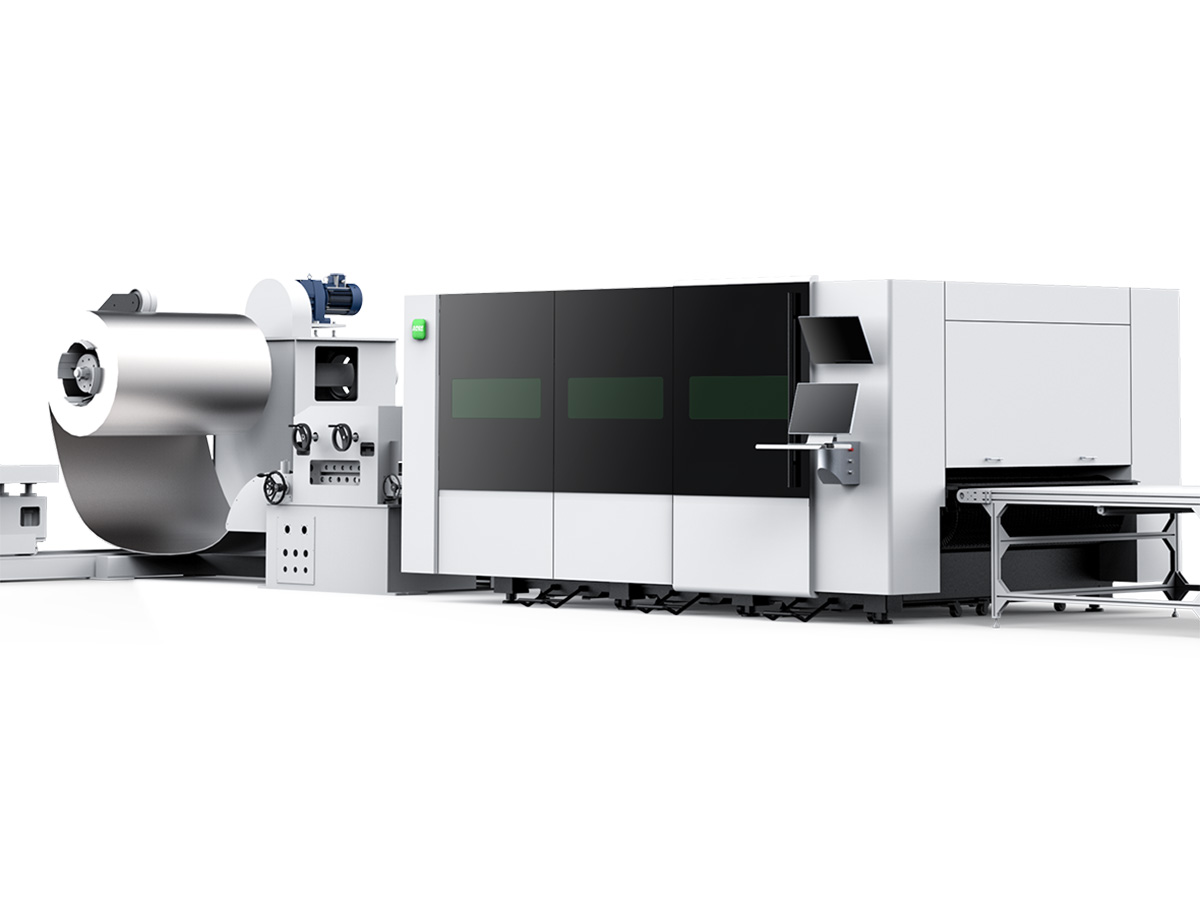

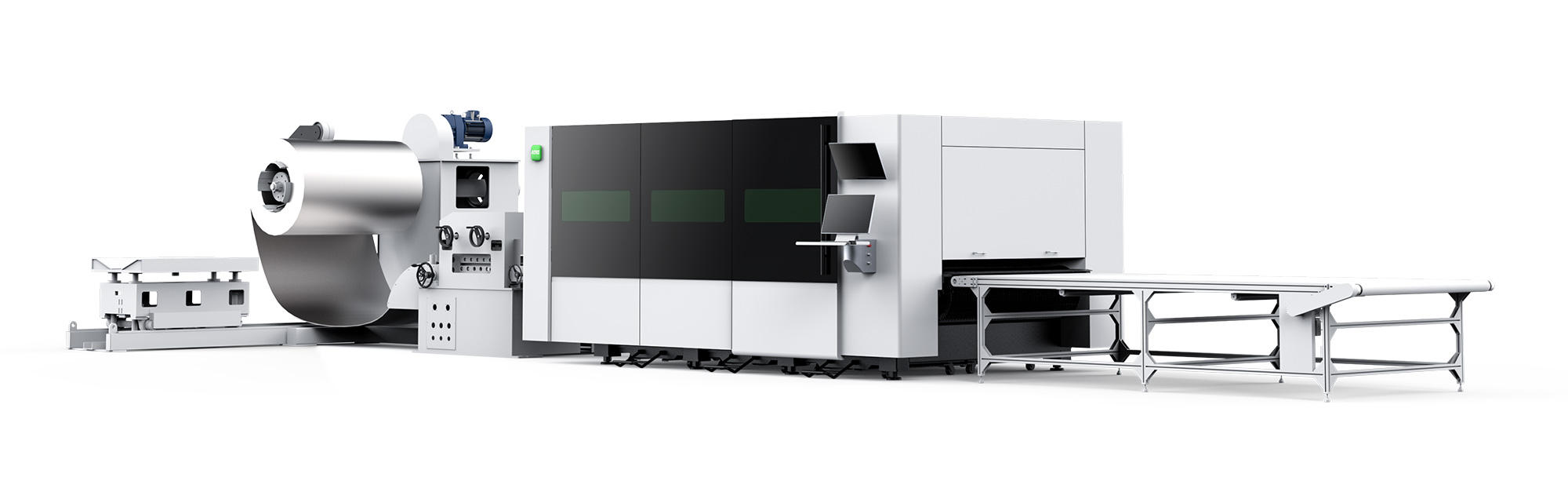

AORE R Series Coil-Fed Fibre Laser Cutting Line
Coil-fed fibre laser cutting line with integrated decoiler and leveller
The AORE R Series is a coil-fed fibre laser cutting line that combines uncoiling, levelling, cutting and unloading in one machine, so individual sheets are not loaded. Feed and discharge run at the same time, allowing continuous cutting from the coil.
Four models cover cutting areas of 3050, 4050, 6050 and 12050 x 1530 mm at 1.5 to 6 kW. The line suits repeat production at steady volume, where continuous material flow reduces labour and handling against sheet-fed cutting.
Key features

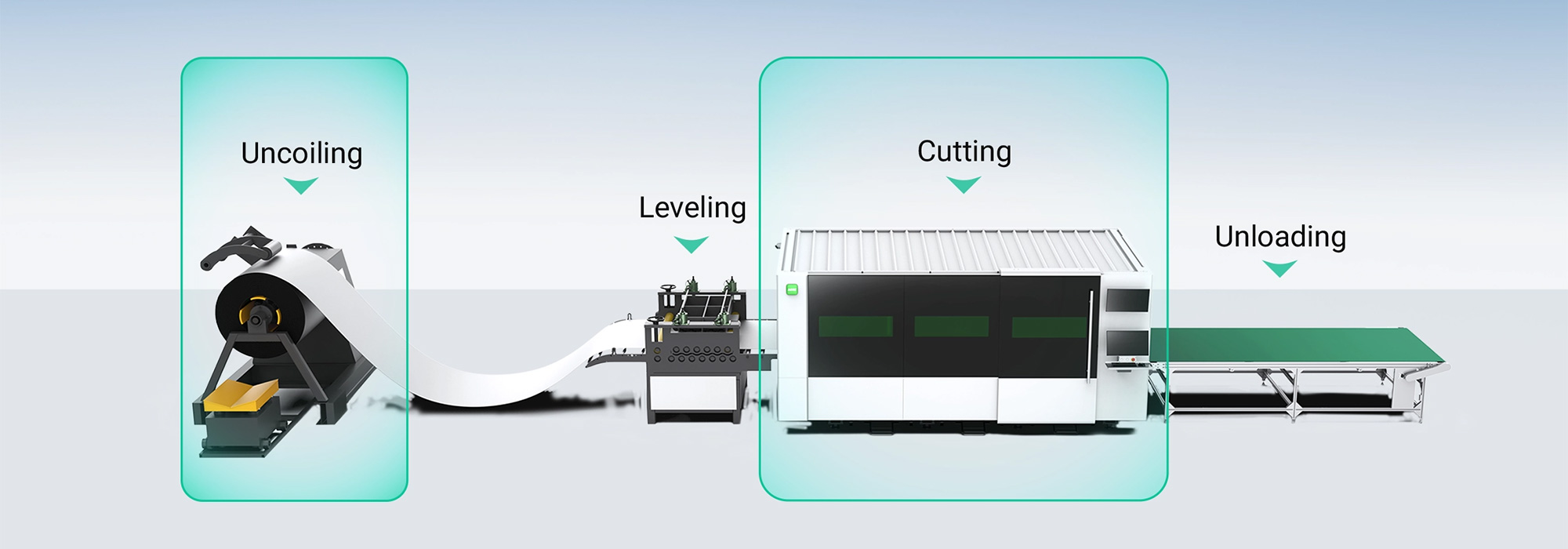

Uncoiling, levelling, feeding and cutting in one line
Uncoiling, levelling, feeding and fibre laser cutting are integrated as one automated sequence, with material processed on demand from coil. Coil preparation and blank cutting are no longer separate operations with handling between them.
Fibre laser cutting to 0.03 mm
A fibre laser source from 1.5 to 6 kW cuts the levelled strip with positioning accuracy of ±0.03 mm and repositioning accuracy of ±0.02 mm. Levelling relieves stress in the coil so the sheet lies flat for a smooth cut.

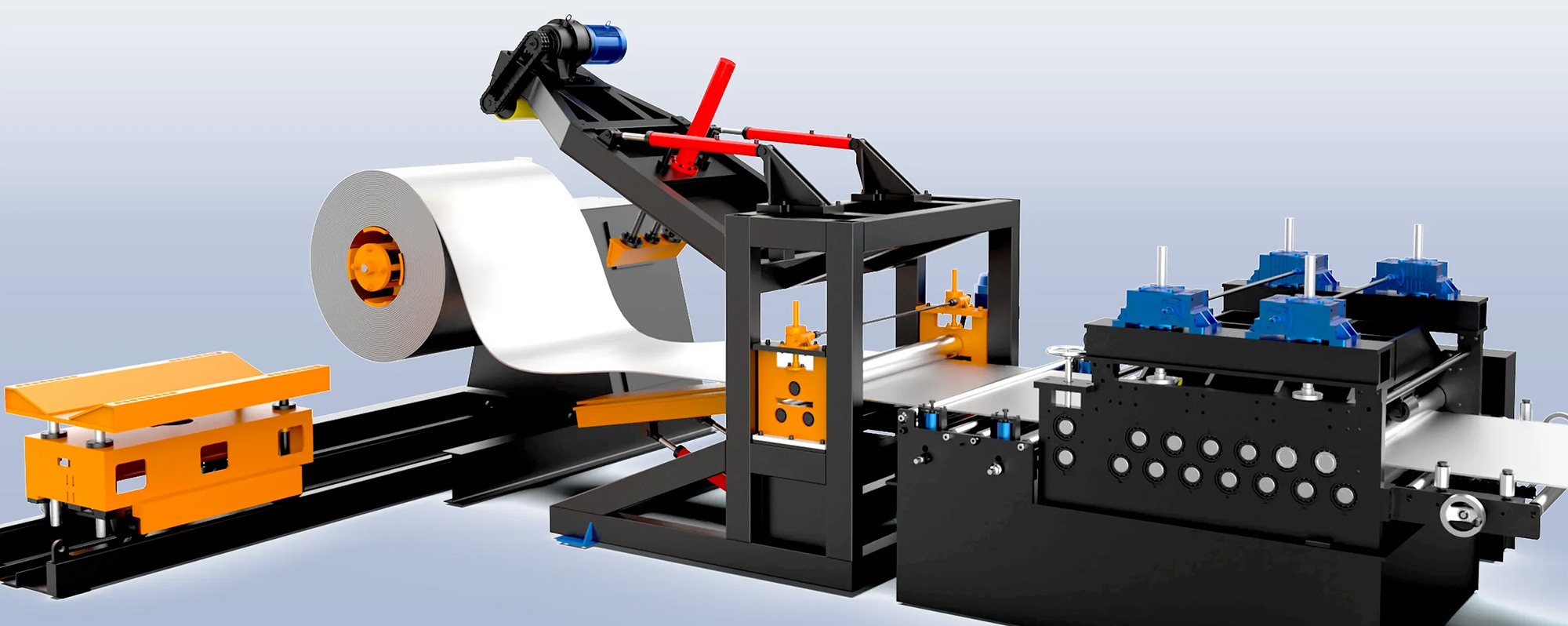

Heavy-duty decoiler and machine base
A heavy-duty material rack and stress-relieved cantilever base carry the coil under high load. The decoiler uses hydraulic coil expansion and variable-frequency speed control for smooth, steady feeding. Decoiler capacity is specified to the job.
Continuous cutting along the strip
Feed and discharge run at the same time, so the line keeps cutting while finished parts are unloaded. The line is built for continuous running, with AORE quoting up to double the output of sheet-fed cutting.
Is coil feeding right for your production?
Coil-fed cutting is specified for repeat production at steady volume. Suitability against sheet-fed cutting is assessed from part geometry, material and annual volume at quotation.
Talk to a laser specialistSpecifications
| Model | R3015 | R4015 | R6015 | R12015 |
|---|---|---|---|---|
| Cutting area (mm) | 3050 x 1530 | 4050 x 1530 | 6050 x 1530 | 12050 x 1530 |
| Laser power | 1.5 to 6 kW | |||
| Positioning accuracy | 0.03 mm | |||
| Repositioning accuracy | 0.02 mm | |||
| Max running speed | 115 m/min | |||
| Material feed | Coil, through decoiler and leveller | |||
Coil width, thickness, coil weight and decoiler size are confirmed against your material at quotation.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
