AORE F Series Single-Platform Sheet Laser

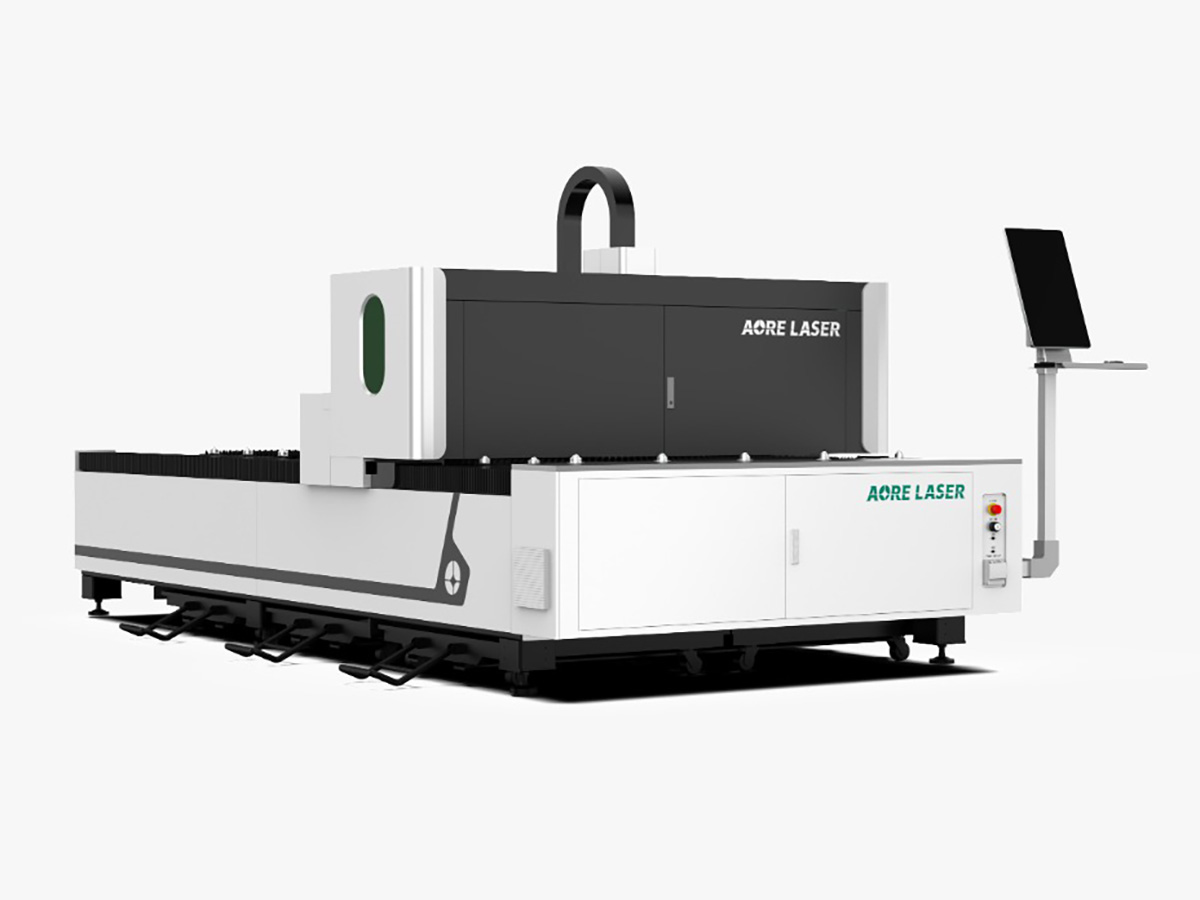

Single-platform sheet laser with semi-enclosed guarding
- 3 or 6 kW
- 1500 mm wide
- 3 or 6 m long

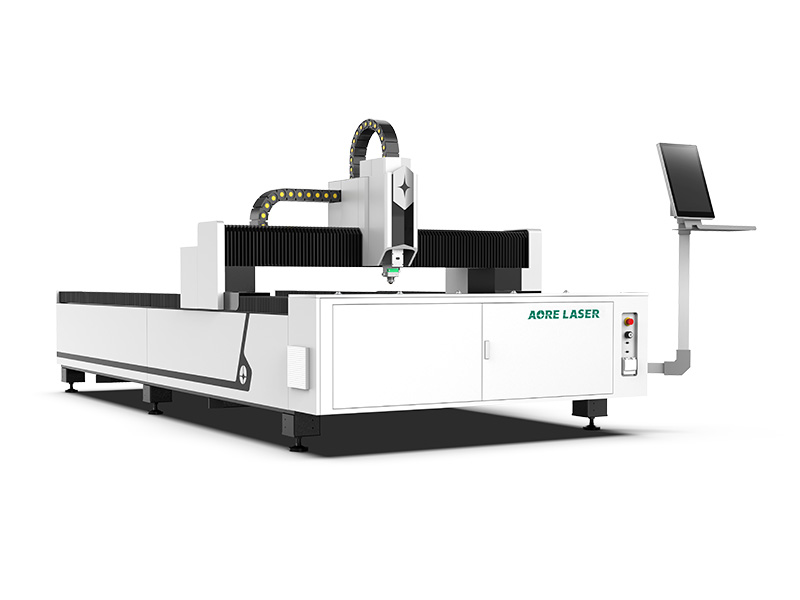

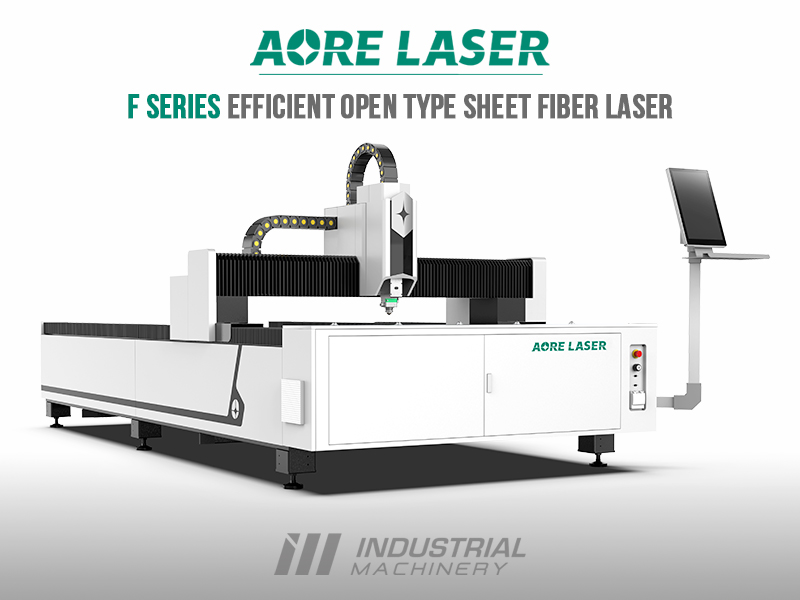

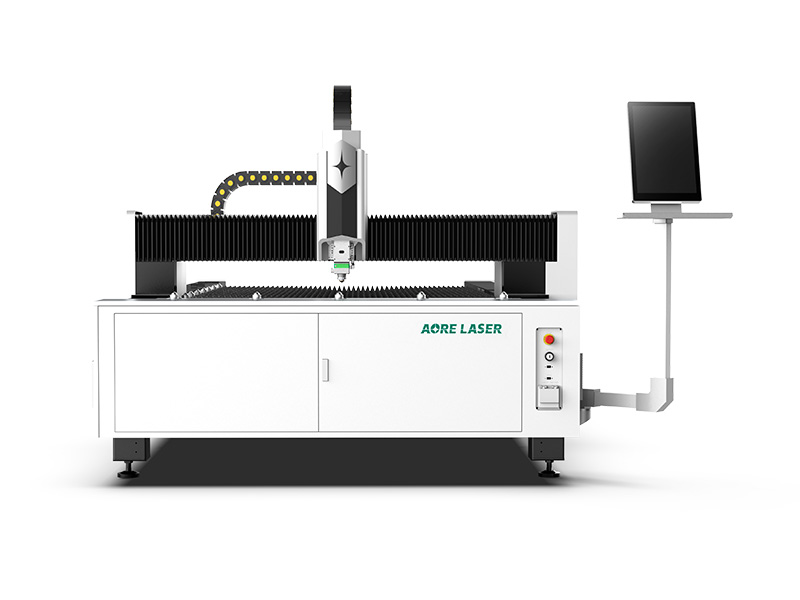

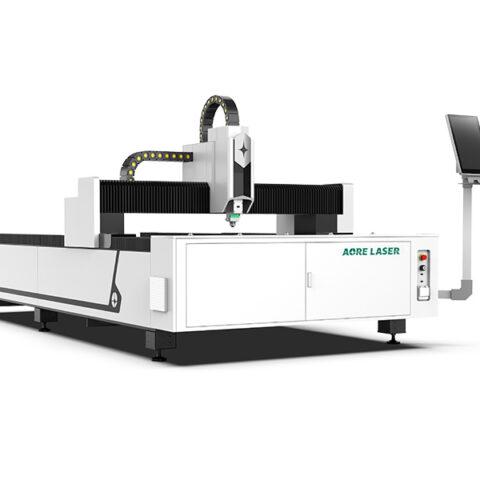

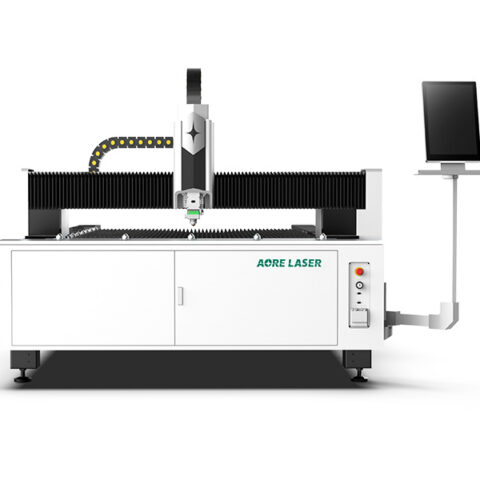

The AORE F Series is an open single-platform fibre laser for sheet up to 1500 mm wide. Without an exchange table or full enclosure it takes less floor space and costs less than the enclosed production machines, and it is supplied with semi-enclosed guarding.
Sheet lengths of 3 or 6 m are available, with laser power of 3 or 6 kW. It suits workshops bringing laser cutting in-house for the first time, or adding capacity for thinner sheet.
Key features
Open single platform, semi-enclosed guarding
One open cutting platform with no exchange table keeps the footprint and purchase cost down, and semi-enclosed guarding covers the cutting area. Sheets are loaded and unloaded directly on the bed. A safety light curtain is available as an option.
Reinforced frame with anti-burn design
The frame is reinforced and uses an anti-burn design to limit thermal deformation during long runs.
Mineral fireproof bed
The bed frame is built from mineral fire-resistant material to reduce heat distortion over the working life of the machine.
Anti-collision sensing
The cutting head senses obstacles such as tipped parts and stops before striking the workpiece, reducing head and nozzle damage.
Is the F Series right for your workshop?
Send us the sheet sizes, materials and thicknesses you cut. We'll confirm the bed length and laser power that suit them, and quote the machine as it would be installed.
Get a quoteSpecifications
| Specification | F Series |
| Sheet width | 1500 mm |
| Sheet length | 3 or 6 m |
| Laser power | 3 or 6 kW |
| Max running speed | 115 m/min |
| Max acceleration | 0.8G |
| Positioning accuracy | ±0.05 mm |
| Platform | Single, open |
| Guarding | Semi-enclosed |
| Head protection | Anti-collision sensing |
| Bed | Mineral fire-resistant |
| Safety light curtain | Optional |
Speed, acceleration and accuracy are AORE published figures. Finished-part accuracy depends on material, thickness and cutting conditions.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Video
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
About AORE
Fibre laser systems from one of China's largest laser manufacturers, backed by local support across Australia and New Zealand.
Official Australia and New Zealand agent for AORE high-power fibre laser cutting systems.
