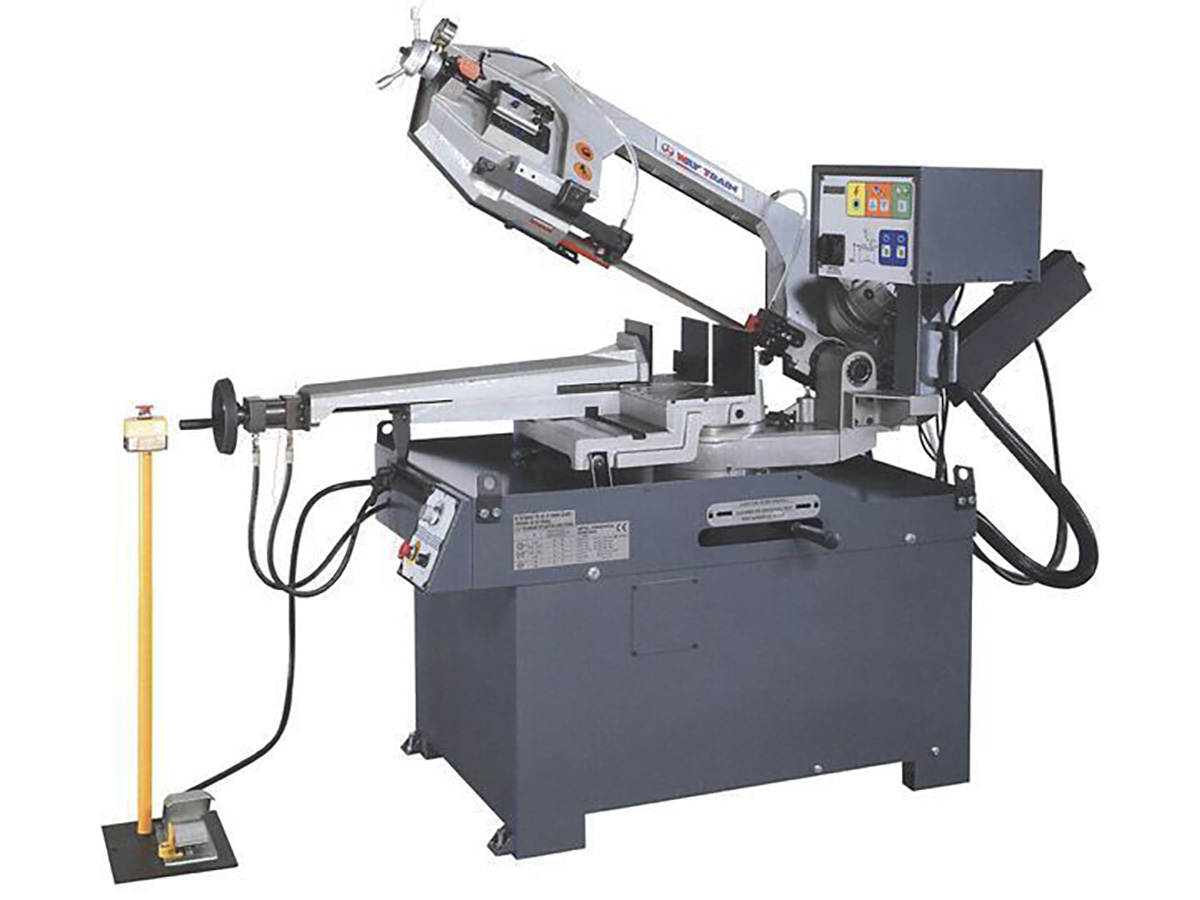

Toptec WE-270DSA / WE-350DSA Semi-Automatic Mitre Bandsaw

Semi-automatic double-mitre workshop bandsaws with hydraulic vice and lift after cut

Toptec

Max cut width: 260 or 350mm | 60 deg mitre cut | stand and coolant

The Toptec WE-270DSA and WE-350DSA are semi-automatic horizontal bandsaws for workshop cutting of bar, tube and section. The saw frame swivels from 60 degrees right to 45 degrees left, so double mitres are cut without turning the material.

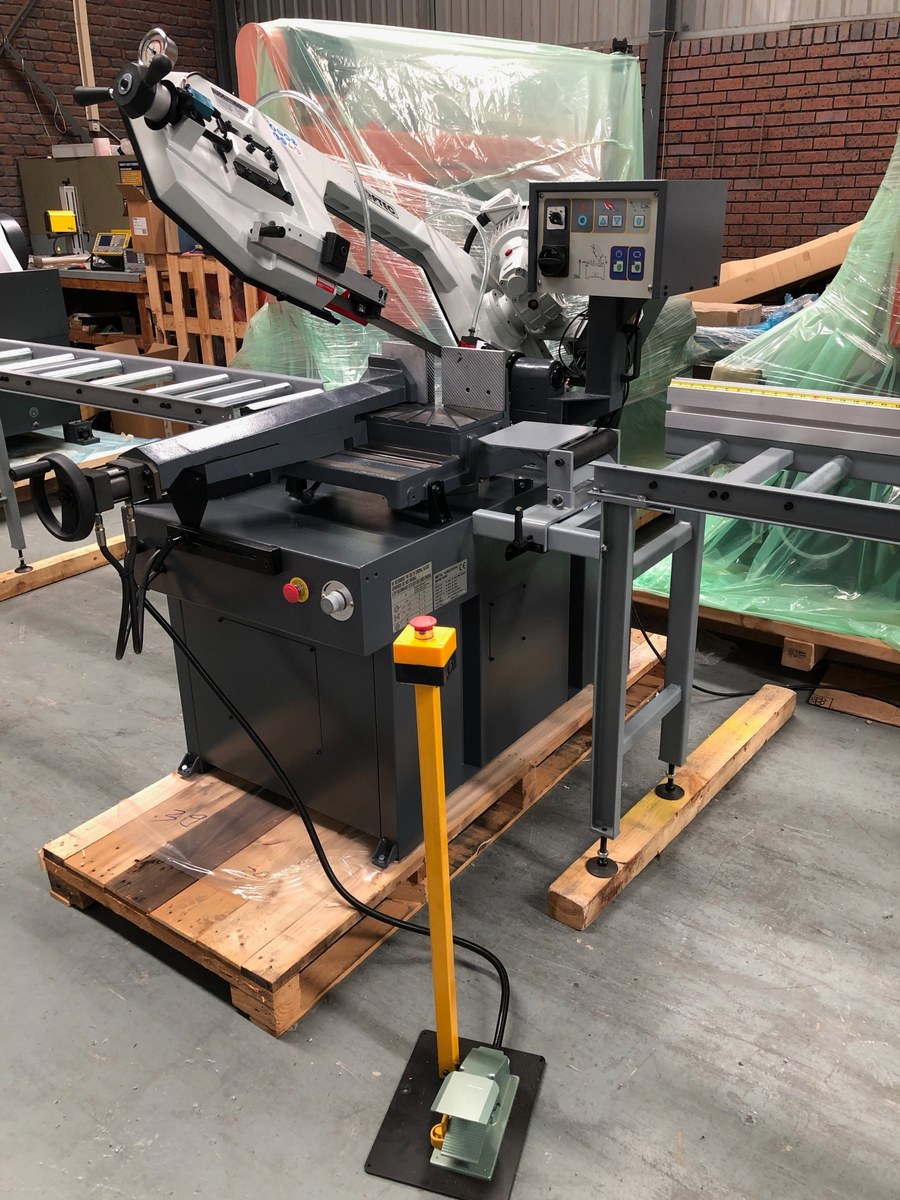

The vice clamps hydraulically, the frame feeds under hydraulic control and lifts clear at the end of each cut, and the operator starts the next cycle from the foot switch. The WE-270DSA cuts to 220 mm round and 105 x 260 mm; the WE-350DSA to 260 mm round and 250 x 350 mm.

Get a quote Brochure (PDF)

Key features

Semi-automatic cut cycle

One start clamps the hydraulic vice, feeds the blade through the cut under hydraulic control and lifts the frame clear when the cut is finished. The operator loads and starts each piece rather than working the saw frame, which keeps cut quality consistent across a batch.

Double mitre swivel frame

The saw frame swivels from 60 degrees right to 45 degrees left and locks at the set angle, while the material stays in place in the vice. Both ends of a mitred part are cut from the same side without turning the length around.

Hydraulic vice clamping

The vice closes hydraulically at the start of each cycle and opens again when the frame returns. Clamping force is the same on every piece, and no time is spent winding the vice between cuts.

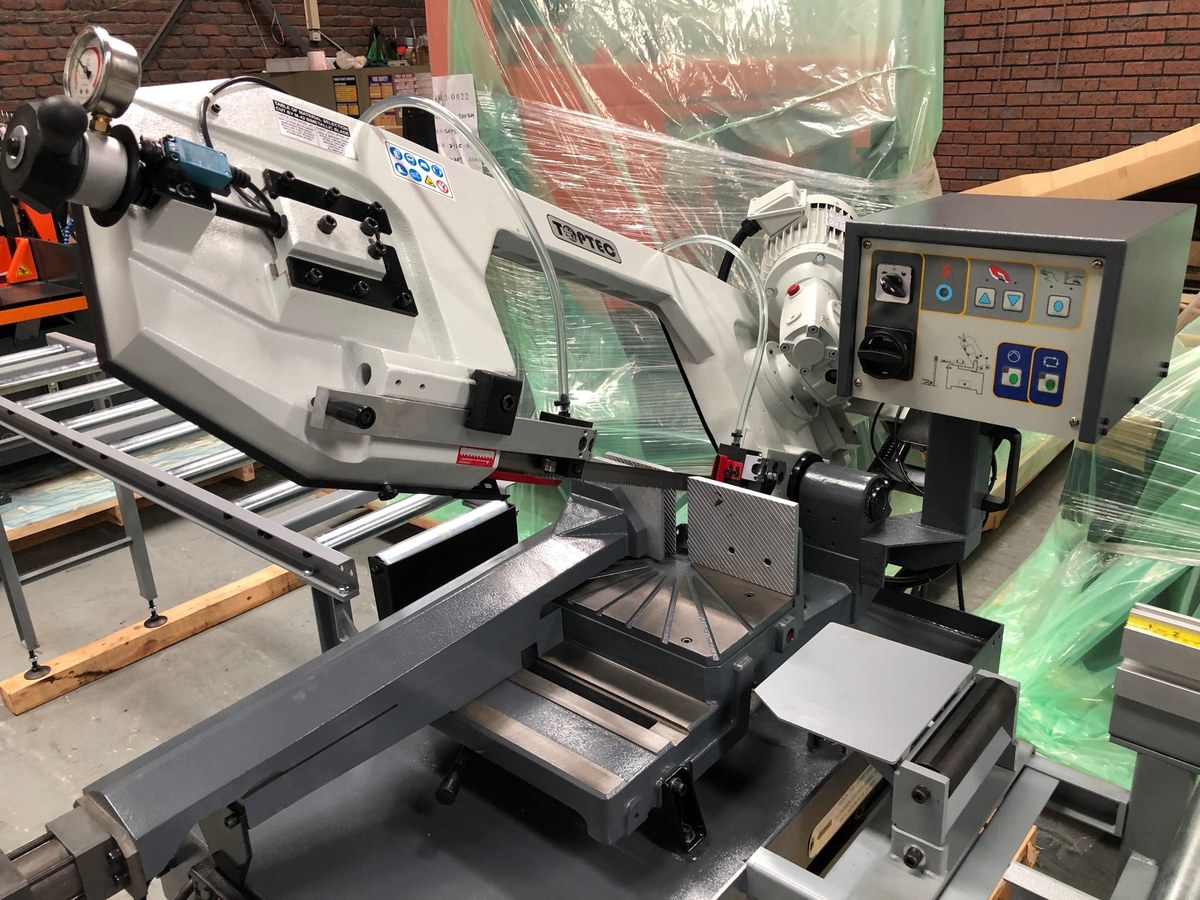

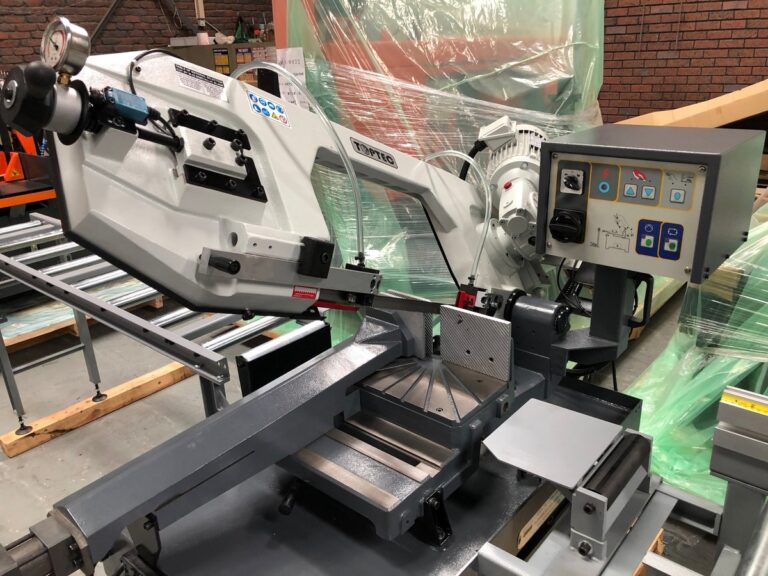

Control panel with blade break detection

The electronic control panel carries indicator lights for each function, and blade breakage detection stops the saw if the blade fails. Faults are identified at the panel rather than by tracing the machine.

Built-in stand and coolant

The saw is mounted on a steel cabinet stand with the coolant tank and pump built in. It is installed as a self-contained unit, and coolant at the cut controls heat for a better finish and longer blade life.

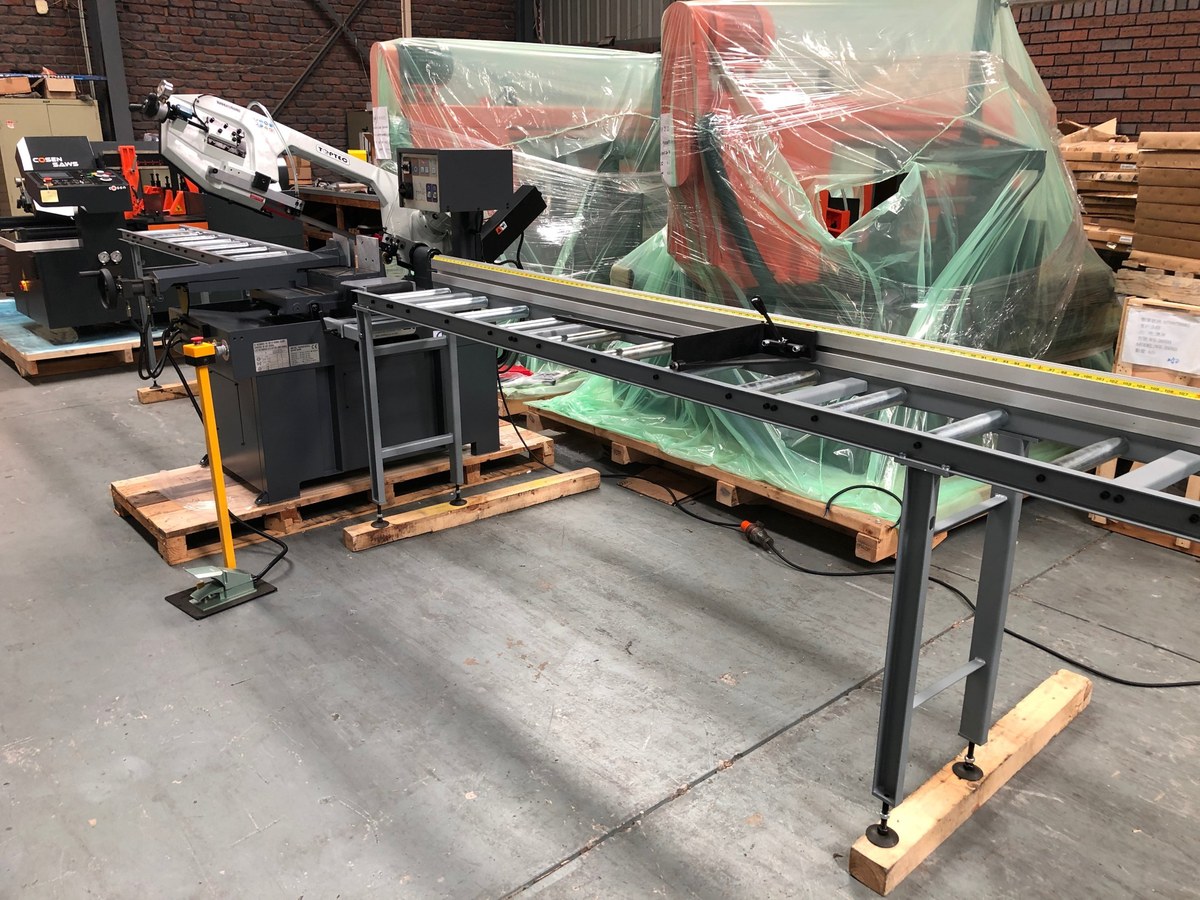

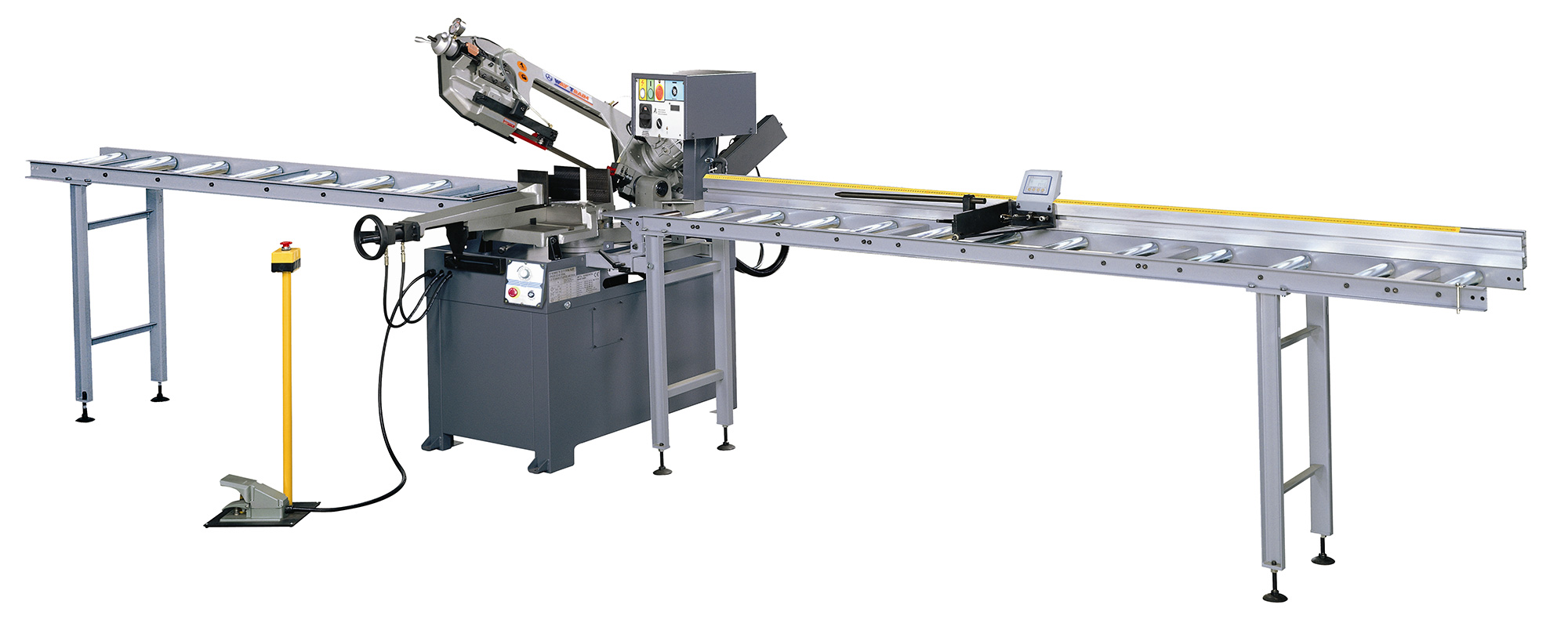

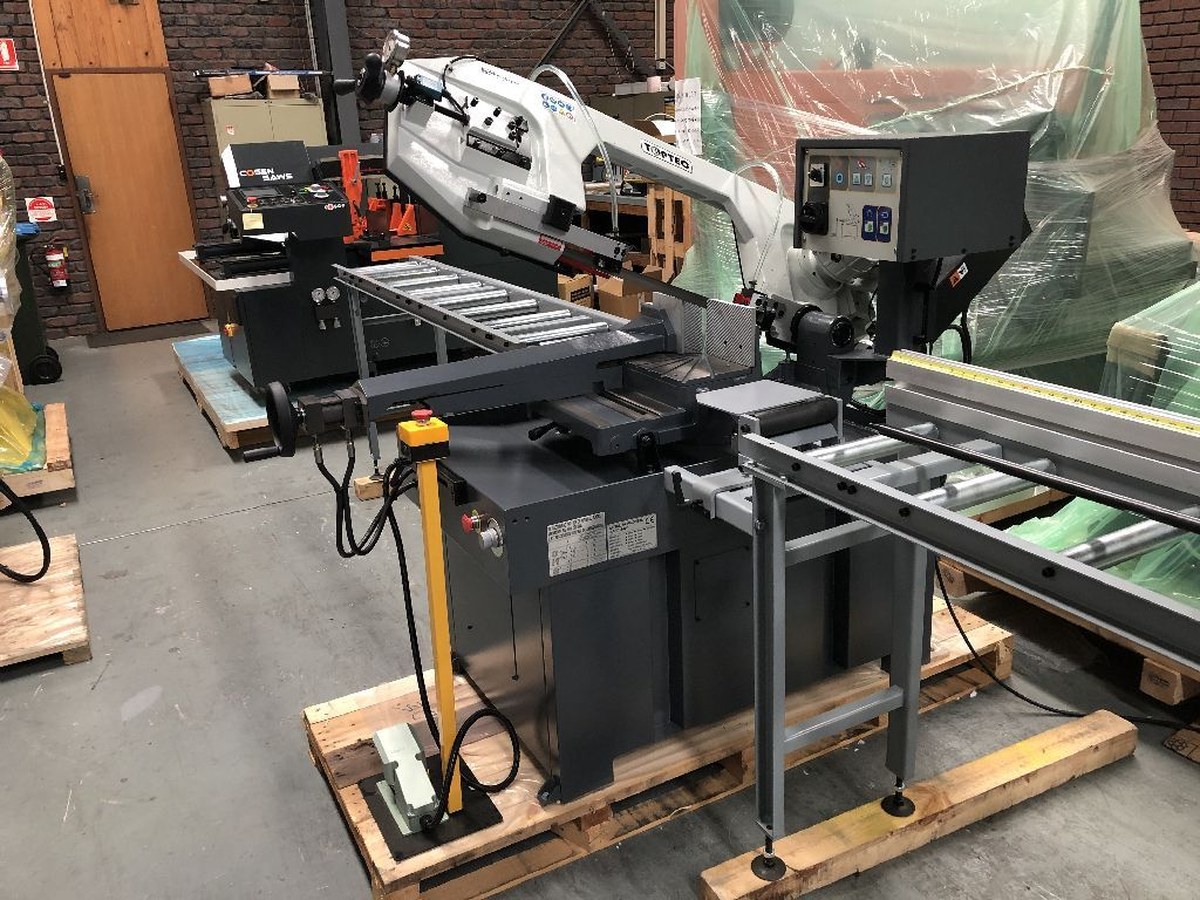

In-feed and out-feed roller tables (*Optional)

More features

Two blade speeds, 72 and 36 m/min, from a two-speed motor
Cast iron saw frame, one-piece construction
Precision blade guides on adjustable, rigid guide arms
Blade tension indicator
Quick-action vice
Material stop
Bi-metal blade supplied

Specifications

Model	WE270DSA	WE350DSA
Capacity at 90 degrees	220 mm round, 215 mm square, 105 x 260 mm (H x W)	260 mm round, 260 mm square, 250 x 350 mm (H x W)
Capacity at 45 degrees right	150 mm round, 145 mm square, 70 x 155 mm	230 mm round, 165 mm square, 110 x 240 mm
Capacity at 60 degrees right	90 mm round, 85 mm square, 85 x 90 mm	150 mm round, 90 mm square, 90 x 150 mm
Capacity at 45 degrees left	135 mm round, 110 mm square, 45 x 160 mm	200 mm round, 170 mm square, 60 x 260 mm
Mitre range	60 degrees right to 45 degrees left	60 degrees right to 45 degrees left
Blade size (L x W x T)	2460 x 27 x 0.9 mm	3160 x 27 x 0.9 mm
Blade speed	Two speeds, 72 and 36 m/min	Two speeds, 72 and 36 m/min
Blade motor	1.1 kW (1.5 HP)	1.5 kW (2 HP)
Hydraulic / coolant motor	0.38 kW / 50 W	0.38 kW / 50 W
Vice clamping	Hydraulic	Hydraulic
Downfeed	Hydraulic control	Hydraulic control
Weight	280 kg	360 kg

Model and options are confirmed against your sections and cut list at quotation.

Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
