Toptec PFG Hydraulic Surface Grinders
Hydraulic saddle-type surface grinders with automatic cross feed, 200 x 450 to 400 x 800 mm tables
- Max. Table 200 x 450 to 400 x 800 mm

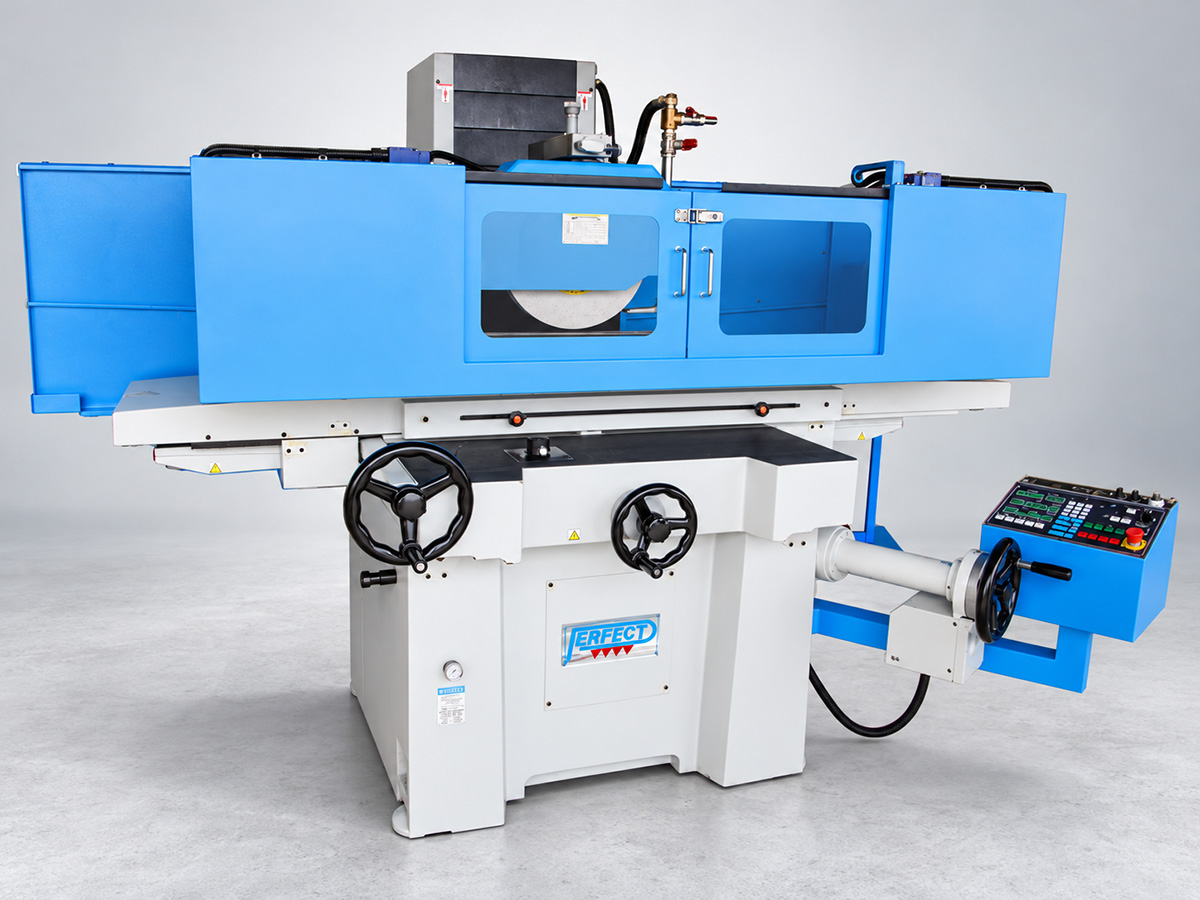

The Toptec PFG-AH Series are saddle-type surface grinders with hydraulic table travel and automatic cross feed, for flat grinding of toolroom parts, dies and production components. Table sizes run from 200 x 450 mm on the PFG-2045AH to 400 x 800 mm on the PFG-D4080AH.
The spindle runs in class P4 angular contact bearings in a sealed cartridge, and the X and Z slideways are coated with Turcite-B. The vertical axis is fed by handwheel as standard, with an NC auto down feed system available as an option for three-axis automatic grinding.
Key features
Stress-relieved cast iron structure
The major parts are high-grade cast iron, stress relieved before final machining. Rigidity and stability are built into the structure, so grinding accuracy holds over a long service life.
Cartridge spindle with P4 bearings
The spindle runs in class P4 high-precision angular contact bearings in a sealed, lubricated cartridge, with run-out held within 2 microns. Surface finish and flatness stay consistent, and the sealed cartridge gives a long working life.
Turcite-B coated slideways
The X and Z axis slideways are coated with Turcite-B, and the table runs on a V and flat way. Table movement stays smooth at low speed and the slideways keep their accuracy over the long term.
Hydraulic table with automatic cross feed
The table is driven hydraulically at 5 to 25 m/min and the saddle cross feeds automatically at a set increment, with handwheels on the cross and vertical axes. The operator sets the depth and cross increment and the machine works across the surface on its own.
More features
- V and flat table guideways
- Rapid power cross feed, 900 mm/min
- Cross feed handwheel 5 mm per revolution, 0.02 mm graduations
- Vertical feed handwheel 2 mm per revolution, 0.01 mm graduations
- Supplied with grinding wheel, wheel flange, flange extractor, balancing arbor and stand, diamond dresser, levelling screws and tool box
Options
- NC auto down feed system (AD5) for three-axis automatic grinding
- NC auto parallel dressing and compensating system, with AD5
- Power rapid head elevation
- Raised column 600 mm spindle to table on the 2550AH and 3060AH, 650 mm on the D4080AH
- Crisscross grinding function
- Electro magnetic chuck with controller, or permanent magnetic chuck on the 2045AH
- Coolant system with paper filter and magnetic separator
- Dust suction system
- Parallel dresser
- Digital readout
Specifications
| Model | PFG-2045AH | PFG-2550AH | PFG-3060AH | PFG-D4080AH |
|---|---|---|---|---|
| Table grinding surface | 200 x 450 mm | 250 x 500 mm | 300 x 600 mm | 400 x 800 mm |
| Spindle centre to table, max | 450 mm | 500 mm (600 option) | 500 mm (600 option) | 550 mm (650 option) |
| Table speed | 5 to 25 m/min | 5 to 25 m/min | 5 to 25 m/min | 5 to 25 m/min |
| Auto cross feed increment | 0.1 to 12 mm | 0.1 to 12 mm | 0.5 to 20 mm | 0.5 to 20 mm |
| Rapid power cross feed | 900 mm/min | 900 mm/min | 900 mm/min | 900 mm/min |
| Spindle motor | 1.5 kW (2 HP) | 1.5 kW (2 HP) | 3.7 kW (5 HP) | 3.7 kW (5 HP) |
| Hydraulic pump motor | 0.75 kW (1 HP) | 0.75 kW (1 HP) | 0.75 kW (1 HP) | 1.5 kW (2 HP) |
| Wheel speed (50 Hz) | 2900 rpm | 2900 rpm | 1450 rpm | 1450 rpm |
| Grinding wheel (D x W x bore) | 180 x 13 x 31.75 mm | 180 x 13 x 31.75 mm | 355 x 38 x 127 mm | 405 x 50 x 127 mm |
| Floor space (L x W x H) | 2080 x 1200 x 1700 mm | 2340 x 1500 x 1800 mm | 2630 x 1550 x 1800 mm | 3450 x 2050 x 1900 mm |
| Machine weight | 950 kg | 1350 kg | 1700 kg | 3250 kg |
Table size is the grinding surface. Model and options are confirmed against your parts and tolerances at quotation. Cantilever, column type and full CNC models are also available on request.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
