Titan AL Series CNC Angle Line
CNC angle punching, marking and shearing line, 35x35x3 to 200x200x20 mm, five models
- Angle 35x35x3 to 200x200x20 mm
- Punching, marking and shearing

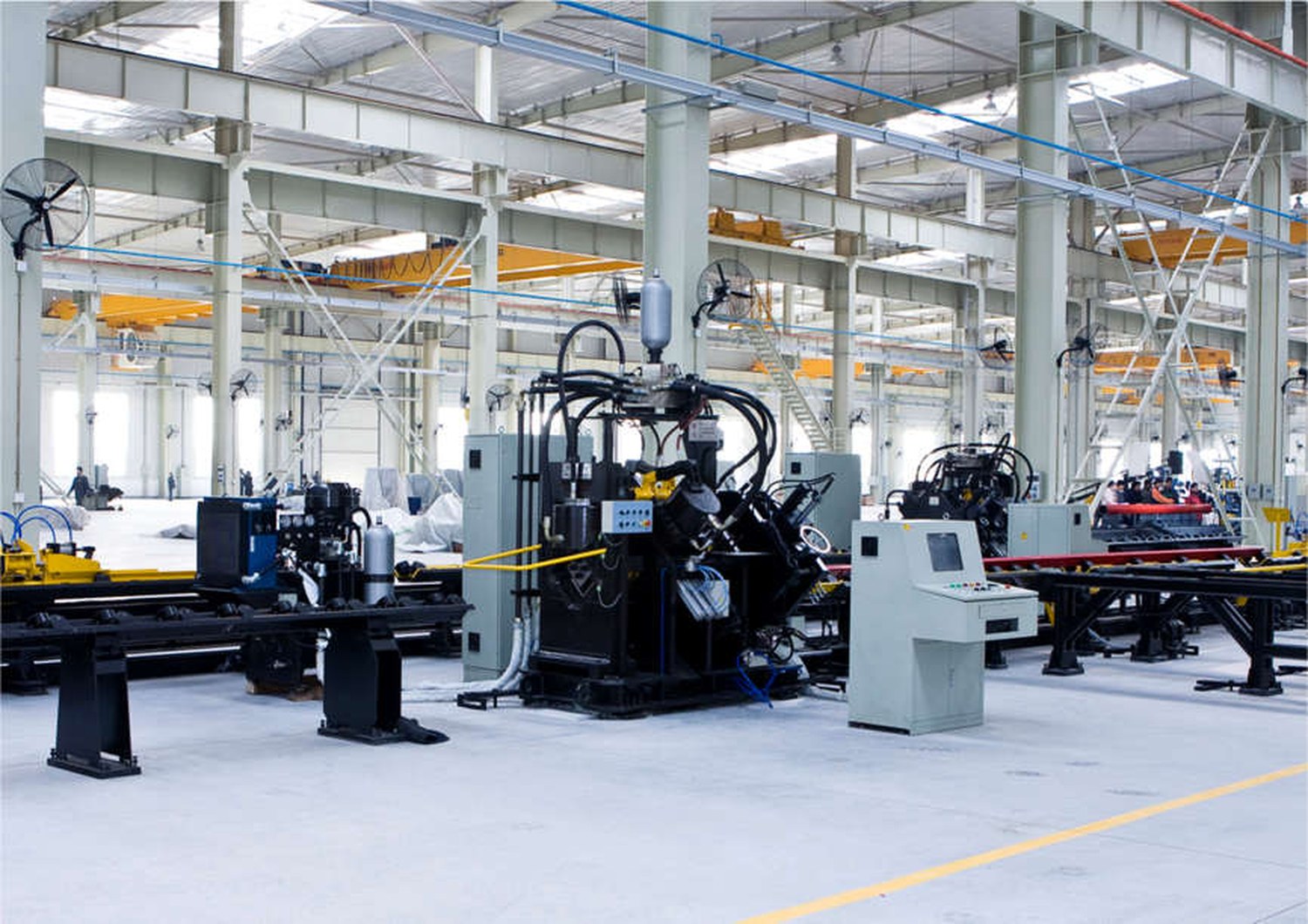

The Titan AL Series punches, marks and shears angle from bar stock to finished part in one pass under program control. A servo feed carriage positions the bar for each operation, hydraulic punch units put round or slotted holes in both legs, a cassette or disc marker stamps the part identification and a single or double blade shear cuts to length. Five models cover 35x35x3 to 200x200x20 mm angle.
It suits transmission tower and telecommunication tower fabricators, substation and structural steel shops running angle in volume. Programs are read directly from Tekla NC1 files, so layout, punching and cutting that would otherwise be marked, drilled and sawn as separate operations run from one program with no handling between stations.
Key features

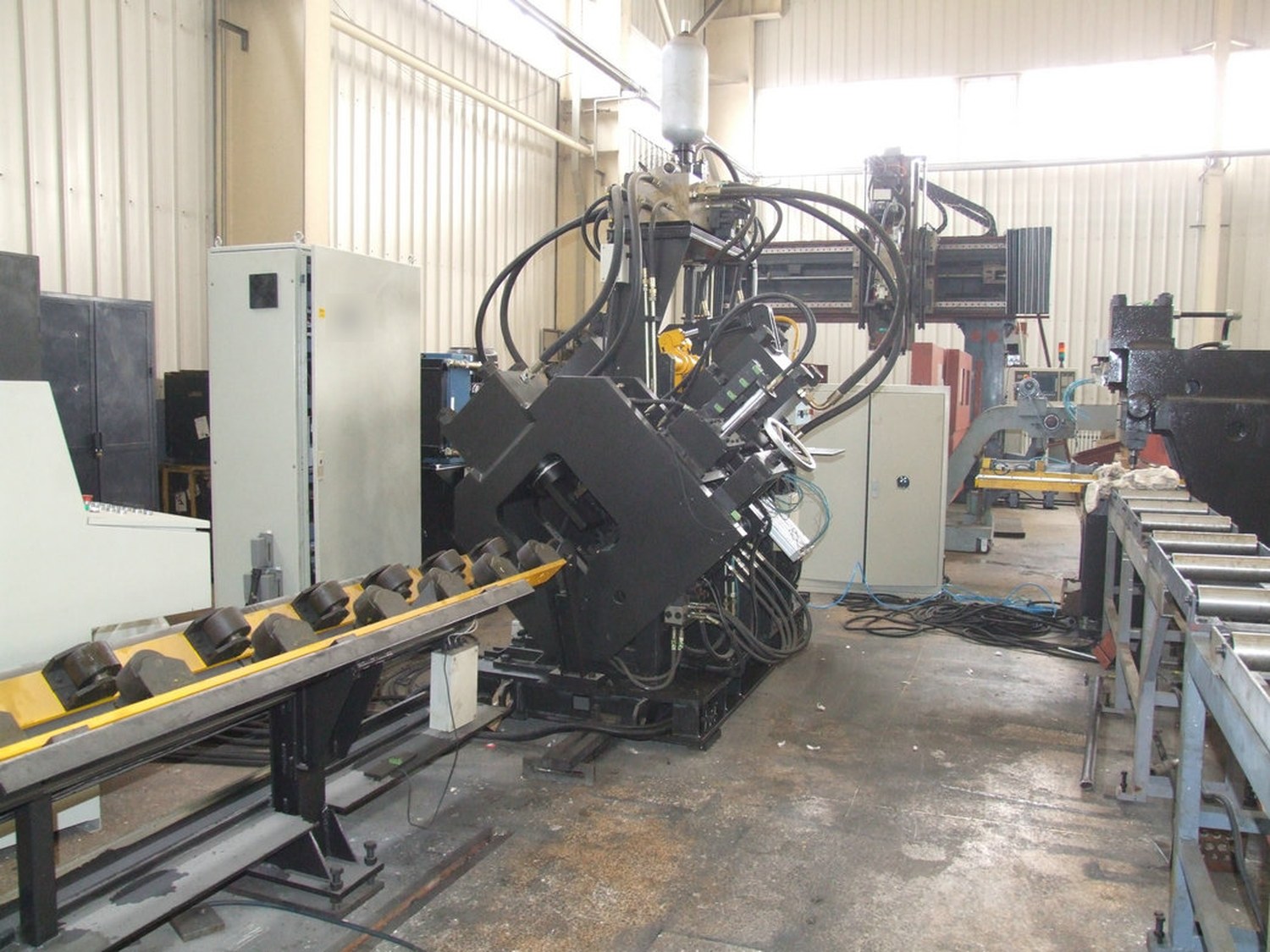

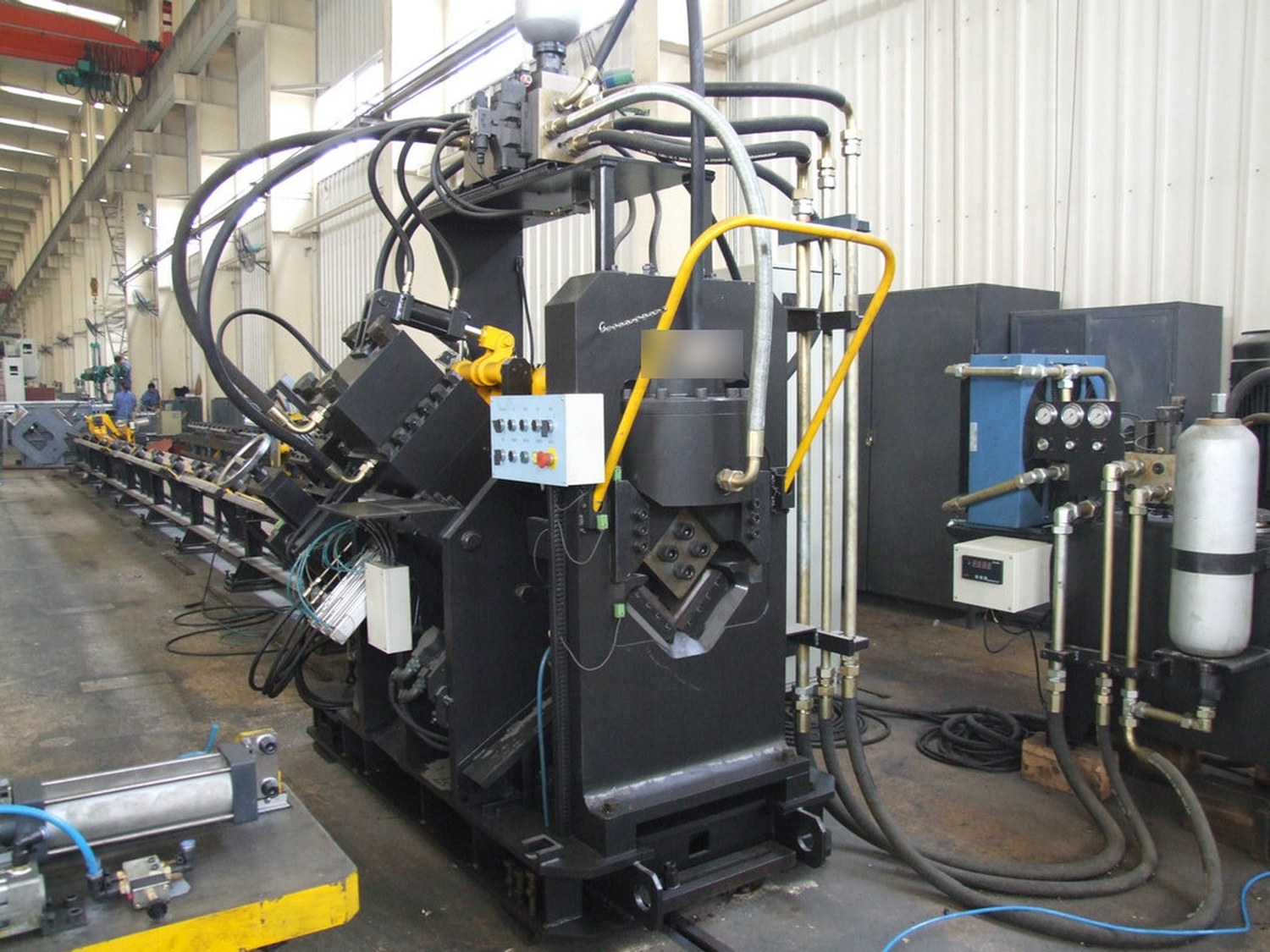

Punching and shearing station
Hydraulic punch and shear units share one frame with the bar clamped at each operation. Hole pattern and cut length come from the program, so a batch change needs no tooling setup.

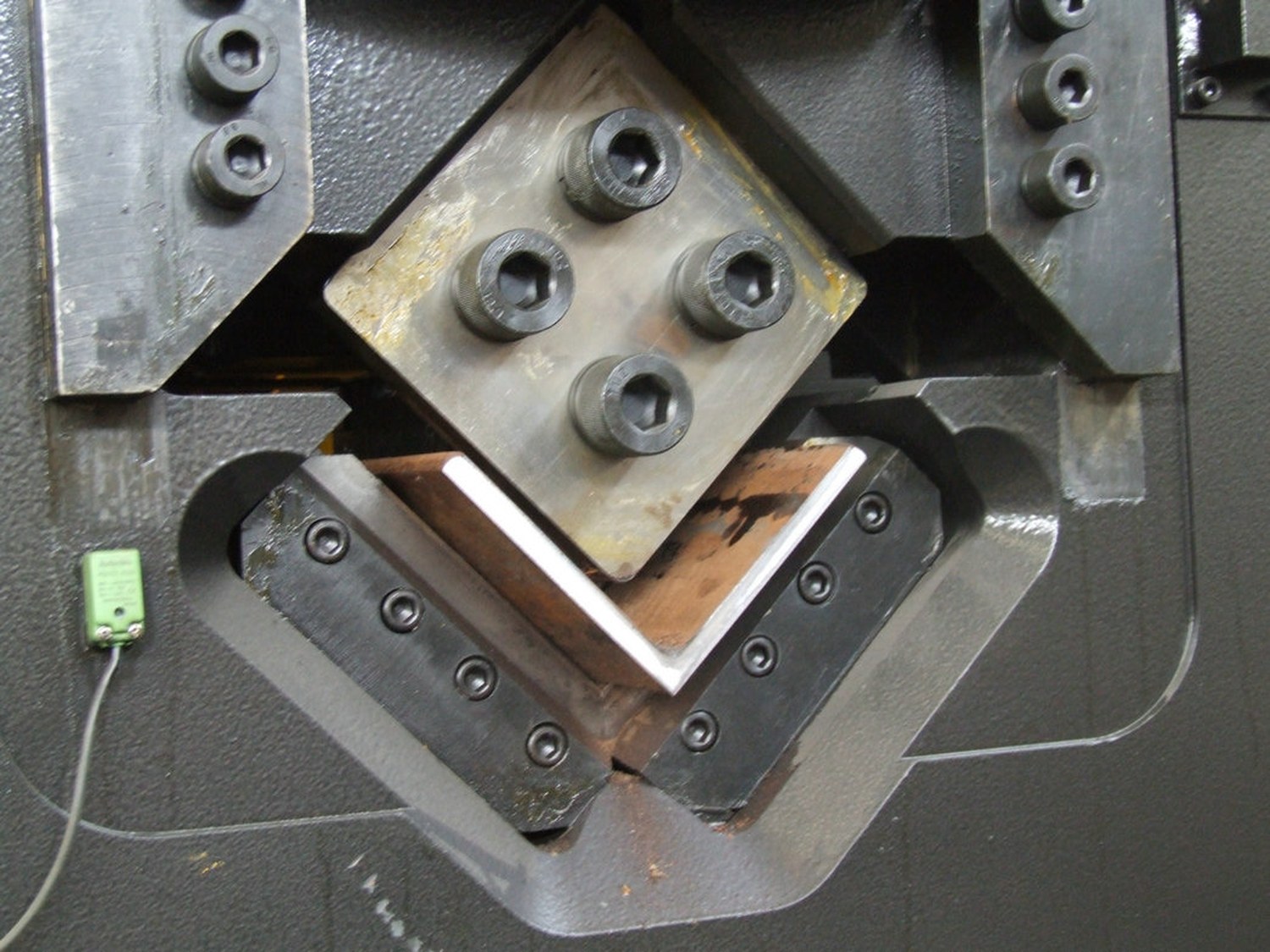

Punch and die tooling
Two or three punch stations per side each carry a different punch diameter, and the program selects the punch for each hole, up to 26 mm. Tooling is changed at the die block without disturbing the frame.

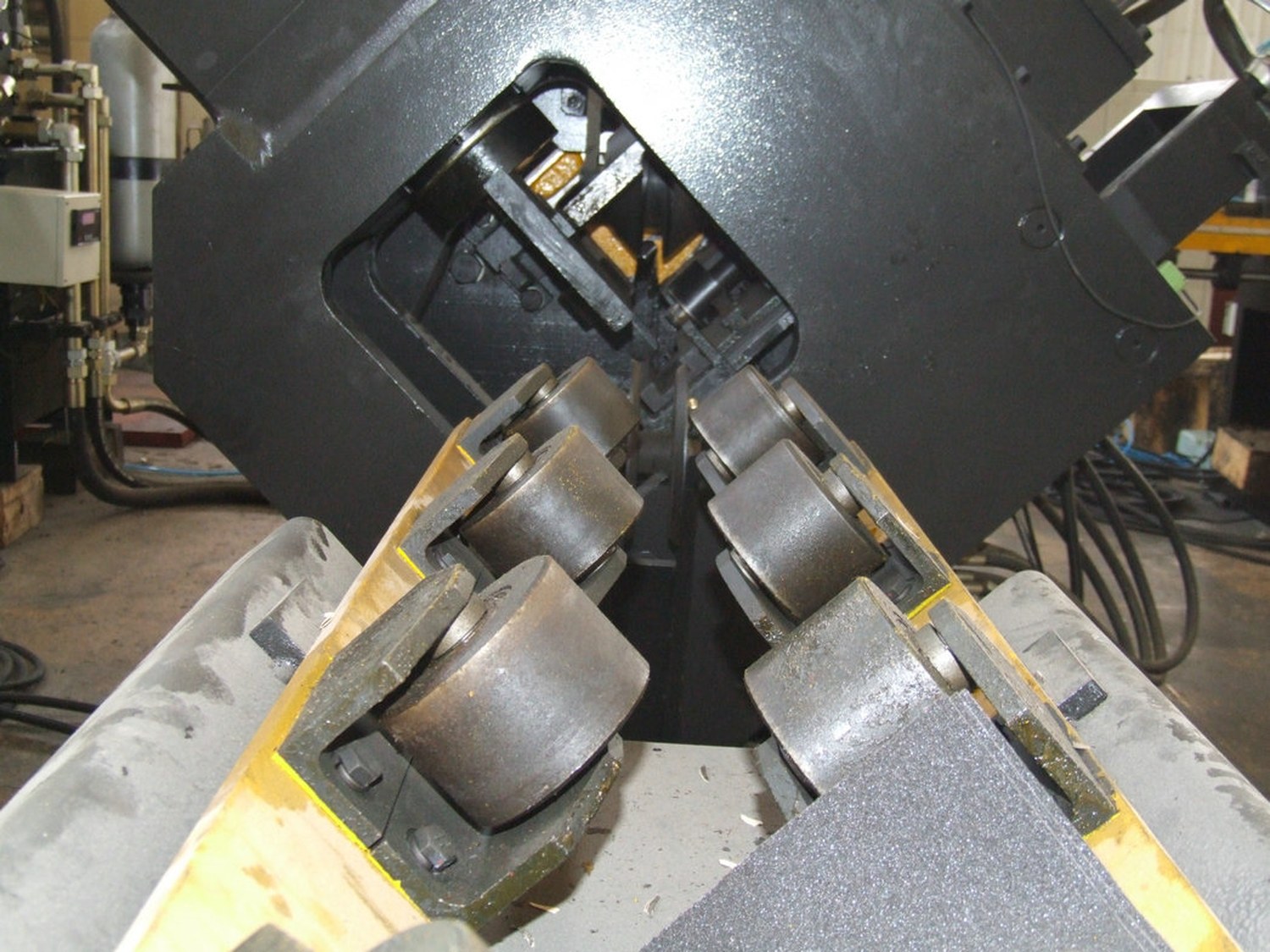

Guided roller clamping
Guided rollers bear on both legs of the angle at the punch station and hold the bar square to the tooling through every stroke. Hole position is repeatable along the full bar length.

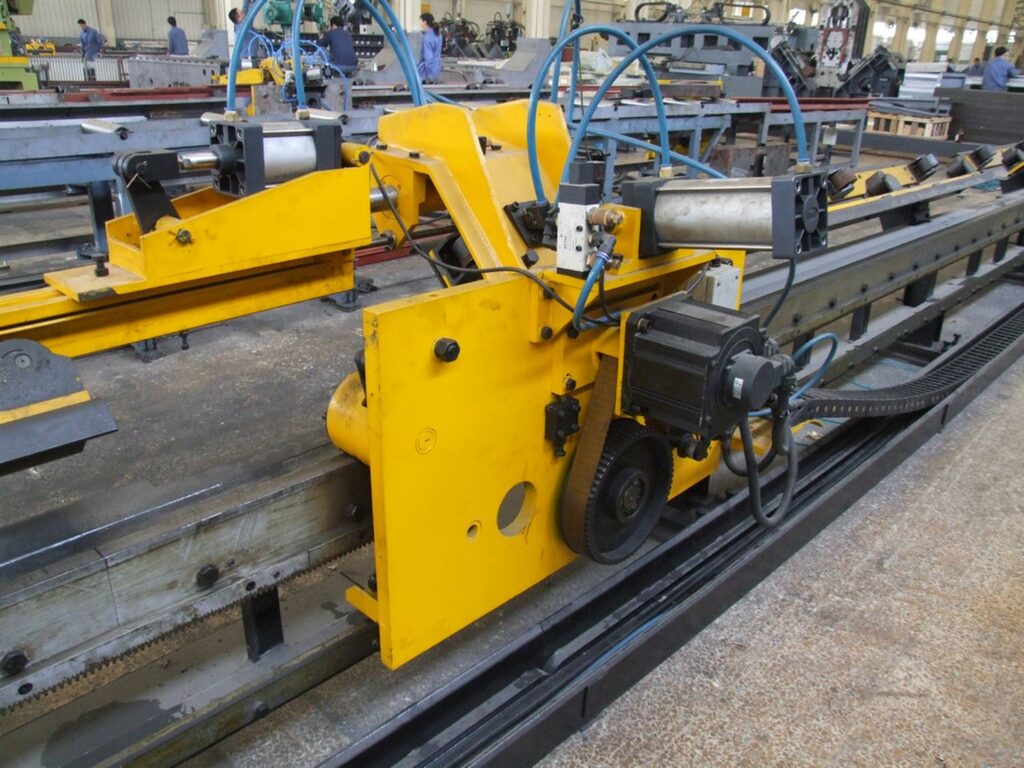

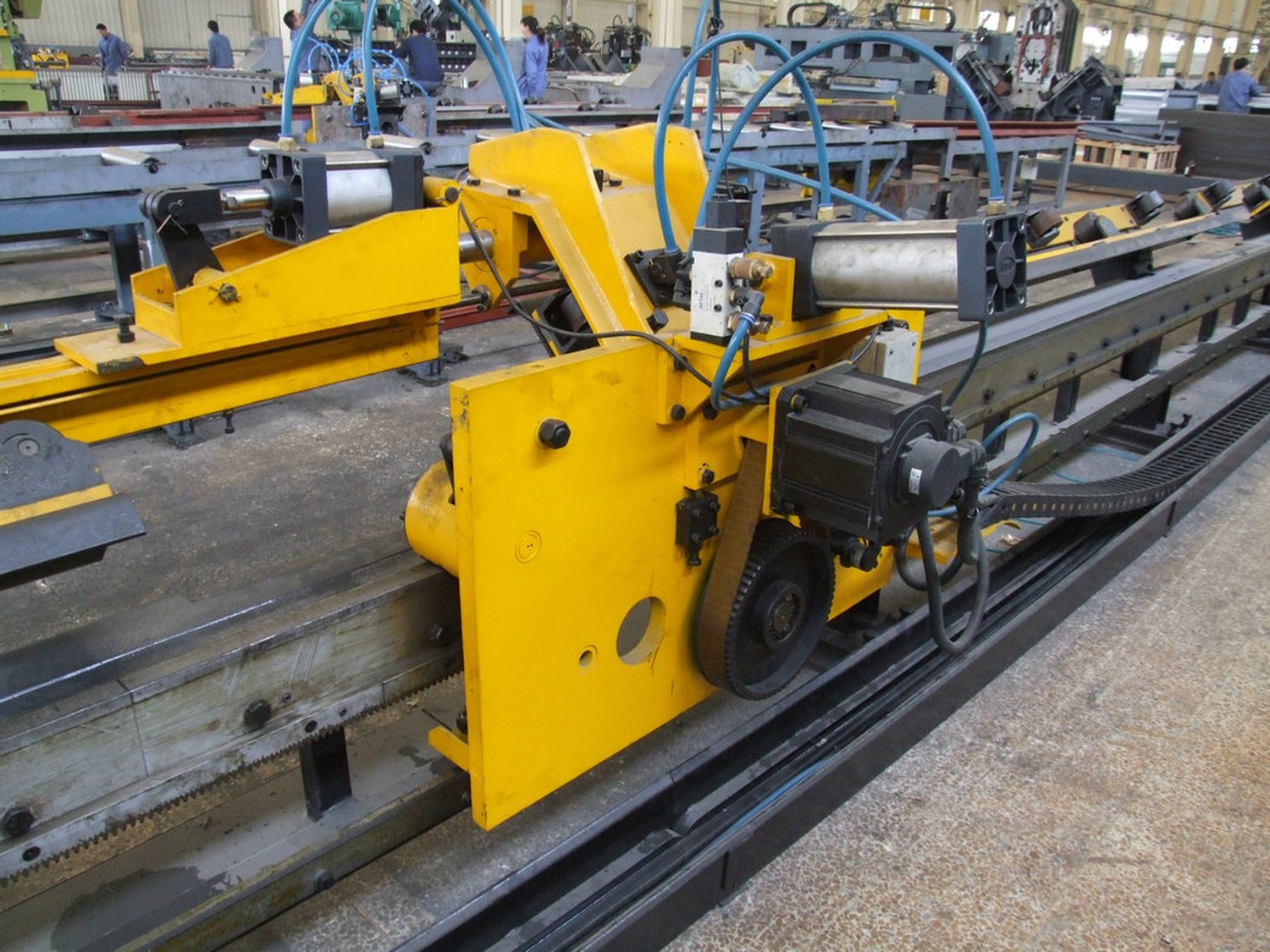

Servo feed carriage
A servo-driven carriage on a rack and pinion positions the bar for each hole, mark and cut. Length and pitch are held from the program rather than from stops or scribed marks.
Automatic loading and part discharge
Four transverse conveyors load the next bar automatically, and the finished-part conveyor tips parts to one side by pneumatic power. The next bar is staged while the machine is cycling.

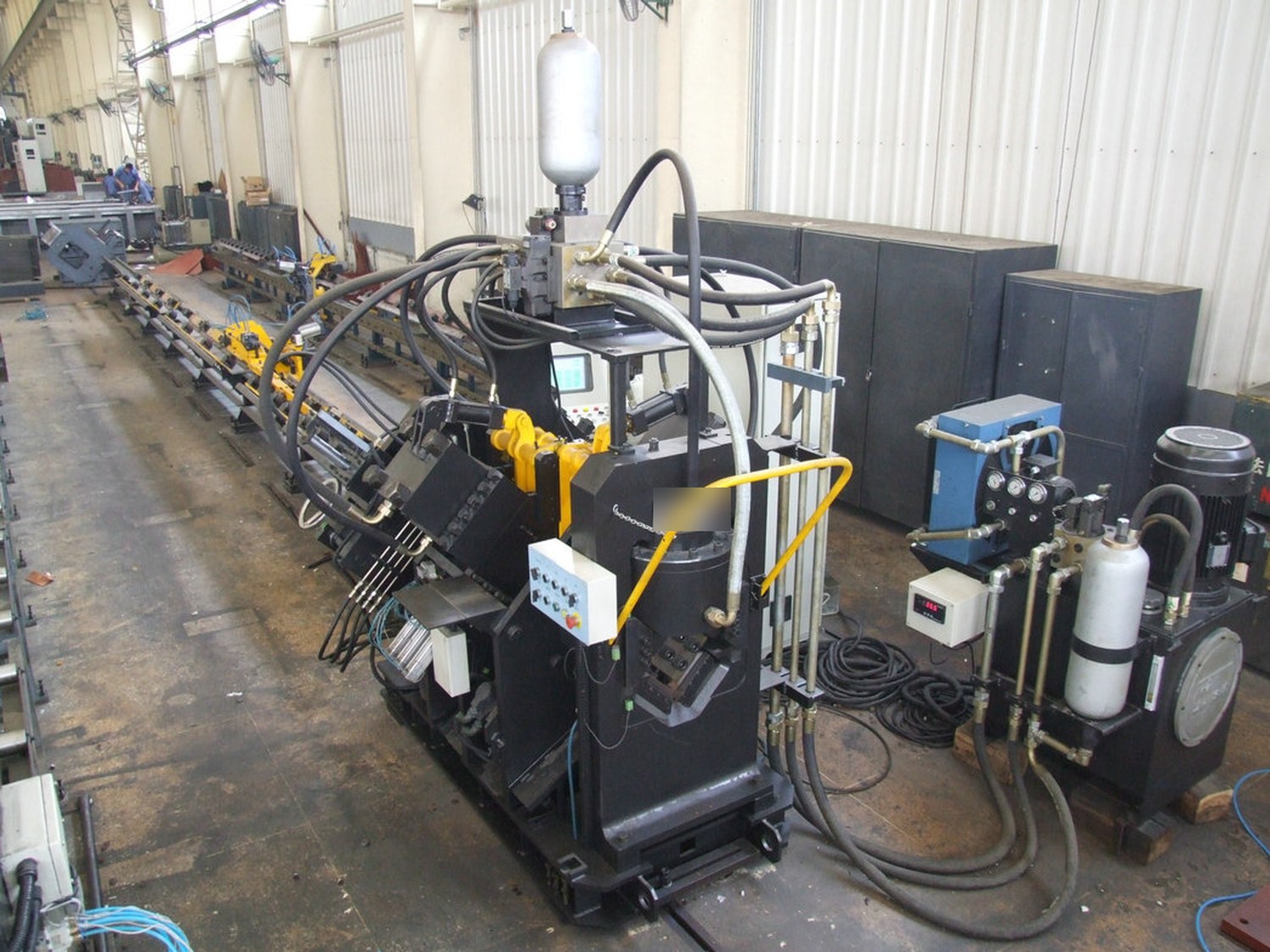

Stand-alone hydraulic power unit
A separate hydraulic unit with accumulator supplies punch and shear force independently of the frame. It sits clear of the line for access and maintenance.
Options
- Double blade shear (AL-2020, 1540 kN)
- Disc marker, 80 kN
- Angle notcher
- Slot punching to 22x50 mm
Is the Titan AL Series right for your workshop?
Send us your angle sizes, hole patterns and annual tonnage, and we will confirm the model and tooling that suit them.
Talk to a specialistSpecifications
| Model | AL-0605 | AL-0708 | AL-1010 | AL-1616 | AL-2020 |
|---|---|---|---|---|---|
| Min angle (mm) | 35x35x3 | 40x40x3 | 40x40x3 | 40x40x4 | 63x63x4 |
| Max angle (mm) | 56x56x6 | 70x70x8 | 100x100x10 | 160x160x16 | 200x200x20 |
| Max raw length (m) | 8 | 12 | 12 | 12 | 14 |
| Punches per side | – | 2 | 2 | 3 | 3 |
| Max punch diameter (mm) | 22 | 25.5 | 25.6 | 25.6 | 26 |
| Punching force (kN) | 150 | 350 | 440 | 950 | 1100 |
| Marking | Cassette character marking, four character groups; disc marking optional | ||||
| Marking force (kN) | 540 | 540 | 1030 | 1200 | 1200 |
| Character block (mm) | 14x10x19 | 14x10 | 14x10x19 | 20x12x19 | 20x12x19 |
| Shearing | Single blade; double blade optional on the AL-2020 | ||||
| Shearing force (kN) | 300 | 750 | 1100 | 3000 | 4300 |
| CNC axes | 1 | 3 | 3 | 3 | 3 |
| Max feed speed (m/min) | – | 60 | 60 | 60 | 40 |
| Total power (kW) | 18 | – | – | 33 | 44 |
| Weight (t, approx) | 10 | – | – | 16 | 21 |
| Line size L x W x H (m) | 20x4x2.2 | 25x7x2.2 | 25x7x2.2 | 26x7x2.2 | – |
Slot punching to 22x50 mm is available on the AL-1010, and the double blade shear on the AL-2020 cuts at 1540 kN. Model, punch tooling and shear configuration are confirmed against the angle sizes and hole patterns at quotation. IMS holds parts in Australia and services the machine with its own technicians.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
