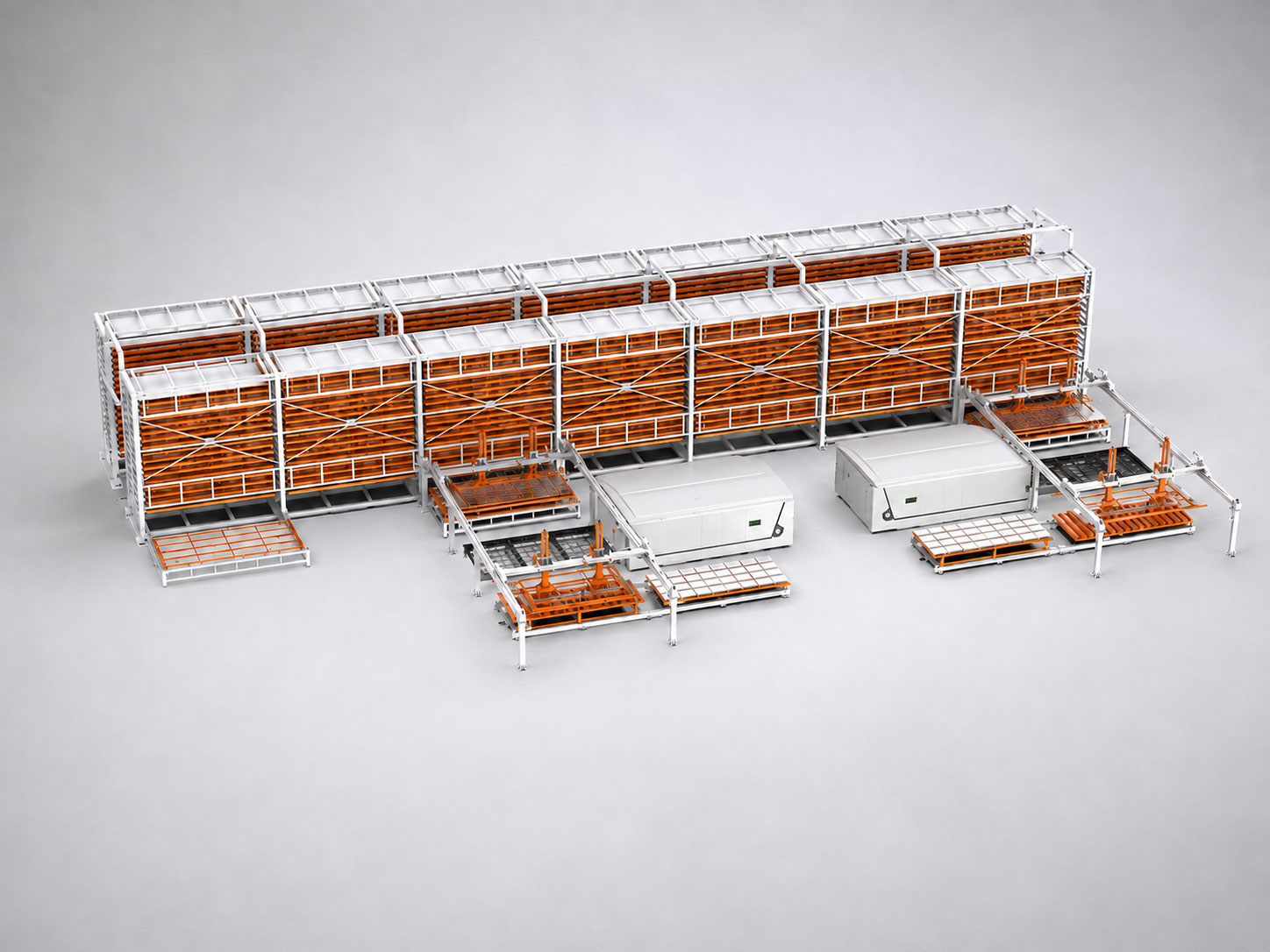

AORE ATL Series Automated Sheet Metal Production Line
Storage, loading, cutting and sorting on one line
- Integrated storage
- Automatic loading
- Fibre laser cutting
- Part sorting
The ATL connects sheet storage, loading, laser cutting, unloading and part sorting into one line running from a single schedule.
It is the end of the road for sheet automation, and it suits a shop where forklift and crane movements between processes have become the thing limiting output.
Key features

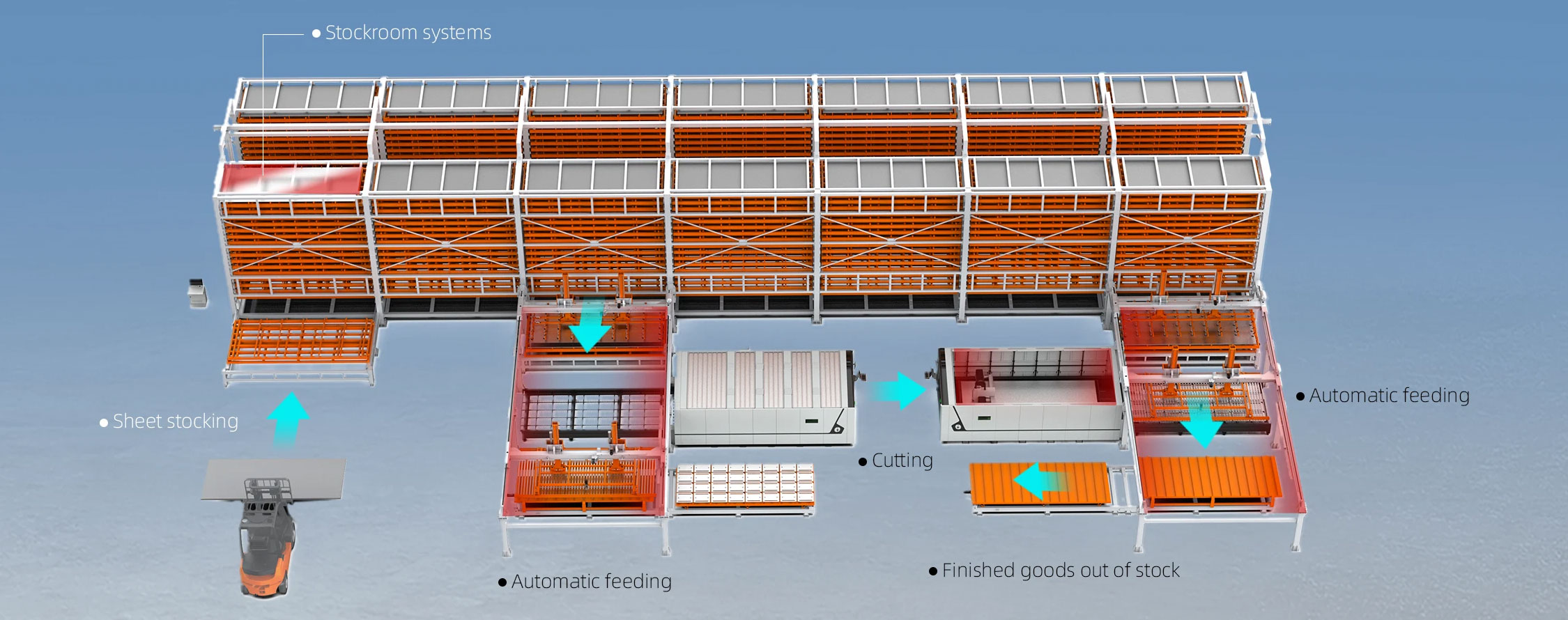

Fully automated workflow
Loading, cutting, unloading and sorting run as one sequence without operator intervention. Labour is reduced to supervision and exception handling rather than material movement.
Central scheduling across the line
A single scheduling system allocates work across storage, cutting and sorting. Jobs are queued and re-prioritised centrally rather than set machine by machine, and the line is monitored in real time so problems are picked up and cleared early.
Continuous multi-shift operation
The structure and drives are rated for continuous high-intensity running. Automated transfer between processes removes the crane, forklift and manual sorting steps that interrupt production.
Multi-material compatibility
The line runs varying sheet materials and thicknesses within the same schedule. Nesting, cutting parameters and sorting are set per job rather than per shift.
Is a full line the right step, or too big a one?
Tell us what you cut, how many shifts you run and the floor you have to work with. We will lay out a line around your building and tell you what it takes to install.
Talk to an Automation SpecialistSpecifications
| Storage system | 3015 sheet | 6025 sheet |
|---|---|---|
| Sheet size | 3000 x 1500 mm | 6000 x 2500 mm |
| Load per storage layer | 3 t | 5 t |
| Storage layers | 12 (customisable) | 12 (customisable) |
| Net height per layer | 280 mm | 280 mm |
| Storage length and positions | Customisable | Customisable |
| Inbound trolley | 1 set | 1 set |
| Outbound trolleys | Customisable | Customisable |
| Expansion | Loading, unloading and cutting systems | Loading, unloading and cutting systems |
There is no standard build. Tower size, laser, gantry reach, where material comes in and where finished parts come off are all decided by the building, the work and the output required. Send us your floor plan, your sheet sizes and your throughput and we will design a line around them.
Specifications are indicative and subject to change by the manufacturer without notice. Please confirm any figure critical to your application before ordering.
Installed and Supported in Australia
IMS imports direct from the factory and looks after the machine from delivery on.
- Installation and commissioning by IMS technicians
- Operator training on site
- Spare parts and consumables held in Australia
- Service and breakdown support from factory-trained technicians
